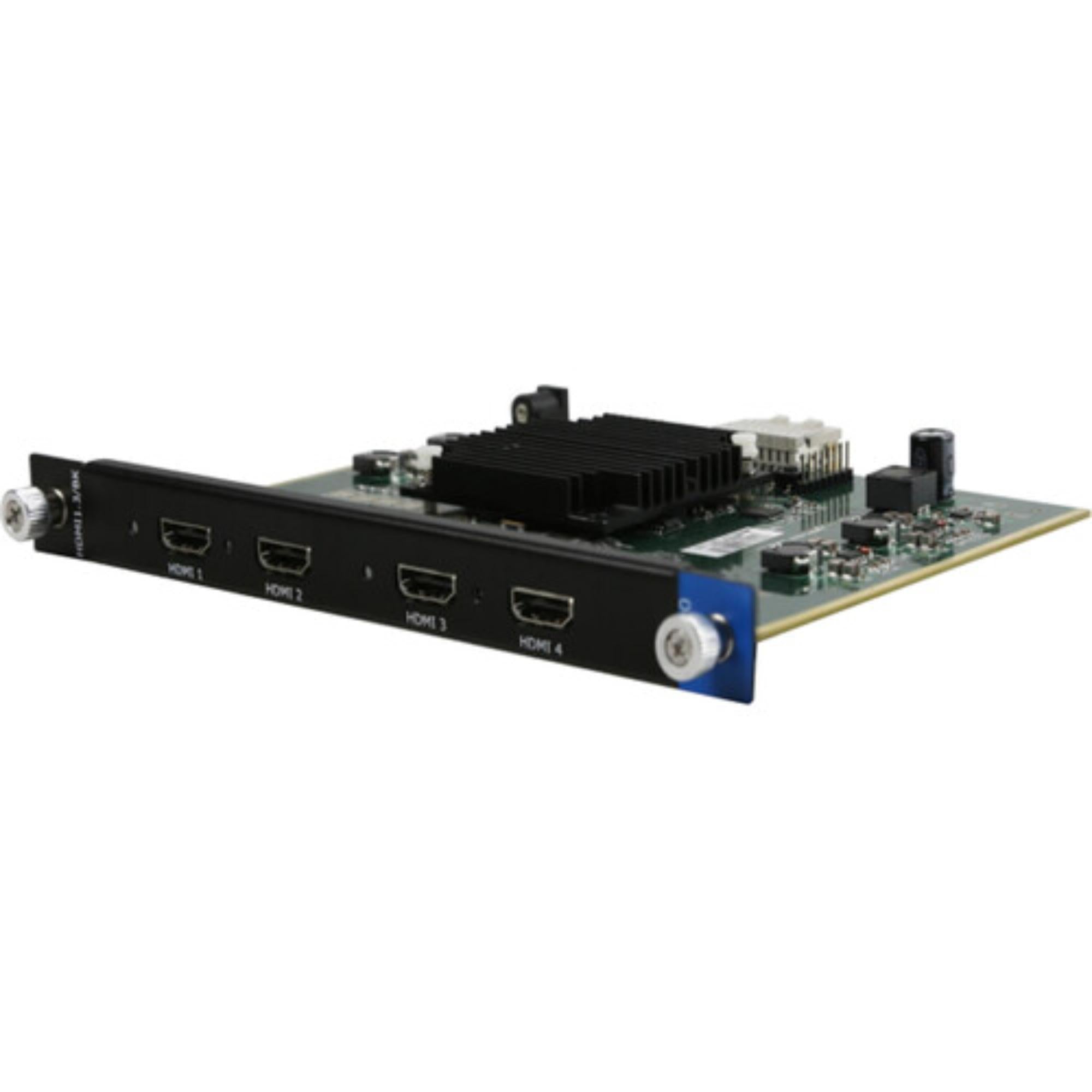

RGBLINK Quad HDMI 1.3 Output Module with OSD & Background for Q16pro

RGBLINK Quad HDMI 1.3 Output Module with OSD & Background for Q16pro is built for systems that need multiple HDMI outputs directly from the processor chassis, along with output-side tools that go beyond simple signal delivery. Designed specifically for the RGBLINK Q16pro, this module adds four HDMI 1.3 outputs and supports features such as cropping, scaling, OSD scrolling, background, and DVI signaling.

Highlights

• Dedicated output card for the RGBLINK Q16pro chassis
• 4 x HDMI-A 1.3 outputs for direct chassis-level HDMI expansion
• Supports HD SMPTE and VESA display resolutions
• Includes cropping, scaling, 8-layer roaming, OSD scrolling, and background
• Hot-swap capable for easier service and reconfiguration

Quick Specs & Uses

• Compatibility: RGBLINK Q16pro chassis
• Outputs: 4 x HDMI-A 1.3 female
• SMPTE support: 1080p at 60/50/30, 720p at 60/50
• VESA support: up to 1920 x 1200 at 60 Hz
• Scaling support: up to 3840 pixel height and width per port
• Features: cropping, scaling, 8-layer roaming, OSD scrolling, background, DVI signaling

Why It Helps

Processor systems are often easier to manage when required outputs are added inside the chassis instead of being created later with external hardware. This module helps by giving the Q16pro four direct HDMI outputs while also adding output-side tools that can shape how signals are formatted and presented at each port.

System Characteristics

• Four HDMI outputs expand the Q16pro’s direct display and presentation capacity
• SMPTE and VESA support improves flexibility across mixed workflow types
• Integrated scaling and cropping add more control at the output stage
• OSD scrolling and background functions support more presentation-oriented output behavior
• Internal module design helps reduce dependence on external output hardware

What’s In The Box

Please refer to the Specifications tab for the exact included items.
