RGBLINK PVW Module for Q16pro

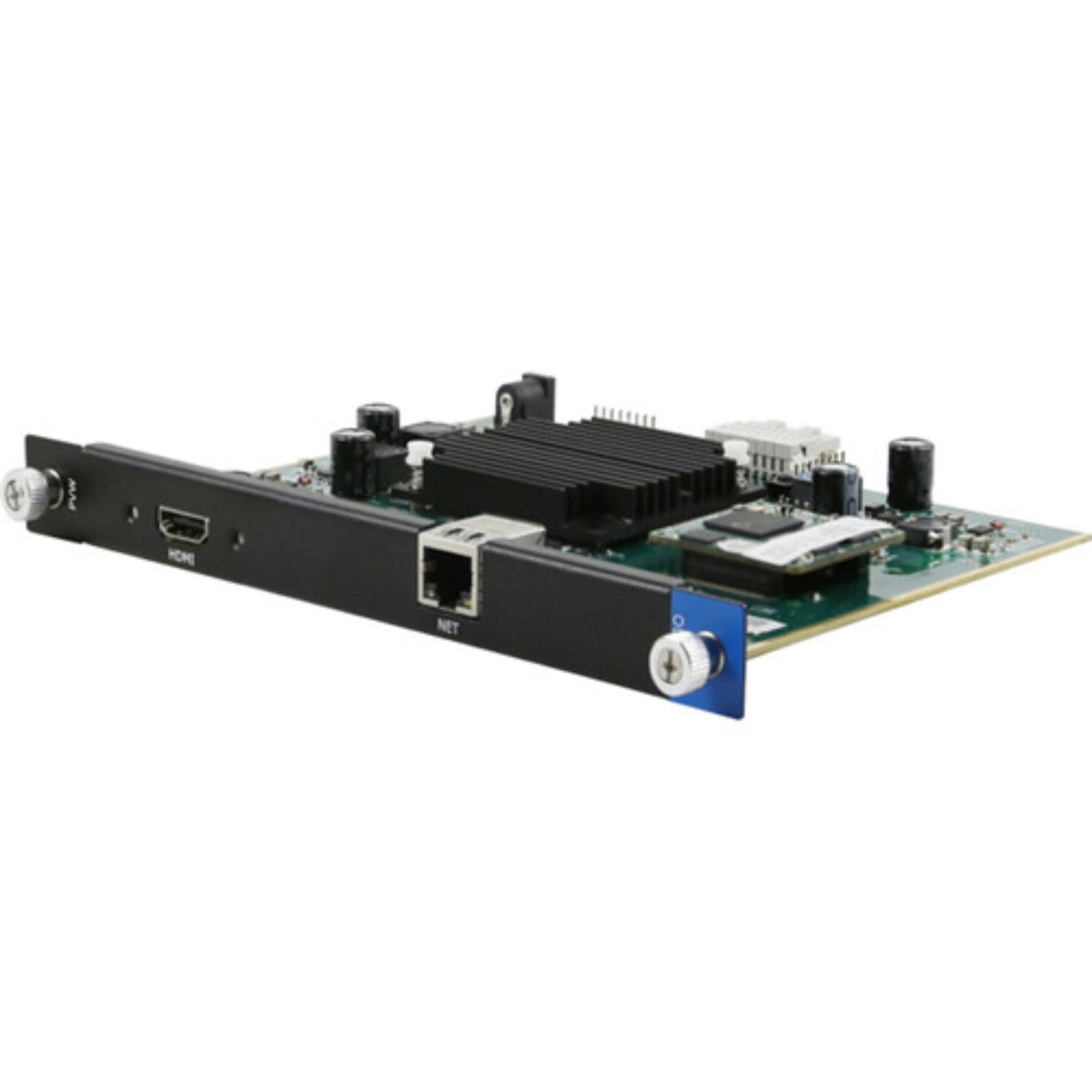

RGBLINK PVW Module for Q16pro is the kind of card you add when a processing chassis needs a dedicated preview path that operators can actually work with in real time. Built for the RGBLINK Q16pro chassis, this module combines 1 x HDMI Type A output with 1 x RJ45 port, supports video up to 1920 x 1080p60, and is hot-swap capable.

Highlights

• PVW card for Q16pro I/O chassis built for operator-facing preview workflows
• 1 x HDMI Type A output and 1 x RJ45 port for direct preview and network-linked connectivity
• Supports video up to 1920 x 1080p60 for HD preview operation
• Preview up to 64 video signals for larger multi-source monitoring workflows
• Hot-swap capable for easier service and modular expansion

Quick Specs & Uses

• Module type: PVW module
• Compatibility: RGBLINK Q16pro chassis
• Outputs: 1 x HDMI Type A 1.3 female, 1 x RJ45 female
• Maximum listed video support: 1920 x 1080p60
• Preview capacity: up to 64 video signals
• SMPTE support: 1080p60/50/30 and 720p60/50
• VESA support: 800 x 600 75 Hz through 1920 x 1080 60 Hz
• Service behavior: hot-swap capable
• Dimensions: 7.9 x 6.3 x 0.8 in / 199.5 x 160 x 20 mm
• Weight: 10.6 oz / 300 g

Why It Helps

In larger processing systems, preview is not just a convenience feature. It is part of keeping the operation stable. This module gives the Q16pro a dedicated path for viewing multiple signals in real time, which helps operators monitor system activity more clearly and manage more complex video wall or signage workflows with better confidence.

System Characteristics

• Dedicated preview path gives operators a clearer view into live system activity
• Preview support for up to 64 signals helps the module fit denser monitoring workflows
• HDMI output provides a direct path to compatible HD preview displays
• RJ45 connectivity adds network-linked utility within the preview environment
• Hot-swap design supports easier chassis service and staged expansion

What’s In The Box

Please refer to the Specifications tab for the exact included items.
