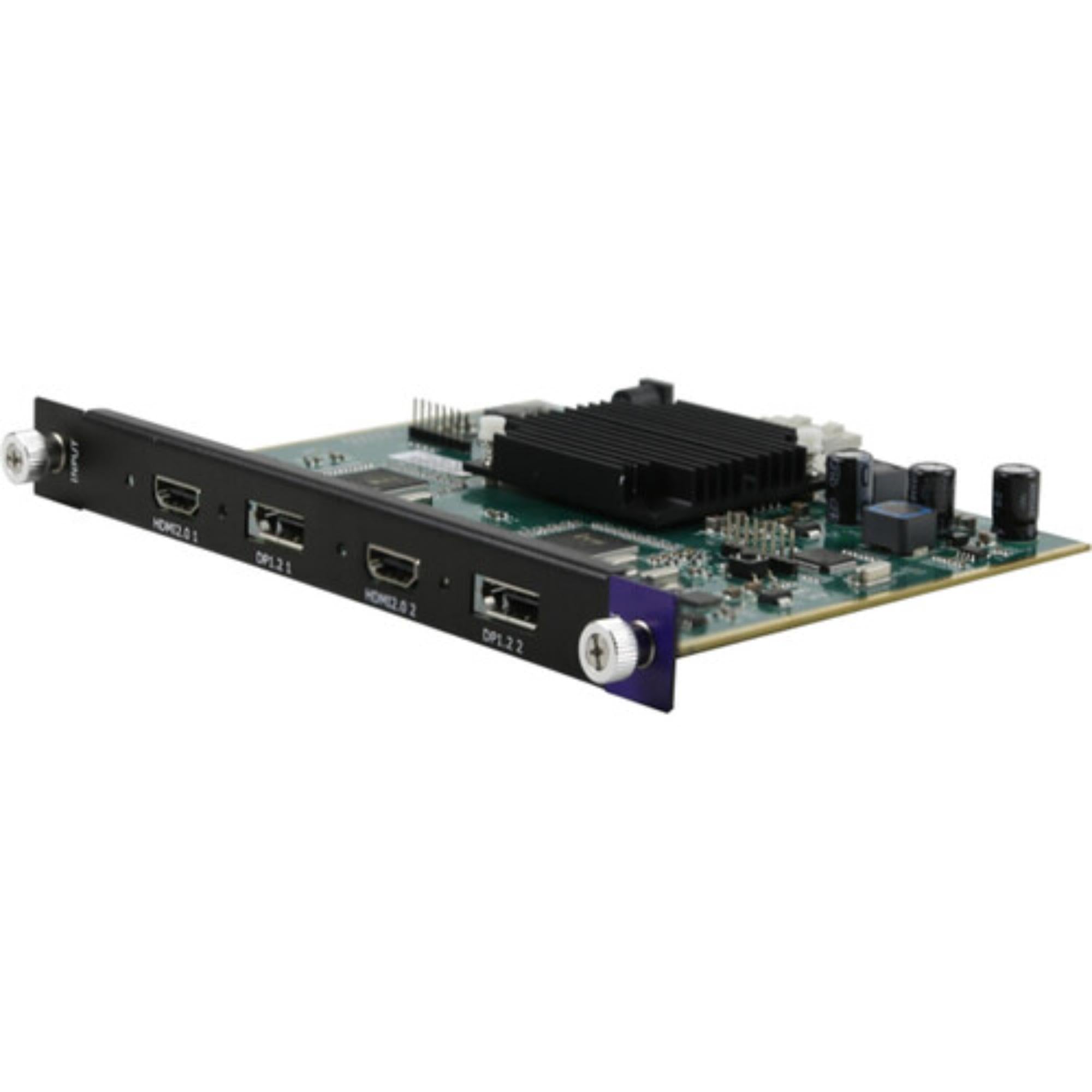

RGBLINK Dual DisplayPort 1.2 & HDMI 2.0 Input Module for Q16pro

RGBLINK Dual DisplayPort 1.2 & HDMI 2.0 Input Module for Q16pro is built for systems that need both video-style and computer-style source ingest directly inside the processor chassis. Designed specifically for the RGBLINK Q16pro, this module provides 2 x HDMI 2.0 inputs and 2 x DisplayPort 1.2 inputs for a cleaner internal path to mixed-source integration.

Highlights

• Dedicated input card for the RGBLINK Q16pro chassis
• 2 x HDMI 2.0 inputs and 2 x DisplayPort 1.2 inputs
• Supports HDCP 2.2 and EDID management
• Supports UHD-class and wide-format VESA resolutions
• Hot-swap capable for easier servicing and reconfiguration

Quick Specs & Uses

• Compatibility: RGBLINK Q16pro chassis
• Inputs: 2 x HDMI 2.0 female, 2 x DisplayPort 1.2 female
• SMPTE support: 1080p60, 720p60
• HDMI VESA support: up to 3840 x 2160 at 30/60 Hz
• DisplayPort VESA support: up to 3840 x 2160 at 30/60 Hz, plus 7680 x 1080 at 60 Hz
• Features: HDCP 2.2, EDID management
• Application: chassis-level mixed HDMI/DisplayPort source ingest

Why It Helps

Processor-based systems are often easier to manage when mixed-format sources are brought directly into the chassis instead of being adapted externally first. This module helps by giving the Q16pro both HDMI and DisplayPort ingest at the frame level, which can simplify system design and reduce dependence on separate format-conversion hardware.

System Characteristics

• Mixed HDMI and DisplayPort inputs expand source compatibility directly inside the chassis
• HDCP 2.2 support improves compatibility with protected content sources
• EDID management helps stabilize source-to-system negotiation
• SMPTE and VESA support improves flexibility across video and display workflows
• Hot-swap capability improves operational flexibility during service or expansion

What’s In The Box

Please refer to the Specifications tab for the exact included items.
