RGBLINK Analog Audio Input & Output Module for Q16pro

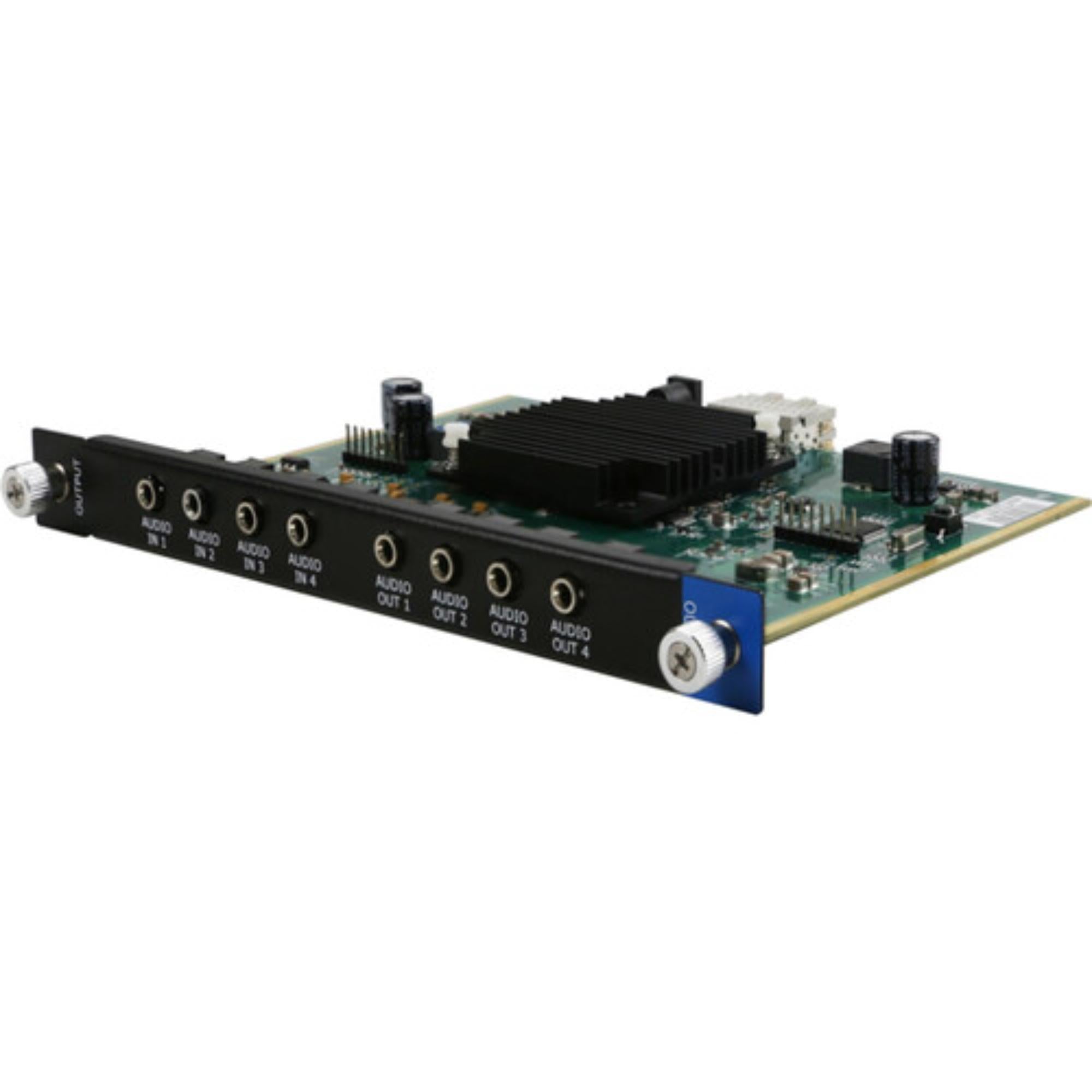

RGBLINK Analog Audio Input & Output Module for Q16pro is the kind of card you add when a video processing chassis needs more direct control over analog audio without pushing that part of the workflow outside the frame. Built for the RGBLINK Q16pro chassis, this module provides 4 x 3.5 mm analog audio inputs and 4 x 3.5 mm analog audio outputs, with support for stereo / dual-channel audio in a hot-swappable form factor.

Highlights

• Audio I/O card for Q16pro I/O chassis built for integrated analog audio workflows
• 4 x 3.5 mm inputs and 4 x 3.5 mm outputs for direct analog audio connection
• Supports analog stereo / dual-channel audio for straightforward left-right signal handling
• Supports sync-switching with video and selectable audio banks
• Hot-swap capable for easier service and modular expansion

Quick Specs & Uses

• Module type: analog audio input and output module
• Compatibility: RGBLINK Q16pro chassis
• Inputs: 4 x 3.5 mm audio jack female
• Outputs: 4 x 3.5 mm audio jack female
• Audio format: analog stereo, dual-channel
• Additional functions: sync-switching with video, selectable audio banks, volume adjustment
• Service behavior: hot-swap capable
• Dimensions: 7.9 x 6.3 x 0.8 in / 199.5 x 160 x 20 mm
• Weight: 10.6 oz / 300 g

Why It Helps

In larger processing systems, audio often becomes harder to manage when it is treated as a separate problem from video. This module gives the Q16pro a more integrated analog audio path inside the chassis itself. With sync-switching, selectable banks, and local level control, it helps audio behave more like part of the switching workflow instead of an external patching exercise.

System Characteristics

• Four analog inputs and four analog outputs provide direct audio I/O inside the chassis
• Stereo / dual-channel support fits common program and presentation audio workflows
• Sync-switching with video helps keep audio behavior aligned with source changes
• Selectable audio banks add more structured control within the processor environment
• Hot-swap design supports easier chassis service and staged expansion

What’s In The Box

Please refer to the Specifications tab for the exact included items.
