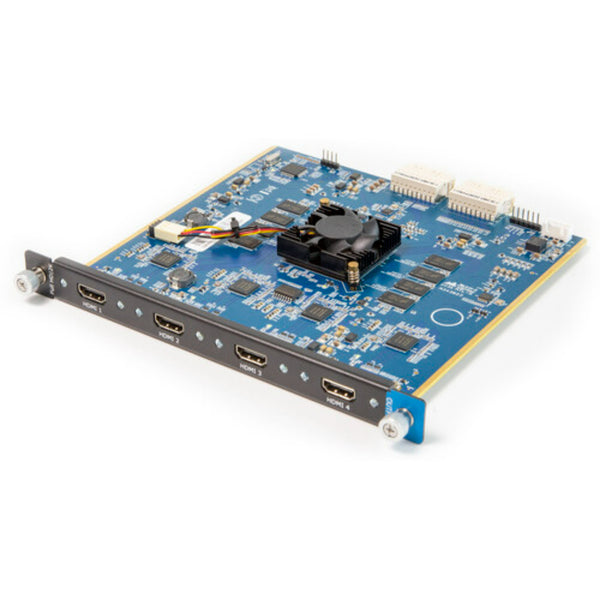

RGBlink Quad HDMI 1.3 Output Module for Q Series

RGBlink Quad HDMI 1.3 Output Module for Q Series is the kind of card you add when a modular processor needs multiple direct HDMI outputs without pushing that job onto external converters or extra distribution hardware. Based on the image source, this module provides 4x HDMI-A outputs, uses a fully modular architecture, and supports hot swap, which makes it a practical fit for serviceable installed systems and live environments where flexibility matters. The listed format support covers a broad range of SMPTE and VESA resolutions up to 2048 x 1152 at 60Hz, with additional custom resolutions shown in the source table.

Highlights

• Output module for Q Series built for modular HDMI output expansion
• Four HDMI-A outputs for multi-screen and display-driven workflows
• Output resolution up to 2048 x 1152 at 60Hz for higher-resolution output paths
• Fully modular architecture designed for chassis-based integration
• Hot-swap support helps simplify service and module replacement

Quick Specs & Uses

• Module type: Quad HDMI 1.3 output module for Q Series
• Outputs: 4x HDMI-A
• Architecture: fully modular
• Service behavior: supports hot swap
• Maximum listed output resolution: 2048 x 1152 at 60Hz
• Resolution support: SMPTE and VESA formats
• Maximum width: 3840
• Maximum height: 3840
• Frame rate: 120Hz
• Overall bandwidth: 245W
• Weight: 0.28 kg
• Dimensions: 202 x 190.8 x 20 mm
• Product code: 790-1002-21-0

Why It Helps

In modular display systems, output capacity matters just as much as input flexibility. This module gives the Q Series platform four direct HDMI output paths on one card, which helps keep system expansion inside the processor frame instead of spreading it across external adapters and extra hardware. That usually means a cleaner install, easier service access, and fewer moving parts when the system grows.

System Characteristics

• Four HDMI outputs on one module make it easier to feed multiple display endpoints from the processor
• Broad SMPTE and VESA support helps the module sit comfortably between video and computer-based display workflows
• 2048 x 1152 at 60Hz output support gives the card headroom for higher-resolution screen management tasks
• Hot-swappable behavior is useful when maintenance or staged upgrades need to happen with less disruption
• Modular chassis integration keeps the output stage cleaner than relying on external conversion chains

What’s In The Box

Please refer to the Specifications tab for the exact included items.
