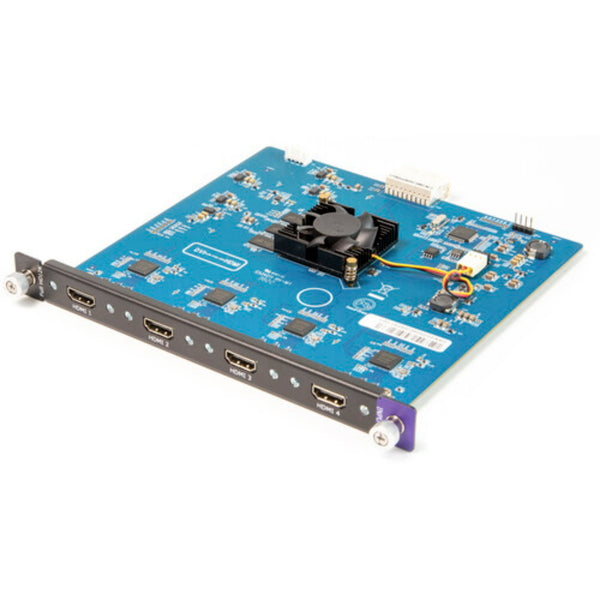

RGBlink Quad HDMI 1.3 Input Module for Q Series

RGBlink Quad HDMI 1.3 Input Module for Q Series is the kind of card you add when a modular processor needs to accept several HDMI sources cleanly without pushing that job onto external adapters or extra hardware. Based on the image source, this module provides 4x HDMI-A inputs, supports HDMI with HDCP, and accepts input resolutions up to 2048 x 1080 at 60Hz. It also includes EDID management and hot-swap support, which makes it a practical fit for systems where source stability and service access matter.

Highlights

• Input module for Q Series built for modular HDMI source expansion
• Four HDMI-A inputs for laptops, media players, and other HDMI sources
• Supports HDMI with HDCP for compatibility with protected content devices
• EDID management helps clean up source-to-processor negotiation
• Hot-swappable modular design supports easier maintenance and service

Quick Specs & Uses

• Module type: Quad HDMI 1.3 input module for Q Series
• Inputs: 4x HDMI-A
• Architecture: fully modular
• Maximum listed input resolution: 2048 x 1080 at 60Hz
• Format support: SMPTE and VESA resolutions
• EDID management: supported
• HDCP: HDCP 1.x compliant
• Maximum width: 2048
• Maximum height: 1200
• Frame rate: 120Hz
• Listed overall bandwidth: 235W
• Weight: 0.27 kg
• Dimensions: 202 x 190.8 x 20 mm
• Product code: 790-1002-01-0

Why It Helps

In real installations, HDMI source handling is often where problems start. Different laptops, players, and graphics devices all want to negotiate their own way. This module gives the Q Series platform four HDMI input paths inside the chassis and adds EDID management to help those sources behave more predictably. That usually means fewer surprises during setup and a cleaner system design overall.

System Characteristics

• Four HDMI inputs on one card make it easier to bring multiple external sources into the processor
• EDID management helps reduce handshake problems with mixed source devices
• HDCP support matters when protected HDMI sources are part of the workflow
• Broad SMPTE and VESA support helps the module fit both video and computer-driven signal environments
• Hot-swappable construction is useful when maintenance or phased expansion needs less disruption

What’s In The Box

1 x RGBlink Quad HDMI 1.3 Input Module for Q Series
