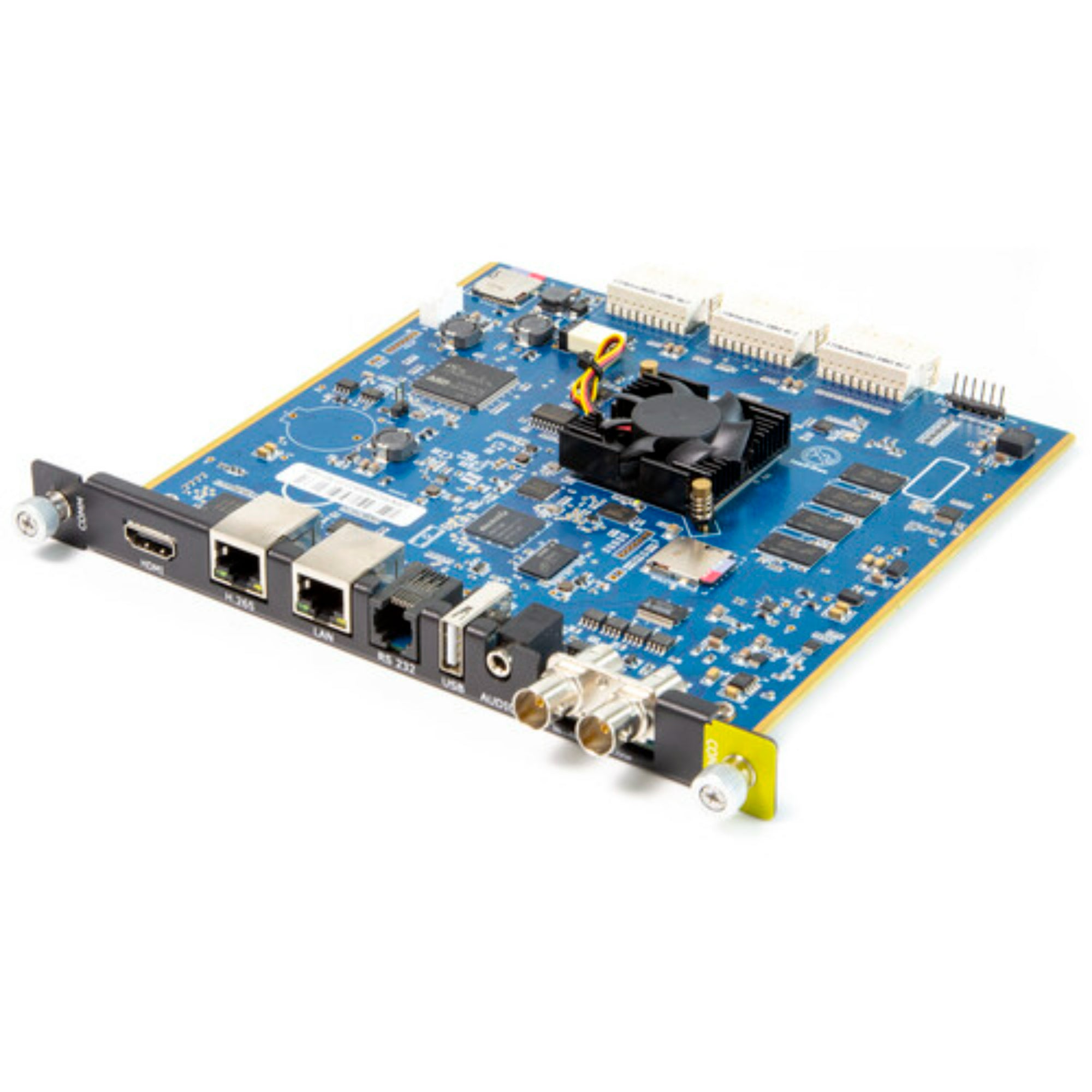

RGBlink Communication Module with PVW for Q Series

RGBlink Communication Module with PVW for Q Series is the kind of module you add when the system needs more than just signal routing. It gives the Q Series platform a practical control and monitoring layer with PVW over HDMI for multi-window monitoring, an H.265 IP connection for remote control and IP echo, plus LAN, RS232, and USB for software control and upgrade access. The module also includes TRS audio monitoring and an IN / GENLOCK / LOOP synchronization connection for systems that need timing reference and sync pass-through. From an integration standpoint, this is a service-friendly card built on a fully modular architecture with hot-swap support.

Highlights

• Communication module for Q Series built for monitoring, control, sync, and service functions
• PVW HDMI output used for multi-window monitoring
• H.265 IP connection used for remote control and IP echo
• LAN, RS232, and USB support software control and device upgrade workflows
• Fully modular hot-swappable design helps with service and system maintenance

Quick Specs & Uses

• Module type: communication module with PVW for Q Series
• Architecture: fully modular
• Service behavior: supports hot swap
• PVW output: 1x HDMI for multi-window monitoring
• IP connection: 1x IP (H.265) for remote control and IP echo
• Control ports: 1x LAN and 1x RS232
• Upgrade port: 1x USB for device upgrade
• Audio monitoring: 1x TRS
• Synchronization: 1x IN-GENLOCK-LOOP for sync input and loop
• Weight: 0.30 kg
• Dimensions: 202 x 190.8 x 20 mm
• Product code: 790-1002-22-0

Why It Helps

In a modular system, control and monitoring are often what separate a clean install from a frustrating one. This module brings several of those utility functions together on one card. You get a preview monitoring output, multiple control interfaces, upgrade access, audio monitoring, and sync connectivity in a single chassis-ready module. That keeps the system easier to manage and avoids spreading basic operational tasks across external adapters or separate hardware.

System Characteristics

• PVW over HDMI gives operators a direct multi-window monitoring output
• H.265 IP support adds a network-based path for remote control and IP echo functions
• LAN and RS232 connectivity support integration with control PCs, routers, and software-based management
• USB upgrade access gives technicians a direct path for device maintenance
• Genlock input and loop connection helps the module sit more cleanly in synchronized system designs

What’s In The Box

1 x RGBlink Communication Module with PVW for Q Series
