RGBLINK PTZ Camera Controller

RGBLINK PTZ Camera Controller is the kind of hardware that makes a multi-camera PTZ system feel organized instead of improvised. Built for direct camera control over both LAN and serial connections, it is designed to manage up to 255 cameras, making it a practical fit for larger installed PTZ environments.

Highlights

• Supports up to 255 cameras for scalable PTZ system control
• Works over LAN, RS-232, RS-422, and RS-485 for broad installation flexibility
• Supports ONVIF, VISCA, Pelco-D, and Pelco-P for multi-protocol compatibility

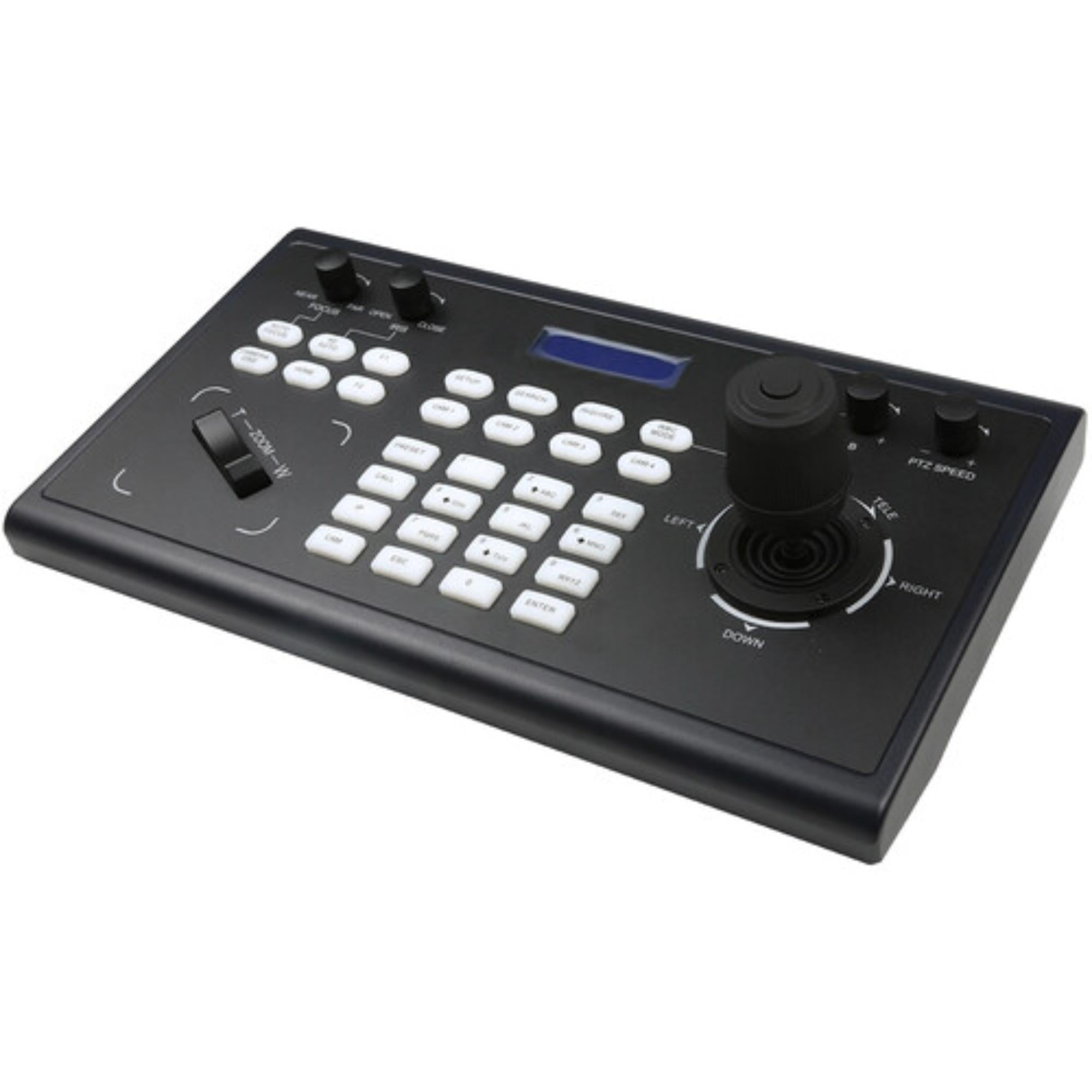

• Includes joystick, zoom control, 5 knobs, and keys for direct tactile operation
• LCD screen with key tone supports clearer front-panel feedback during use

Quick Specs & Uses

• Product type: PTZ camera controller
• Supported camera count: 255 channels
• Supported protocols: ONVIF, VISCA, Pelco-D, Pelco-P

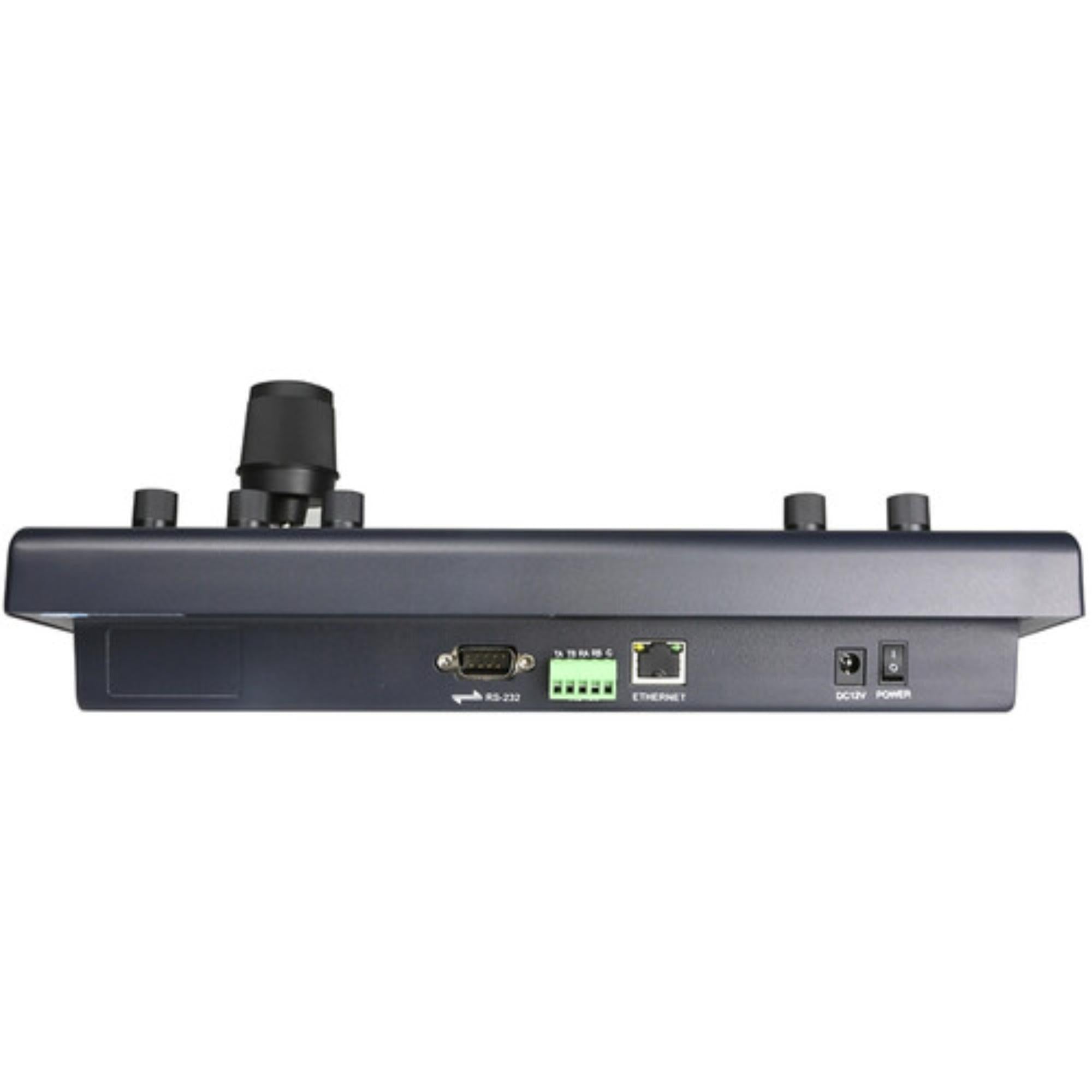

• Control I/O: 1 x DE-15/DB-15 (RS-232), 1 x RJ45 (LAN)
• Other I/O: 1 x unspecified interface for RS-422 / RS-485
• Controls: 1 x zoom, multifunction joystick, 5 knobs, keys
• PoE support: yes
• Power input: 12 VDC
• Power consumption: 0.6 W
• Operating conditions: 32 to 82°F / 0 to 50°C up to 90% humidity
• Dimensions: 12.6 x 7.1 x 3.9 in / 320 x 180 x 100 mm

Why It Helps

PTZ systems usually work best when operators can move quickly without diving through layers of software. This controller gives users a direct physical interface for camera movement, zoom, and camera selection while maintaining compatibility across both IP and serial control environments. That makes it easier to manage mixed PTZ systems in rooms and facilities where camera fleets are not always uniform.

System Characteristics

• Multi-protocol support helps the controller fit a broader range of PTZ camera ecosystems
• LAN and serial control paths make it useful in both newer and legacy-style installations
• Joystick and knob-based operation supports faster, more tactile camera control
• Support for 255 cameras gives the controller room to scale in larger systems
• PoE support can simplify installation in cleaner network-driven setups

What’s In The Box

RGBLINK PTZ Camera Controller and user manual.
