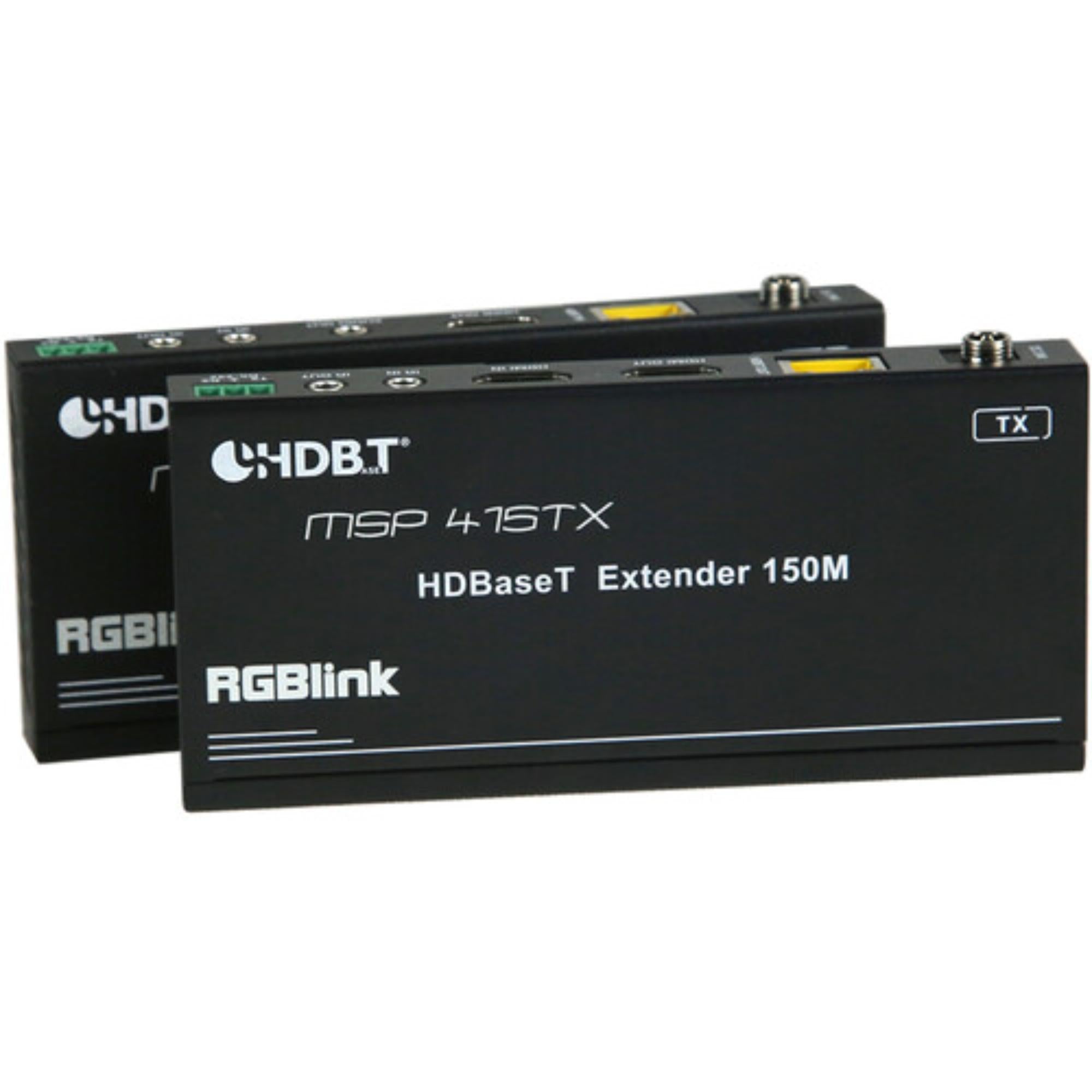

RGBLINK MSP 415 HDMI 2.0 to HDBaseT Extender Set

RGBLINK MSP 415 HDMI 2.0 to HDBaseT Extender Set is the kind of kit you use when the display needs to live far away from the source, but the signal path still needs to stay clean and predictable. Built as a transmitter-and-receiver extension system, it carries HDMI 2.0 over HDBaseT on a single Cat 5e or better cable for longer structured-cable workflows.

Highlights

• HDMI 2.0 to HDBaseT extender set for long-run AV installs
• Supports 4K up to 120 m and 1080p up to 150 m
• HDMI loop output on the transmitter supports local source-end monitoring
• Bidirectional IR, RS-232, and CEC passthrough help keep control with the signal path
• Power over HDBaseT / shared power behavior simplifies far-end deployment

Quick Specs & Uses

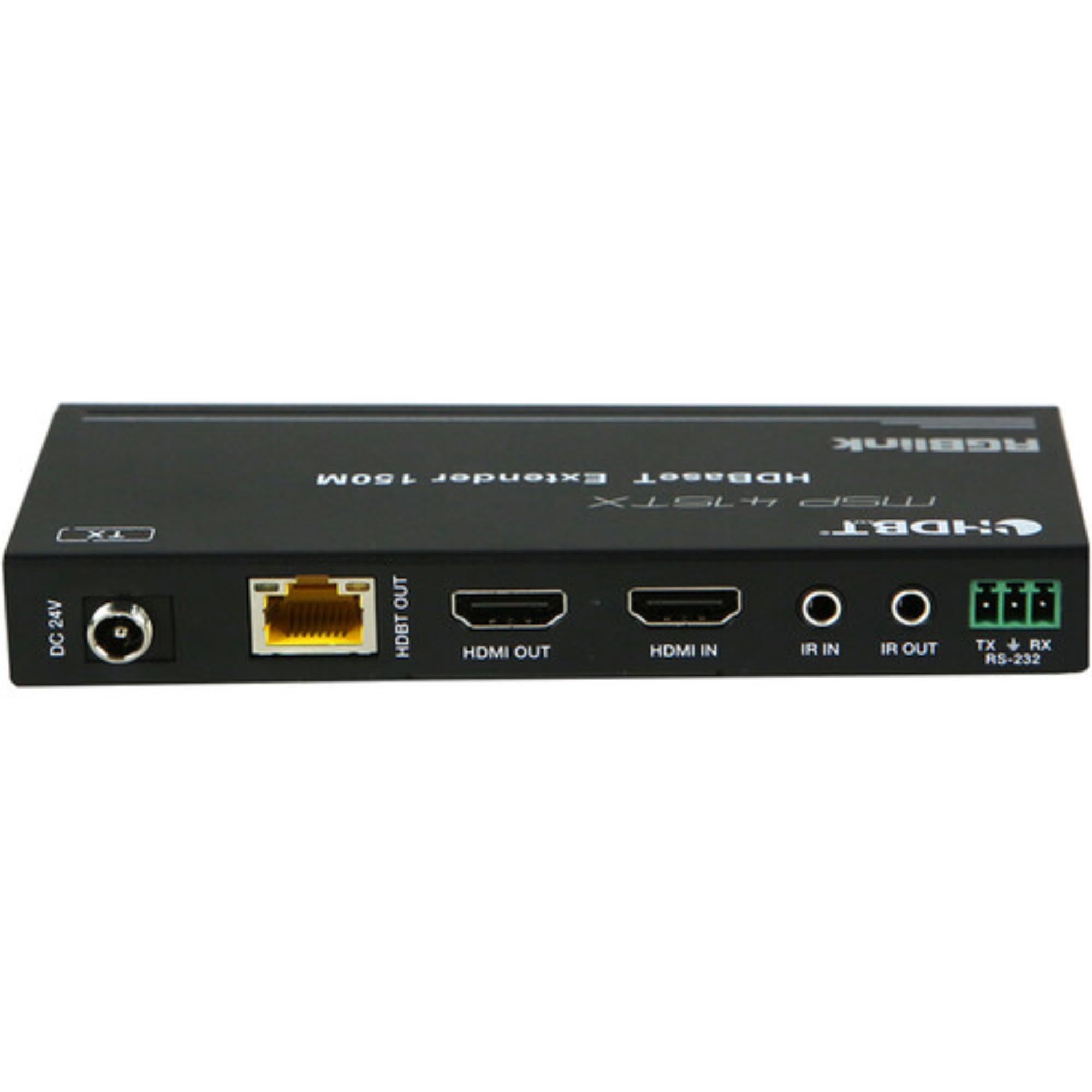

• Transmitter I/O: 1 x HDMI 2.0 input, 1 x RJ45 HDBaseT output
• Receiver I/O: 1 x RJ45 HDBaseT input, 1 x HDMI 2.0 output
• Embedded audio: HDMI
• Maximum transmission distance: 120 m at DCI/UHD 4K, 150 m at 1080p
• Supported cable: Cat 5e or higher
• HDR support: HDR10+, HDR10, Dolby Vision, HLG
• Compliance: HDCP 2.2 / 1.4, DVI 1.0
• Power input: 24 VDC at 1 A via barrel connector
• PoE/PoH behavior: supported

Why It Helps

When a display run gets too long for comfortable direct HDMI cabling, the cleaner answer is usually to move onto structured cable and keep the system more disciplined. The RGBLINK MSP 415 helps by extending the signal over HDBaseT, preserving control transport, and adding a local loop-out at the source side so the installer does not have to build that functionality separately.

System Characteristics

• Long-run HDMI transport makes the set useful in installed AV environments
• Loop output at the transmitter supports local monitoring or nearby display feed
• Control passthrough keeps remote display control closer to the video path
• Broad HDR and HDCP support improve compatibility across modern source/display combinations
• Shared power behavior helps reduce far-end installation complexity

What’s In The Box

Please refer to the Specifications tab for the exact included items.
