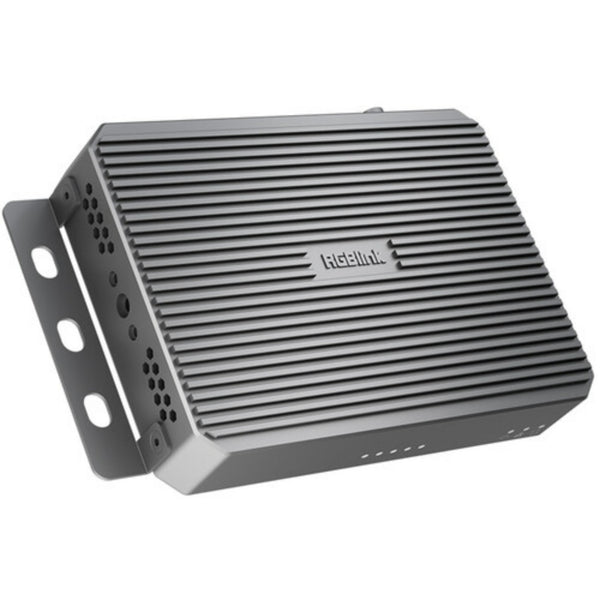

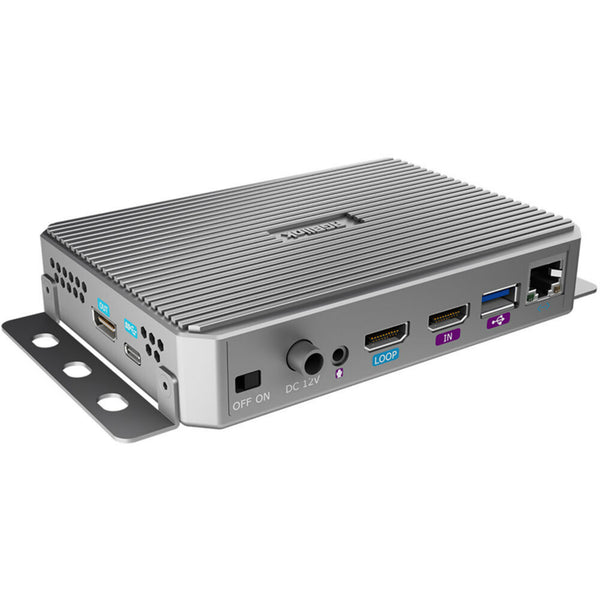

RGBlink MSP 325N Ultra HD H.264/H.265 Encoder

RGBlink MSP 325N Ultra HD H.264/H.265 Encoder/Decoder is the kind of compact box that earns its place when you need one device to handle encode, decode, record, and stream without turning the workflow into a stack of adapters and half-finished fixes. It takes in HDMI 2.0 up to UHD 4K60, gives you both HDMI loop and HDMI output, supports H.264 and H.265, and works across common delivery paths like SRT, RTMP, RTSP, HTTP, and NDI.

Highlights

• 4K60-capable HDMI workflow with 1x HDMI 2.0 input, 1x HDMI 2.0 loop output, and 1x HDMI 2.0 output
• Encode and decode in one unit for compact streaming, contribution, and monitoring setups
• Protocol flexibility with HTTP, SRT, RTMP, RTSP, and NDI support
• Built-in recording support with H.264 video recording and internal 128 GB storage
• Small footprint at just 139 x 99.5 x 27.6 mm without mounting ears

Quick Specs & Uses

• Video input: 1x HDMI 2.0 (HDMI-A)
• Video outputs: 1x HDMI 2.0 loop output and 1x HDMI 2.0 output
• Input and output formats: 720p@50, 1080i@50/60, 1080p@24/30/50/60, and 3840 x 2160@30/50/60
• Encoding: H.264 / H.265 up to 3840 x 2160p60
• Decoding: 1 x 4K@60Hz, 2 x 4K@30Hz, or 4 x 2K@60Hz
• Recording: H.264 video up to 32 Mbps, AAC audio up to 48 Kbps
• Audio: 1x 3.5 mm line-in with embedded audio support

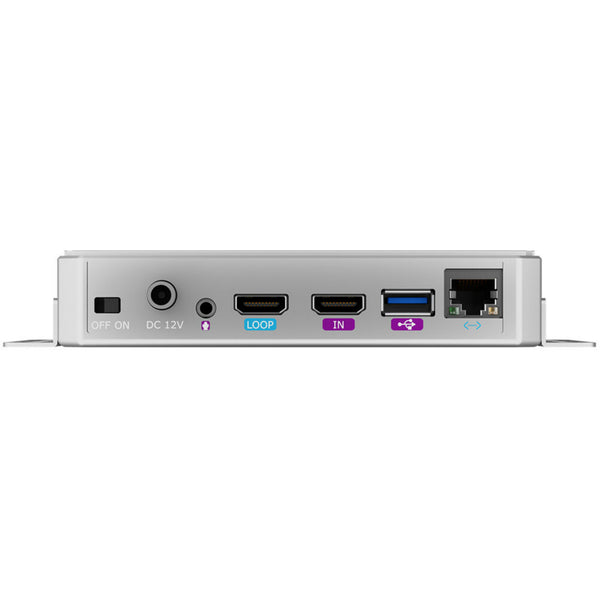

• Connectivity: RJ45 LAN, USB-A capture, USB-C storage
• Power: 12V / 2A DC input

Why It Helps

In practical terms, this unit is useful when you need to move a clean HDMI signal into an IP workflow, record locally, and still keep a loop or monitored output available at the same time. That could be a contribution feed, a streaming path, a confidence monitor, or a small decode endpoint. The value here is not just that it encodes and decodes. It is that it does both in a compact format while keeping the signal path straightforward.

System Characteristics

• HDMI loop output is helpful when the source still needs to feed a local monitor or downstream device without adding an extra splitter
• Deinterlacing support matters when older 1080i sources still show up in the workflow
• HDCP 2.2 / 1.x support improves compatibility with a wider range of HDMI sources
• Built-in 128 GB storage gives the unit more standalone value when a quick local record is part of the job
• Compact size and low weight make it easy to add to flypacks, carts, podium kits, or tight rack shelves

What’s In The Box

Please refer to the Specifications tab and your order configuration for the exact included items.
