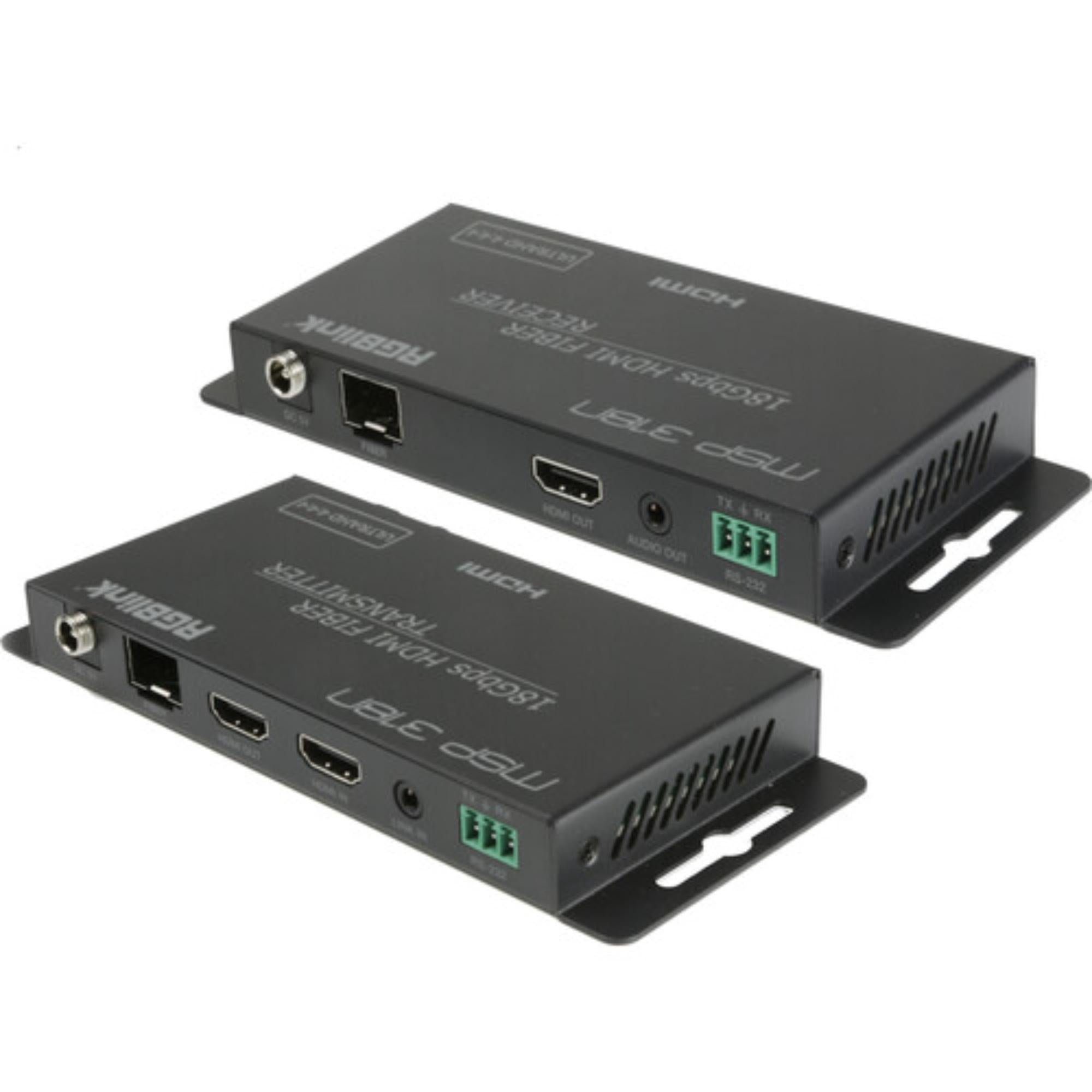

RGBLINK MSP 318N HDMI 2.0 Fiber Extender Set

RGBLINK MSP 318N HDMI 2.0 Fiber Extender Set is the kind of kit you use when an HDMI signal has to travel much farther than copper is realistically going to tolerate. Built as a transmitter and receiver set, it extends HDMI 2.0b over fiber, supports 4K60 with 4:4:4 color, and carries the full 18 Gb/s bandwidth needed for higher-quality UHD workflows.

Highlights

• HDMI 2.0 to fiber optic extension for long-run transport
• Supports 4K60 4:4:4 at 18 Gb/s for full-bandwidth UHD workflows
• Up to 10 km over single-mode fiber or 300 m over multi-mode fiber
• Includes transmitter and receiver set for end-to-end transport
• Supports RS-232 passthrough and receiver-side audio extraction

Quick Specs & Uses

• Product type: HDMI 2.0 fiber extender set
• Transmission architecture: transmitter / receiver
• Video bandwidth: 18 Gb/s
• Transmission distance: up to 10 km single-mode fiber, up to 300 m multi-mode fiber
• Transmitter I/O: 1 x HDMI 2.0b input, 1 x HDMI 2.0b output, 1 x SFP+ fiber output, 1 x 3.5 mm TRS line input, RS-232 I/O, IR in/out, Micro-USB firmware input
• Receiver I/O: 1 x SFP fiber input, 1 x HDMI 2.0b output, 1 x 3.5 mm TRS line output, RS-232 I/O, IR in/out, Micro-USB firmware input
• Supported cable types: single-mode and multi-mode fiber
• Audio support: HDMI embedded audio and listed DTS / Dolby formats
• Standards support: HDR, HDCP 2.2, EDID support
• Power: 5 VDC at 1 A barrel input on both units
• Power consumption: transmitter 3.85 W, receiver 2.7 W
• Dimensions: 6.3 x 2.7 x 0.7 in / 160 x 68 x 18 mm

Why It Helps

Long HDMI runs usually become unreliable long before the installation is actually convenient. This set solves that by moving the transport onto fiber while keeping the system-level features that real jobs still need, including local loop-out, audio handling, RS-232, IR, and standards support for HDR and HDCP 2.2. That makes the long run more practical, not just longer.

System Characteristics

• Fiber-based transport makes the set useful where long-run copper HDMI is not realistic
• 4K60 4:4:4 at 18 Gb/s helps preserve full-bandwidth UHD performance across distance
• Loop output on the transmitter keeps the source available locally while the signal travels down fiber
• Audio extraction on the receiver supports systems that need local audio breakout at the far end
• RS-232 and IR passthrough help the extender behave like part of the whole control system

What’s In The Box

RGBLINK MSP 318N HDMI 2.0 Fiber Extender Set, transmitter, receiver, and limited 1-year manufacturer warranty.
