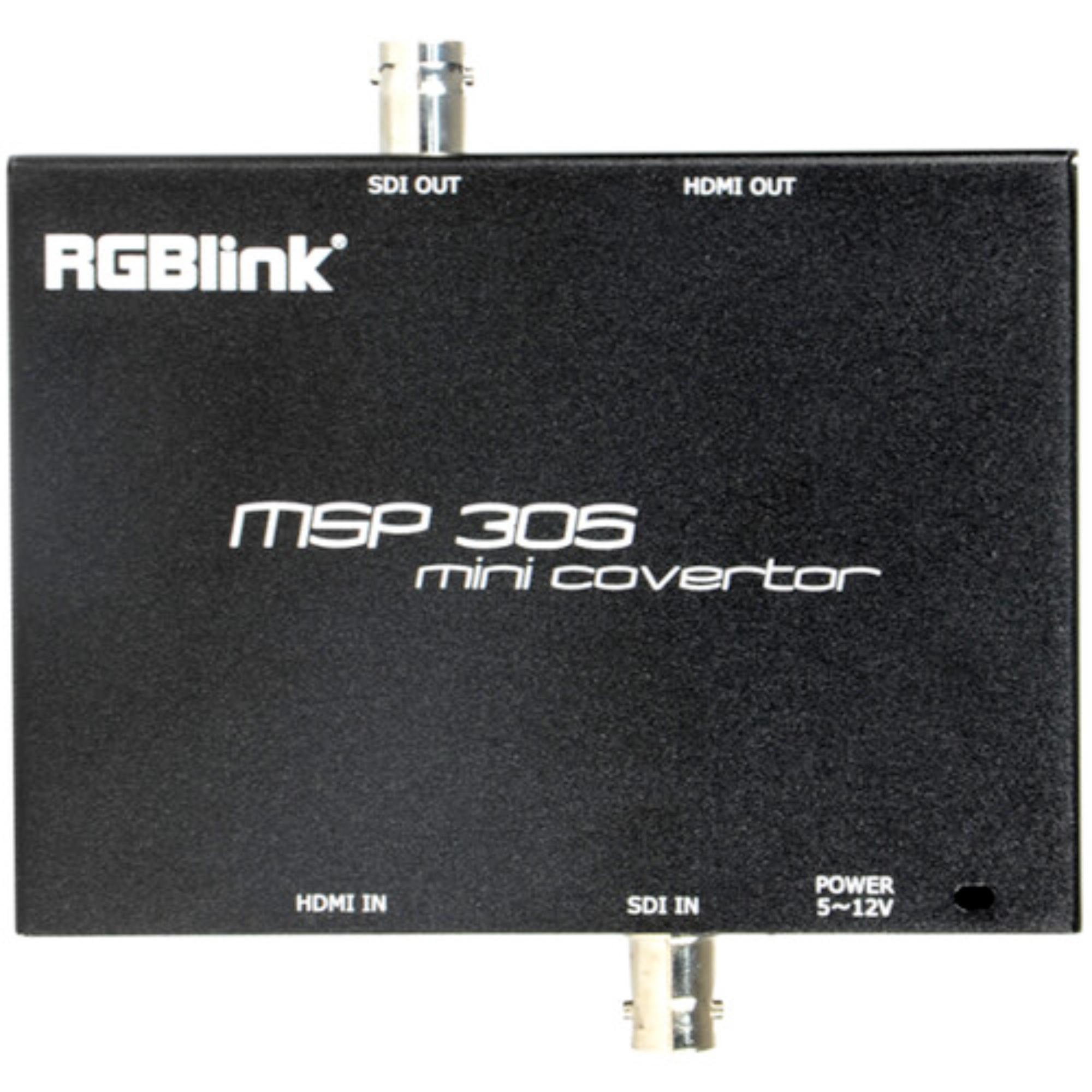

RGBLINK MSP 305 Bidirectional 3G-SDI/HDMI Converter

RGBLINK MSP 305 Bidirectional 3G-SDI/HDMI Converter is the kind of box you keep around when a system has to bridge professional SDI gear and HDMI equipment without drama. Built for bidirectional conversion, it can take HDMI in and output 3G-SDI, or take 3G-SDI in and output HDMI, making it a practical fit for mixed-format broadcast and AV workflows.

Highlights

• Bidirectional 3G-SDI / HDMI signal conversion in one compact unit
• Supports up to 1080p60 for practical HD workflows
• Embedded audio passthrough over HDMI and SDI
• Supports HDMI to 3G-SDI or 3G-SDI to HDMI depending on workflow need
• Compact utility form factor for easier deployment in the field or rack environment

Quick Specs & Uses

• Product type: bidirectional 3G-SDI / HDMI converter
• Inputs: 1 x BNC (3G-SDI) female, 1 x HDMI 1.3 female
• Outputs: 1 x BNC (3G-SDI) female, 1 x HDMI 1.3 female
• Maximum listed support: up to 1080p60
• Embedded audio: HDMI / SDI
• Video standard compliance: SMPTE 259M-C / 292M / 424M / 425M
• Broadcast compatibility: NTSC, PAL
• HDCP support: no
• HDR support: no
• HDMI CEC: no
• Power input: 1 x barrel (5 to 12 VDC)
• Dimensions: 4.4 x 4.2 x 0.9 in / 112 x 106 x 24 mm
• Weight: 8.8 oz / 250 g

Why It Helps

In real systems, format mismatches are common. A camera feed may arrive on SDI, while the destination only takes HDMI. Or the opposite. This converter solves that cleanly in one compact unit and keeps embedded audio moving with the signal, which makes the whole chain easier to manage.

System Characteristics

• Two-way format conversion reduces the need to stock separate SDI-to-HDMI and HDMI-to-SDI boxes
• 1080p60 support keeps the unit aligned with practical HD broadcast and AV environments
• Embedded audio continuity helps simplify the signal chain by keeping audio with video
• SMPTE support gives the converter a stronger fit in professional SDI workflows
• Compact physical design makes it easy to place in utility positions, flypacks, and smaller installations

What’s In The Box

RGBLINK MSP 305 Bidirectional 3G-SDI/HDMI Converter, power supply, and limited 1-year manufacturer warranty.
