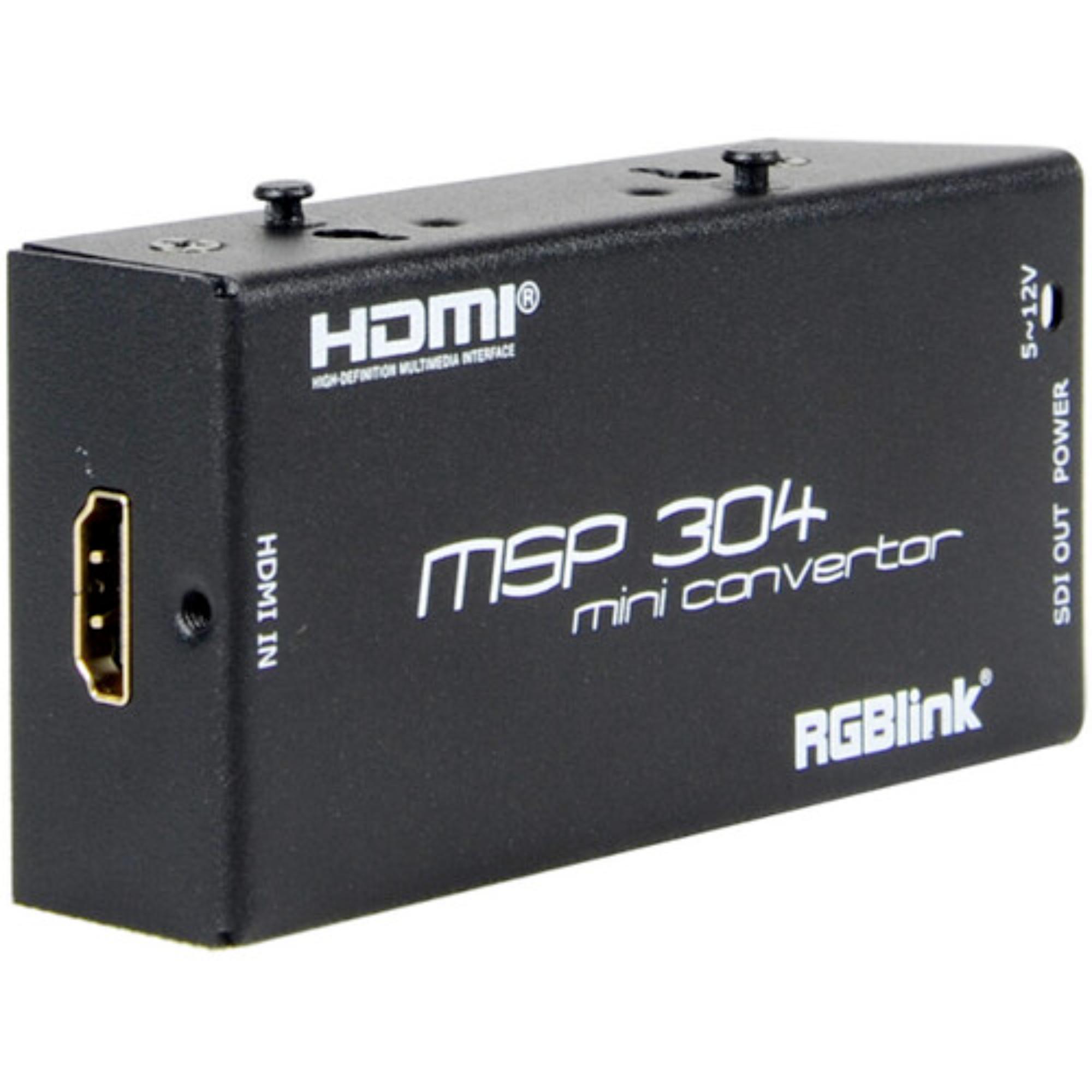

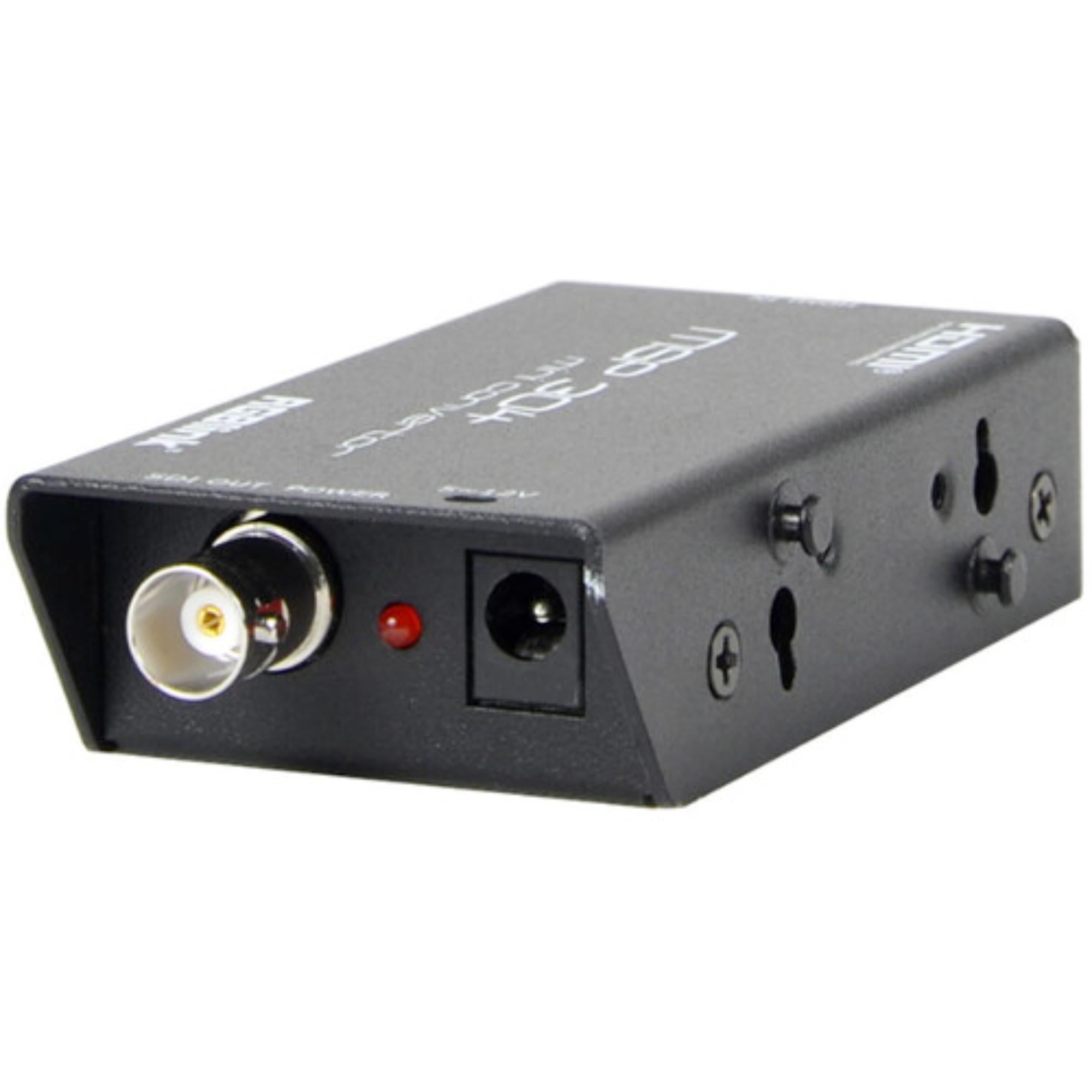

RGBLINK MSP 304 HDMI to SDI Mini Converter

RGBLINK MSP 304 HDMI to SDI Mini Converter is the kind of utility box you use when an HDMI source has to land cleanly in an SDI-based system. Built as a compact HDMI-to-3G-SDI converter, it gives you 1 x HDMI 1.3 input, 1 x BNC 3G-SDI output, support up to 1080p60, and embedded audio passthrough so the signal path stays simple.

Highlights

• Converts HDMI to 3G-SDI for cleaner integration into professional signal chains
• Supports up to 1080p60 for practical HD workflows
• Embedded audio passthrough keeps audio traveling with the video signal
• Supports HDMI input to one 3G-SDI output in a compact utility format
• Small deployment-friendly design for flypacks, monitor positions, and utility use

Quick Specs & Uses

• Product type: HDMI to SDI mini converter
• Input: 1 x HDMI 1.3 female
• Output: 1 x BNC (3G-SDI) female
• Maximum listed support: up to 1080p60
• Embedded audio: HDMI / SDI
• Video standard compliance: SMPTE 259M-C / 292M / 424M / 425M
• Broadcast compatibility: NTSC, PAL
• Power input: 1 x barrel (5 to 12 VDC)
• Dimensions: 3.9 x 1.9 x 0.9 in / 98 x 47 x 24 mm
• Weight: 5.3 oz / 150 g

Why It Helps

In mixed-format systems, HDMI sources often need to feed equipment that expects SDI. This converter solves that cleanly by turning the HDMI signal into 3G-SDI while keeping embedded audio intact. That makes it easier to bring laptops, media players, cameras, or other HDMI devices into a more broadcast-oriented infrastructure.

System Characteristics

• Direct HDMI-to-SDI conversion helps bridge consumer-style and professional video paths
• 1080p60 support keeps the converter aligned with practical HD environments
• Embedded audio continuity reduces the need for separate audio handling
• SMPTE support gives the unit a stronger fit inside standard SDI workflows
• Compact physical design makes it easy to place wherever the conversion is needed

What’s In The Box

RGBLINK MSP 304 HDMI to SDI Mini Converter, power supply, and limited 1-year manufacturer warranty.
