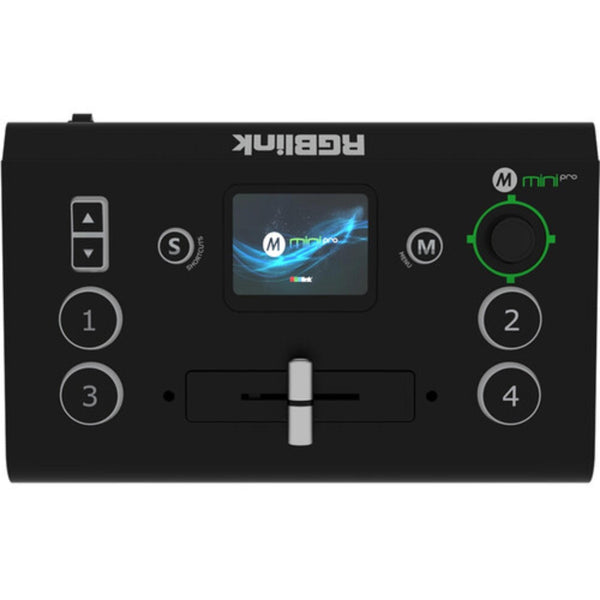

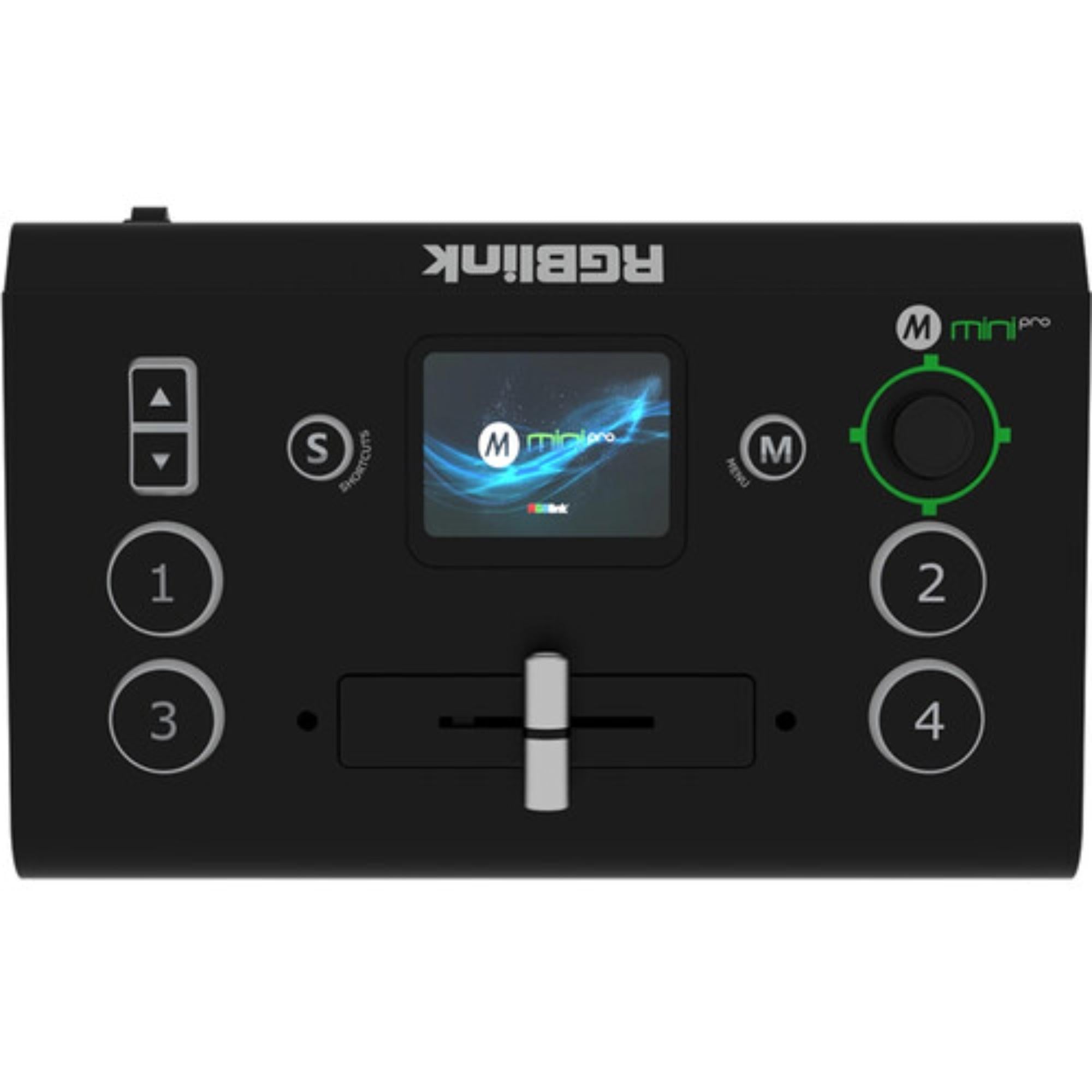

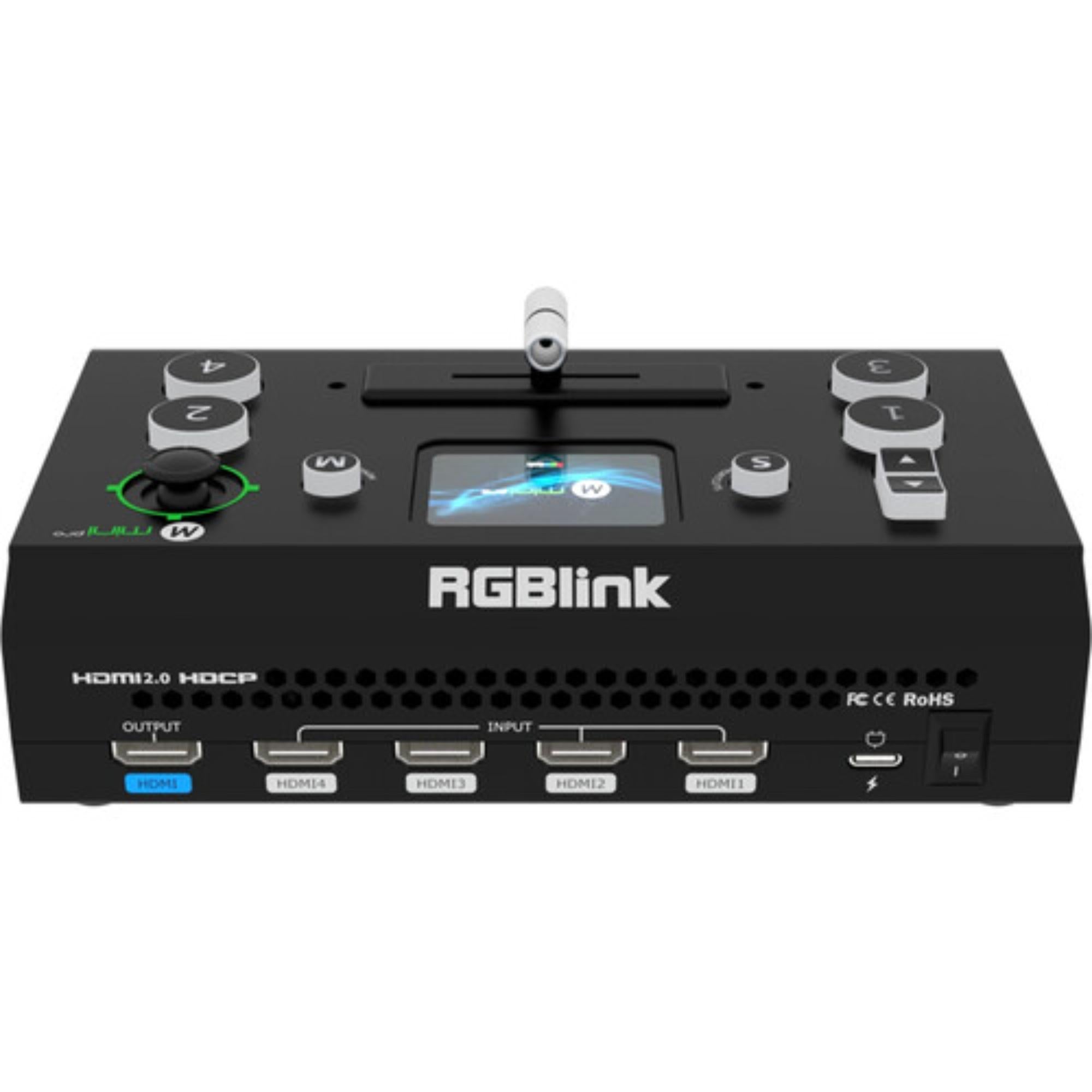

RGBLINK mini-pro 2 Dual Channel Streaming Switcher

RGBLINK mini-pro 2 Dual Channel Streaming Switcher is the kind of compact switcher you use when the production is small but the workflow still needs to feel complete. Built as a desktop live-production unit, it combines 4 x HDMI inputs, 1080p processing, USB streaming, external H.265 recording, and multiview monitoring in one portable chassis.

Highlights

• Compact HDMI live-production switcher for streaming and presentation workflows
• 4 x HDMI 2.0 inputs with support for input up to DCI 4K60
• USB streaming output and external recording for delivery and archive workflows
• Built-in LCD, T-bar, and software control for both local and guided operation
• Chroma key, PiP, transitions, and multiview for more flexible live production

Quick Specs & Uses

• Inputs: 4 x HDMI 2.0
• Maximum input resolution: up to DCI 4K at 60 fps
• Processing resolution: 1080p at 24/25/30/50/60
• Color processing: 4:4:4 YUV
• Latency: 4 frames
• Outputs: 1 x HDMI, USB-A streaming output, 4-way HDMI multiview
• Recording: external USB-A recording in MP4 via H.265/HEVC up to 1080p60
• Audio: 2 x 3.5 mm stereo analog input, 1 x 3.5 mm stereo analog output, HDMI embedded audio
• Control: pushbutton, software, T-bar, RJ45 LAN
• Power: USB-C, 12 VDC at 1.5 A

Why It Helps

In smaller production environments, the real challenge is usually not just switching sources. It is finding one device that can also help with streaming, monitoring, recording, and basic compositing without turning the desk into a stack of small boxes. The RGBLINK mini-pro 2 is useful because it pulls those roles together in a package that still fits comfortably in portable and desktop workflows.

System Characteristics

• 4-input HDMI design supports compact multi-source production setups
• 4K-capable input stage with 1080p workflow output matches common streaming and presentation delivery needs
• USB streaming and H.265 recording help cover both live and archive requirements
• Built-in compositing tools make the unit more useful than a simple source selector
• LAN plus local control give the switcher flexibility in small integrated systems

What’s In The Box

Please refer to the Specifications tab for the exact included items.
