RGBLINK mini-mx SDI 10-Channel Switcher & 2 vue PTZ 20x Cameras with AI Dynamic Tracking

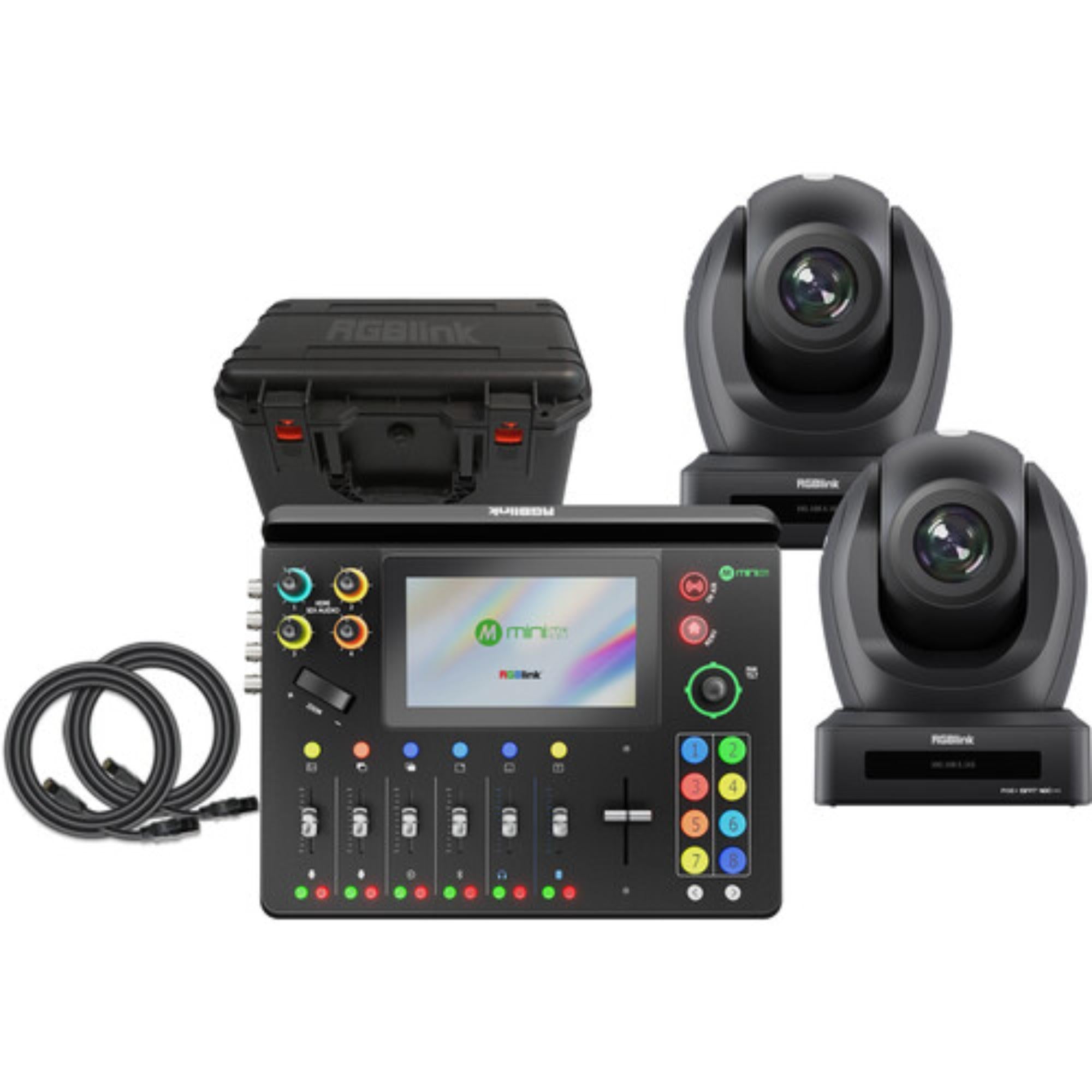

RGBLINK mini-mx SDI 10-Channel Switcher & 2 vue PTZ 20x Cameras with AI Dynamic Tracking is designed for productions that need switching, camera control, streaming, recording, and two PTZ camera angles in one portable package. The kit combines the mini-mx SDI 10-channel all-in-one switcher with two RGBLINK vue PTZ cameras and a hard case for transport and storage.

In real production use, this bundle fits small studios, houses of worship, classrooms, event teams, and mobile production crews that need more than a basic camera setup. The switcher handles the live production side, while the PTZ cameras provide flexible 20x zoom coverage without needing a camera operator behind every shot.

Highlights

• mini-mx SDI 10-channel switcher for compact live production workflows
• Two RGBLINK vue PTZ cameras with 20x optical zoom and AI dynamic tracking
• Quad HDMI 2.0 and quad 3G-SDI inputs for mixed source production
• USB-C UVC webcam input for computer-based meeting and streaming workflows
• Streaming, recording, overlays, scoreboard, chroma key, and PTZ control built into the workflow

Quick Specs & Uses

• Main system: RGBLINK mini-mx SDI 10-channel all-in-one switcher
• Included cameras: 2x RGBLINK vue PTZ cameras
• Switcher inputs: 4x 3G-SDI, 4x HDMI, USB-C UVC webcam input, and NDI HX2 input
• Switcher output: HDMI / RTSP up to 4K30
• Connectivity: HDMI, SDI, LAN, and USB
• Camera sensor: 1/2.8"-type CMOS
• Effective sensor resolution: 8.42 megapixel
• Camera optical zoom: 20x
• Camera digital zoom: 16x
• Camera video output: HDMI up to 3840 x 2160 at 60 fps, RJ45 / SDI/BNC / USB up to 1920 x 1080 at 60 fps
• IP streaming: 3840 x 2160 up to 60p
• Camera control: IR, VISCA, RS-232, Pelco-D, RS-485, ONVIF, and Pelco-P
• Camera presets: 255 via RS-232, RS-485, VISCA, Pelco-P, and Pelco-D; 10 via IR
• Camera power: proprietary PoE support and barrel power input
• Included transport: hard case

Why It Helps

This bundle makes sense when a production needs to stay compact but still handle real switching work. The mini-mx SDI gives operators a hardware control surface, live input monitoring, streaming output, recording support, graphics tools, and PTZ camera control from one desk-sized system.

The two vue PTZ cameras add flexible camera coverage without building a full camera crew. With 20x optical zoom, autofocus, tally support, IP streaming, and multiple control protocols, the cameras can work in a range of small production environments, from classrooms and council rooms to worship stages and live event spaces.

System Characteristics

• Compact switching workflow combines HDMI, SDI, USB, LAN, and NDI HX2 source handling
• Dual PTZ camera coverage gives the operator two controlled camera angles from one system
• 4K-capable camera path supports UHD camera output and IP streaming workflows
• Built-in production tools support overlays, chroma key, scoreboard graphics, recording, and streaming
• Hard-case packaging makes the kit easier to move, store, and share between production spaces

What’s In The Box

Please refer to the Specifications tab for the exact included items.
