RGBLINK mini-edge SDI 10-Channel Switcher & 2 vue PTZ 20x Cameras with AI Dynamic Tracking

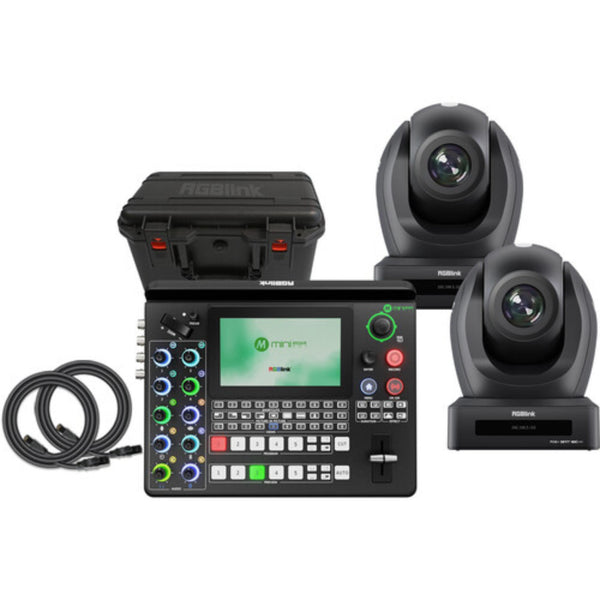

RGBLINK mini-edge SDI 10-Channel Switcher & 2 vue PTZ 20x Cameras with AI Dynamic Tracking is designed for compact production setups that need switching, streaming, recording, and PTZ camera coverage in one portable package. The kit combines the mini-edge SDI 10-channel all-in-one switcher with two RGBLINK vue PTZ cameras and a hard case for transport and storage.

In real production use, this bundle fits classrooms, houses of worship, small studios, meeting rooms, livestream spaces, and mobile production kits. The switcher handles the live production workflow, while the two PTZ cameras provide flexible 20x zoom coverage without needing a camera operator behind each shot.

Highlights

• mini-edge SDI 10-channel switcher for compact live production workflows
• Two RGBLINK vue PTZ cameras with 20x optical zoom and AI dynamic tracking
• Quad HDMI 2.0 and quad 3G-SDI inputs for mixed-source production
• USB-C UVC webcam input for Zoom, Teams, vMix, OBS, and collaboration workflows
• NDI HX3, IP, USB-C streaming, recording, overlays, scoreboard, chroma key, and PTZ control built into the workflow

Quick Specs & Uses

• Main system: RGBLINK mini-edge SDI 10-channel all-in-one switcher
• Included cameras: 2x RGBLINK vue PTZ cameras
• Switcher inputs: 4x 3G-SDI, 4x HDMI, USB-C UVC webcam input, and Ethernet connection for NDI HX3 input
• Switcher output: HDMI / RTSP up to 4K30
• Streaming support: NDI HX3, IP, and USB-C output
• Connectivity: HDMI, SDI, LAN, and USB
• Camera sensor: 1/2.8"-type CMOS
• Effective sensor resolution: 8.42 megapixel
• Camera optical zoom: 20x
• Camera digital zoom: 16x
• Camera video output: HDMI up to 3840 x 2160 at 60 fps, plus RJ45 / SDI/BNC / USB up to 1920 x 1080 at 60 fps
• IP streaming: 3840 x 2160 up to 60p
• Camera control: IR, VISCA, RS-232, Pelco-D, RS-485, ONVIF, and Pelco-P
• Camera presets: 255 via RS-232, RS-485, VISCA, Pelco-P, and Pelco-D; 10 via IR
• Camera power: proprietary PoE support and barrel power input
• Included transport: hard case

Why It Helps

This bundle makes sense when a production needs to stay small, but still handle real switching, camera control, streaming, and recording work. The mini-edge SDI gives the operator a hardware control surface, live monitoring, input switching, streaming output, recording support, graphics tools, chroma key, and PTZ control from one compact system.

The two vue PTZ cameras make the setup more flexible. With 20x optical zoom, autofocus, tally support, IP streaming, and multiple control protocols, the cameras can cover presenters, panels, classrooms, worship stages, or live event spaces without requiring a full camera crew.

System Characteristics

• Compact switching workflow combines HDMI, SDI, USB-C, LAN, and NDI HX3 source handling
• Dual PTZ camera coverage gives operators two controlled camera angles from one production system
• 4K-capable camera path supports UHD camera output and IP streaming workflows
• Built-in production tools support overlays, chroma key, scoreboard graphics, recording, streaming, and TAO Cloud workflows
• Hard-case packaging makes the kit easier to move, store, and share between production spaces

What’s In The Box

Please refer to the Specifications tab for the exact included items.
