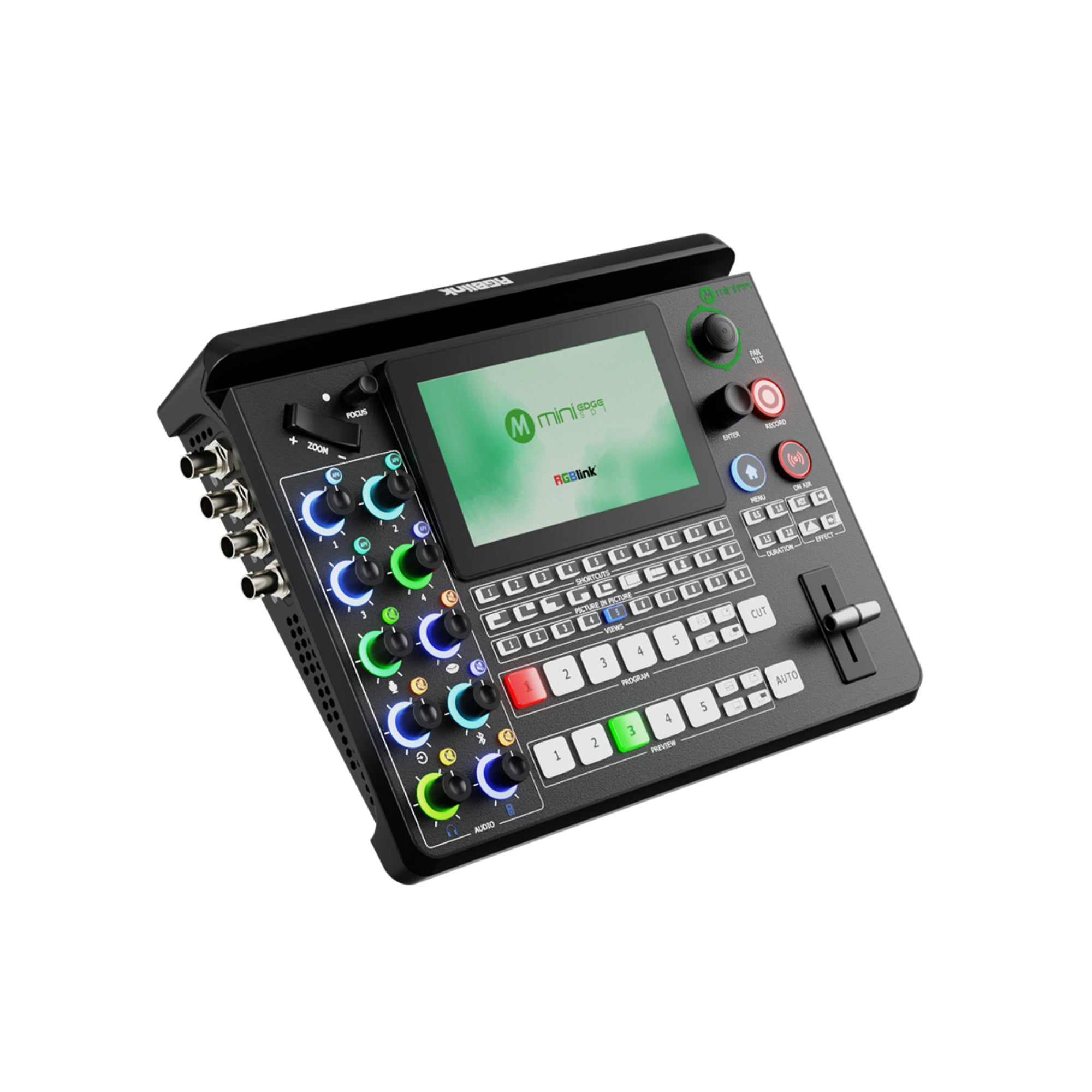

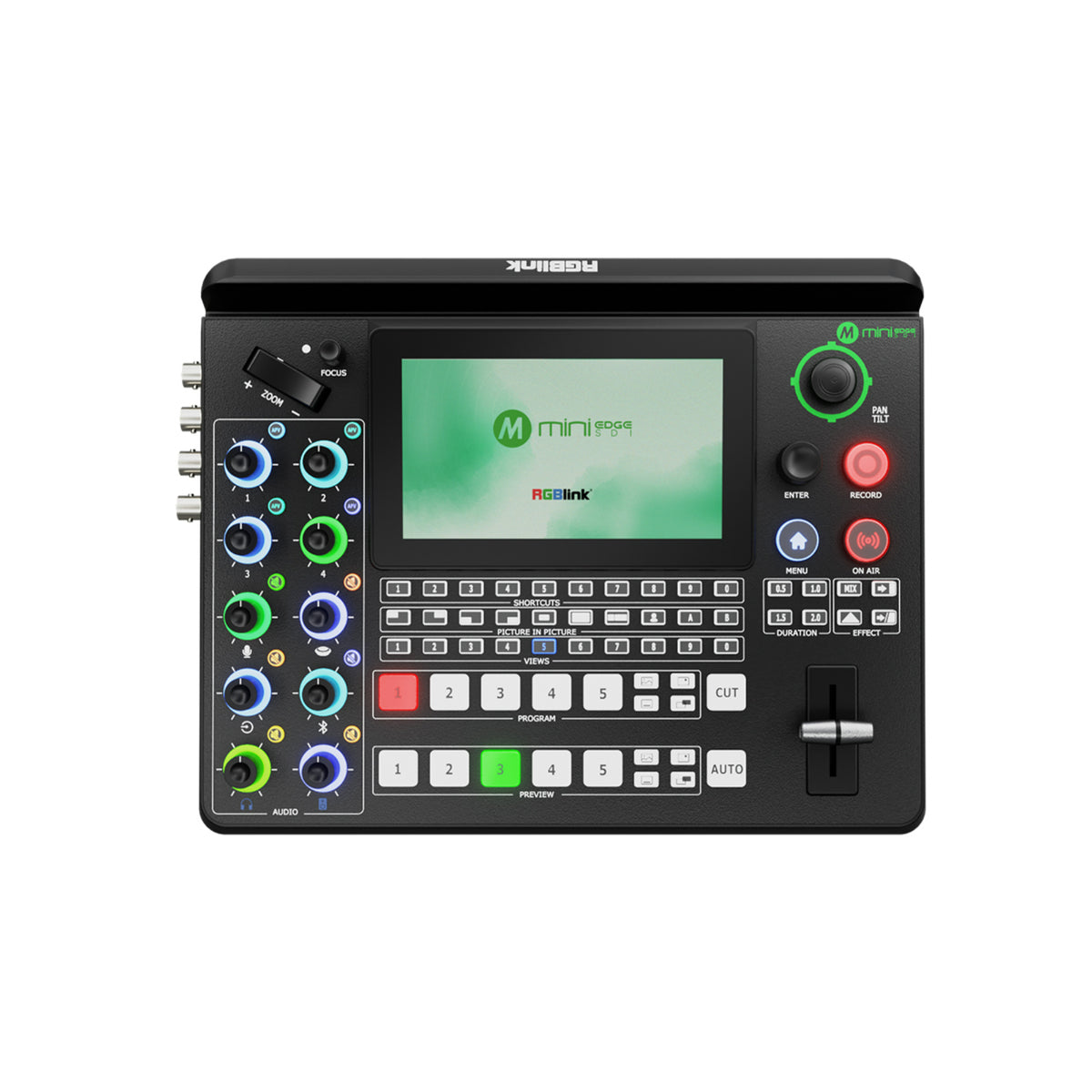

RGBlink mini-edge SDI 10-Channel All-in-One Switcher

RGBlink mini-edge SDI is a compact switcher-style box built around flexible I/O: 4x HDMI inputs, 4x 3G/HD/SD-SDI inputs, plus NDI|HX2, and it can also show up as a UVC webcam over USB-C. On the output side, you get 2x HDMI, USB-C record, USB-C stream, and NDI—so it’s easy to route to displays, computers, and IP workflows without rebuilding the whole rig.

Highlights

• Inputs: 4 × HDMI-A (HDMI 4K), 4 × SDI (3G/HD/SD), 1 × USB-C (UVC webcam), 1 × NDI
• Outputs: 2 × HDMI-A (HDMI 2K), 1 × USB-C (Record), 1 × USB-C (Stream), 1 × NDI
• Standards: HDMI 2.0, HDCP 2.2, SDI (3G/HD/SD), USB 3.0/2.0, NDI|HX2, H.265
• Low-latency workflow: video latency listed as < 4 frames
• Recording: MP4 up to 16 Mbps to FAT32/exFAT media

Quick Specs & Uses

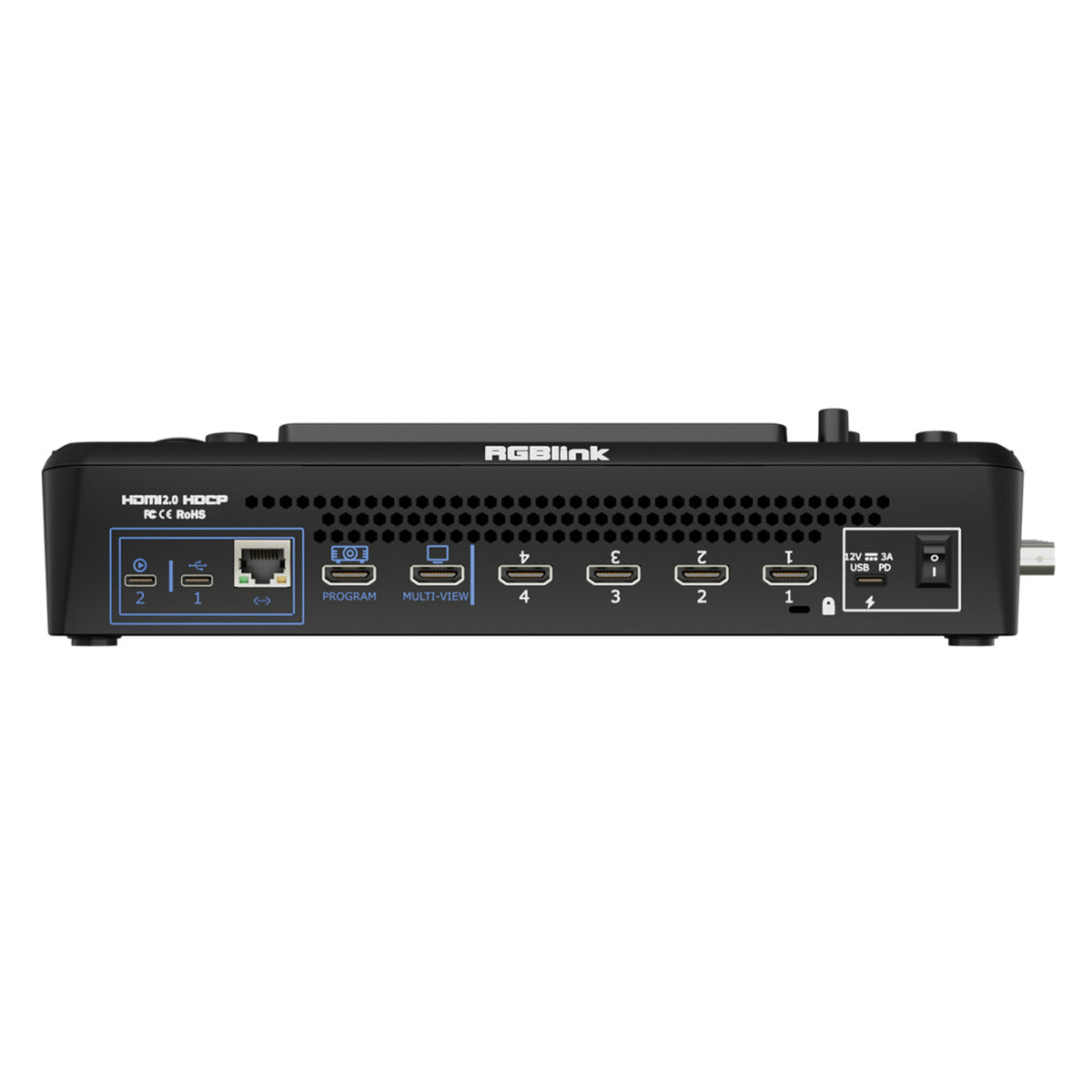

• Video Inputs: 4 × HDMI-A (HDMI 4K), 4 × SDI (3G), 1 × NDI, 1 × USB-C (UVC webcam)
• Video Outputs: 2 × HDMI-A (HDMI 2K), 1 × NDI, 1 × USB-C (Record), 1 × USB-C (Stream)
• Audio I/O: MIC IN (6.35mm XLR+TS w/ 48V), LINE IN (6.35mm TRS), OUT (6.35mm TRS), plus 3.5mm mini-jack
• Networking: 1 × RJ45 LAN
• Power: USB-C power input; PD listed as 12V/3.3A (40W), “Certified USB PD Aware”

System Characteristics

• HDMI input formats (SMPTE): 720p@50/60, 1080i@50/60, 1080p@24/30/50/60
• SDI input formats: 720p@50/60; 1080i@50/59.94/60; 1080p@23.98/24/25/29.97/30/50/59.94/60
• HDMI/USB output formats: 1280×720@50/60 and 1920×1080@24/25/30/50/60
• Color space: RGB 8-bit; YCbCr 4:4:4 8-bit; YCbCr 4:2:2 8-bit
• Latency: listed as < 4 frames

What’s In The Box

• 1 x RGBlink mini-edge SDI
• 1 x PD power adapter
• 2 x USB-C data cables
• 1 x quick guide
• 1 x OTG cable
