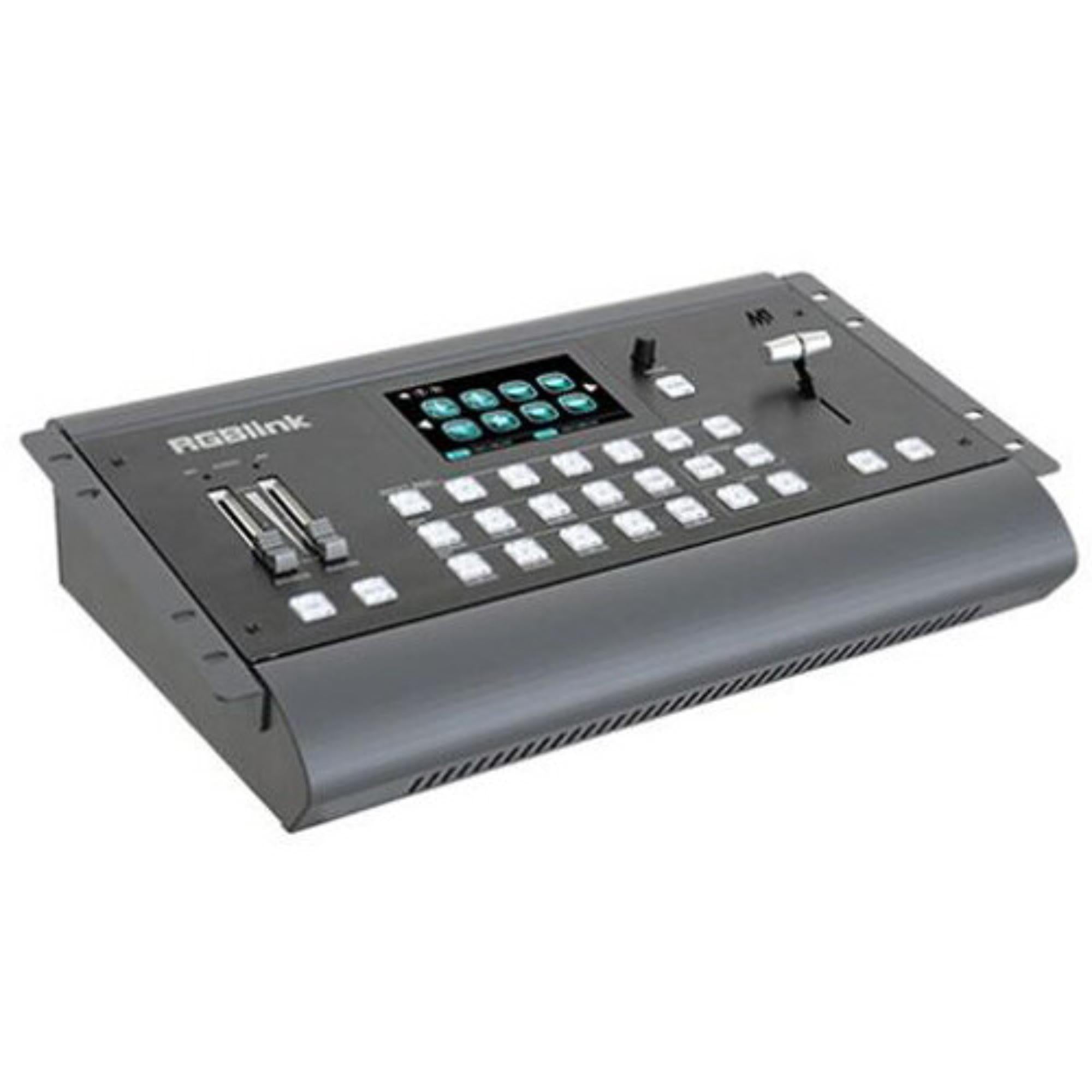

RGBLINK M1 NDI Modular Production Switcher (Standard Model)

RGBLINK M1 NDI Modular Production Switcher (Standard Model) is designed for compact live production setups that need reliable switching without building out a full rack of separate gear. Based on the provided specs, this is a modular 1080p production switcher built around NDI input workflows, combined with HDMI and USB outputs for monitoring, streaming, and program delivery in a single integrated system.

Highlights

• Modular production switcher platform allows flexible system configuration for different workflows
• NDI-based video input support with dual RJ45 inputs for IP production environments
• Dual HDMI and USB outputs enable simultaneous program output, monitoring, and streaming
• Seamless preset and program switching supports smooth transitions during live operation
• Integrated production tools including PTZ control, chroma key, PiP, and multiview output

Quick Specs & Uses

• Product name: RGBLINK M1 NDI Modular Production Switcher (Standard Model)
• Switching type: Pushbutton, software, T-bar
• Video inputs: 2 x RJ45 (NDI) female
• Input video format: NDI up to 1080p
• Audio inputs: 1 x RCA analog stereo
• Input audio format: Analog 24-bit
• Embedded audio input: RJ45 (NDI)
• Video outputs: 2 x HDMI (1.3), 1 x USB-A
• Output video formats: Up to 1080p60 with multiple VESA and SMPTE formats
• Audio outputs: RCA analog stereo, 3.5 mm TRRS headphone/mic
• Output audio format: Analog 24-bit
• Embedded audio output: HDMI, USB-A

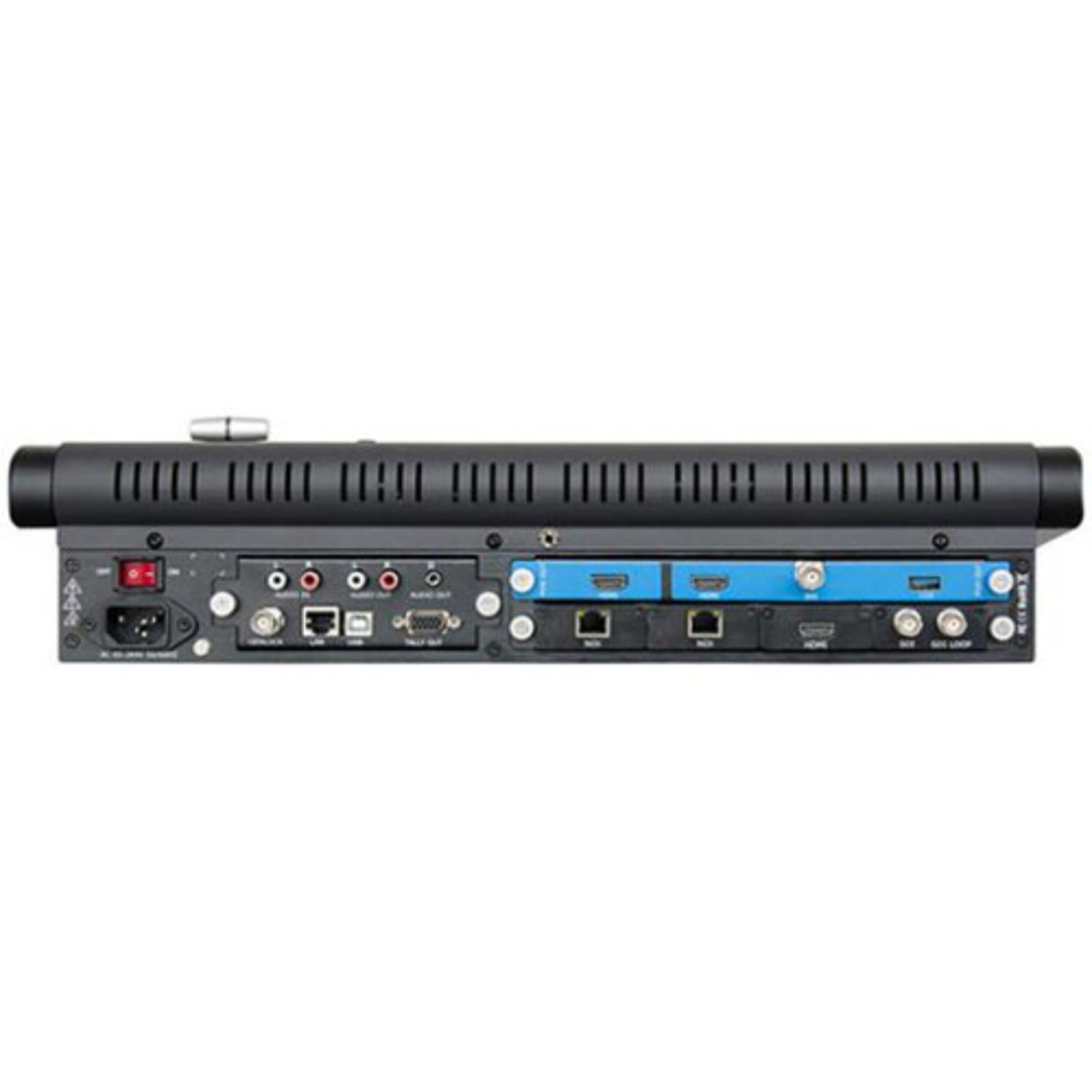

• Other I/O: BNC genlock input, RJ45 LAN, USB-B, DB-15 tally output
• Wireless: Wi-Fi
• Power input: IEC C14 (85 to 264 VAC)
• Power consumption: 120 W
• Operating temperature: -25 to 55°C
• Dimensions: 462 x 280 x 92 mm
• Weight: 5.3 kg

Why It Helps

In a real production setup, especially in smaller control rooms or mobile systems, the goal is to reduce complexity without losing capability. This switcher keeps the workflow focused by combining NDI input handling, switching, and output into one device, so you are not relying on multiple external converters, controllers, or streaming tools during a live event.

System Characteristics

• NDI-focused architecture supports IP-based production workflows without external decoding hardware
• Integrated switching and output paths reduce setup time and potential points of failure
• Flexible control methods allow operation through hardware buttons, T-bar, or software
• Built-in production features such as PiP, chroma key, and PTZ control expand creative options
• Multiview and tally support improve monitoring and coordination during live switching

What’s In The Box

Please refer to the Specifications tab for the exact included items.
