RGBLINK Single SDI Input/Loop Module for GX4pro

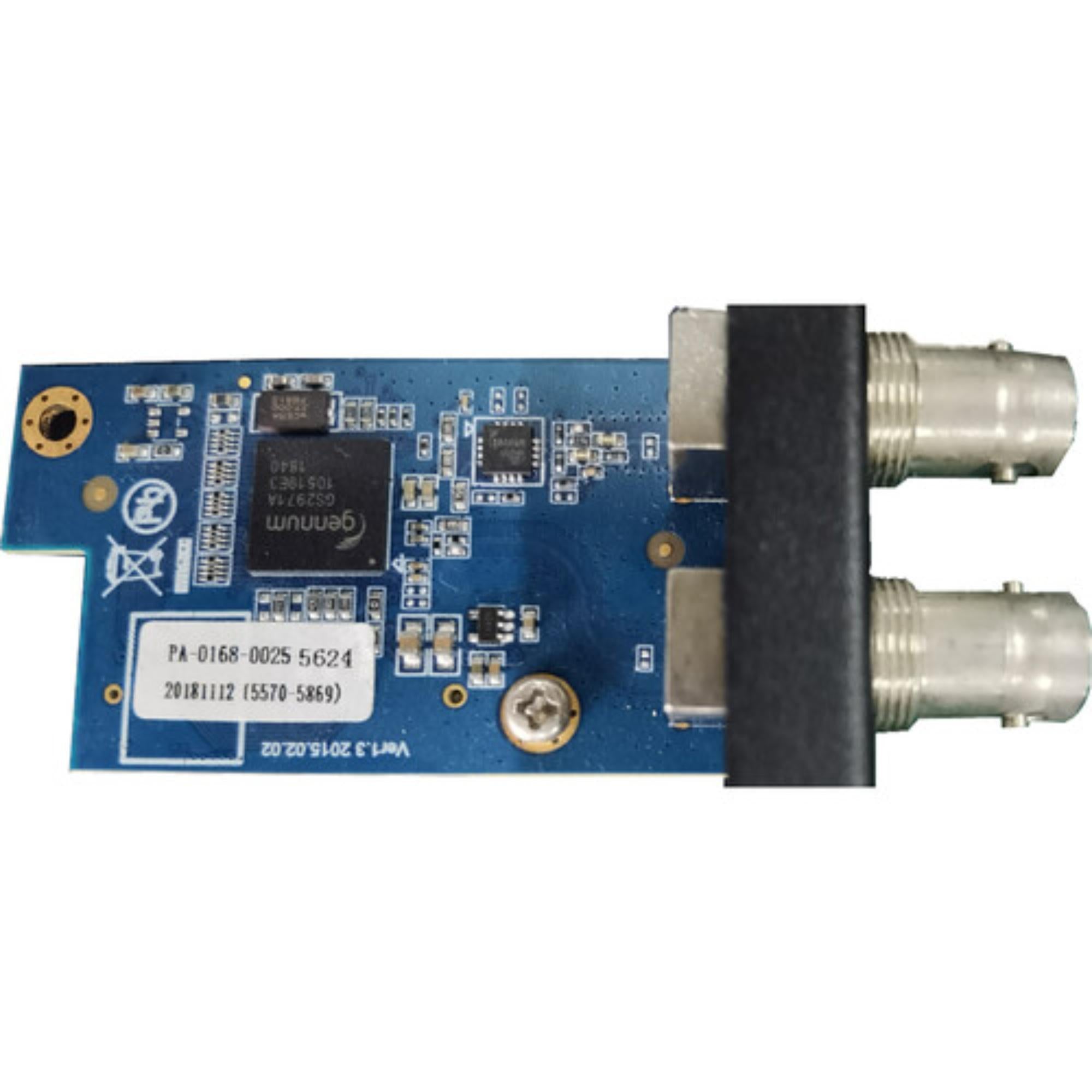

RGBLINK Single SDI Input/Loop Module for GX4pro is the kind of card you add when a GX4pro system needs a clean SDI entry point without complicating the signal path. Built specifically for the RGBLINK GX4pro, this module provides 1 x BNC SDI input and 1 x BNC SDI loop-through output, making it a practical fit for workflows where an incoming SDI source needs to be brought into the system while still being passed along to another destination.

Highlights

• SDI input/loop card for GX4pro designed for modular chassis integration
• 1 x BNC SDI input and 1 x BNC loop-through for straightforward signal intake and pass-through
• Bus powered through the GX4pro with no separate local PSU required
• Fully modular architecture keeps the system cleaner than external adapter-based solutions
• Supports multiple listed SDI standards including SMPTE and DVB-ASI formats

Quick Specs & Uses

• Compatibility: RGBLINK GX4pro
• Video input: 1 x BNC (HD-SDI)
• Loop output: 1 x BNC (HD-SDI) loop output
• Architecture: fully modular
• Power source: proprietary built-in interface
• Power behavior: bus powered
• Video standard compliance: SMPTE 425M (Level A & B), SMPTE 424M, SMPTE 292M, SMPTE 259M-C, DVB-ASI
• Operating conditions: 32 to 131°F / 0 to 55°C at 20 to 90% humidity

Why It Helps

In broadcast and AV systems, SDI signals often need to do more than arrive at one destination and stop there. The loop-through output gives the module extra usefulness in real installations because the same signal can continue downstream to another device, monitor, or processing stage. Combined with bus-powered operation, that makes the module a simple and tidy way to expand GX4pro connectivity.

System Characteristics

• Single SDI input path gives the GX4pro a direct BNC-based source connection
• Loop-through output helps keep downstream signal routing flexible
• Bus-powered installation removes the need for separate external powering
• Modular integration keeps the card inside the GX4pro ecosystem rather than outside the chassis
• Listed SMPTE and DVB-ASI support places it in a professional SDI workflow environment

What’s In The Box

Please refer to the Specifications tab for the exact included items.
