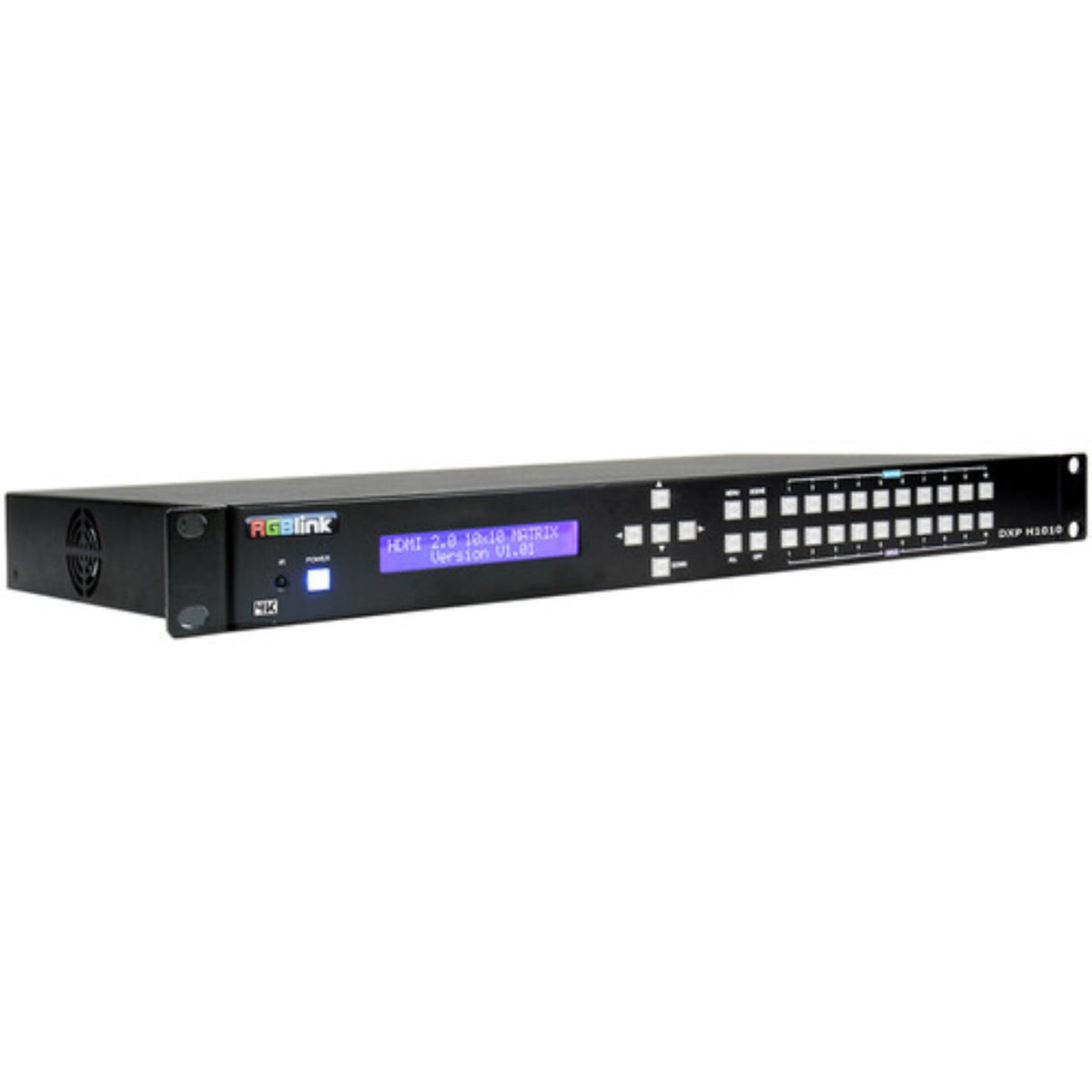

RGBLINK DXP H1010 4K HDMI 10x10 Matrix Switcher

RGBlink DXP H1010 4K HDMI 10x10 Matrix Switcher is built for systems that need more routing capacity than a small switcher can realistically provide. With 10 HDMI 2.0 inputs, 10 HDMI 2.0 outputs, 4K60 4:4:4 support, and both LAN and RS-232 control, it gives you a practical way to manage larger HDMI infrastructures in a proper rackmount format.

Highlights

• 10x10 HDMI matrix for higher-density source and destination routing
• Supports up to UHD 4K60 4:4:4 with 18 Gb/s bandwidth
• HDMI 2.0 and HDCP 2.2 compliant
• 2 x RCA stereo / S/PDIF outputs for de-embedded audio workflows
• 1 RU rackmount design with pushbutton and software control

Quick Specs & Uses

• Switching type: pushbutton, software
• Processing resolution: UHD 4K at 60
• Color processing: 4:4:4
• Inputs: 10 x HDMI 2.0 female
• Outputs: 10 x HDMI 2.0 female
• Audio outputs: 2 x RCA stereo / S/PDIF female
• Audio output format: LPCM
• Control I/O: RJ45 LAN input/output, DE-9/DB-9 RS-232 input/output
• HDR support: HDR10 / HDR10+ / Dolby Vision / Hybrid Log Gamma
• Rack format: 1 RU

Why It Helps

As systems grow, smaller switchers often become harder to manage than a proper matrix. This model helps by giving you true 10x10 routing capacity, broad format compatibility, audio de-embedding, and integrated control options in one rackmount chassis. That makes it a cleaner fit for larger HDMI infrastructures where source count, display count, and signal consistency all matter.

System Characteristics

• 10x10 routing architecture supports more flexible source-to-display assignments
• 4K60 4:4:4 support keeps the switcher aligned with modern HDMI workflows
• Broad format compatibility helps the system handle mixed video sources more gracefully
• Audio de-embedding outputs support downstream audio processing and distribution
• LAN and RS-232 control improve integration into managed AV systems

What’s In The Box

Please refer to the Specifications tab for the exact included items.
