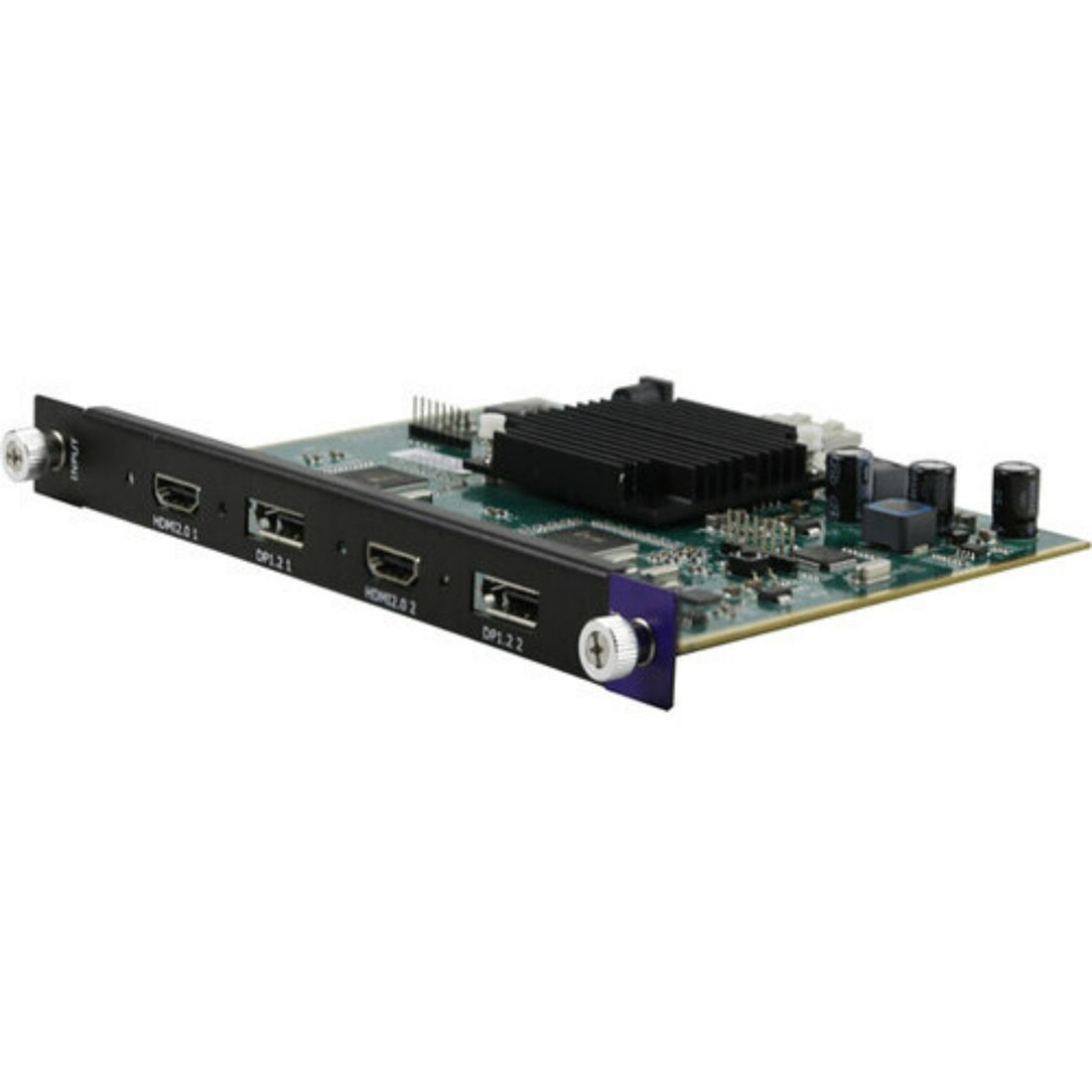

RGBlink Dual HDMI 2.0 & Dual DP 1.2 Input Module for Q16pro Gen2

RGBlink Dual HDMI 2.0 & Dual DP 1.2 Input Module for Q16pro Gen2 is the kind of card you add when a video wall system needs to accept modern computer and presentation sources without forcing everything through adapters first. It gives the Q16pro Gen2 two HDMI 2.0 inputs and two DisplayPort 1.2 inputs on one hot-swappable module, with support up to UHD 4K60 input. In real system design terms, this is a practical way to bring in laptops, media servers, and graphics-heavy sources while keeping EDID control and HDCP 2.2 compatibility in the chain.

Highlights

• Input card for Q16pro Gen2 chassis built for modular video wall system expansion
• Four total digital inputs with 2x HDMI 2.0 and 2x DisplayPort 1.2
• Supports up to UHD 4K60 input for higher-resolution presentation and media workflows
• EDID management helps clean up source-to-system handshakes
• Hot swappable design for service-friendly system changes inside the chassis

Quick Specs & Uses

• Module type: modular input card for Q16pro Gen2
• HDMI inputs: 2x HDMI 2.0
• DisplayPort inputs: 2x DisplayPort 1.2
• Maximum listed input support: UHD 4K60
• SMPTE support: from 480i up to 2160p60
• VESA support: from 640 x 480 up to 2160p60
• Signal management: HDCP 2.2 and EDID management
• Installation behavior: hot swappable

Why It Helps

Video wall projects rarely stay simple. One source arrives over HDMI, the next one is a workstation on DisplayPort, and suddenly the whole system lives or dies by how cleanly those sources are brought into the processor. This module is built for exactly that job. It gives the Q16pro Gen2 a straightforward way to accept both HDMI and DP sources without treating computer-driven signals as an afterthought.

System Characteristics

• HDMI plus DisplayPort on one card is useful when corporate AV, media server, and graphics workflows all meet in the same wall processor
• UHD 4K60 support makes the module a better fit for modern presentation and digital signage sources than older 4K30-only cards
• EDID management is one of those features that saves time when laptops, GPUs, and processors start negotiating badly
• HDCP 2.2 support matters when protected content sources are part of the system design
• Hot-swappable behavior gives integrators and service teams more flexibility during maintenance or phased expansion

What’s In The Box

1 x RGBlink Dual HDMI 2.0 & Dual DP 1.2 Input Module for Q16pro Gen2
