RGBLINK Quad 2K DVI Input Module for M3 Mixer

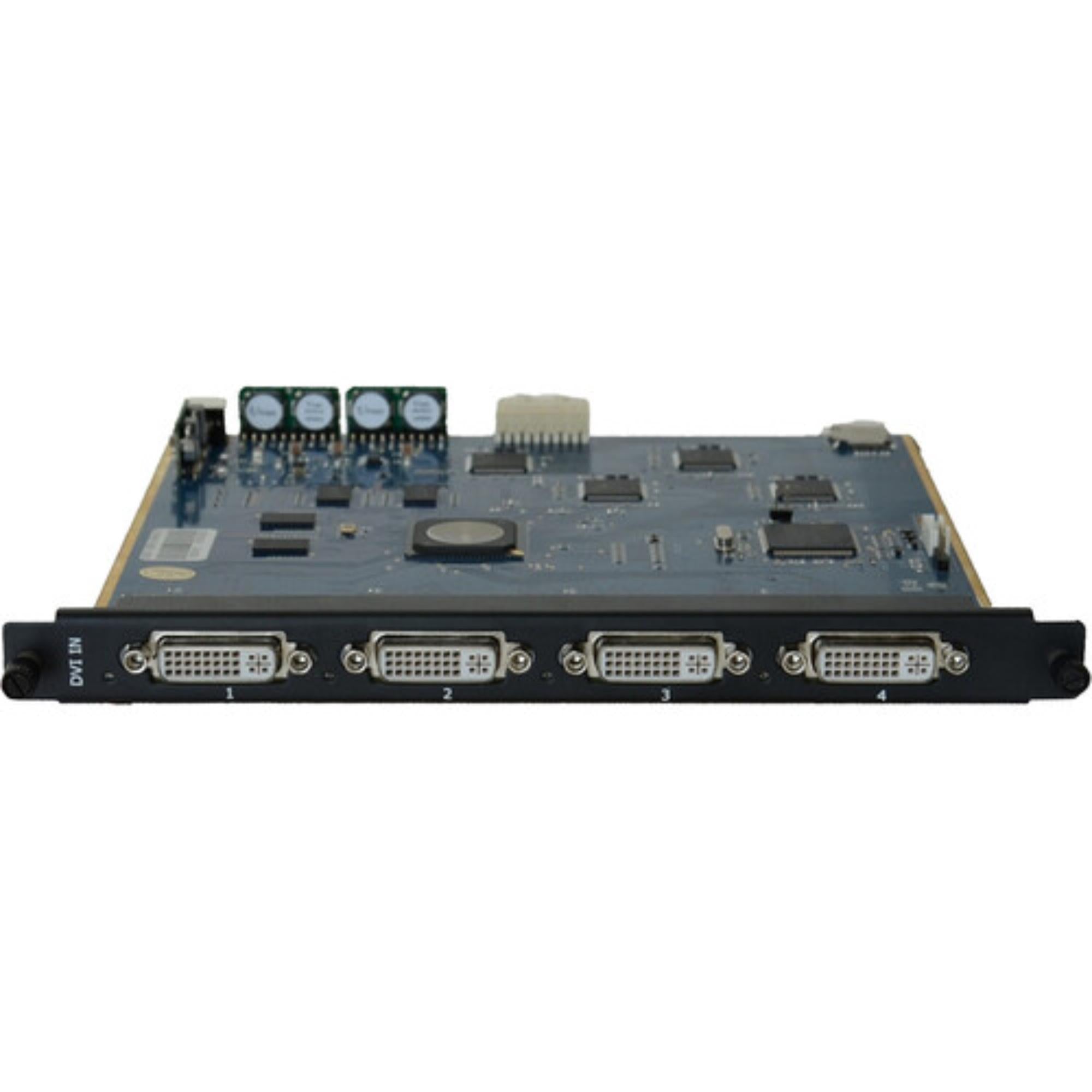

RGBLINK Quad 2K DVI Input Module for M3 Mixer is the kind of card you add when an M3 system needs to accept multiple DVI sources directly without turning the rack into an adapter problem. Built for the RGBLINK M3 mixer/switcher, this hot-swappable module provides 4 x DVI-I inputs and supports resolutions up to 2048 x 1152 at 60 Hz.

Highlights

• DVI input card for M3 mixer/switcher built for multi-source digital workflows
• 4 x DVI-I inputs for direct source connectivity
• Supports up to 2048 x 1152 at 60 Hz for 2K-class signal intake
• EDID management helps source devices negotiate more cleanly
• Supports cropping for more flexible image handling inside the workflow

Quick Specs & Uses

• Module type: quad 2K DVI input module
• Compatibility: RGBLINK M3 mixer/switcher
• Inputs: 4 x DVI-I, female
• Maximum listed resolution: 2048 x 1152 at 60 Hz
• Additional functions: EDID management and cropping support
• Service behavior: hot-swappable
• SMPTE support: 1600 x 1200 60, 1080p 30/50/60, 720p 50/60, 576i, 480i
• VESA support: 800 x 600 60 Hz through 2048 x 1152 60 Hz

Why It Helps

In real mixer systems, getting source devices to land cleanly is often half the battle. This module gives the M3 four direct DVI input paths and adds EDID management to help source negotiation behave more predictably. Cropping support adds another useful layer when the incoming image needs to be adjusted to fit the production or presentation layout more effectively.

System Characteristics

• Four DVI-I inputs on one card make it easier to bring multiple digital sources into the M3
• EDID management helps reduce handshake and compatibility issues with computer-driven sources
• Cropping support gives the system more control over incoming image framing
• 2K-class resolution support fits both higher-resolution computer signals and common video formats
• Hot-swappable construction supports easier service and more flexible chassis expansion

What’s In The Box

Please refer to the Specifications tab for the exact included items.
