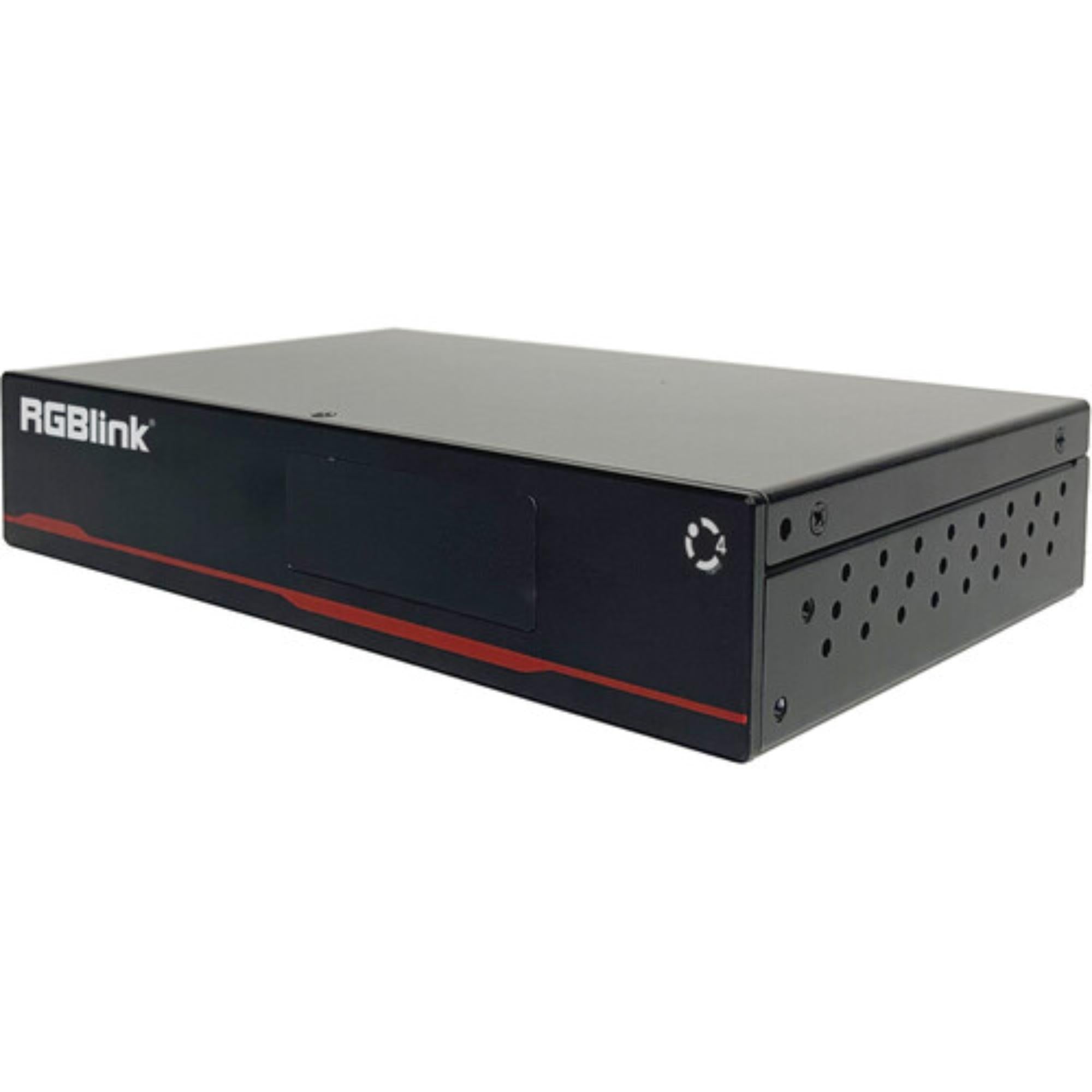

RGBLINK IC4 UHD 4K60 KVM IP Transmitter/Receiver

RGBLINK IC4 UHD 4K60 KVM IP Transmitter/Receiver is the kind of unit you use when the workflow needs more than simple video extension. Built for HDMI, USB KVM, audio, and control transport across network infrastructure, this compact platform can operate as either a transmitter or a receiver, making it a flexible fit for event spaces, presentation rooms, and control environments.

Highlights

• Extends HDMI video and USB KVM over LAN/WAN for remote operator and source workflows
• Supports UHD 4K60 over HDMI 2.0
• Configurable transmitter/receiver operation adds role flexibility in the field
• Ethernet and optional LC fiber transport support copper and fiber infrastructure
• IR, RS-232, RS-485, relay control, embedded audio, and PoE expand the operational workflow beyond video alone

Quick Specs & Uses

• Product type: UHD 4K60 KVM over IP transmitter/receiver
• Supported resolution: 3840 x 2160 at 60 Hz
• HDMI connectivity: 1 x HDMI 2.0 input, 2 x HDMI 2.0 outputs
• Network connectivity: 1 x RJ45 Ethernet port
• Fiber connectivity: 1 x LC fiber port
• USB: 1 x USB-A 2.0 input, 4 x USB-A 2.0 outputs
• Audio: 1 x 3.5 mm input, 1 x 3.5 mm output
• Transport methods: CAT6, CAT7, multimode, singlemode cable
• Power input: 12 VDC at 2 A

Why It Helps

In real AV and control workflows, moving the picture is only part of the job. Operators often also need USB control, audio, and serial-style communication to move with it. The RGBLINK IC4 is useful because it keeps those functions closer together, making remote workflows easier to build without stacking multiple separate extender types around the same signal path.

System Characteristics

• Transmitter or receiver role flexibility makes the unit more adaptable in deployment and support
• 4K60 HDMI support keeps the video path aligned with modern UHD workflows
• USB KVM transport supports remote operator access instead of video-only extension
• Ethernet plus fiber options help the unit fit different infrastructure environments
• Control and audio interfaces make the platform more useful in integrated technical systems

What’s In The Box

Please refer to the Specifications tab for the exact included items.
