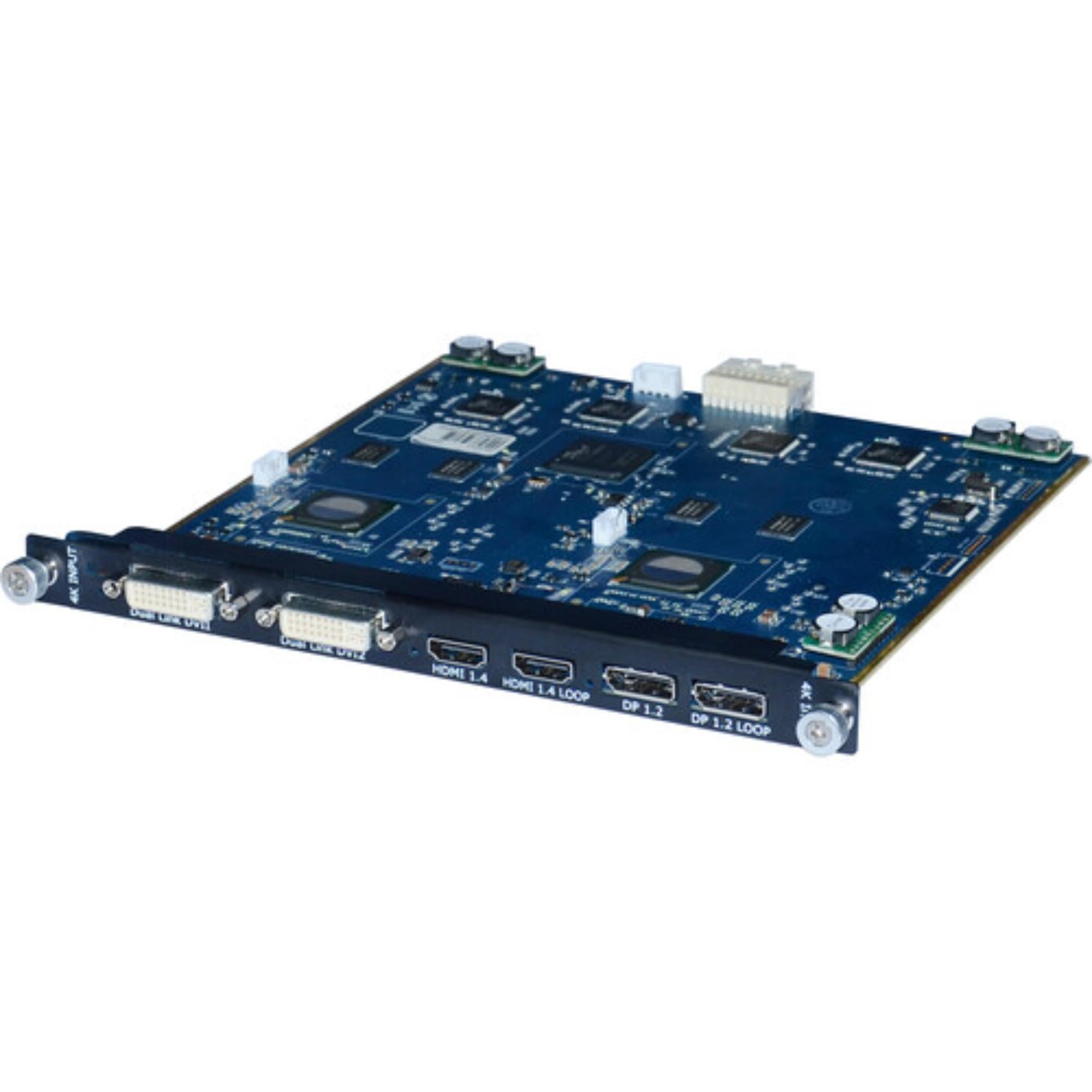

RGBLINK 4K30 Input Module for X3, X7 & M3

RGBLINK 4K30 Input Module for X3, X7 & M3 is the kind of card you add when a processor or mixer needs to accept a wider mix of digital sources without turning the rack into an adapter project. Built for the RGBLINK X3 and X7 video processors and the M3 mixer, this module provides 2 x HDMI, 2 x DisplayPort, and 2 x DVI inputs, with support up to UHD 4K30.

Highlights

• Input expansion card for X3, X7, and M3 built for mixed-format digital source workflows
• 2 x HDMI, 2 x DisplayPort, and 2 x DVI inputs for broader source compatibility
• Supports up to UHD 4K30 for higher-resolution source intake
• Signal loop support for downstream devices
• Designed for RGBLINK X3, X7, and M3 platforms

Quick Specs & Uses

• Module type: 4K30 input module
• Compatibility: RGBLINK X3, X7, and M3
• Inputs: 2 x HDMI, 2 x DisplayPort, 2 x DVI
• Maximum listed resolution: up to UHD 4K30
• Additional function: signal loop for downstream devices
• 4K limitation: one 4K signal supported at a time

Why It Helps

In real processor and mixer systems, sources rarely arrive on one connector type. One device comes in on HDMI, another prefers DisplayPort, and older gear may still rely on DVI. This module gives the platform a cleaner way to handle that variety inside the chassis. The added signal loop support also helps in workflows where a source needs to continue on to another downstream destination.

System Characteristics

• Mixed digital input set makes it easier to accommodate a broader range of source devices
• UHD 4K30 support fits higher-resolution presentation and processor workflows
• Signal loop function helps maintain downstream handoff options
• X3, X7, and M3 compatibility keeps expansion tied to the correct processor and mixer platforms
• Internal input expansion reduces the need for external adapters and format workarounds

What’s In The Box

Please refer to the Specifications tab for the exact included items.
