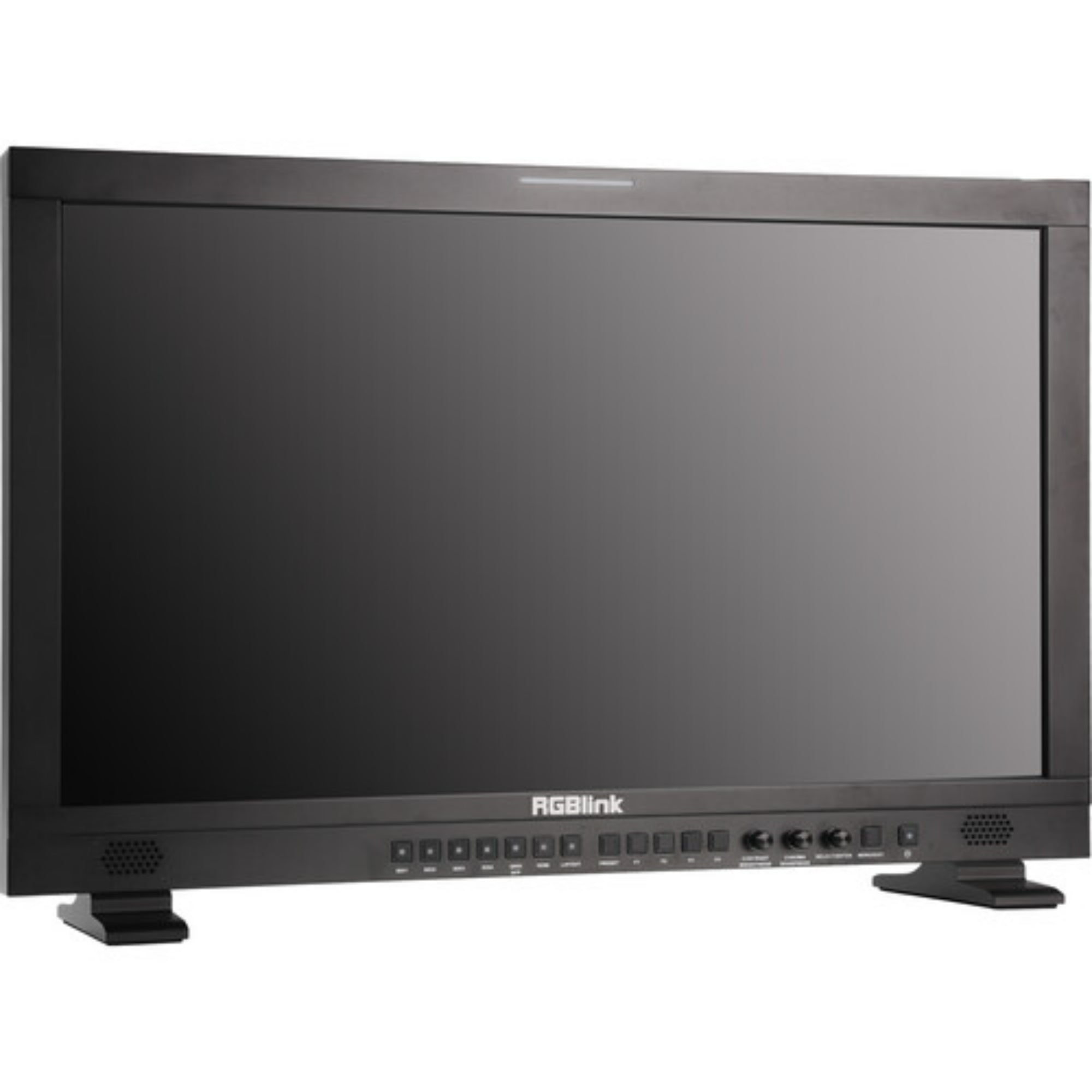

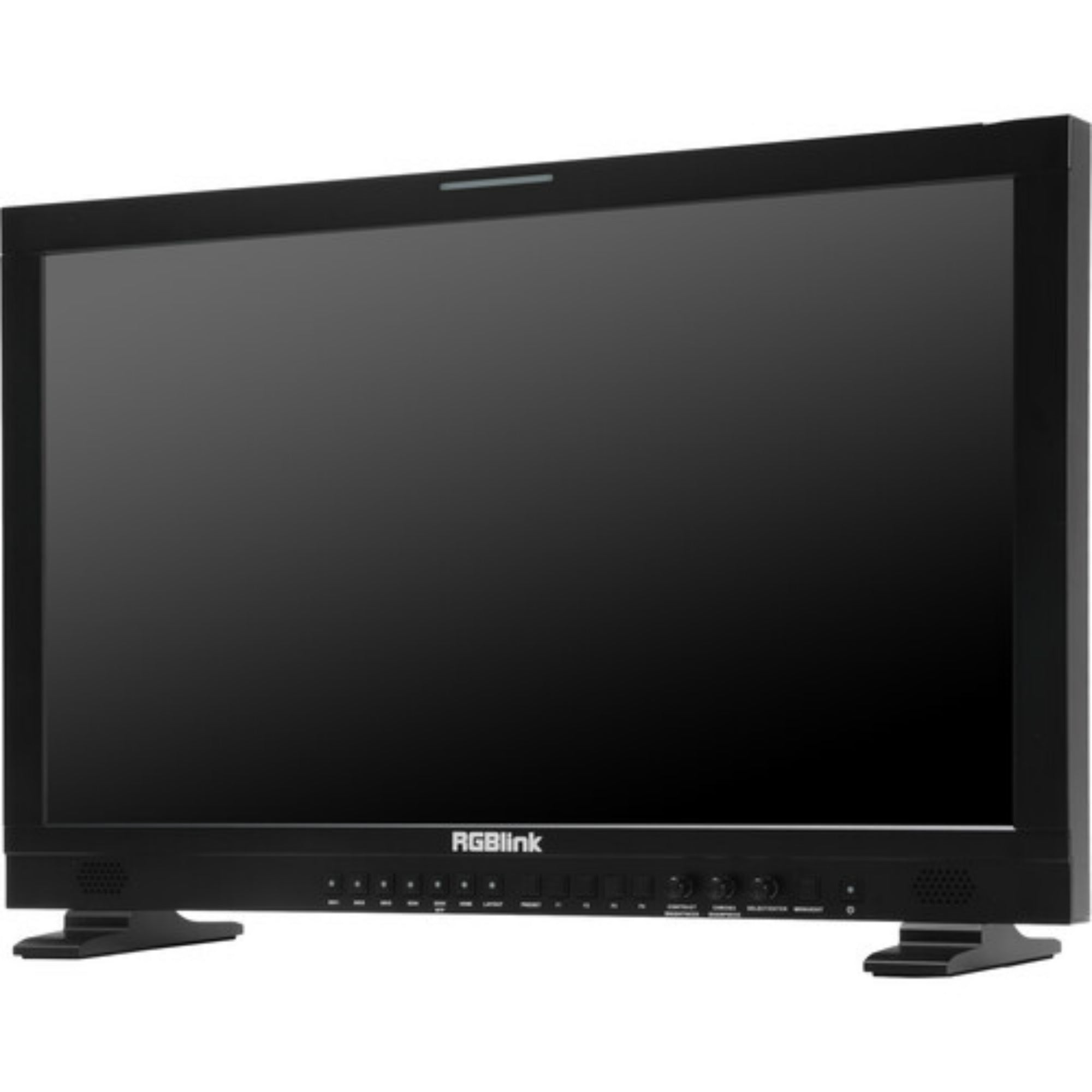

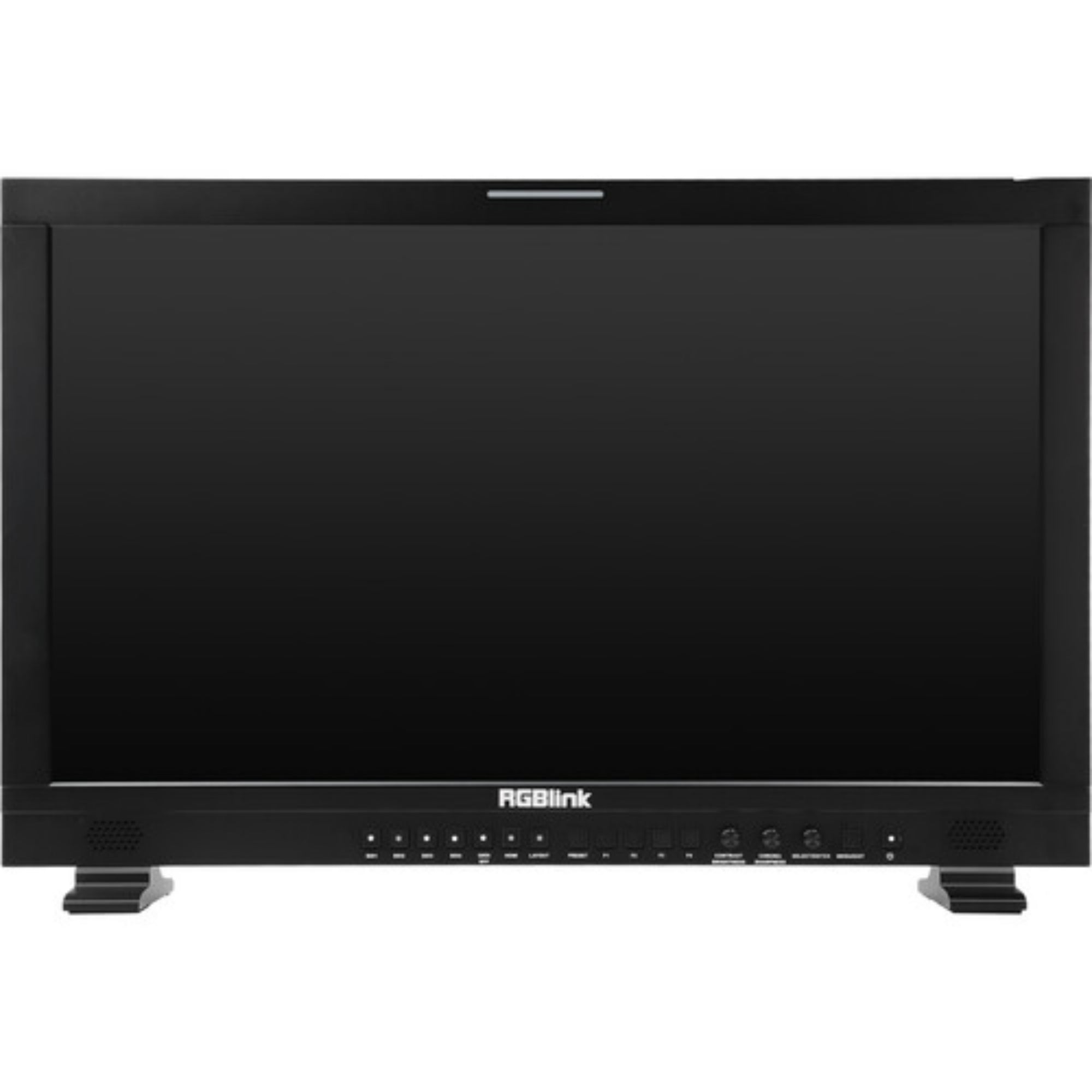

RGBlink aura UHD 27" 12G-SDI Professional Production Monitor (Gold Mount)

RGBlink aura UHD 27" 12G-SDI Professional Production Monitor (Gold Mount) is a serious 27-inch UHD reference-style monitor built for real production and post workflows where SDI reliability matters. With 4x 12G-SDI inputs and 4x 12G-SDI outputs plus 2x HDMI 2.0 inputs, it’s designed to sit in the middle of a studio chain and stay locked on format—from UHD 4K at broadcast frame rates down to 1080 and 720.

Highlights

• UHD panel with 3840 x 2160 native resolution on a 27-inch display
• SDI-heavy I/O: 4x 12G-SDI in and 4x 12G-SDI out for routing and loop-through style workflows
• HDMI 2.0 inputs (2x) for computers, playback, and non-SDI sources
• Monitoring tools and LUT support with built-in scopes/assist tools and LUT support for consistent viewing
• Field-friendly power options via IEC AC or 24V 4-pin XLR and dual Gold Mount plates

Quick Specs & Uses

• Display: 27" IPS-type LCD, 3840 x 2160, 16:9, 178°/178° viewing
• Brightness / Contrast: 800 nits, 1200:1
• Color: 1.07 billion colors (8-bit+FRC); 100% Rec.709, 92% DCI-P3
• Video I/O: 4x 12G-SDI in (BNC), 4x 12G-SDI out (BNC), 2x HDMI 2.0 in
• Format support (SDI): UHD 4K up to 60/59.94/50; 1080p up to 60/59.94/50; 720p 60/59.94/50 (plus listed DCI 2K rates)
• Format support (HDMI): DCI 4K and UHD 4K up to 60/59.94/50; 1080p up to 60/59.94/50; 1080i 60/59.94/50; 720p 60/59.94/50
• Audio: embedded audio over SDI/HDMI, 3.5mm headphone out, built-in stereo speaker
• Control / I/O: RS-422 in/out (RJ45), GPI (RJ45), LAN I/O (RJ45), 1x SFP slot
• Power: 100–240 VAC 50/60Hz (IEC) or 24 VDC / 10A (4-pin XLR), 98W max; dual Gold Mount on fixed plate
• Mounting: VESA 100 x 100 mm and 200 x 200 mm
• Physical: 661 x 420 x 179 mm; 11.4 kg

Why It Helps

This is the monitor you pick when you want SDI confidence without babysitting the signal. The quad 12G-SDI input/output layout makes it easy to drop into router paths, camera shading positions, or engineering benches, while HDMI 2.0 keeps it practical for editors and graphics systems that still live on GPU outputs.

System Characteristics

• 12G-SDI I/O count matters in real facilities—more ports means fewer external converters and less patch-panel chaos
• Broadcast frame rates are covered (including 59.94), so the monitor stays friendly in mixed 50/59.94 environments
• 800 nits is useful when you’re fighting ambient light on carts, flypacks, or bright control rooms
• Rec.709 coverage keeps it honest for standard broadcast work, while DCI-P3 coverage helps for cinema/creative review
• Dual power paths (AC + 24V XLR) are a real-world win when you need clean power planning on location

What’s In The Box

Please refer to your order configuration and the Specifications tab for the exact included items.
