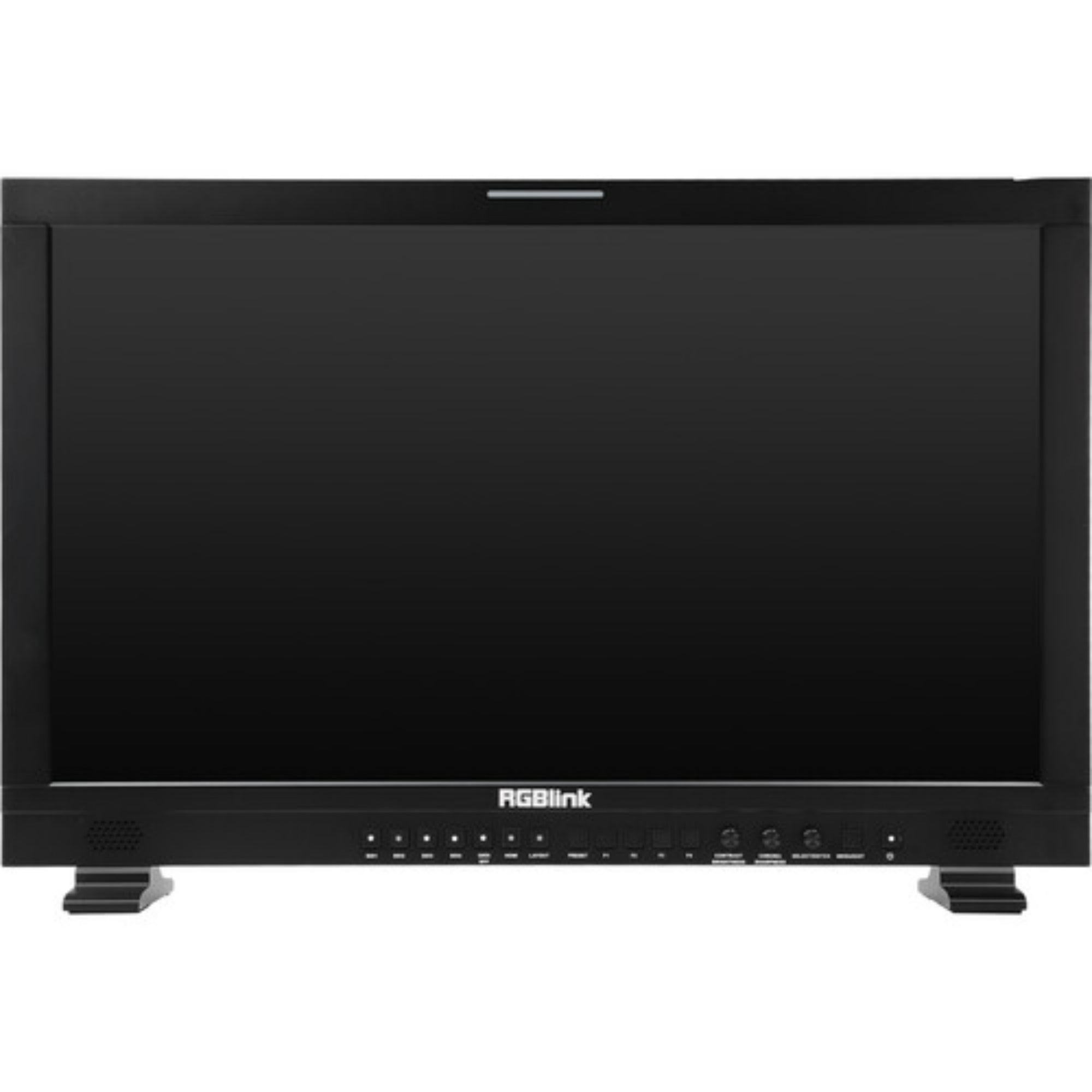

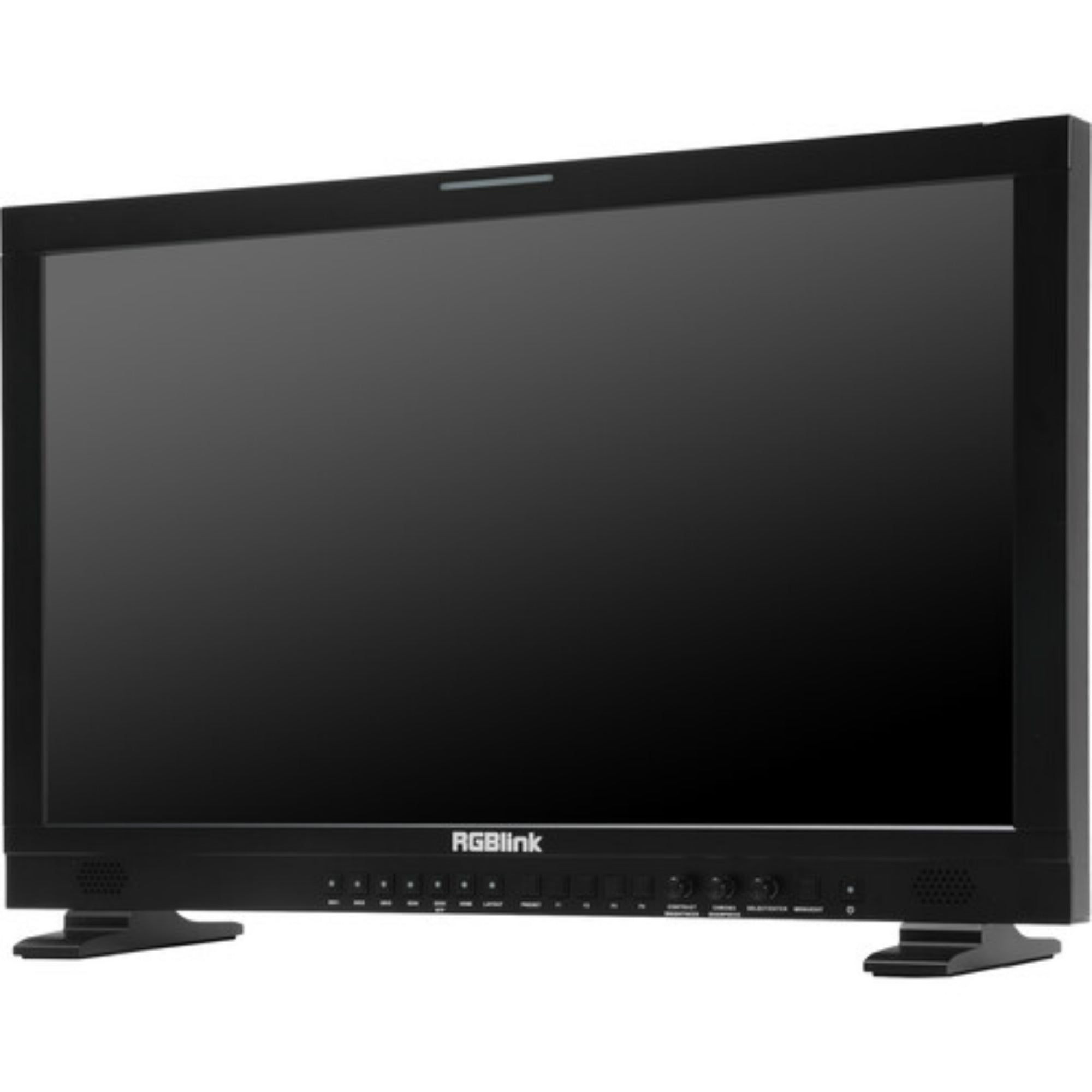

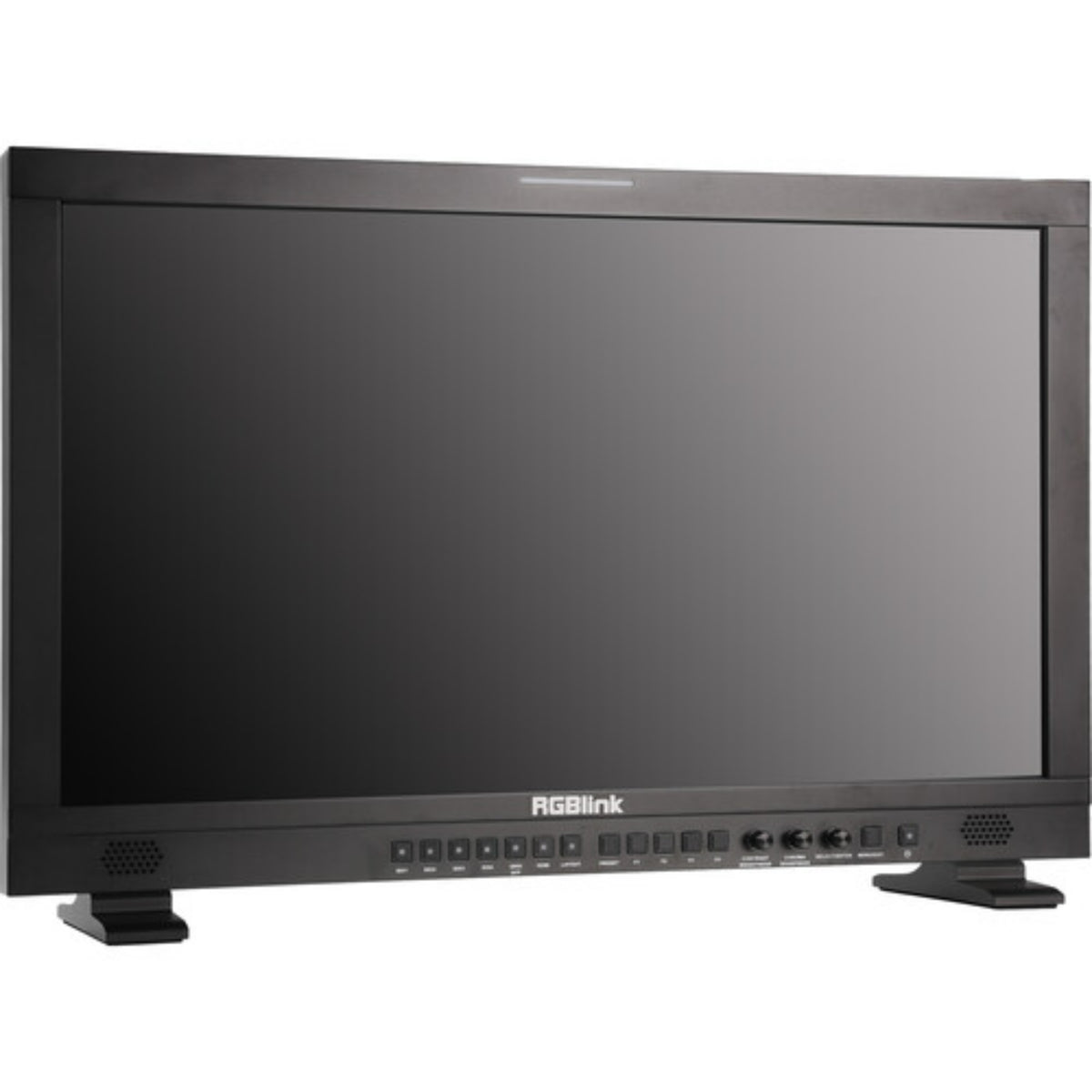

RGBlink aura UHD 24" 12G-SDI Professional Production Monitor (Gold Mount)

RGBlink aura UHD 24" 12G-SDI Professional Production Monitor (Gold Mount) is a 23.8-inch UHD production monitor built for SDI-first workflows where the signal needs to stay solid and the picture needs to stay honest. You get 4x 12G-SDI inputs with 4x 12G-SDI loop outputs for clean routing, plus 2x HDMI 2.0 inputs for computers and playback. It’s a practical monitor for studio racks, carts, and engineering benches when you want UHD monitoring, multi-input confidence, and real control I/O in one panel.

Highlights

• UHD resolution on a 23.8" IPS-type LCD panel (3840 x 2160, 16:9)
• SDI-heavy I/O with 4x 12G-SDI in and 4x 12G-SDI loop out (BNC)
• HDMI 2.0 inputs (2x) for graphics systems, NLE stations, and non-SDI sources
• High-bright workflow at 1000 nits with 1000:1 contrast and wide viewing angles
• LUT + monitoring tools support, plus RS-422, GPI, LAN, and an SFP slot for facility-friendly integration

Quick Specs & Uses

• Display: 23.8" IPS-type LCD, 3840 x 2160, 16:9, 178°/178° viewing
• Brightness / Contrast: 1000 nits, 1000:1
• Color: 1.07B colors (8-bit+FRC), 100% Rec.709, 100% DCI-P3, LUT support
• Video I/O: 4x 12G-SDI in (BNC), 4x 12G-SDI loop out (BNC), 2x HDMI 2.0 in
• Embedded audio: supported over SDI and HDMI; 3.5mm headphone output; built-in stereo speaker
• SDI formats: UHD 4K up to 60/59.94/50 (also supports 30/29.97/25/24/23.98), plus DCI 2K, 1080p, and 720p as listed
• HDMI formats: DCI 4K and UHD 4K up to 60/59.94/50 (also supports 30/29.97/25/24/23.98), plus 1080p/1080i/720p as listed
• Control / I/O: RS-422 in (RJ45), RS-422 out (RJ45), GPI (RJ45), LAN I/O (RJ45), 1x SFP slot
• Power: 100–240 VAC 50/60Hz (IEC) or 24 VDC / 8 A (4-pin XLR); Gold Mount plate; 90W max
• Mounting: VESA 100 x 100 mm
• Physical: 571.7 x 414.85 x 160 mm; 8.6 kg

Why It Helps

In a real SDI environment, the fastest way to lose time is breaking the signal path just to feed a monitor. The quad 12G-SDI input + loop-out layout lets you keep routing clean while still getting a proper UHD picture. Add the two HDMI 2.0 inputs and it stays useful for graphics laptops, playback boxes, and post stations that live on GPU outputs.

System Characteristics

• Loop outputs are the quiet hero: you can monitor UHD without “stealing” the feed or adding an external DA
• 59.94 support matters in mixed broadcast environments, especially when the rest of the plant is fractional-rate
• 1000 nits helps on carts and bright rooms where standard desktop monitors wash out
• LUT support keeps looks consistent when you’re reviewing camera Log or matching a show pipeline
• RS-422/GPI/LAN makes it easier to integrate into facility control than a “monitor-only” panel

What’s In The Box

RGBlink includes the monitor and a power adapter. Please refer to the Specifications tab and your order configuration for the exact included items.
