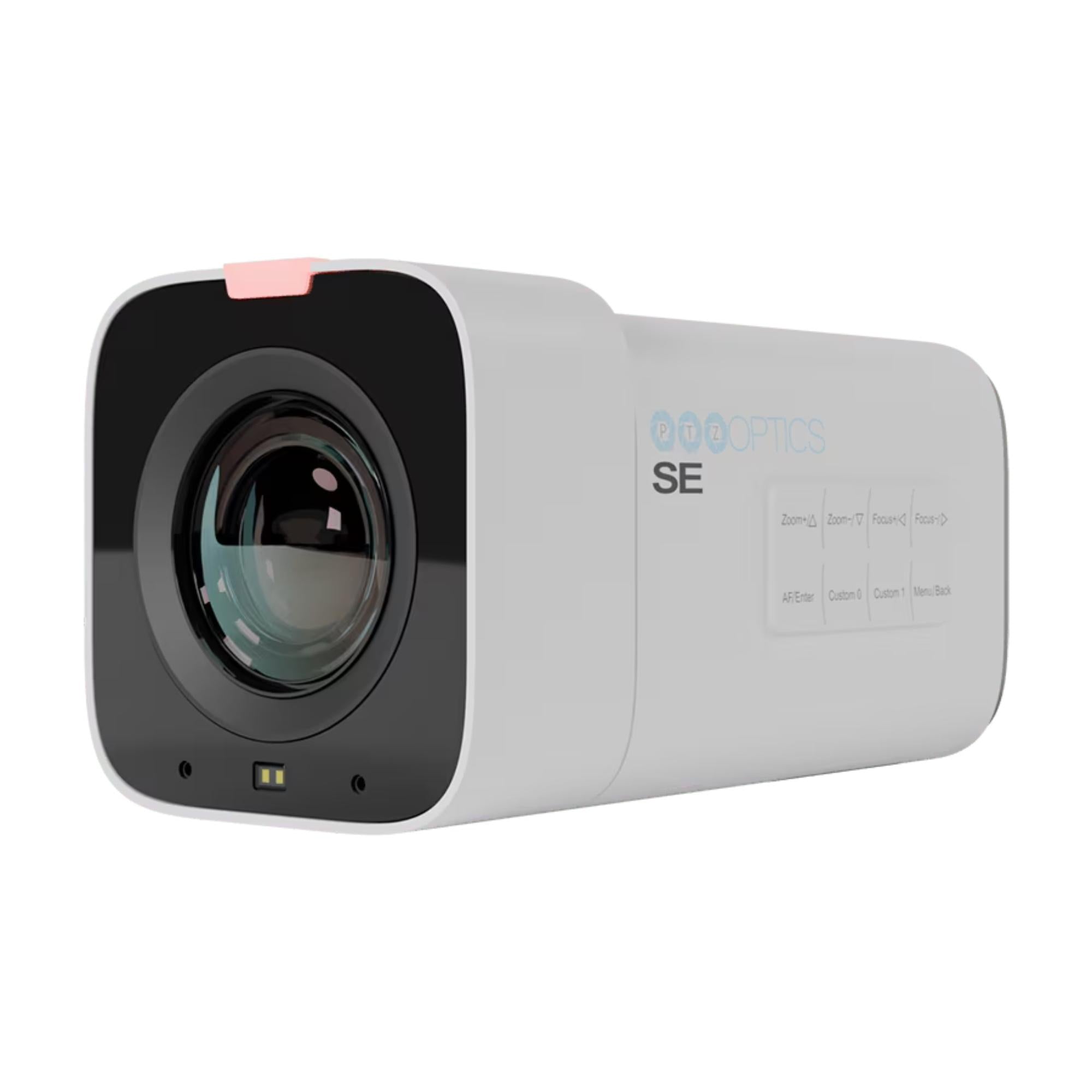

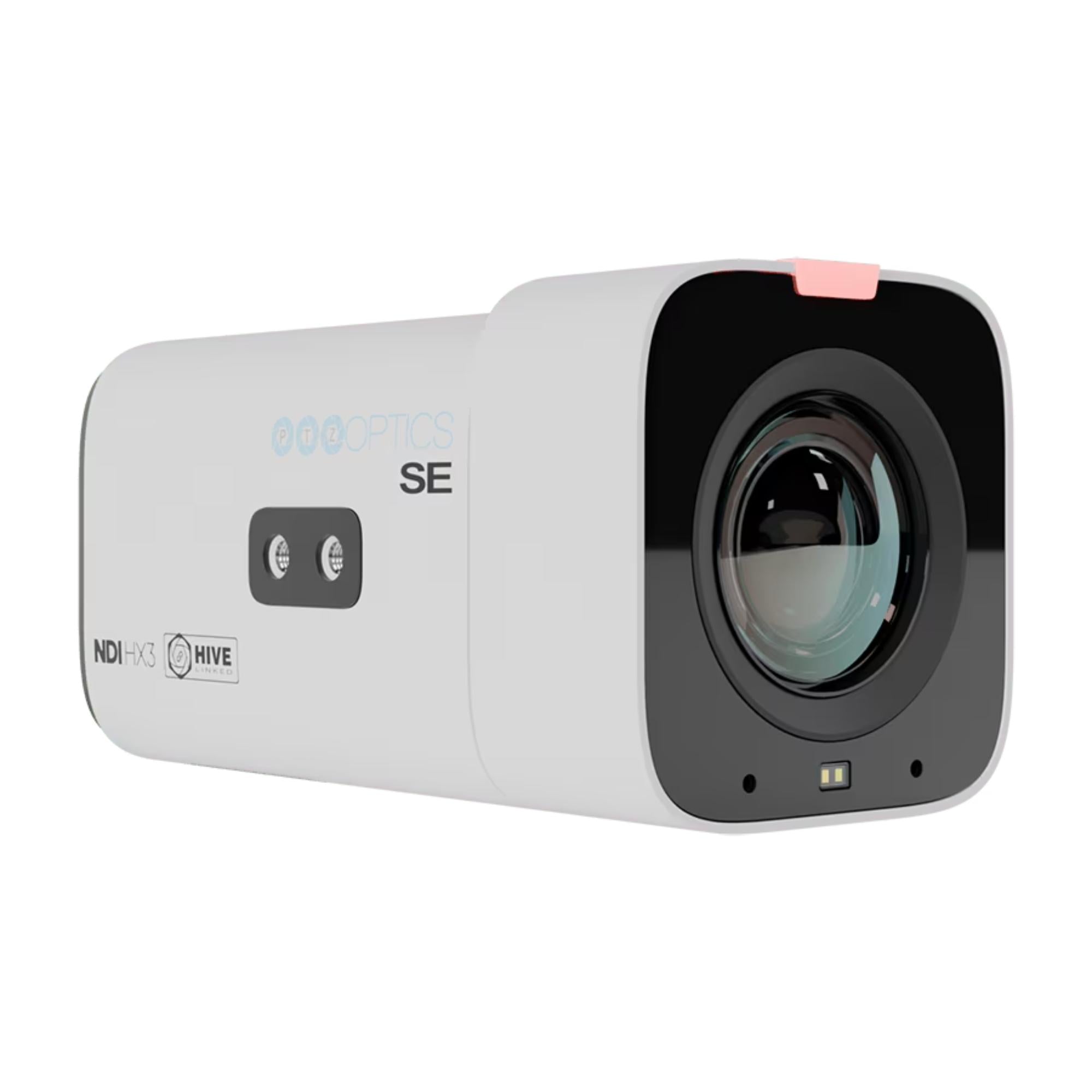

PTZOptics Studio SE 20x (White)

PTZOptics Studio SE 20x (White) is a Hive-Linked studio camera built for production spaces that need longer optical reach in a compact body. It supports up to 1080p60, uses a 1/2.8"-type CMOS sensor, and provides 20x optical zoom with 16x digital zoom.

For classrooms, houses of worship, meeting rooms, and live production spaces, the Studio SE 20x gives operators flexible connection options through 3G-SDI, HDMI, USB-C, and IP/NDI HX3 streaming. It also supports IR remote, Web UI, and app control options, making it easy to fit into different control workflows.

Highlights

• Studio SE Hive-Linked camera in white
• 20x optical zoom and 16x digital zoom
• Up to 1080p60 video
• 1/2.8"-type CMOS sensor
• 8.4 megapixel effective sensor resolution
• 3G-SDI, HDMI, USB-C, and IP outputs
• IP and NDI HX3 streaming
• Easy network connection and LED tally light
• Built-in microphone with 3.5mm line input and output
• 12 VDC or PoE with separate switch

Quick Specs & Uses

• Product type: Hive-Linked Studio SE camera
• Color: White
• Image sensor: 1/2.8"-type CMOS
• Effective sensor resolution: 8.4 megapixel
• Optical zoom: 20x
• Digital zoom: 16x
• Field of view: 60.7° to 3.5°
• Minimum illumination: 0.5 lux
• Power: 12.0 VDC
• Power consumption: 18 W

Why It Helps

The 20x optical zoom is the main reason to choose this version. It gives the operator more reach for rooms where the camera is mounted farther from the subject, while still keeping the same compact Studio SE workflow.

From an engineering standpoint, the camera is easy to place into mixed production systems. SDI and HDMI support traditional video paths, USB-C handles computer-based video workflows, and IP/NDI HX3 supports networked production where camera signals are routed over Ethernet.

Recording & Video Output

• HDMI: 3840 x 2160p at 25/29.97/30/50/59.94/60 fps
• HDMI: 1920 x 1080p at 25/29.97/30/50/59.94/60 fps
• HDMI: 1920 x 1080i at 50/59.94/60 fps
• HDMI: 1280 x 720p at 59.94/60 fps
• SDI/BNC: 1920 x 1080p at 25/29.97/30/50/59.94/60 fps
• SDI/BNC: 1280 x 720p at 50/59.94/60 fps

Exposure & Lens

• Shutter type: Electronic rolling shutter
• Shutter speed: 1/10000 to 1/30 second
• Minimum illumination: 0.5 lux
• Focal length: 4.7 to 94mm
• Aperture range: f/1.8 to 2.68

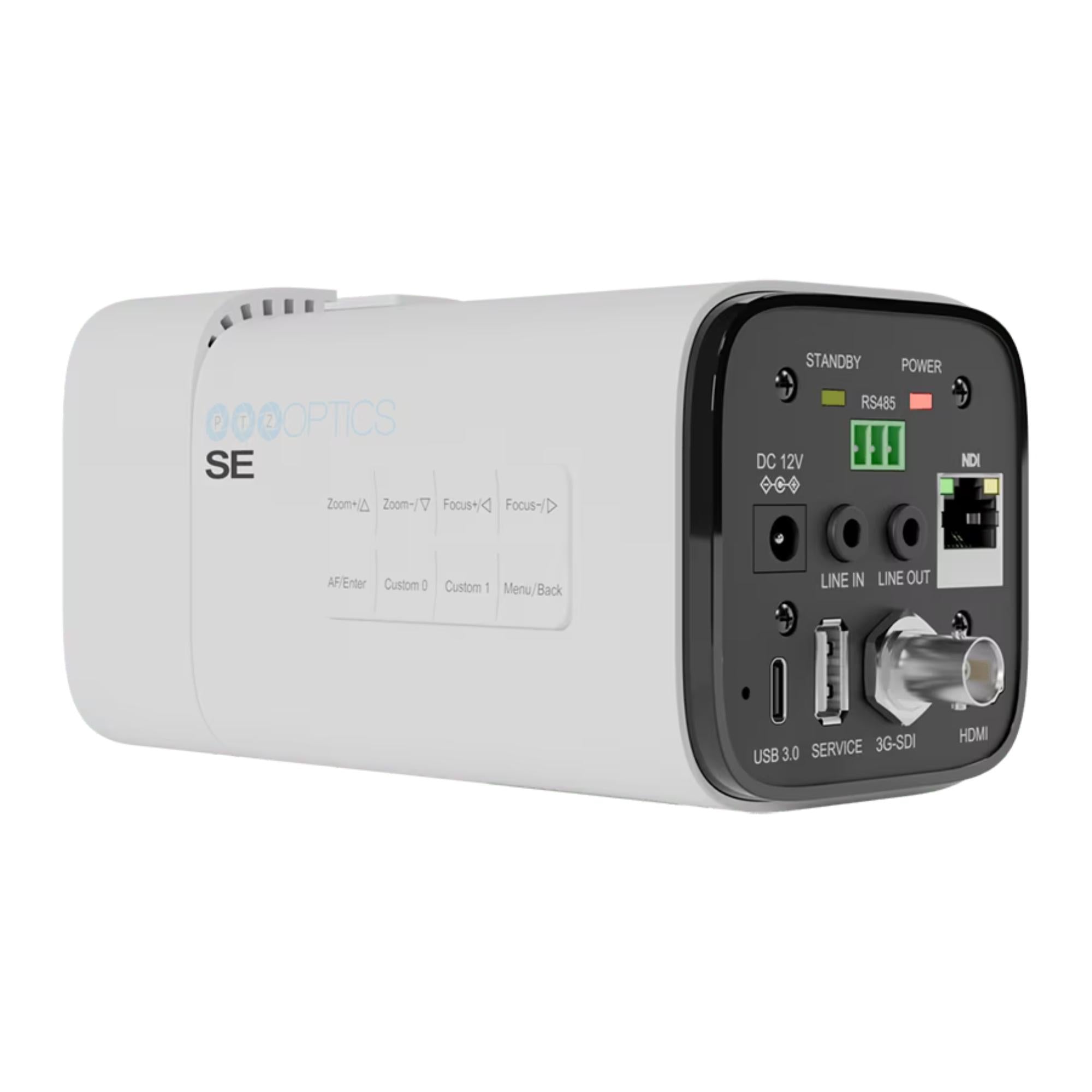

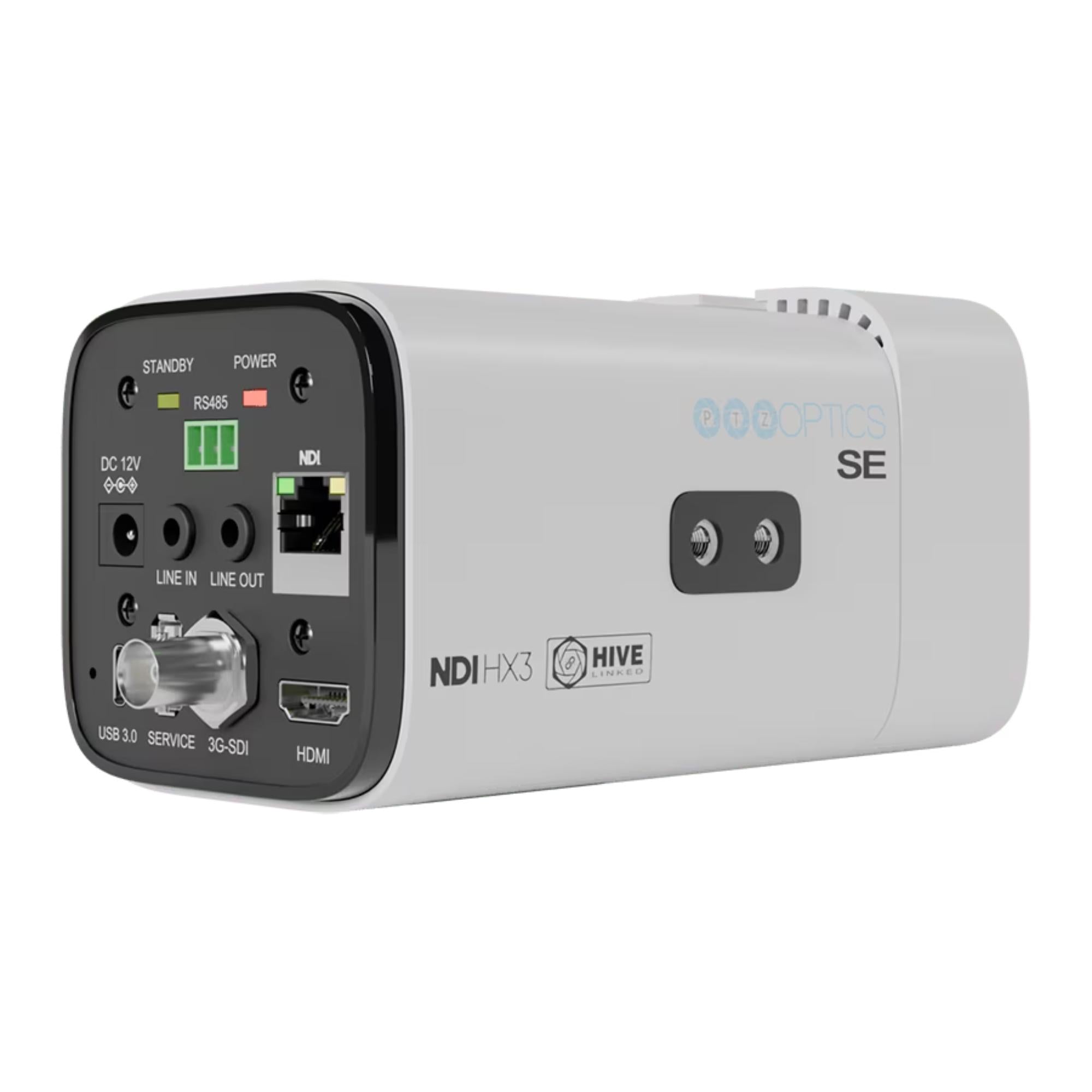

Interface

• 1 x RJ45 NDI video output
• 1 x HDMI video output
• 1 x BNC 3G-SDI video output
• 1 x 1/8" / 3.5mm TRS stereo audio input
• 1 x 1/8" / 3.5mm TRS stereo audio output
• 1 x USB-C video output
• 1 x USB-A firmware input
• Power I/O: 1 x barrel, 1 x RJ45
• Adapter / cable: No
• Internal storage: No
• Media / memory card slot: No
• Wireless: No
• Mobile app compatible: No

Supported Protocols

• Video streaming: HTTP/NDI HX3/RTMP/RTSP/TCP/UDP
• Camera control: ONVIF

Environmental & General

• Operating conditions: 14 to 104°F / -10 to 40°C at 10 to 80% humidity
• Accessory mounting: 1 x cold shoe mount, 1 x 1/4"-20 female
• Dimensions: 5.7 x 3.1 x 3" / 145 x 78.5 x 76 mm
• Weight: 22.6 oz / 640 g

What’s In The Box

• 1 x PTZOptics Studio SE Hive-Linked Camera with 20x Optical Zoom (White)
• 1 x 12V, 2A international power supply
• 1 x lens cap
• 1 x USB-A to USB-C cable
• 1 x IR remote
• 2 x AAA battery
