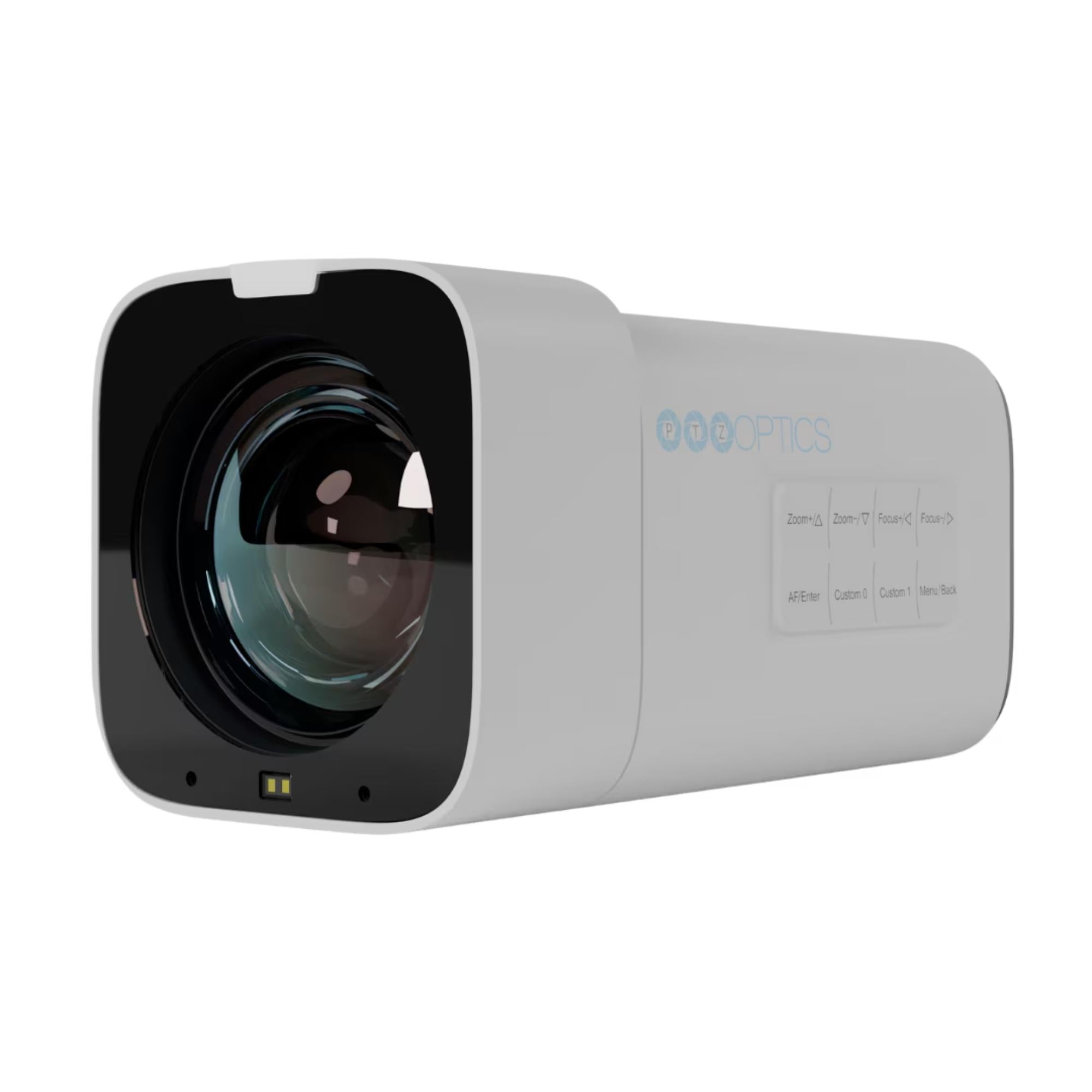

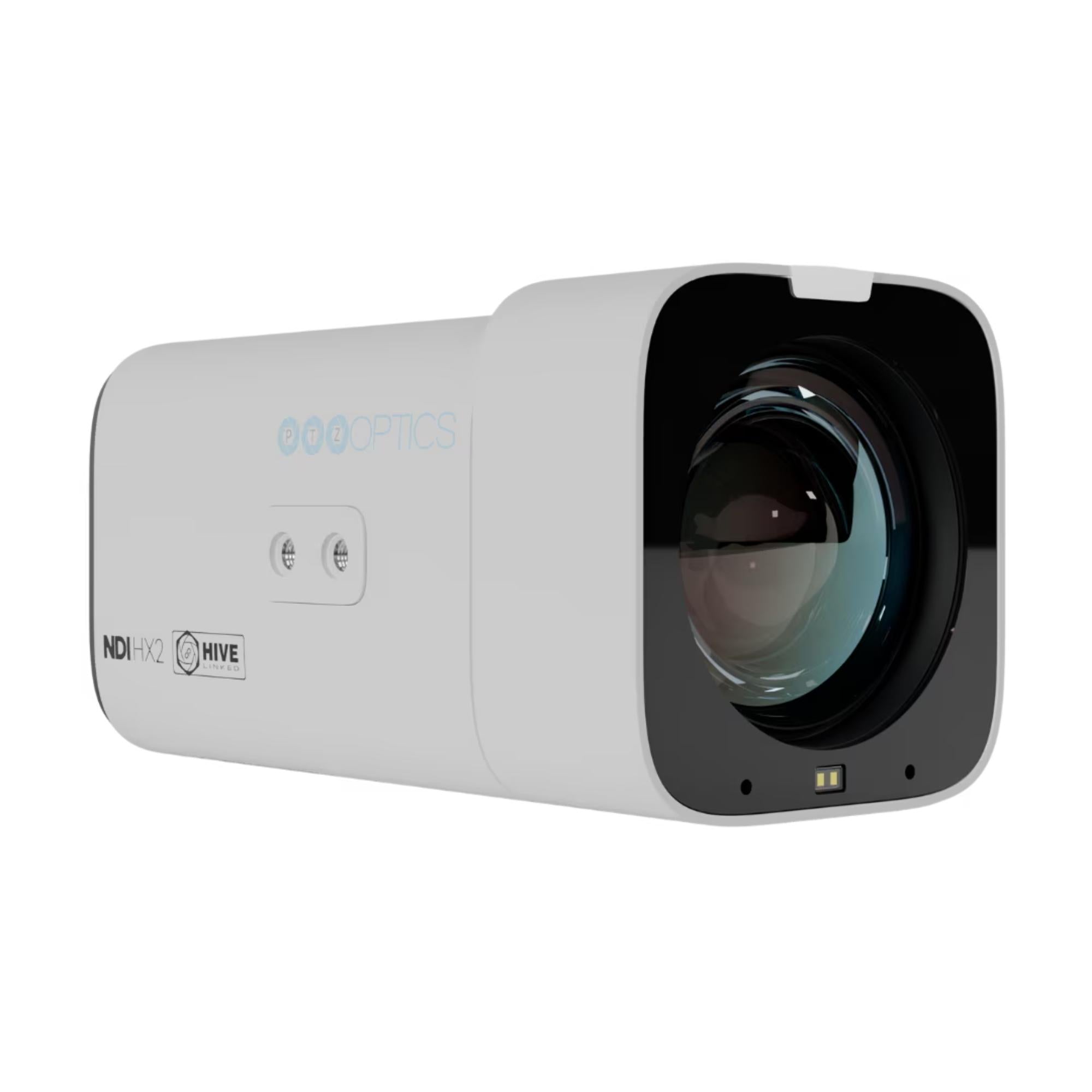

PTZOptics Studio 4K 20x Zoom Box Camera (White)

PTZOptics Studio 4K 20x Zoom Box Camera (White) is built for production spaces that need UHD 4K image quality with longer optical reach. It captures up to UHD 4K60 and uses a 20x optical zoom lens with 16x digital zoom, making it useful for tighter shots from farther camera positions.

For broadcast, streaming, education, worship, and installed AV workflows, this camera gives operators flexible signal options through SDI, HDMI, USB-C, and NDI HX2-enabled IP output. Control options include IP and RS-485, with support for network streaming using NDI HX2, SRT, RTSP, and RTMP/RTMPS.

Highlights

• Studio 4K box camera in white
• 20x optical zoom with 16x digital zoom
• Capture up to UHD 4K60 resolution
• SDI, HDMI, USB-C, and IP outputs
• NDI HX2, SRT, RTSP/RTMP(S) streaming support
• Audio input and output
• RS-485 control
• PoE+ support

Quick Specs & Uses

• Product type: Studio 4K zoom box camera
• Color: White
• Lens: 20x, 1/2.8 inch CMOS
• Image sensor: 8MP, effective pixels 8.4M
• Digital zoom: 16x
• Display field of view: 67.8°
• Minimum illumination: 0.5 Lux @ F1.8, AGC ON
• Power supply: JEITA type DC IN 12V / PoE 802.3at
• Current consumption: Max 2A
• Power consumption: Max 18W

Why It Helps

The 20x zoom range is the practical advantage here. It lets the camera sit farther back in a room while still giving the operator a tighter shot on a subject, stage, presenter, or production area.

From an engineering standpoint, the connection set makes the camera easy to fit into different systems. SDI and HDMI are ready for switchers, USB-C supports computer-based production, and NDI HX2 over IP works well for network video environments.

Camera & Lens

• Lens: 20x, 1/2.8 inch CMOS
• Image sensor: 8MP, effective pixels 8.4M
• Digital zoom: 16x
• Optical lens focal length: f = 4.7mm to 94mm, F1.6 to F3.6
• Optical lens field of view: horizontal 3.5° to 60.7°, vertical 1.9° to 34.7°
• Display field of view: 67.8°
• Shutter: 1/30s to 1/10000s
• Presets: 255 presets
• Preset accuracy: 0.1°
• Image flip: Supported
• Image mirror: Supported
• Image freeze: Supported

Resolution & Frame Rate

• HDMI: 3840x2160p60/59.94/50/30/29.97/25
• HDMI: 1920x1080p60/59.94/50/30/29.97/25
• HDMI: 1920x1080i60/59.94/50
• HDMI: 1280x720p60/59.94
• SDI: 1920x1080p60/59.94/50/30/29.97/25
• SDI: 1920x1080i60/59.94/50
• SDI: 1280x720p60/59.94/50

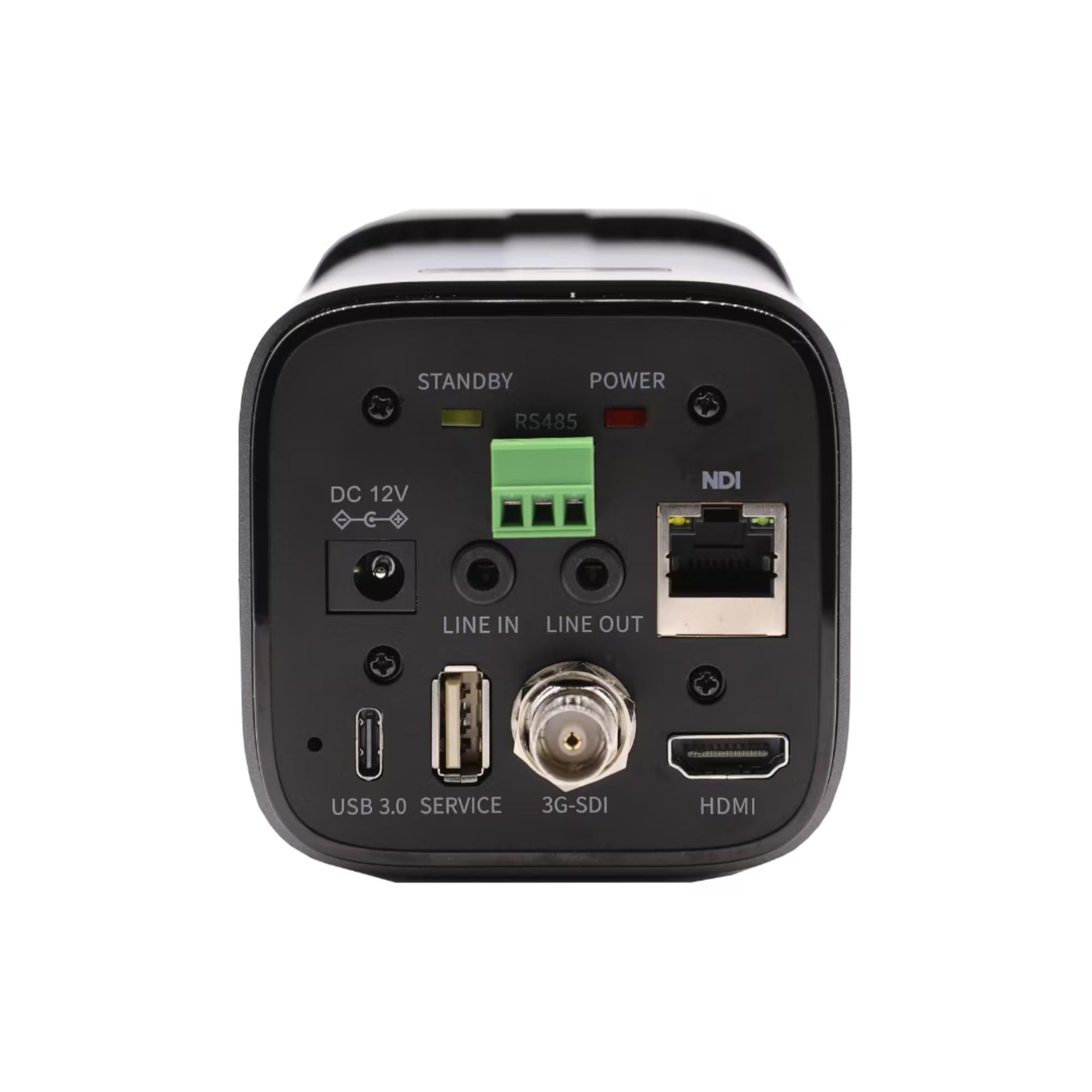

Connections

• HD video output: 1 x RJ45 10/100/1000M adaptive Ethernet port, NDI HX2 enabled
• HD video output: 1 x HDMI version 2.0
• HD video output: 1 x USB 3.0 Type-C
• HD video output: 1 x 3G-SDI BNC type, 800mVP-p, 75Ω, along to SMPTE 424M
• Audio interface: 1 x 3.5mm line level input
• Audio interface: 1 x 3.5mm line level output
• Video formats via USB: YUY2 up to 1920x1080p@30, MJPEG up to 3840x2160p@30, H.264 AVC/SVC up to 3840x2160p@30, H.265 up to 3840x2160p@30 via RTSP/NDI HX2 only
• Compression standards: H.264 / H.265 / MJPEG / YUY2
• UVC version supported: UVC 1.1 to 1.5
• Supported protocols: TCP/IP, UDP, HTTP, RTSP, RTMP/RTMPS, ONVIF, NDI HX2, SRT, Multicast, etc.
• IR: 4 x IR addresses, max distance 30 ft / 9 m

What’s In The Box

• 1 x PTZOptics Studio 4K Camera with 20x Optical Zoom (White)
• 1 x Power Supply
• 1 x IR Remote Control
• 2 x AA Battery (Remote)
• 1 x USB-C to USB-A Cable
• 1 x Camera Lens Cap
