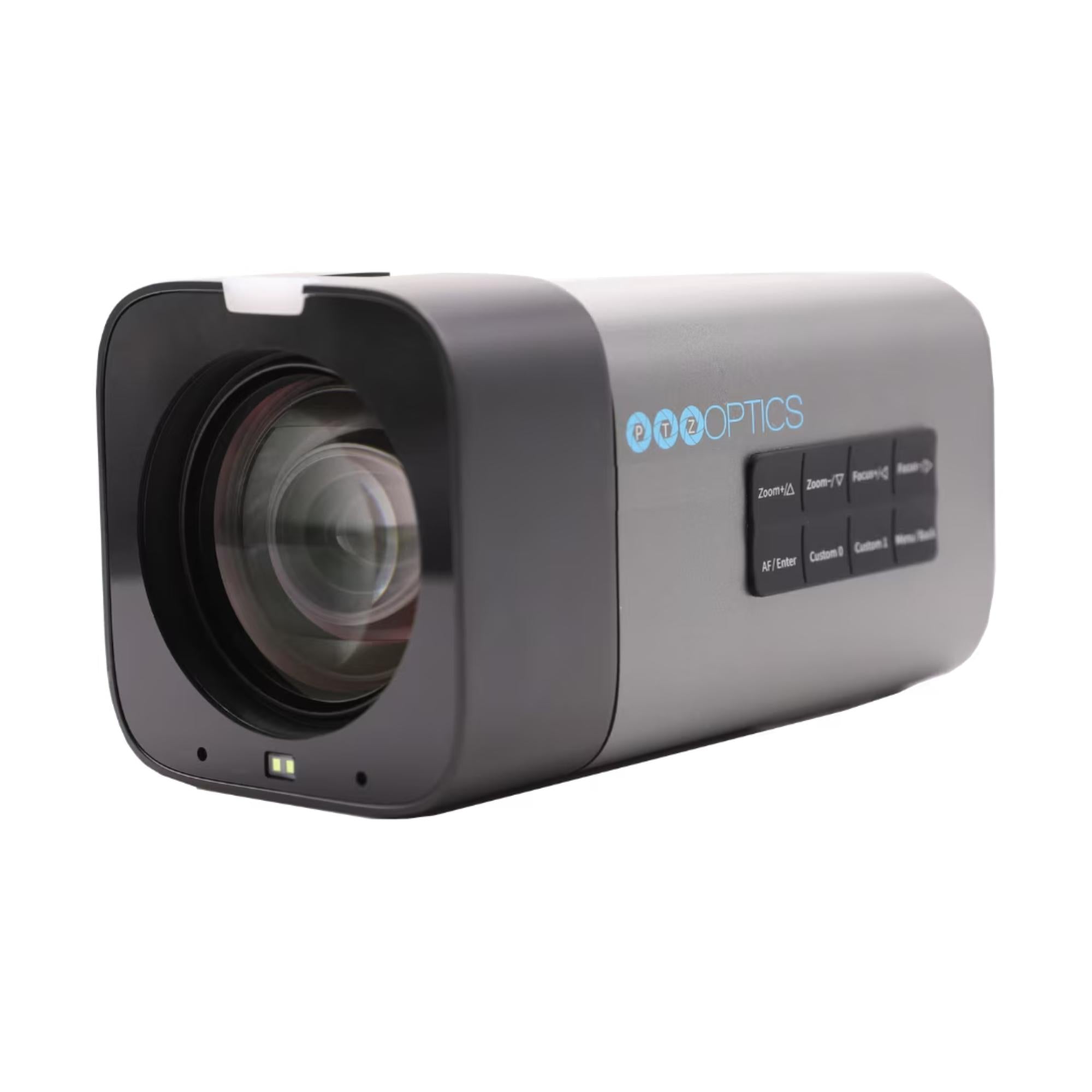

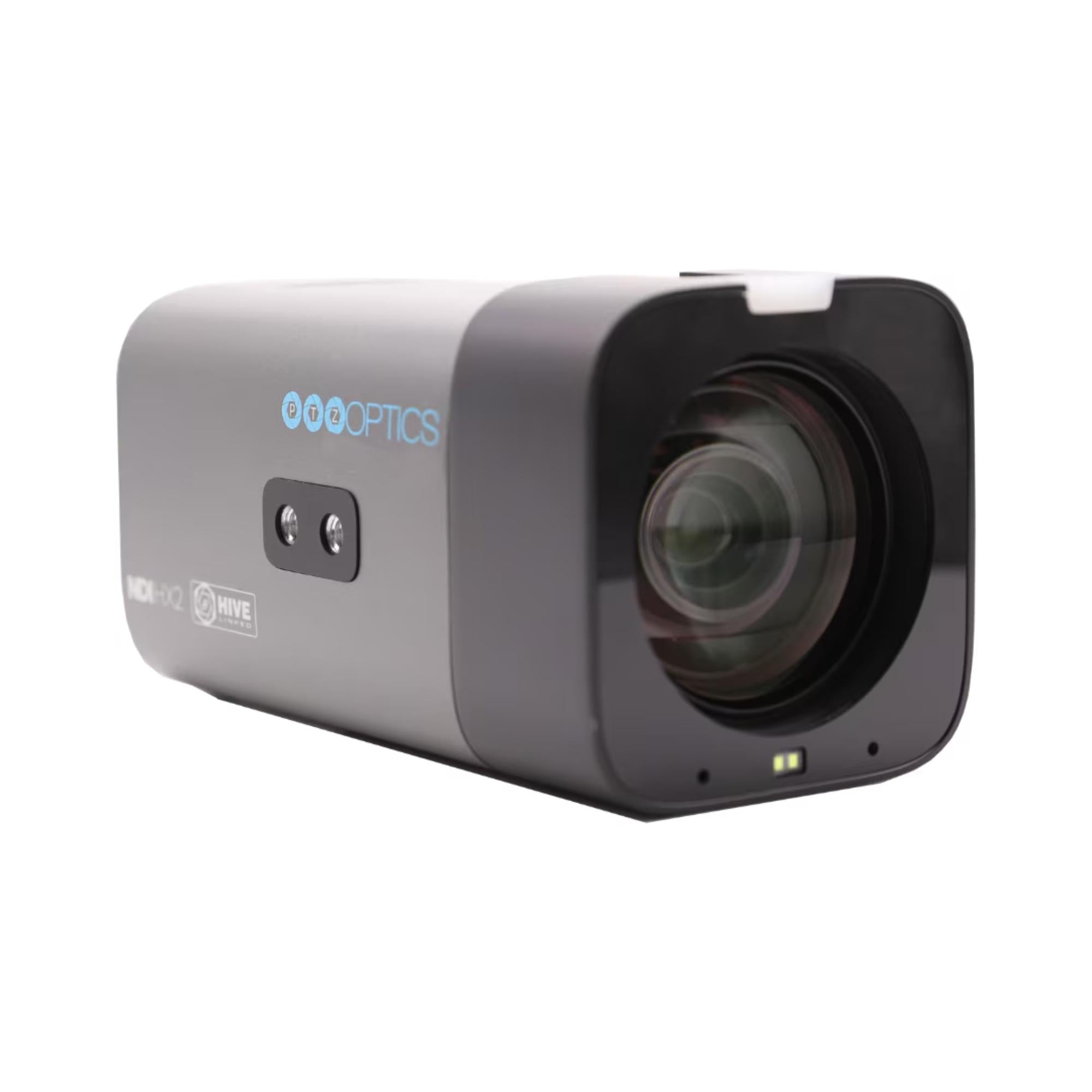

PTZOptics Studio 4K 12x Zoom Box Camera (Gray)

PTZOptics Studio 4K 12x Zoom Box Camera (Gray) is a compact 4K box camera built for production spaces that need clean image capture, flexible output, and network-friendly integration. It captures up to UHD 4K60 and uses a 12x optical zoom lens with 16x digital zoom, making it useful for fixed camera positions in studios, classrooms, houses of worship, live venues, and hybrid production rooms.

From a broadcast workflow perspective, the strength of this camera is connection flexibility. It provides SDI, HDMI, USB-C, and NDI HX2-enabled IP output, so it can feed traditional switchers, USB-based systems, or network video environments depending on the production design.

Highlights

• Studio 4K box camera in gray
• 12x optical zoom with 16x digital zoom
• Capture up to UHD 4K60 resolution
• SDI, HDMI, USB-C, and IP outputs
• NDI HX2, SRT, RTSP/RTMP(S) streaming support
• Audio input and output
• RS-485 control
• PoE+ support

Quick Specs & Uses

• Product type: Studio 4K zoom box camera
• Color: Gray
• Lens: 12x, 1/2.8 inch CMOS
• Image sensor: 8MP, effective pixels 8.4M
• Digital zoom: 16x
• Display field of view: 80°
• Minimum illumination: 0.5 Lux @ F1.8, AGC ON
• Power supply: JEITA type DC IN 12V / PoE 802.3at
• Current consumption: Max 2A
• Power consumption: Max 18W

Why It Helps

This camera is a good fit when you need a fixed 4K shot that still has optical zoom control. In a live production, that can mean a wide room angle, a stage shot, a scoreboard view, a presenter camera, or a clean secondary angle that stays ready throughout the show.

The camera is also easy to place into different signal chains. SDI and HDMI are familiar for switcher-based workflows, USB-C works for computer-connected video, and NDI HX2 over IP gives network production teams a cleaner path for routing video across the LAN.

Camera & Lens

• Lens: 12x, 1/2.8 inch CMOS
• Image sensor: 8MP, effective pixels 8.4M
• Digital zoom: 16x
• Optical lens focal length: f = 4.1mm to 49.2mm, F1.8 to F2.68
• Optical lens field of view: horizontal 6.9° to 72.5°, vertical 3.9° to 44.8°
• Display field of view: 80°
• Shutter: 1/30s to 1/10000s
• Presets: 255 presets
• Preset accuracy: 0.1°
• Image flip: Supported
• Image mirror: Supported
• Image freeze: Supported

Resolution & Frame Rate

• HDMI: 3840x2160p60/59.94/50/30/29.97/25
• HDMI: 1920x1080p60/59.94/50/30/29.97/25
• HDMI: 1920x1080i60/59.94/50
• HDMI: 1280x720p60/59.94
• SDI: 1920x1080p60/59.94/50/30/29.97/25
• SDI: 1920x1080i60/59.94/50
• SDI: 1280x720p60/59.94/50

Physical

• Material: Aluminum, plastic
• Dimensions: 5.7 L x 2.99 W x 3.09 H in / 145 mm L x 76 mm W x 78.5 mm H
• Weight: 1.5 lb / 0.68 kg
• Working environment: Indoor
• Humidity range: 10% to 80%
• Operating temperature: 14°F to 104°F / -10°C to 40°C
• Storage temperature: -40°F to 140°F / -40°C to 60°C

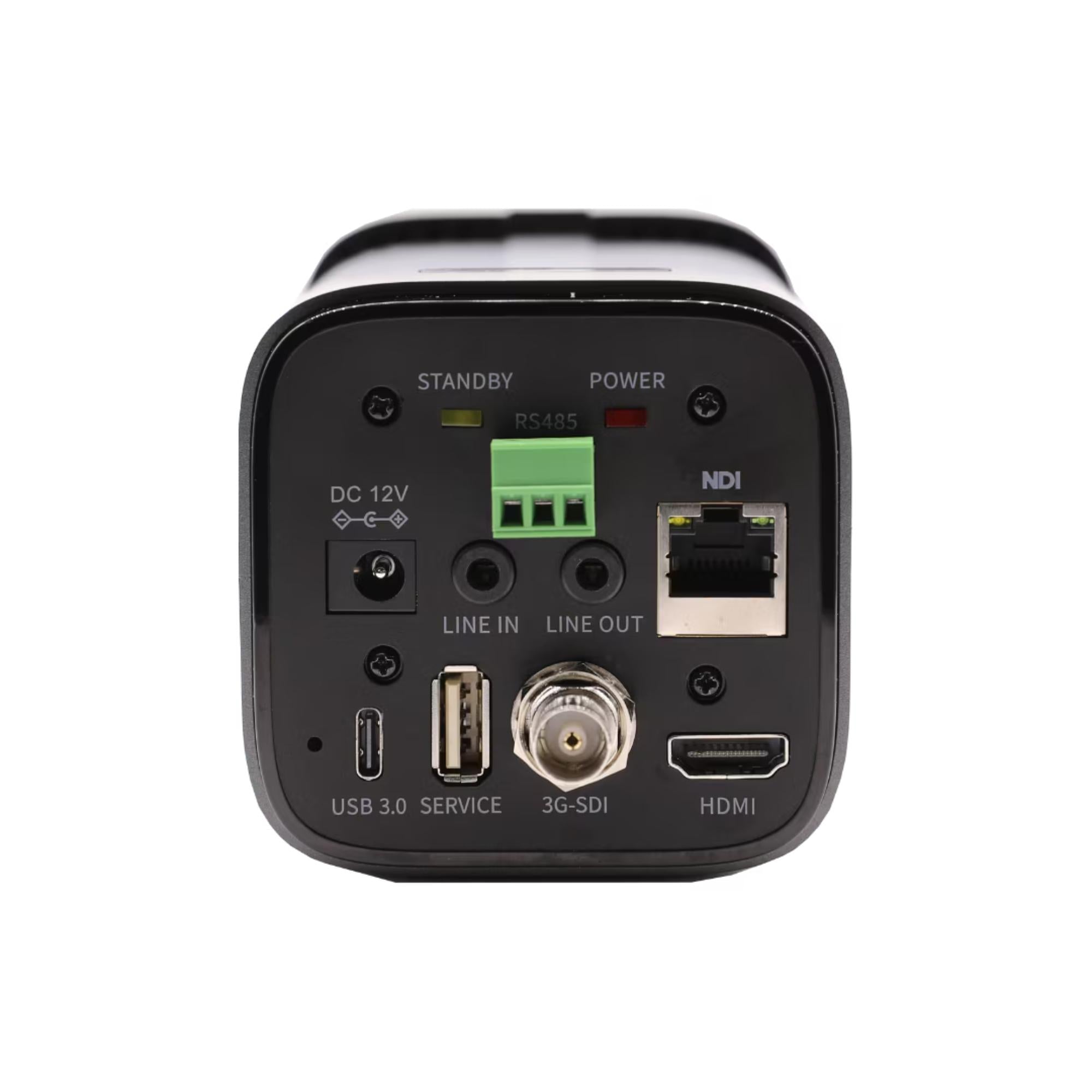

Connections

• HD video output: 1 x RJ45 10/100/1000M adaptive Ethernet port, NDI HX2 enabled
• HD video output: 1 x HDMI version 2.0
• HD video output: 1 x USB 3.0 Type-C
• HD video output: 1 x 3G-SDI BNC type, 800mVP-p, 75Ω, along to SMPTE 424M
• Audio interface: 1 x 3.5mm line level input
• Audio interface: 1 x 3.5mm line level output
• Video formats via USB: YUY2 up to 1920x1080p@30, MJPEG up to 3840x2160p@30, H.264 AVC/SVC up to 3840x2160p@30, H.265 up to 3840x2160p@30 via RTSP/NDI HX2 only
• Compression standards: H.264 / H.265 / MJPEG / YUY2
• UVC version supported: UVC 1.1 to 1.5
• Supported protocols: TCP/IP, UDP, HTTP, RTSP, RTMP/RTMPS, ONVIF, NDI HX2, SRT, Multicast, etc.
• IR: 4 x IR addresses, max distance 30 ft / 9 m

What’s In The Box

• 1 x PTZOptics Studio 4K Camera with 12x Optical Zoom (Gray)
• 1 x Power Supply
• 1 x IR Remote Control
• 2 x AA Battery (Remote)
• 1 x USB-C to USB-A Cable
• 1 x Camera Lens Cap
