Product Highlights
- Wi-Fi 6 wireless networking
- Integrated IEEE 802.3at PoE+
- V-mount battery power support
- Multiple 1/4-20 mounting points
PTZOptics Power+Link Wireless Network Bridge with PoE+ and Wi-Fi 6
- SKU:
- PT-WIRELESS-POWERLINK
- MPN:
- PT-WIRELESS-POWERLINK
Ships in 1-3 Business Day
Free Expedited Shipping
Secure payment
Manufacturer Warranty
Authorized Dealer
Product Inquiry Form
Description
Product Overview

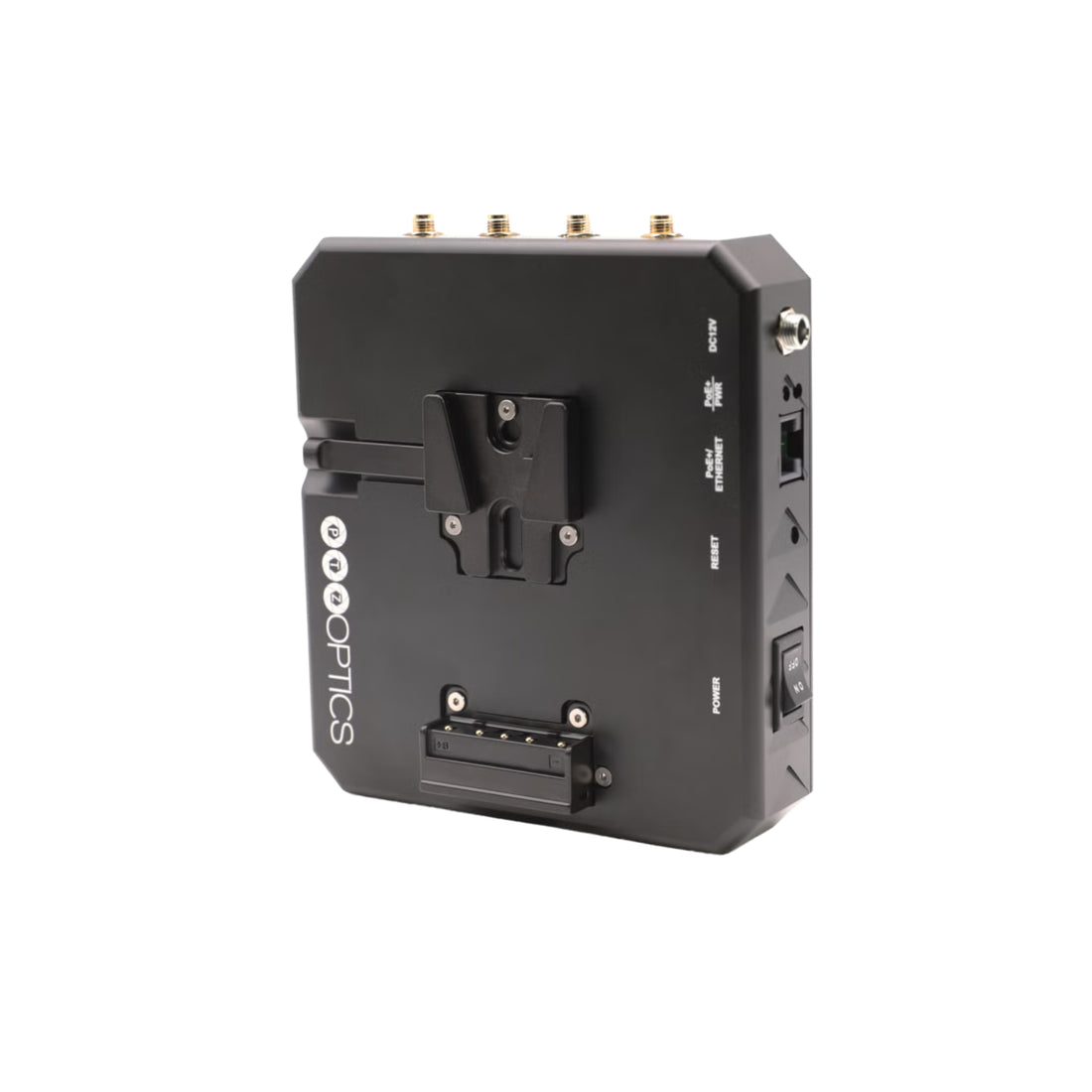

The PTZOptics Power+Link is a wireless network bridge built for IP camera video, camera control and PoE+ power in mobile production and installed AV workflows. It connects a compatible camera by Ethernet, provides up to IEEE 802.3at PoE+ output and can operate from 24VDC or a compatible V-mount battery. Dual-band wireless operation supports flexible placement for sports broadcasting, live events, house of worship production and temporary venue setups where pulling network cable is impractical.
The PTZOptics Power+Link is a compact wireless network bridge for professional IP camera workflows, available from Coremicro, an authorized PTZOptics dealer based in Union City, California. PTZOptics specifies wireless IP video and device control, up to 80 Mbps transmission, IEEE 802.3at PoE+ output, 24VDC input and V-mount battery support. PTZOptics does not publish an MSRP on the live product page; current distributor listings show an $829 MSRP. The current 2026 PTZOptics warranty chart does not list this model, so warranty coverage should be confirmed with Coremicro or PTZOptics before purchase.
Wi-Fi 6 Wireless IP Video Bridge
Wireless IP video bridging lets an Ethernet-based camera communicate across a standard Wi-Fi network without a dedicated cable run back to the production LAN. PTZOptics rates transmission at up to 80 Mbps and lists 2.4 GHz and 5 GHz operating bands. This suits mobile production, temporary event positions and clean AV installations where cable routing is the limiting factor.
IEEE 802.3at PoE+ Camera Power
The integrated PoE+ injector sends network data and camera power through the LAN/PoE+ output to compatible equipment. PTZOptics specifies support up to IEEE 802.3at. The bridge itself is not powered by PoE, so the unit requires its 24VDC input or a compatible V-mount battery.

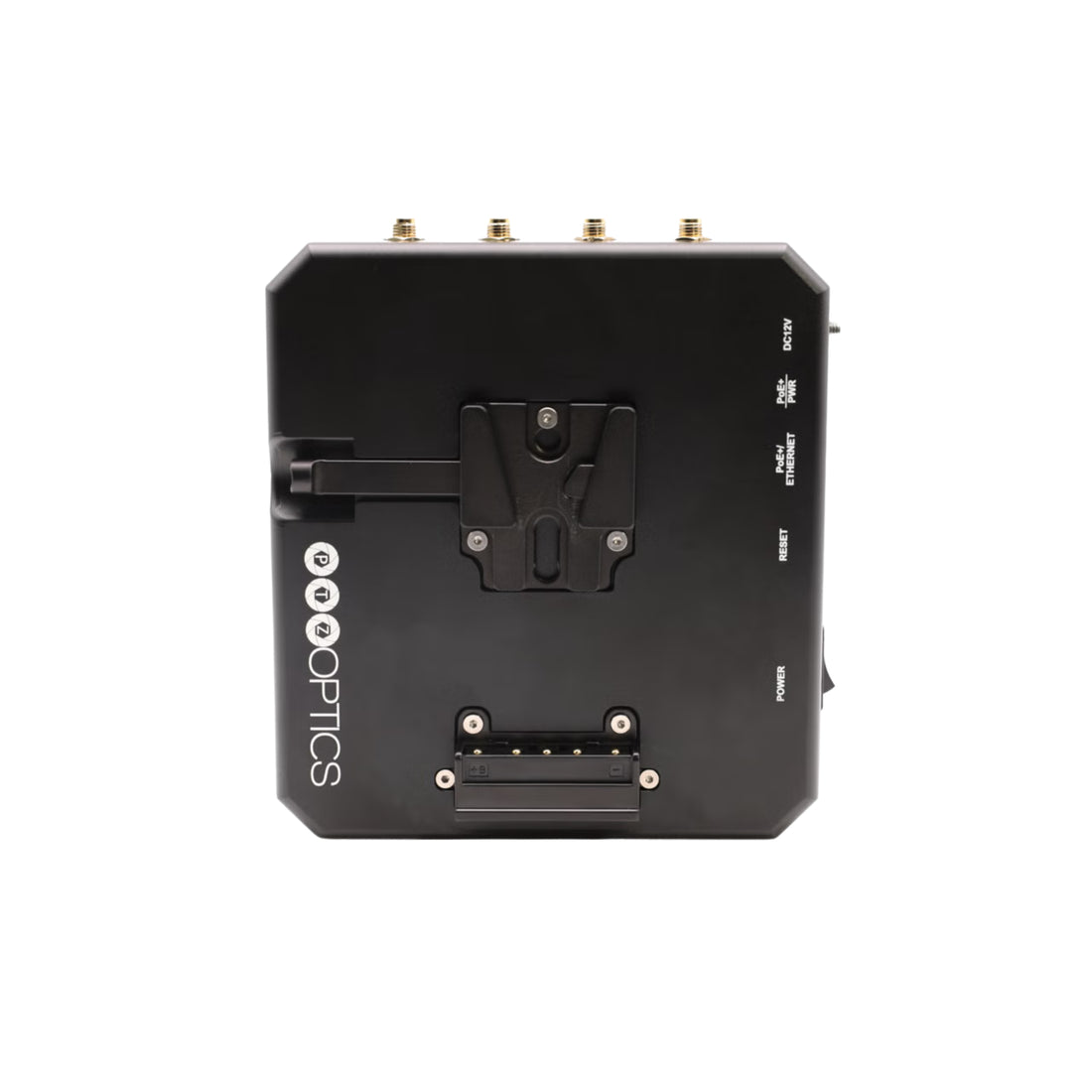

V-Mount Battery Power for PTZ Cameras
V-mount battery operation supports camera positions away from AC outlets while keeping the network bridge and compatible PoE+ camera on the same portable power setup. The integrated V-mount plate keeps the battery attached to the unit rather than hanging from separate cabling. Battery hardware is not included with the bridge.
Wireless Camera Control for IP Production
Wireless camera control travels with the IP network connection, allowing a compatible camera to remain reachable from production control without a dedicated control cable. That makes the bridge practical for remote production, corporate events and education AV where camera positions change between sessions. Network performance still depends on the surrounding Wi-Fi environment and available RF spectrum.
Flexible PTZ Camera Mounting Options

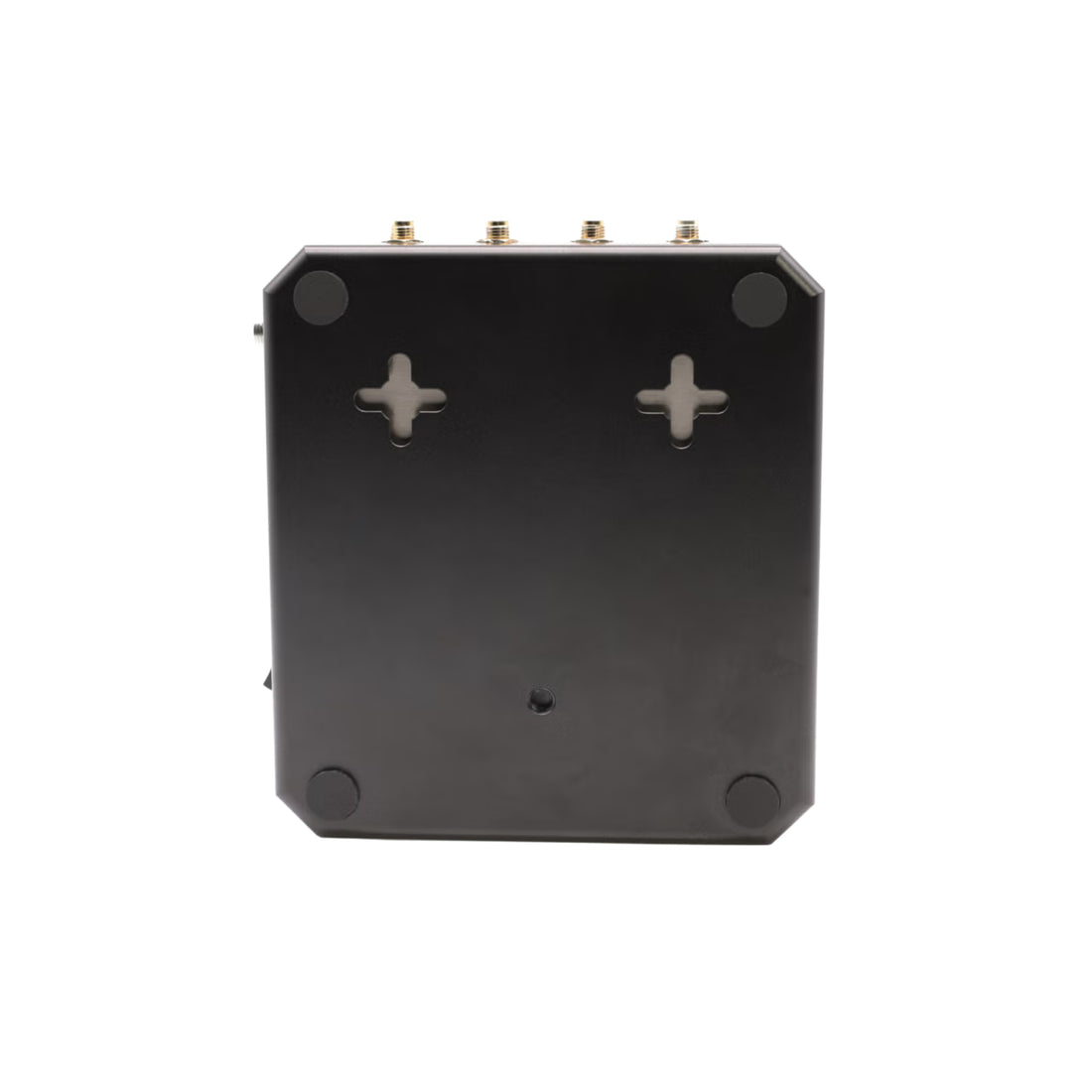

Multiple mounting points support portable and fixed installation choices. PTZOptics specifies standard 1/4-20 mounting inserts on both sides, anti-rotation slots and two rear keyhole slots. The enclosure can be integrated into tripod, wall or ceiling workflows without turning the network bridge into a loose tabletop accessory.
Dual-Band Wireless Network Security

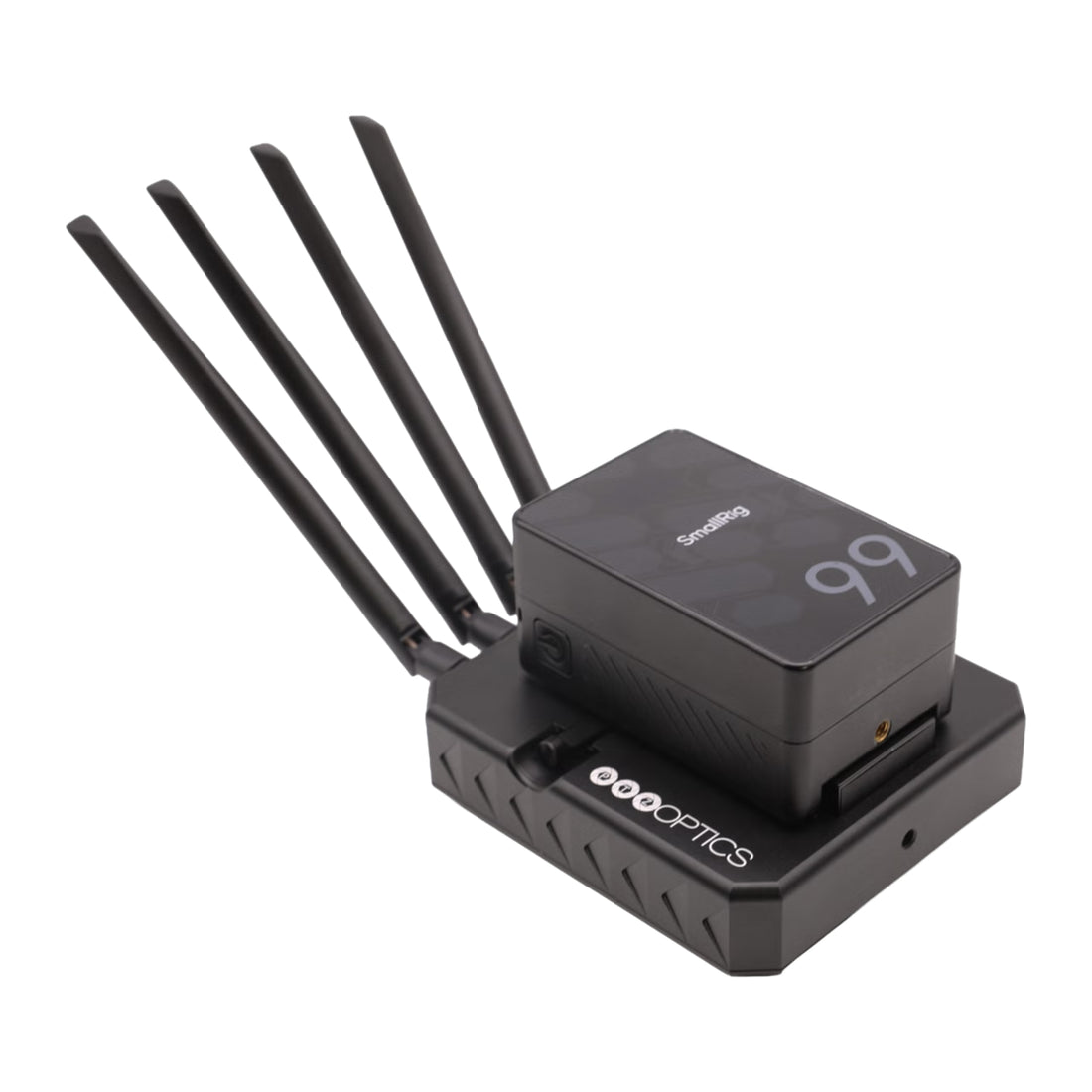

Published wireless settings include 20, 40 and 80 MHz channel bandwidth options plus WPA-PSK, WPA2-PSK and WPA/WPA2 encryption modes. Four 3 dBi dual-band omnidirectional antennas support the radio link. For production planning, RF coordination remains important in crowded sports venues, convention spaces and live event environments.
Sports Broadcasting
Place compatible IP cameras where temporary network and power cabling would interfere with sidelines, courts or event traffic.
Live Event Production
Build flexible camera positions for stages, breakout rooms and temporary venues without committing to long Ethernet runs.
House of Worship
Add a temporary or relocated PTZ position when architectural constraints make new data and AC cabling difficult.
Education AV
Support portable lecture capture and event spaces that need camera control without permanent network drops at every position.
Corporate AV
Reconfigure meeting rooms, town halls and overflow spaces with fewer temporary cables across occupied areas.
Mobile Production
Use V-mount battery power to keep a compact IP camera position operational away from fixed AC and wired network infrastructure.
| Specification | Detail |
|---|---|
| Antenna | 4 x 3 dBi dual-band omnidirectional |
| Wireless Standard | IEEE 802.11ac/a/b/g/n |
| Wi-Fi | 6, as listed by PTZOptics |
| Transmission Rate | Up to 80 Mbps |
| Receiver Sensitivity | -96 dBm |
| Frequencies | 2.412-2.472 GHz; 5.180-5.725 GHz |
| Channel Bandwidth | 20 / 40 / 80 MHz, Auto |
| Encryption | WPA-PSK / WPA2-PSK / WPA / WPA2 |
| Physical Ports | RJ45 port, 24VDC port, V-mount battery slot |
| LAN Connector | LAN / PoE+ output |
| PoE+ Port Standard | Up to IEEE 802.3at |
| Power Connector | 24VDC power connector; V-mount style battery adapter; battery not included |
| Case | Hardened aluminum |
| Indicators | Power and PoE+ output status |
| Switch | On / Off |
| Operating Temperature | -10°C to 50°C |
| Mounting | 1/4-20 mounting inserts with anti-rotation slots; rear keyhole slots |
What is Power+Link used for in PTZ camera workflows?
Power+Link is used to bridge IP camera video and device control over Wi-Fi while supplying PoE+ to compatible equipment through Ethernet. It is intended for mobile production, live events and installed AV positions where wired network access or nearby AC power is impractical.
How does Power+Link provide PoE+ camera power?
Power+Link provides PoE+ through its LAN/PoE+ output and supports up to IEEE 802.3at. The bridge itself is not powered by PoE and must receive power from 24VDC or a compatible V-mount battery.
Does Power+Link support Wi-Fi 6?
Power+Link is identified by PTZOptics as supporting Wi-Fi 6. The same published technical table lists IEEE 802.11ac/a/b/g/n under Wireless Standard, so integrators who require a specific 802.11 mode should confirm the shipping hardware and firmware revision with PTZOptics.
Can Power+Link run from a V-mount battery?
Power+Link can operate with a compatible V-mount battery using its integrated V-mount battery interface. PTZOptics also provides a 24VDC power input, and the battery itself is not included.
Which wireless frequencies does Power+Link support?
Power+Link supports published frequency ranges of 2.412-2.472 GHz and 5.180-5.725 GHz. PTZOptics also lists 20, 40 and 80 MHz channel bandwidth settings with automatic selection.
What is the difference between Power+Link and Teradek Link AX?
Power+Link is positioned around a compact single-camera IP bridge workflow with integrated PoE+ output and V-mount power support. Teradek Link AX is a broader production Wi-Fi router and access point with five Ethernet ports, optional V-mount or Gold Mount battery plates and native 802.11ax specifications, so the two products target overlapping but different production-network roles.
Is Coremicro an authorized PTZOptics dealer?
Coremicro is an authorized PTZOptics dealer serving professional broadcast, live production and AV customers. Contact Coremicro to confirm current availability, warranty coverage and compatibility with the camera and battery system planned for the installation.
Ready to Deploy the PTZOptics Power+Link?
Coremicro is an authorized PTZOptics dealer with experience supporting wireless IP video, PTZ camera and live production workflows. Contact our team to confirm camera PoE requirements, V-mount battery compatibility and wireless network planning before deployment.
