Panasonic WX-SR204DN 4-Channel Dante Digital Wireless Mic Receiver

Panasonic WX-SR204DN is a 4-channel digital wireless microphone receiver designed for Dante-based audio infrastructure, with a practical analog option for a summed mix. From the specs provided, Dante supports Primary & Secondary paths with CH1–CH4 and MIX available, while the Euroblock connection is specified as MIX only at -10 dBV balanced 600 ohms. For antenna connectivity, it uses 8 x RJ45 with straight CAT cable runs up to 656 ft (200 m), which is exactly the kind of detail you want when you’re planning a real install.

Highlights

• 4-channel output with Dante (RJ45) for networked audio workflows
• Dante Primary & Secondary with CH1/CH2/CH3/CH4/MIX availability
• Euroblock output is MIX only at -10 dBV balanced 600 ohms
• 8 x RJ45 antenna connectors with straight CAT5/CAT5e/CAT6 runs up to 200 m

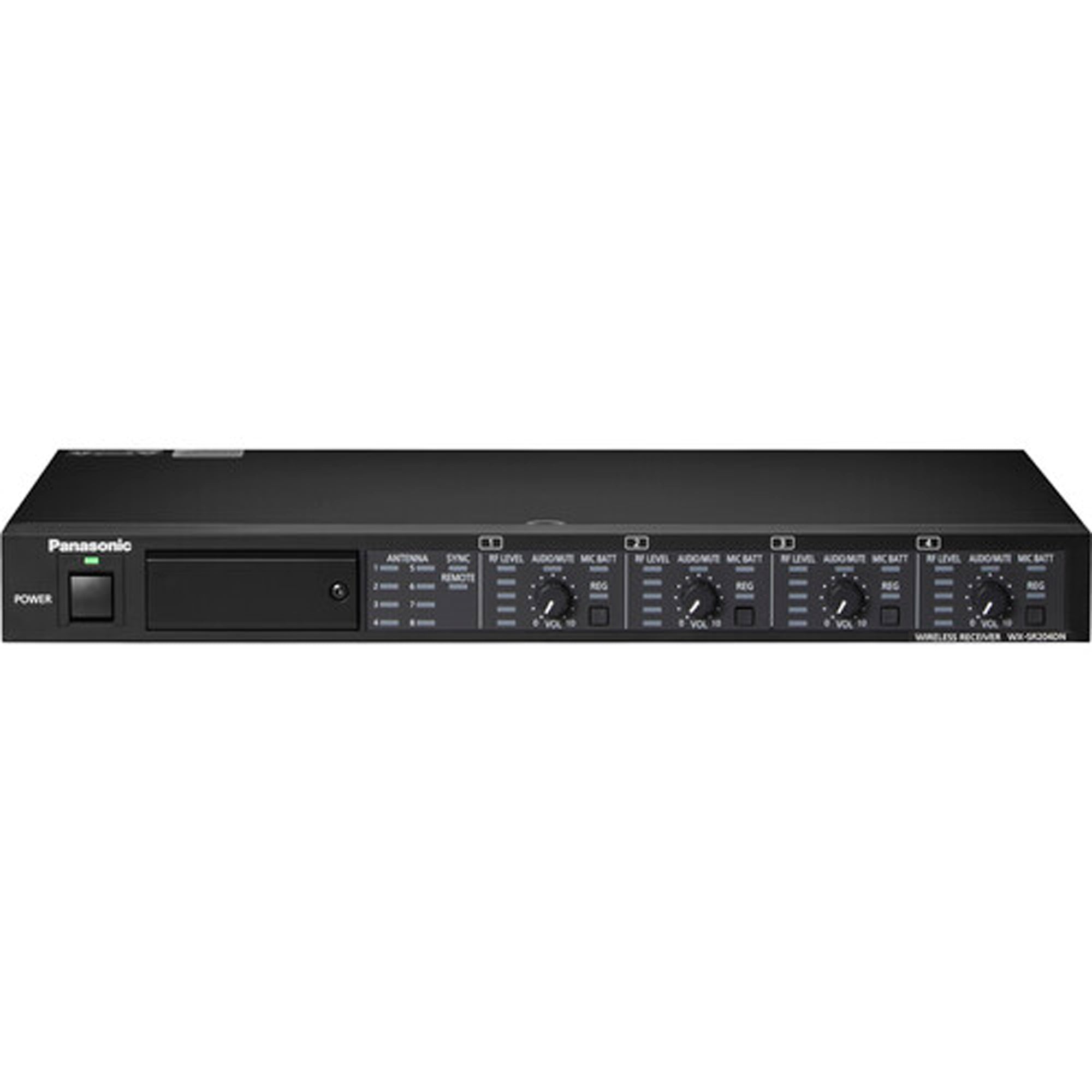

• Front-panel LED status including Antenna 1-8, RF level (5-step), audio/mute, mic battery, and sync indicators

Quick Specs & Uses

• Model / SKU: WX-SR204DN
• Channel output circuits: 4
• Channel output connectors: Dante (RJ45), Euroblock (mix output only)
• Channel output characteristics: Dante Primary & Secondary (CH1/CH2/CH3/CH4/MIX); Euroblock (MIX only) @ -10 dBV balanced 600 ohms
• Channel output SNR: 70 dB or greater
• Channel output frequency response: 50 Hz to 15 kHz
• Channel output distortion: less than 3%
• Audio inputs: 1.9 GHz DECT (wireless mics) and Euroblock
• Audio input characteristics: -10 dBV balanced 600 ohms
• Audio input frequency response: 50 Hz to 15 kHz
• Audio input distortion: less than 3%
• Mix output connectors: Dante Primary & Secondary or Euroblock
• Mix output characteristics: Dante Primary & Secondary or Euroblock @ -10 dBV balanced 600 ohms
• Mix output SNR: 64 dB or greater
• Mix output frequency response: 50 Hz to 15 kHz
• Mix output distortion: less than 3%

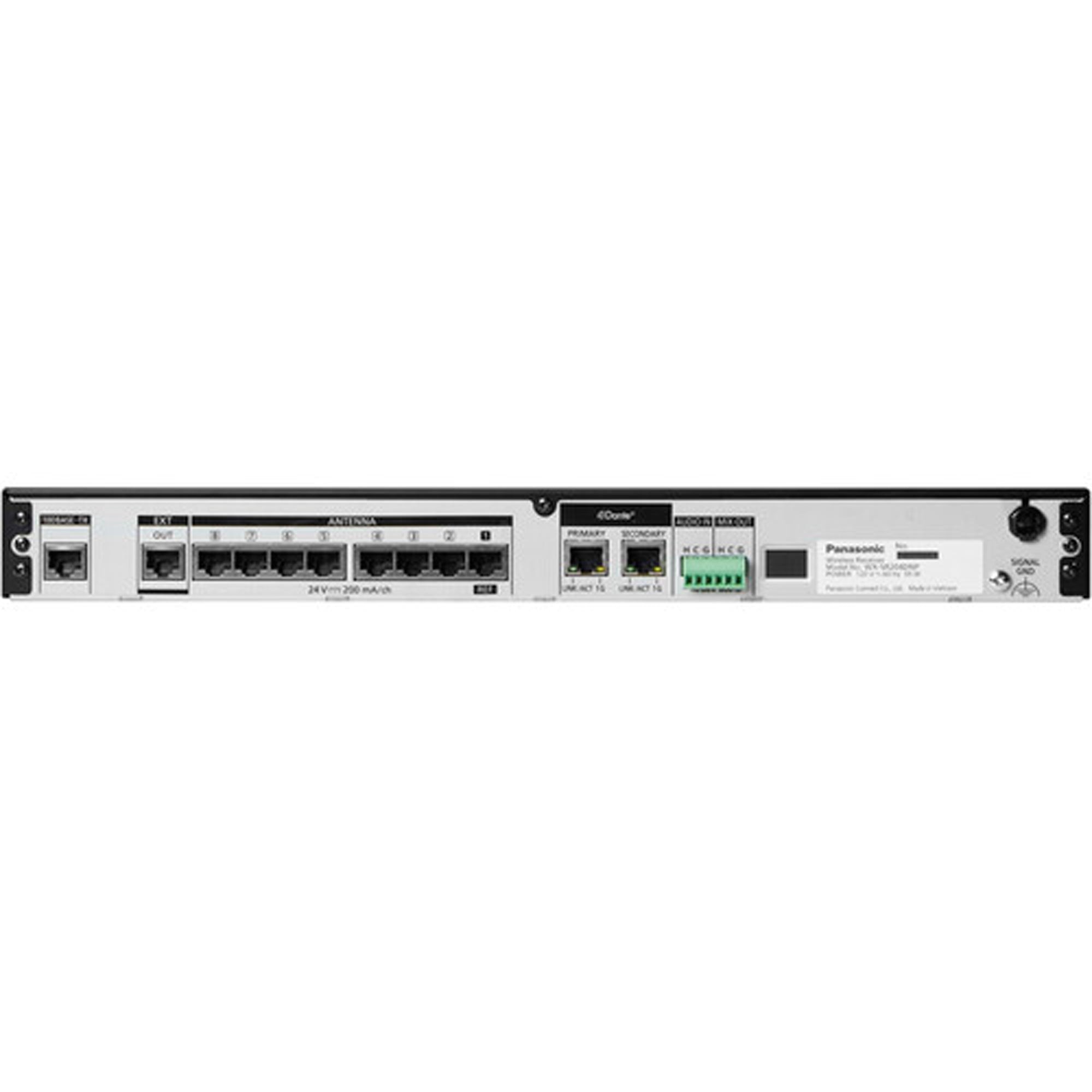

• Antenna connectors: 8 x RJ45 (CAT5/CAT5e/CAT6 straight), wiring distance up to 656 ft (200 m)
• Antenna field selection: 4 selectable range settings via DIP switches (front panel) or Panasonic Operations Support software
• Extension connector: 1 x RJ45 for WX-SE200 / WX-SE200DN extension receivers (sold separately)
• Display indicators: Power, Antenna 1-8, Sync, Main, Remote, RF Level (5-level), Audio level/mute, Mic battery, Register
• Power: AC 120 V 60 Hz
• Power consumption: 39 W
• Operating ambient: 32 to 113°F (0 to 45°C)
• Dimensions (W x H x D): 16-17/32 x 1-47/64 x 9-27/32 in (420 x 44 x 250 mm)
• Weight: 6.39 lb (2.9 kg)
• Warranty (parts/labor): 3 years
• Accessories included: rack ears

Why It Helps

In a Dante environment, the receiver needs to behave like infrastructure, not a “special case.” WX-SR204DN keeps the routing clean by offering Dante Primary/Secondary paths and making CH1–CH4 plus MIX available on Dante. When you need a simple summed feed, the Euroblock option stays available, but it’s clearly specified as MIX only, which helps prevent wiring surprises during install day.

System Characteristics

• Use Dante Primary & Secondary when you want the cleanest networked path and channel-level routing (CH1–CH4 plus MIX)
• Plan analog correctly: Euroblock is listed as MIX only at -10 dBV balanced 600 ohms
• The front-panel indicators (Antenna 1–8 and RF 5-level meter) make quick RF checks easier during troubleshooting
• Antenna wiring is designed like an install: straight CAT runs up to 200 m on RJ45
• Range settings can be selected via DIP switches or Panasonic’s Operations Support software

What’s In The Box

• 1 x Panasonic WX-SR204 4-Channel Dante Digital Wireless Mic Receiver
• 1 x Rack-Ear Set
