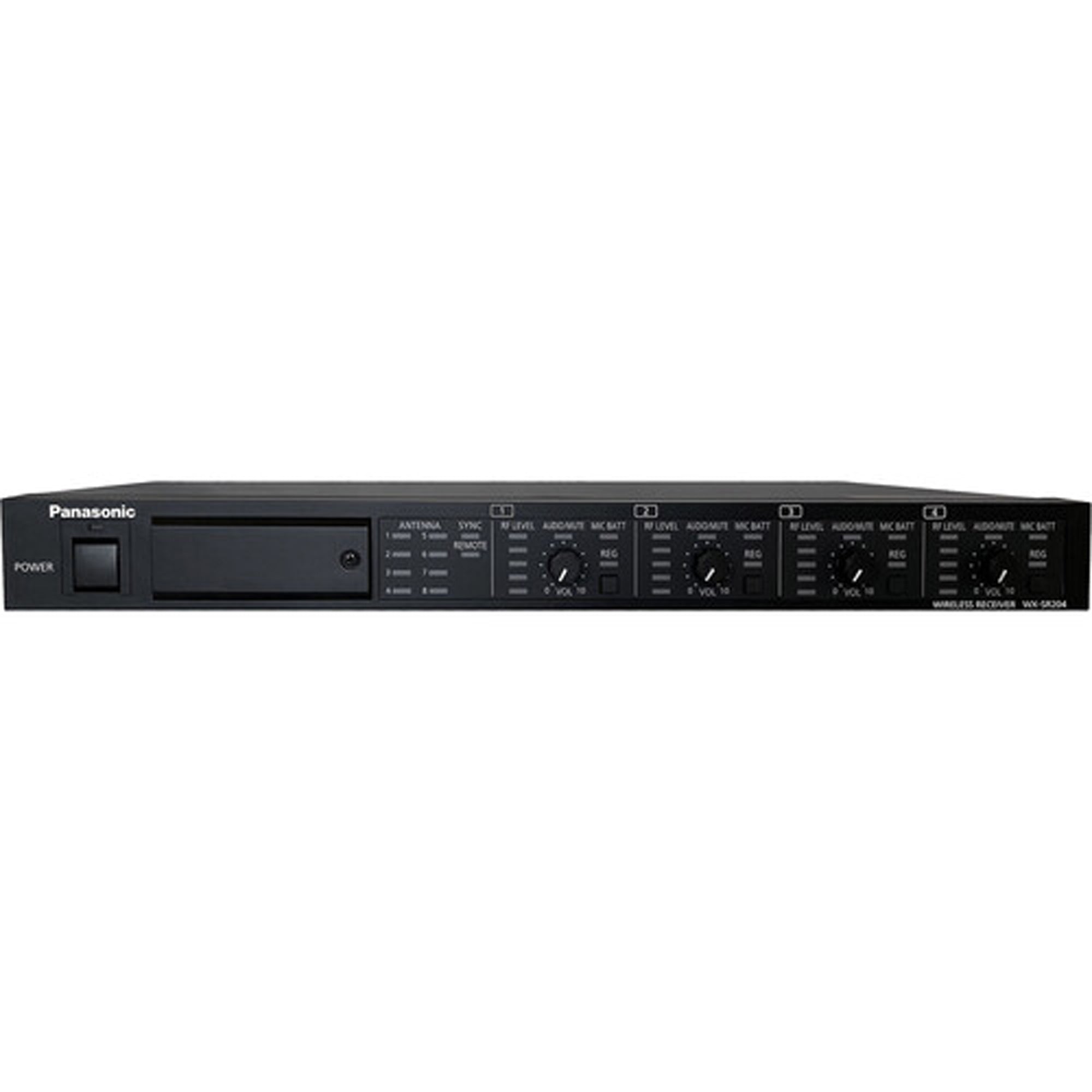

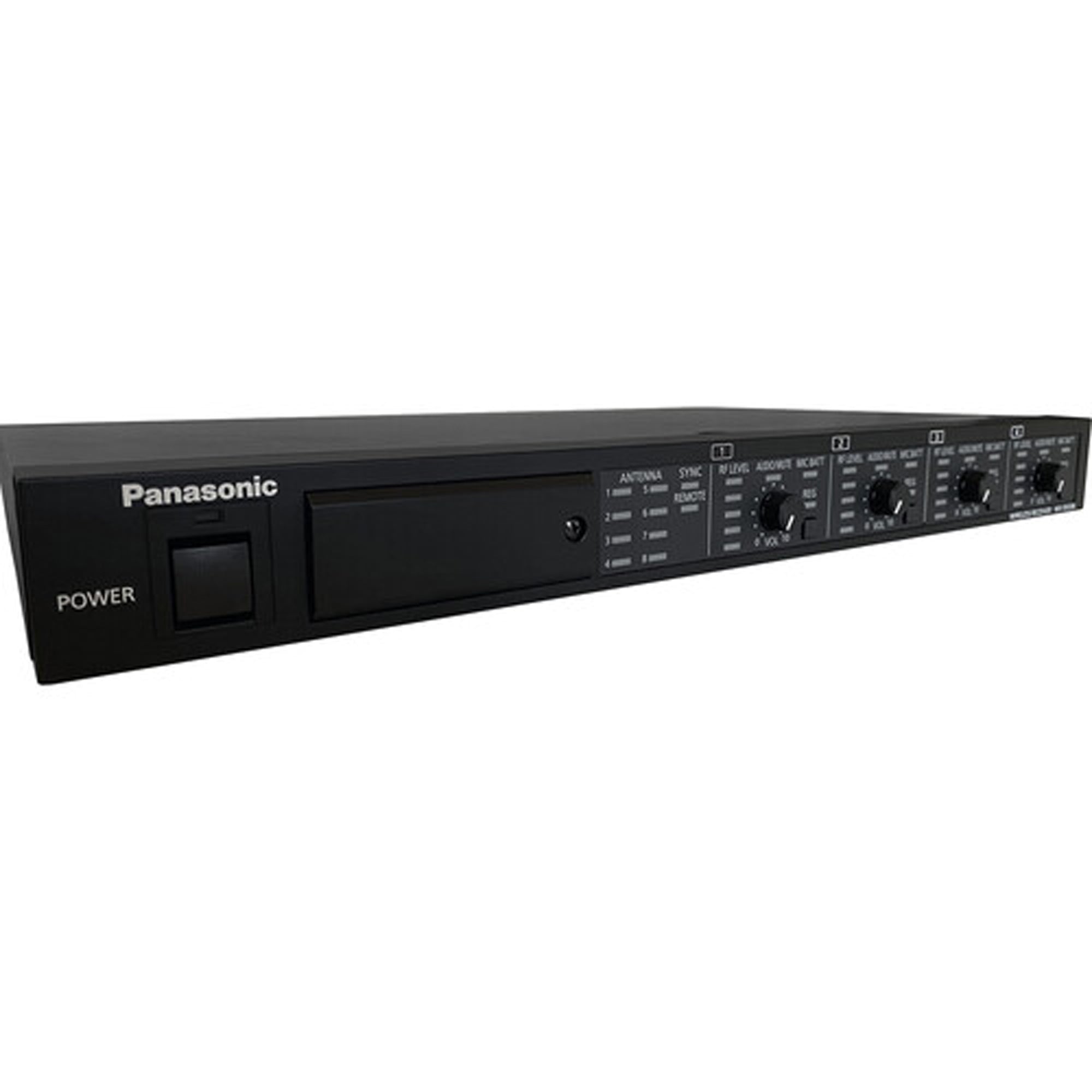

Panasonic WX-SR204 4-Channel Digital Wireless Mic Receiver

Panasonic WX-SR204 is a rack-mount audio unit designed for clean, stable integration in installed AV and broadcast-style racks. It provides 4-channel output circuits plus a balanced mix output, using secure Euroblock connectors. For antenna cabling, it supports 8 x RJ45 connections with straight CAT5/CAT5e/CAT6 runs up to 656 ft (200 m).

Highlights

• 4-channel output circuits for routing multiple discrete audio feeds
• Euroblock output connectors for secure, install-grade terminations
• Balanced -10 dBV (600 ohms) channel outputs for predictable interfacing
• Low-noise performance with channel SNR rated at 70 dB or greater
• 8 x RJ45 antenna connectors supporting cable runs up to 200 m

Quick Specs & Uses

• SKU: WX-SR204
• Rack form factor size: 16-17/32 x 1-47/64 x 9-27/32 in (420 x 44 x 250 mm)
• Weight: 6.17 lb (2.8 kg)
• Power: AC 120 V, 60 Hz, 39 W consumption
• Operating ambient temperature: 32 to 113 F (0 to 45 C)
• Channel outputs: -10 dBV balanced, 600 ohms, Euroblock
• Channel frequency response: 50 Hz to 15 kHz
• Channel signal-to-noise ratio: 70 dB or greater
• Audio input distortion: less than 3%
• Mix output: -10 dBV balanced, 600 ohms, Euroblock
• Mix output frequency response: 50 Hz to 15 kHz
• Mix output signal-to-noise ratio: 64 dB or greater
• Mix output distortion: less than 3%

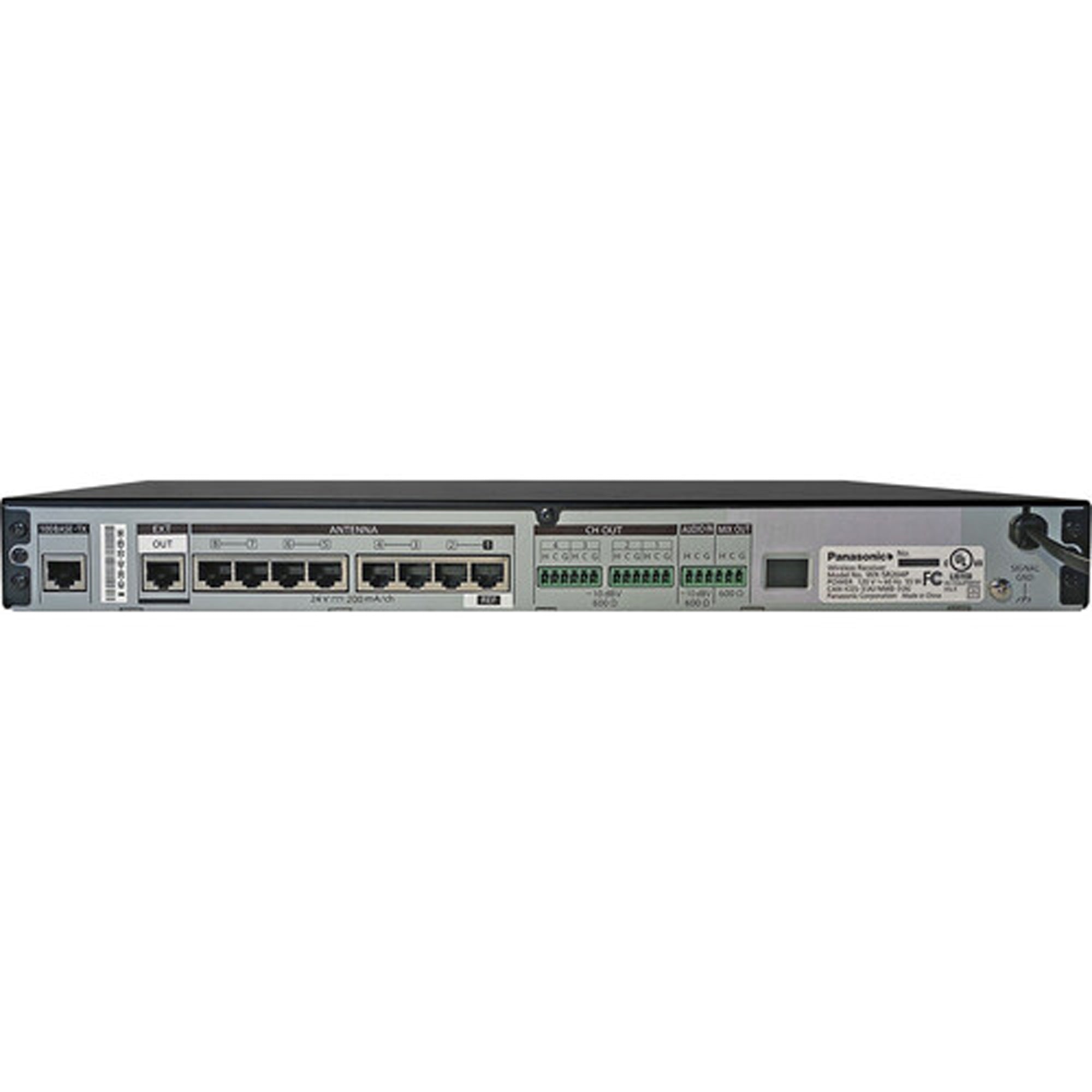

• Antenna connectors: 8 x RJ45 (CAT5/CAT5e/CAT6 straight), up to 656 ft (200 m)


Why It Helps

In real racks, reliability is mostly about clean wiring and predictable signal handoff. The Euroblock connections keep terminations secure, the outputs are balanced -10 dBV for consistent interfacing, and the listed SNR and frequency response help maintain a clean feed in installed environments. The RJ45 antenna cabling support also makes long placement runs practical without exotic cabling.

System Characteristics

• Euroblock terminations are ideal for permanent installs where cables need to stay locked in
• Balanced -10 dBV output spec helps keep interfacing consistent across typical rack audio gear
• RJ45 antenna cabling supports long runs up to 200 m using straight CAT5/CAT5e/CAT6
• Keep the rack environment within the rated 0 to 45 C ambient range for stable operation
• Power draw is rated at 39 W on AC 120 V, 60 Hz circuits

What’s In The Box

1 x Panasonic WX-SR204 4-Channel Digital Wireless Mic Receiver and 1 x Rack-Ear Set
