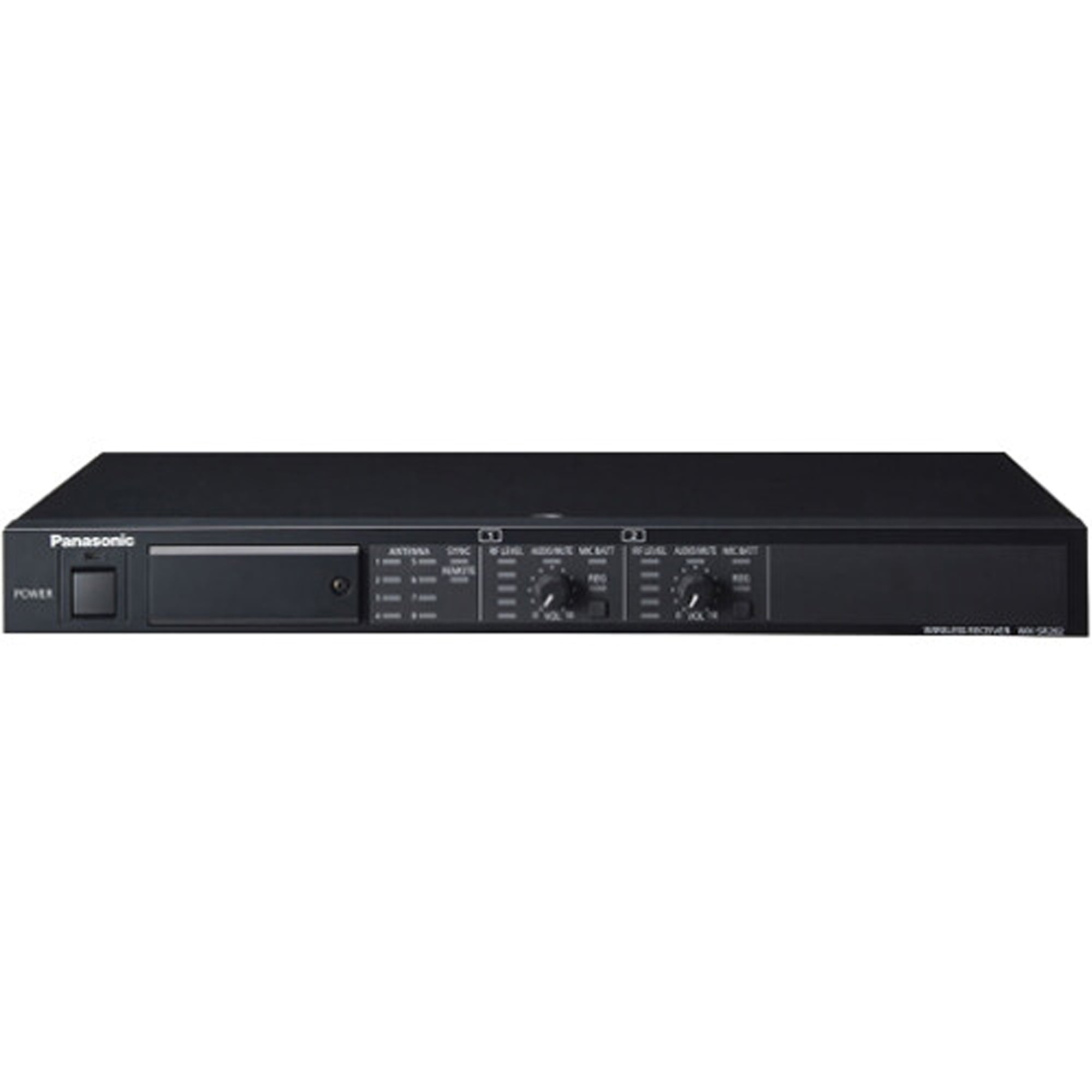

Panasonic WX-SR202 2-Channel Digital Wireless Mic Receiver

Panasonic WX-SR202 2-Channel Digital Wireless Mic Receiver is a two-channel wireless receiver built for installed and rack-based audio workflows where you want clean balanced audio I/O, predictable gain structure, and antenna distribution over structured cabling. It keeps the signal path straightforward: euroblock in/out, -10 dBV balanced at 600Ω, and practical specs that match real-world speech and program needs.

Highlights

• 1920–1930 MHz receiver band for wireless operation
• Two output circuits for dual-channel handling
• Balanced euroblock audio on channel outputs and mix output
• CAT5/5e/6 antenna runs up to 656 ft (200 m) via 8 × RJ45 antenna connectors
• Rack-ready package with included rack ears

Quick Specs & Uses

• Receiver frequency: 1920 to 1930 MHz
• Channel count: 2 output circuits
• Channel output: euroblock, -10 dBV balanced (600Ω), 70 dB SNR (or greater)
• Mix output: euroblock, -10 dBV balanced (600Ω), 64 dB SNR (or greater)
• Audio bandwidth: 50 Hz to 15 kHz (channel + mix)
• Distortion: less than 3% (audio input / channel out / mix out)
• Antenna I/O: 8 × RJ45 (CAT5/CAT5e/CAT6 straight), runs up to 656 ft (200 m)
• Antenna field selection: 4 range settings via front-panel DIP switches or Panasonic Operations Support software
• Power: AC 120 V, 60 Hz; 39 W consumption
• Environmental: 30°F to 113°F (0°C to 45°C)
• Physical: 420 × 250 × 44 mm; 6.17 lb (2.8 kg)
• Included: rack ears
• Warranty: 3 years (parts/labor)

Why It Helps

If you’re wiring a venue, classroom, house of worship, or rack room, the practical win here is infrastructure-friendly antenna connectivity and simple balanced audio interfacing. You can keep the receiver where it belongs (in the rack), then run antenna lines over standard straight-through CAT cabling up to 200 meters—without redesigning the whole room when placement changes.

System Characteristics

• Gain structure stays predictable with -10 dBV balanced I/O referenced at 600Ω—easy to integrate into existing audio chains.
• Bandwidth is speech-and-program appropriate at 50 Hz to 15 kHz across inputs, channel outs, and mix out.
• Rack wiring stays clean using euroblock connectors for channel outputs and the mix output.
• Long antenna runs are the point: 8 RJ45 antenna connectors support straight CAT5/5e/6 up to 656 ft (200 m).
• Front-panel control remains available with 4 antenna range settings via DIP switches (or Panasonic Operations Support software).

What’s In The Box

• 1 x Panasonic WX-SR202 Receiver
• 1 x Rack ears
