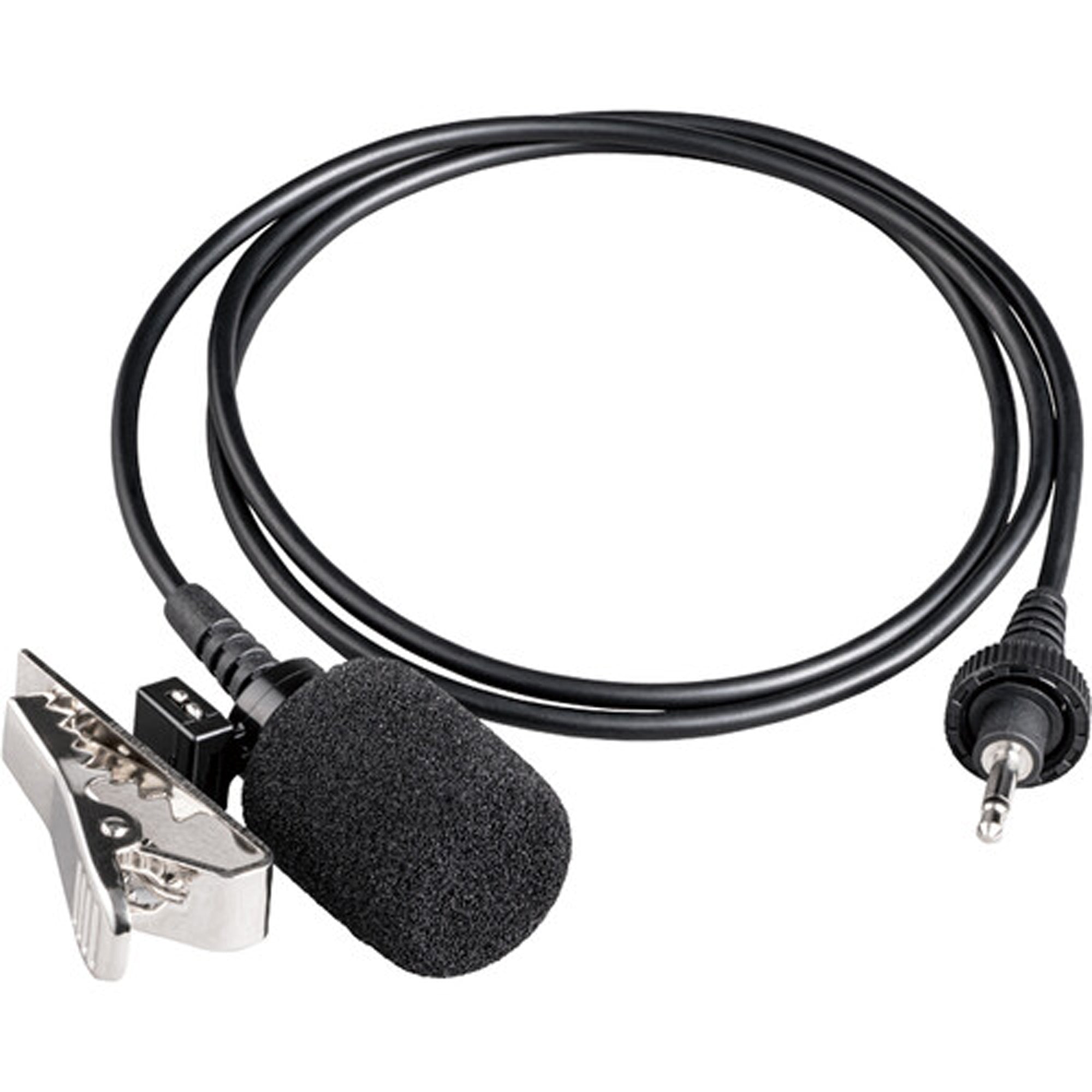

Panasonic WX-SM410 Lavalier Microphone

Panasonic WX-SM410 is a compact electret condenser microphone with a cardioid pickup pattern and a straightforward 2.5mm two-contact connection. The input wiring is clearly defined: Signal (Bias DC 2.5V) and GND. It’s small enough to disappear in a setup, but still spec’d with a practical 100 Hz to 15 kHz response range and a 1000 mm cable run to the 2.5mm plug.

Highlights

• Cardioid polar pattern to favor what’s in front of the mic
• Electret condenser element for a clean, sensitive capture style
• 2.5mm two-contact jack with defined pinout for reliable wiring
• 100 Hz to 15 kHz frequency response for voice-focused pickup
• Compact build with a 1000 mm cable to the connector

Quick Specs & Uses

• SKU: WX-SM410
• Microphone element: Electret condenser
• Polar pattern: Cardioid
• Frequency response: 100 Hz to 15 kHz
• Connector: 2.5mm jack (two contacts)
• Pinout: (1) Signal (Bias DC 2.5V), (2) GND
• Operating ambient: 41 to 95°F (5 to 35°C)
• Size (diameter x length): 33/64 x 55/64 in (13 x 22 mm)
• Cable length to 2.5mm jack: 3 ft 3-3/8 in (1000 mm)
• Warranty (parts/labor): 1 year

Why It Helps

In real systems, the biggest time-savers are the little details that prevent wiring mistakes and reduce troubleshooting. WX-SM410 spells out the 2.5mm pinout and bias requirement, which makes it easier to integrate cleanly. The cardioid pattern is also a practical choice when you want to favor the intended pickup direction without capturing everything equally.

System Characteristics

• Confirm the input expects Bias DC 2.5V on the signal contact before wiring or adapting
• Two-contact 2.5mm wiring is simple, but the Signal vs GND distinction matters
• The compact 13 x 22 mm body is easy to place where space is limited
• Plan cable routing around the 1000 mm mic-to-plug length
• Keep usage within the rated 5 to 35°C ambient range for stable operation

What’s In The Box

• 1 x Panasonic WX-SM410 Lavalier Microphone
• 1 x Foam Windscreen
• 1 x Lapel Clip
