Panasonic WX-SE200DN Dante Expansion Receiver

Panasonic WX-SE200DN Dante Expansion Receiver is an expansion receiver designed to extend a Panasonic digital wireless mic system into a Dante network workflow. From the provided specs, it supports Dante Primary & Secondary over RJ45, has Euroblock available for mix output only, and handles 1.9 GHz DECT wireless plus a Euroblock external audio input. It’s rack-friendly (rack ears included), runs on AC 120V 60 Hz, and is rated for 0 to 45°C operation.

Highlights

• Dante (RJ45) with Primary & Secondary paths for network audio deployment
• Euroblock output is MIX only at -10 dBV balanced 600 ohms
• Supports 1.9 GHz DECT wireless and Euroblock external audio input
• Status LEDs including RF level (5-step), sync, audio mute/level, and mic battery
• Rack ears included with a published size, weight, and power draw for clean rack planning

Quick Specs & Uses

• Model / SKU: WX-SE200DN
• Power: AC 120 V 60 Hz
• Power consumption: 39 W
• Operating ambient: 32 to 113°F (0 to 45°C)
• Dimensions (W x H x D): 16-17/32 x 1-47/64 x 9-27/32 in (420 x 44 x 250 mm)
• Weight: 6.17 lb (2.8 kg)
• Warranty (parts/labor): 3 years
• Audio input: 1.9 GHz DECT wireless, Euroblock (for external audio input)
• Audio input characteristics: -10 dBV balanced 600 ohms
• Audio input frequency response: 50 Hz to 15 kHz
• Audio input distortion: less than 3%
• Channel output circuits: 4
• Channel output connectors: Dante (RJ45), Euroblock (mix output only)
• Channel output characteristics: Dante Primary & Secondary (CH1/CH2/MIX); Euroblock (MIX only) @ -10 dBV balanced 600 ohms
• Channel output SNR: 70 dB or greater
• Channel output frequency response: 50 Hz to 15 kHz
• Channel output distortion: less than 3%
• Mix output connectors: Dante Primary & Secondary or Euroblock
• Mix output characteristics: Dante Primary & Secondary or Euroblock @ -10 dBV balanced 600 ohms
• Mix output SNR: 64 dB or greater
• Mix output frequency response: 50 Hz to 15 kHz
• Mix output distortion: less than 3%
• Display: LEDs for Power, Sync, Main, Remote, RF Level (5-level), Audio level/mute, Mic battery, Register
• Accessories included: rack ears
• Extension connector: 1 x RJ45, for WX-SR202 4-ch Receiver (required; sold separately)

Why It Helps

In installed audio, expansion gear needs to be predictable: power draw you can budget, I/O you can label, and status lights you can read at a glance. WX-SE200DN gives you Dante Primary/Secondary connectivity, plus a clearly defined MIX-only Euroblock output option. The included rack ears and published dimensions make it straightforward to integrate into a rack without guesswork.

System Characteristics

• This is designed as an expansion receiver with a defined RJ45 extension connector requirement for a WX-SR202 4-ch receiver (sold separately)
• If you plan an analog handoff, note that Euroblock is specified as MIX only at -10 dBV balanced 600 ohms
• Dante Primary/Secondary paths help keep the network audio side organized and serviceable

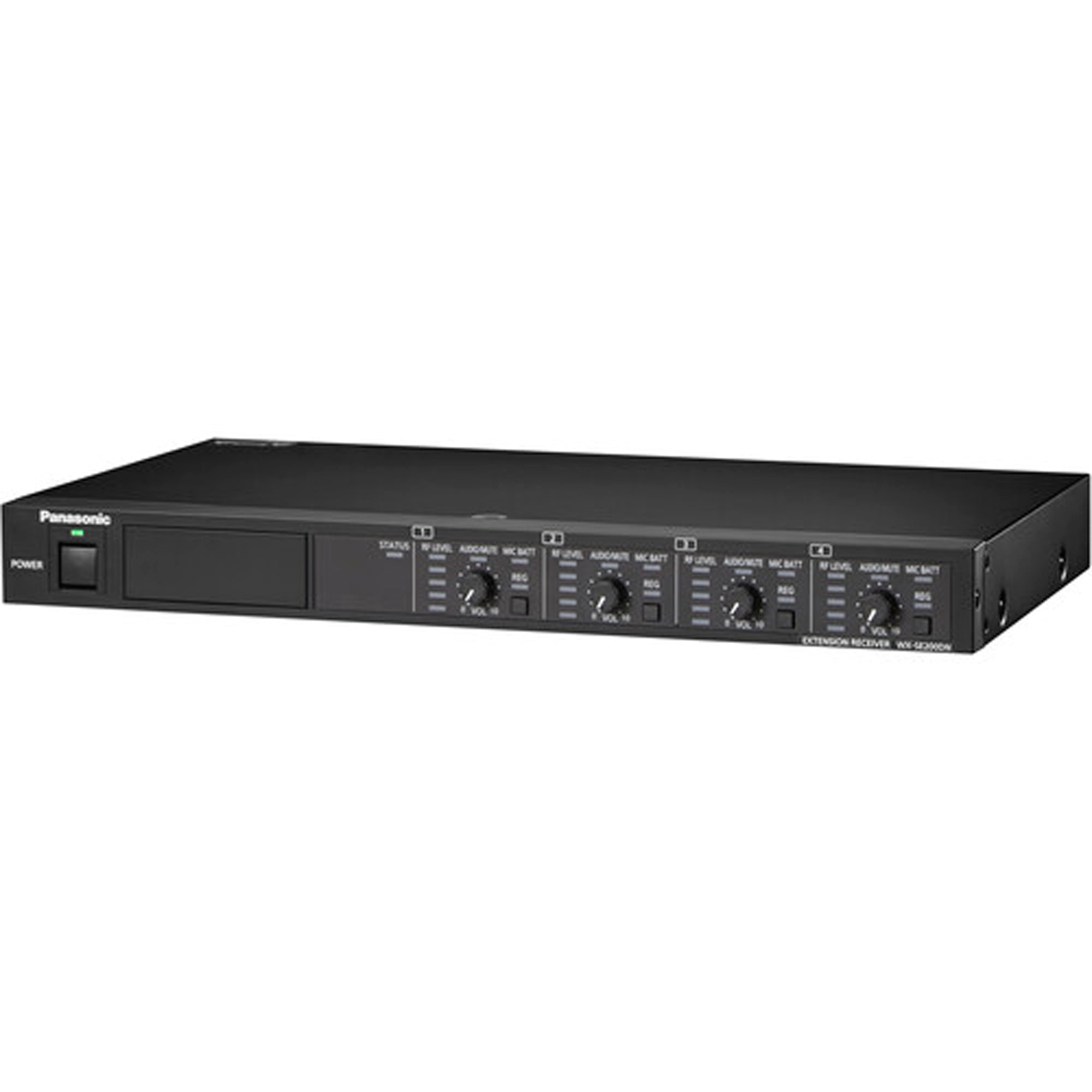

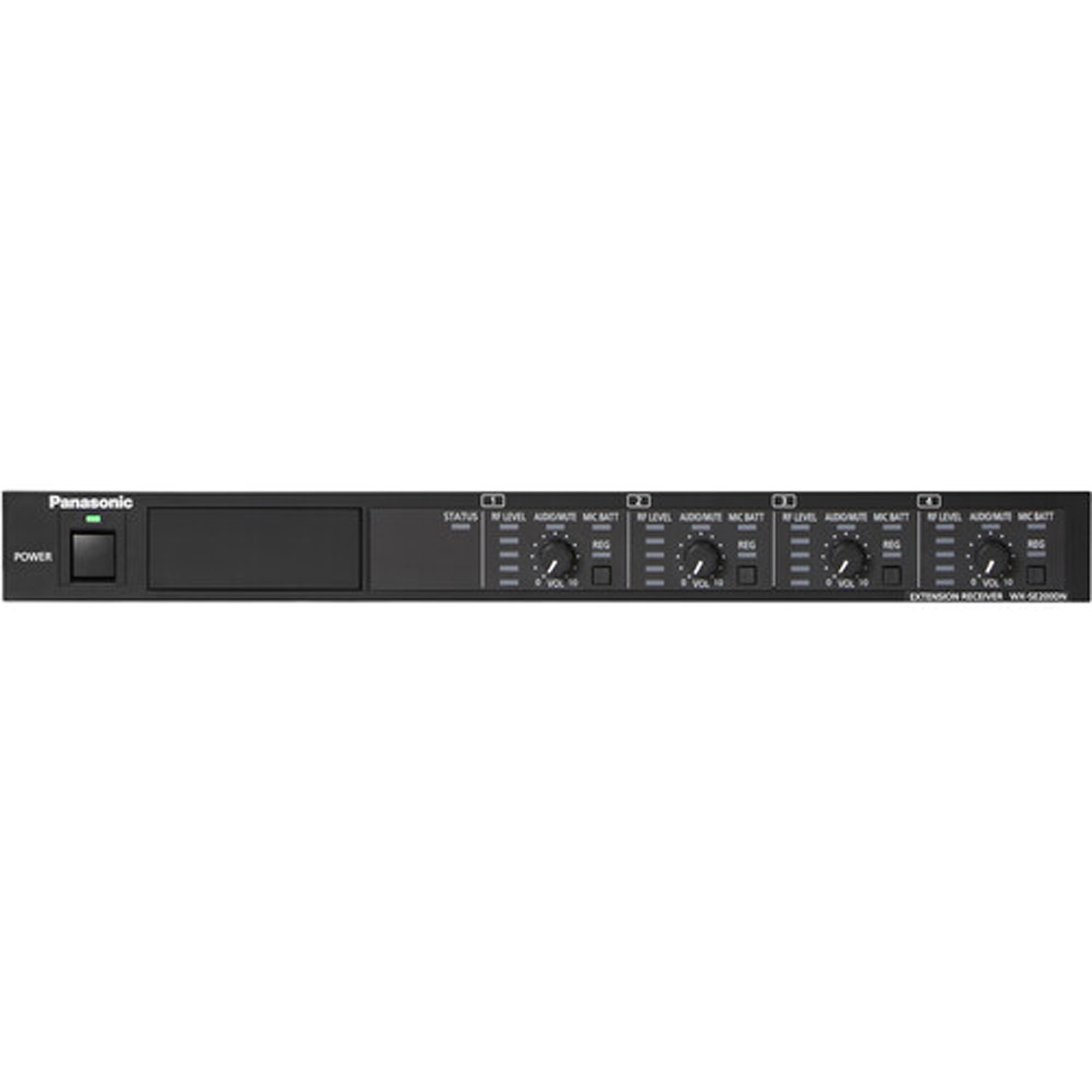

• Front-panel LEDs (including RF 5-level and mic battery) support faster troubleshooting during live use
• With a 39 W power draw and standard AC 120V input, power planning stays simple for U.S. racks

What’s In The Box

• 1 x Panasonic WX-SE200DN Dante Expansion Receiver
• 1 x Rack-Ear Kit
