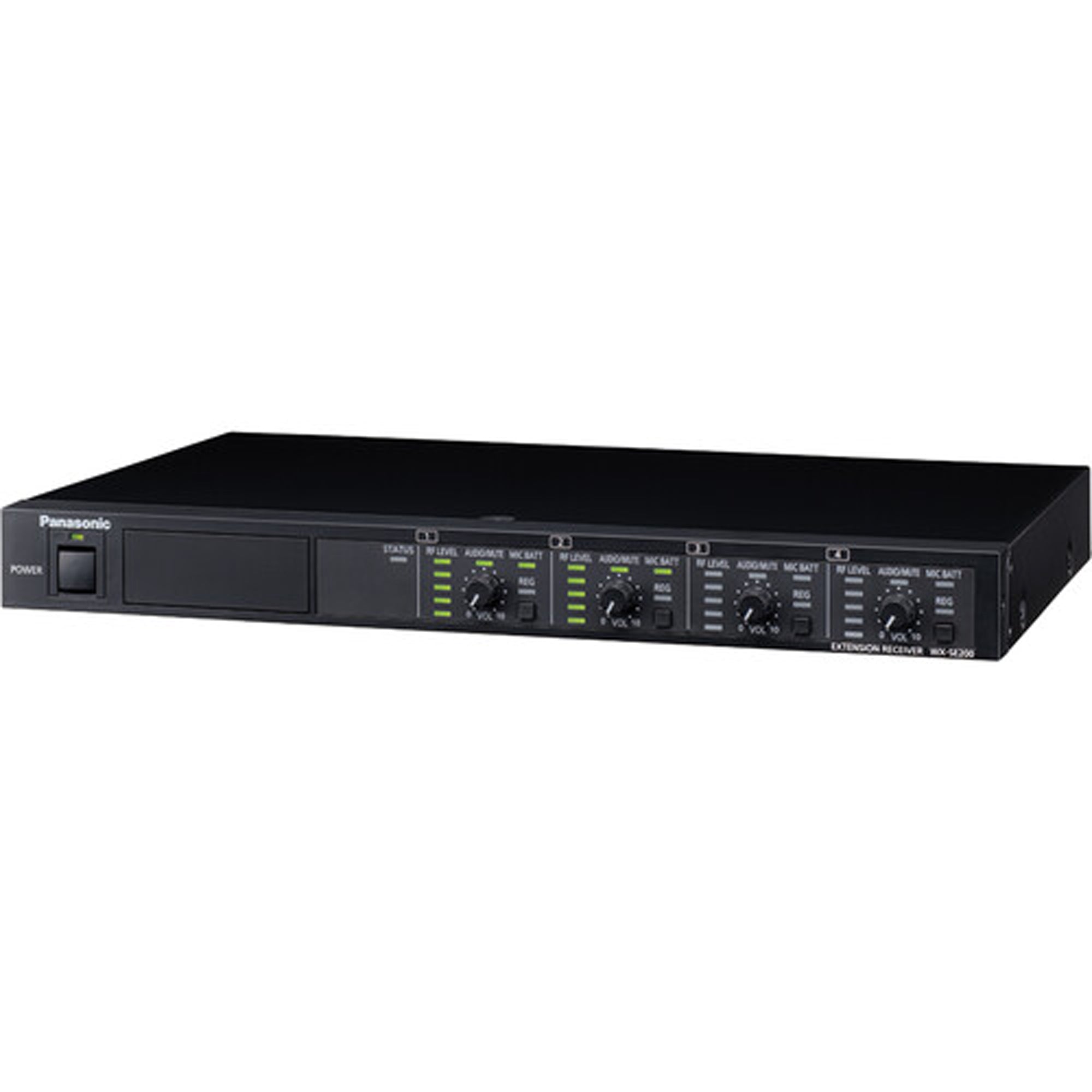

Panasonic WX-SE200 Expansion Receiver

Panasonic WX-SE200 is a rack-mount audio unit built for clean, install-grade wiring and predictable signal handoff. It provides 4 channel output circuits plus a mix output, all on secure Euroblock connectors with -10 dBV balanced (600 ohms) characteristics. For system integration, it includes an RJ45 extension connector specified for the WX-SR204 4-channel receiver (required, sold separately), and front-panel indicators give you quick status checks without digging into menus.

Highlights

• 4 channel output circuits for distributing multiple discrete audio feeds
• Euroblock connectivity for secure terminations in permanent racks
• Balanced -10 dBV (600 ohms) I/O characteristics for consistent interfacing
• Useful metering and status LEDs including RF level (5-step), audio level/mute, and mic battery
• RJ45 extension connector specified for WX-SR204 receiver integration (required; sold separately)

Quick Specs & Uses

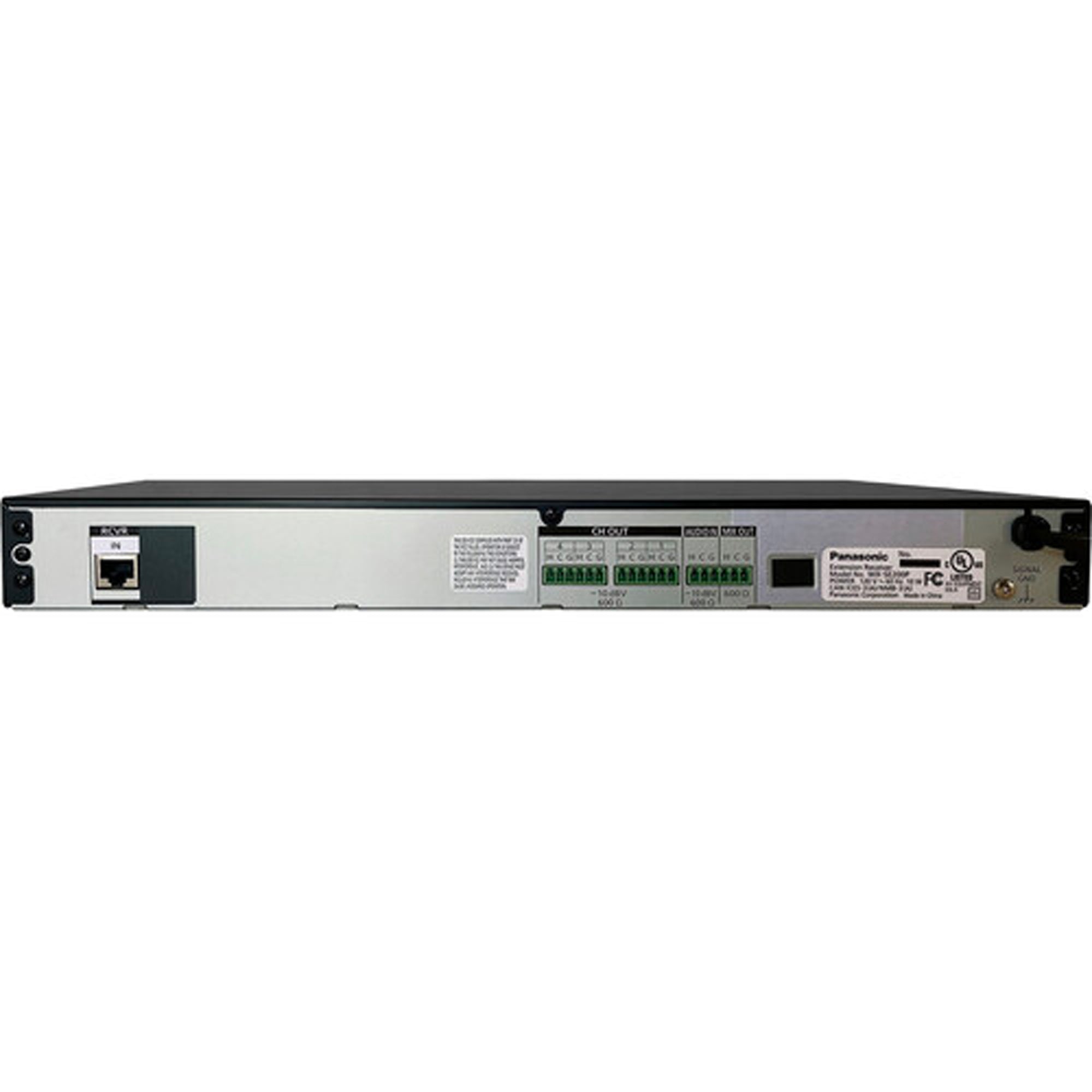

• Channel outputs: 4 circuits, Euroblock, -10 dBV balanced 600 ohms
• Channel performance: 70 dB or greater SNR, 50 Hz to 15 kHz, distortion <3%
• Audio input: -10 dBV balanced 600 ohms, 50 Hz to 15 kHz, distortion <3%
• Mix output: Euroblock, -10 dBV balanced 600 ohms, SNR 64 dB or greater
• Mix response: 50 Hz to 15 kHz, distortion <3%
• Extension connector: 1 x RJ45 for WX-SR204 4-ch receiver (required; sold separately)

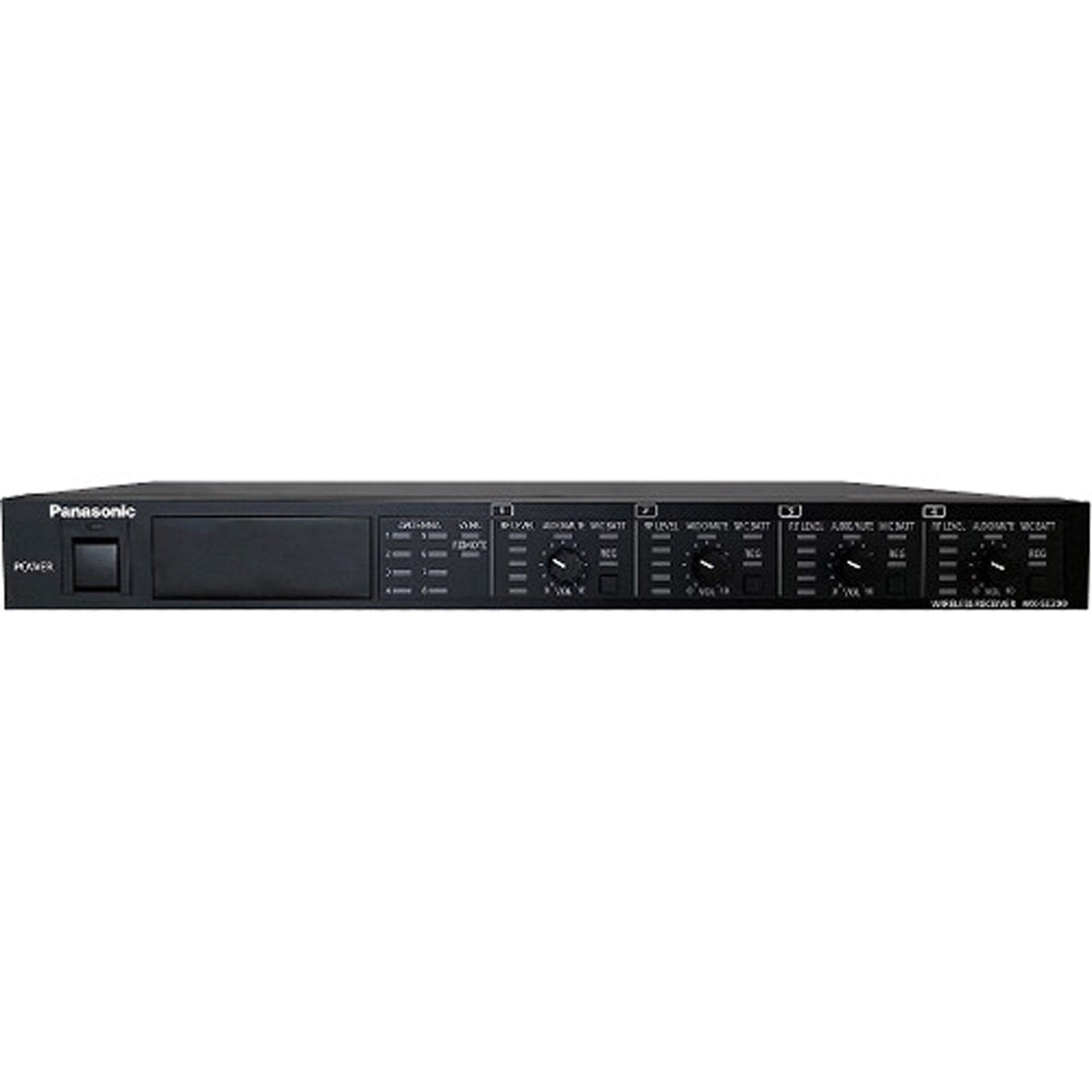

• Indicators: Power, Sync, Main, Remote, RF level (5-step), Audio level/mute, Mic battery, Register
• Power: AC 120 V, 60 Hz, 39 W
• Operating ambient: 32 to 113°F (0 to 45°C)
• Size: 16-17/32 x 1-47/64 x 9-27/32 in (420 x 44 x 250 mm)
• Weight (including battery): 6.17 lb (2.8 kg)
• Warranty: 3 years
• Included: Rack ears

Why It Helps

In real racks, problems usually come from loose terminations, unclear status, or inconsistent signal levels. WX-SE200 keeps the wiring solid with Euroblock connections, stays consistent with balanced -10 dBV characteristics, and gives you quick visual confirmation with indicators for RF level, audio/mute, and mic battery. The RJ45 extension connector also makes it straightforward to tie into a WX-SR204 receiver-based system without improvising adapters.

System Characteristics

• Euroblock is the right fit for installs where you want strain-resistant, screw-down terminations
• Balanced -10 dBV (600 ohms) specs help keep interfacing predictable across compatible audio gear
• Use the RF level (5-step) and audio indicators as fast health checks during setup and show time
• Keep the rack environment within 0 to 45°C for stable operation
• Rack ears are included, so mounting is clean and immediate

What’s In The Box

• 1 x Panasonic WX-SE200 Receiver
• 1 x Rack-Ear Kit
