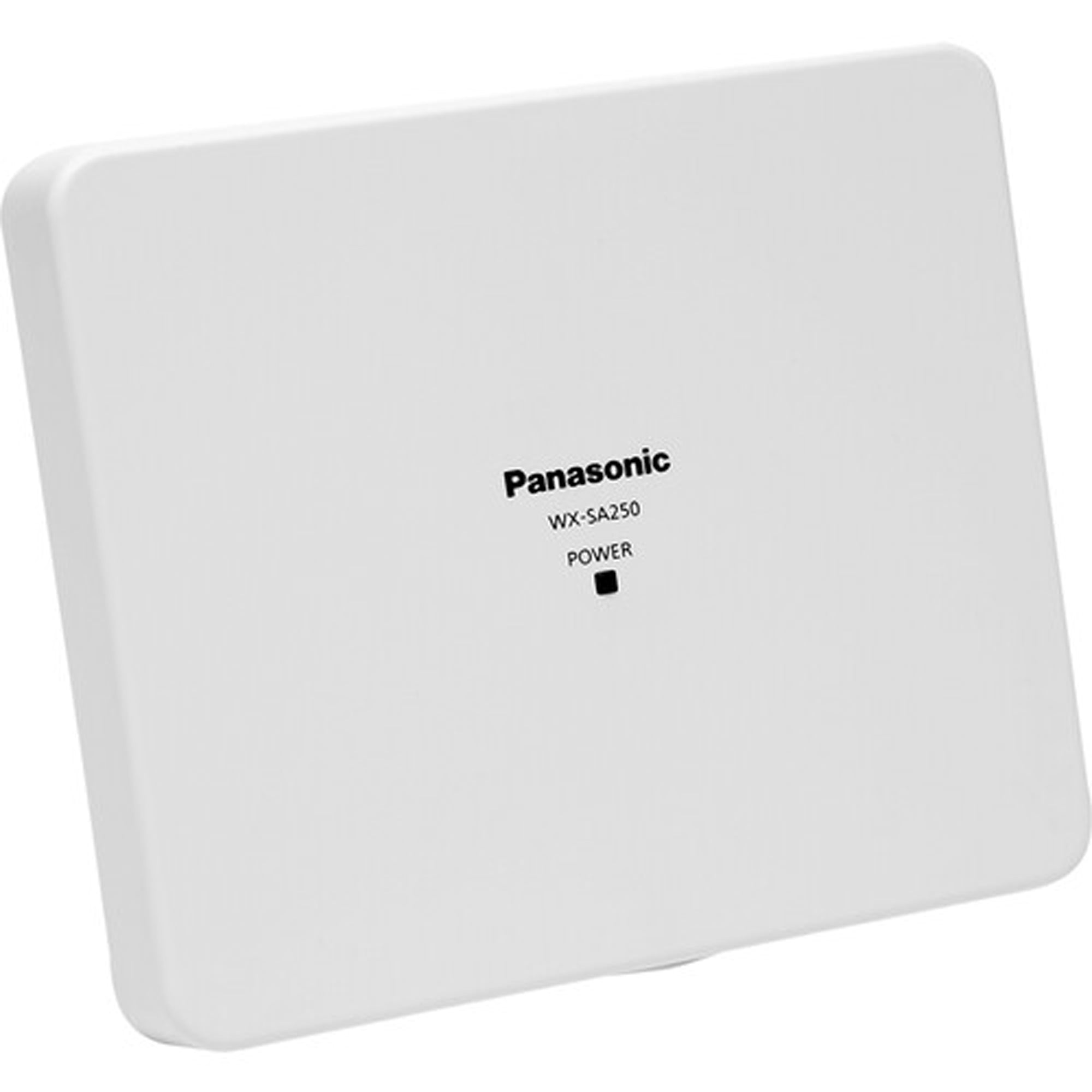

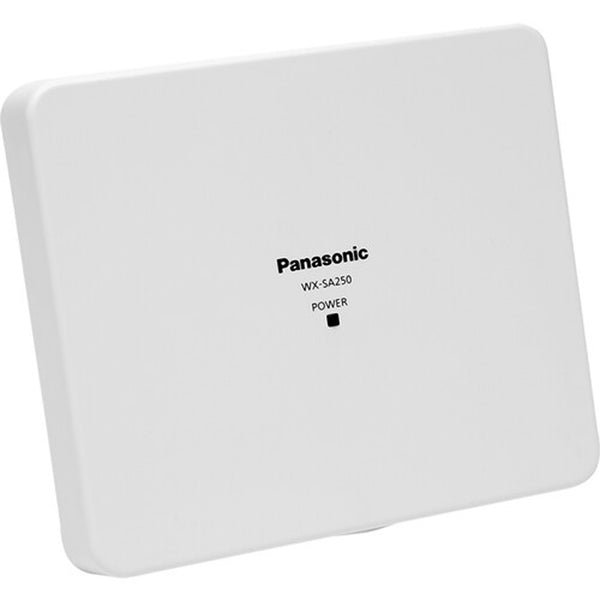

Panasonic WX-SA250 Wireless Antenna for Rack Receiver

Panasonic WX-SA250 is a compact DECT antenna unit designed for Panasonic DECT receiver-based systems. It operates in the 1920 to 1930 MHz band using an internal antenna, and it connects back to the receiver using a straight CAT5/CAT5e/CAT6 cable terminated with RJ45. For installs, you can mount it on a ceiling, on a wall, or on a microphone stand, and it’s rated IPX4 equivalent for added peace of mind in real facilities.

Highlights

• DECT band operation from 1920 to 1930 MHz with an internal antenna
• Simple RJ45 cabling using straight CAT5/CAT5e/CAT6 runs to the receiver
• Range control with 3 antenna field selections set via the Microphone System Configuration Center
• Flexible mounting on the ceiling, wall, or a microphone stand
• IPX4 equivalent water resistance for tougher real-world environments

Quick Specs & Uses

• SKU: WX-SA250
• Wireless frequency: 1920 to 1930 MHz (internal antenna)
• Antenna field selection: 3 ranges set via Microphone System Configuration Center
• Connection and power path: straight CAT5/CAT5e/CAT6 with RJ45 to Panasonic DECT receiver
• Receiver compatibility listed: WX-SR202, WX-SR202DN, WX-SR204, WX-SR204DN
• LED indicator: Power
• Operating ambient: 14 to 122°F (-10 to 50°C)
• Installation options: Ceiling, Wall, or Microphone stand
• Water resistance: IPX4 equivalent
• Dimensions: 7-9/32 x 6-19/64 x 1-17/64 in (185 x 160 x 32 mm)
• Weight: 0.88 lb (400 g)
• Finish: sail white (approx. Munsell N9.3)
• Warranty (parts/labor): 3 years

Why It Helps

In installed audio and live production spaces, antennas need to be placed where coverage actually works, not where the rack happens to live. WX-SA250 gives you flexible mounting and a straightforward RJ45 cable run back to the receiver using common CAT cable. The selectable antenna field ranges also help you shape coverage from within the configuration software when you’re tuning for the room.

System Characteristics

• Using straight CAT5/CAT5e/CAT6 with RJ45 keeps cabling practical for facilities teams
• The internal antenna design keeps the unit clean and compact for a visible install.s
• Mounting on the wall or ceiling is useful when you need coverage without mic-stand clutter.
• IPX4 equivalent helps in spaces where splashes or moisture are a concern
• Stay within the -10 to 50°C ambient range for stable performance over time

What’s In The Box

1 x Panasonic WX-SA250 Wireless Antenna for Rack Receiver
