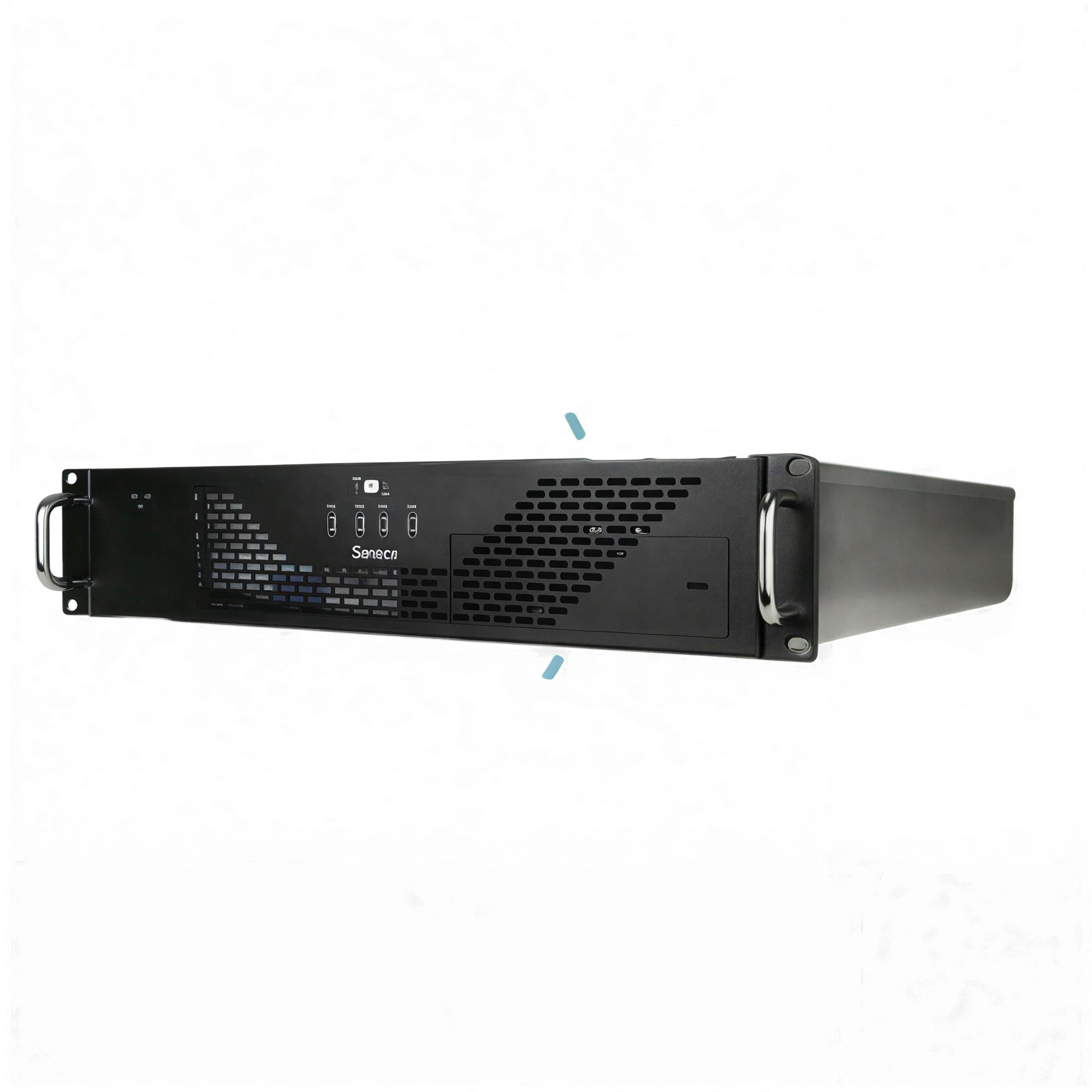

Panasonic LCS-100 Lecture Capture Appliance

Panasonic LCS-100 Lecture Capture Appliance is a 2RU rackmount capture server built for Panasonic lecture capture systems when you need reliable recording and playback from one PTZ camera. It’s designed to fit into a classroom or conference AV rack like any other “always-on” appliance, and it’s listed as compatible with the Panopto video platform.

Highlights

• Single-channel camera recording for a straightforward one-PTZ lecture capture workflow
• 2RU rackmount server form factor for permanent installs and control-room style deployment
• Dual network ports: 1 x 1GbE and 1 x 2.5GbE for flexible network design
• Intel Core i7-10700 CPU listed at 2.9 GHz
• Panopto compatibility for recording + distribution workflows

Quick Specs & Uses

• System type: 2RU rackmount lecture capture appliance
• Recording: single PTZ camera capture + media playback

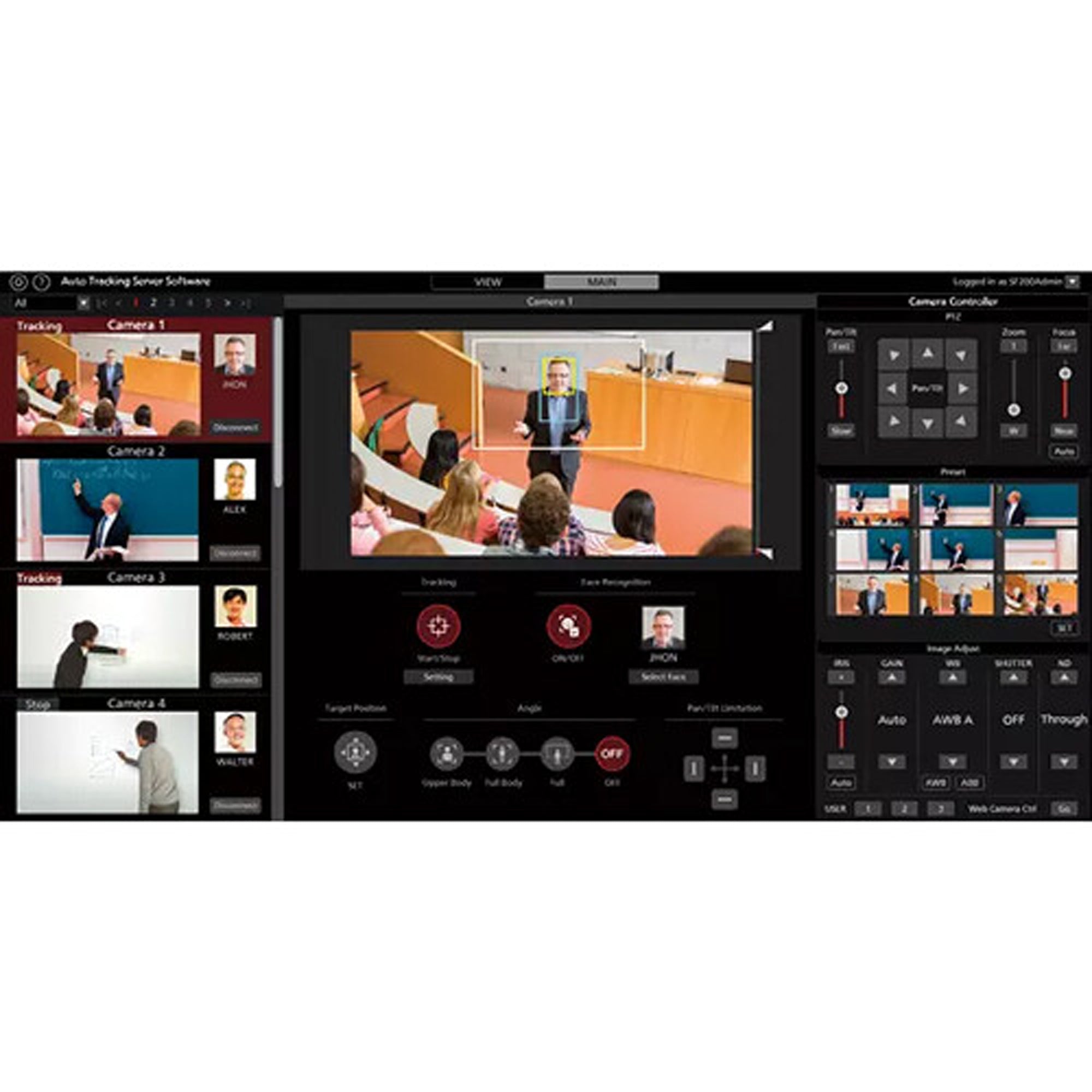

• Optional tracking workflow: works with AW-SF100 camera software (separately available) to enable camera auto-tracking
• Compute: Intel Core i7-10700 + Quadro P1000
• Memory / storage: 16GB DDR4 + 256GB SSD
• Network: 1 x 1GbE + 1 x 2.5GbE
• Control / legacy I/O: 2 x RS-232
• Display outputs: 4 x DisplayPort 1.4
• USB: 4 x USB 3.1
• Audio I/O: 3.5mm mic input + 3.5mm line output

Why It Helps

Lecture capture is usually won or lost on consistency. LCS-100 keeps the workflow tight: one PTZ camera, a dedicated 2RU box, and enough I/O to integrate into a real campus AV rack. If your plan includes auto-tracking, pairing it with the separately available AW-SF100 camera software is the intended path for dynamic presenter coverage.

System Characteristics

• Single-channel capture is a feature, not a limitation, when the goal is repeatable installs across many rooms
• 2.5GbE alongside 1GbE gives you options for uplinks, VLAN segmentation, or higher-throughput backbone links
• RS-232 is still useful in the field for control integration with legacy room systems
• Multiple DisplayPort outputs and USB 3.1 ports make it easier to service, monitor, and integrate peripherals
• Audio is simple and install-friendly: 3.5mm mic in and 3.5mm line out

What’s In The Box

1 x Panasonic LCS-100 Lecture Capture Appliance
