Panasonic AW-UB50 4K Full-Frame Box Camera (L Mount)

Panasonic AW-UB50 4K Full-Frame Box Camera (L Mount)

The Panasonic AW-UB50 L Mount is a compact full-frame box camera designed for productions that need cinematic image quality in a flexible, modular form factor. It works well in broadcast environments, PTZ-assisted systems, live streaming setups, gimbal builds, drone applications, and compact cinema rigs where size, image quality, and connectivity all matter.

Built around a 24.2MP full-frame MOS sensor, the AW-UB50 delivers detailed images, strong color reproduction, and natural shallow depth of field. It supports up to UHD 6K at 24p, DCI 4K at 30p, and UHD 4K at 60p, giving production teams room to work across both cinematic and live workflows. Its wide dynamic range also helps preserve detail in scenes with uneven or changing light.

For multi-camera environments, the AW-UB50 integrates smoothly with Panasonic PTZ camera systems using common IP control protocols. That makes it easier to manage mixed-camera productions from a shared controller, remote panel, or live switcher. Its color profile is also highly compatible with the Panasonic AW-UE160, helping maintain a more consistent look across camera positions.

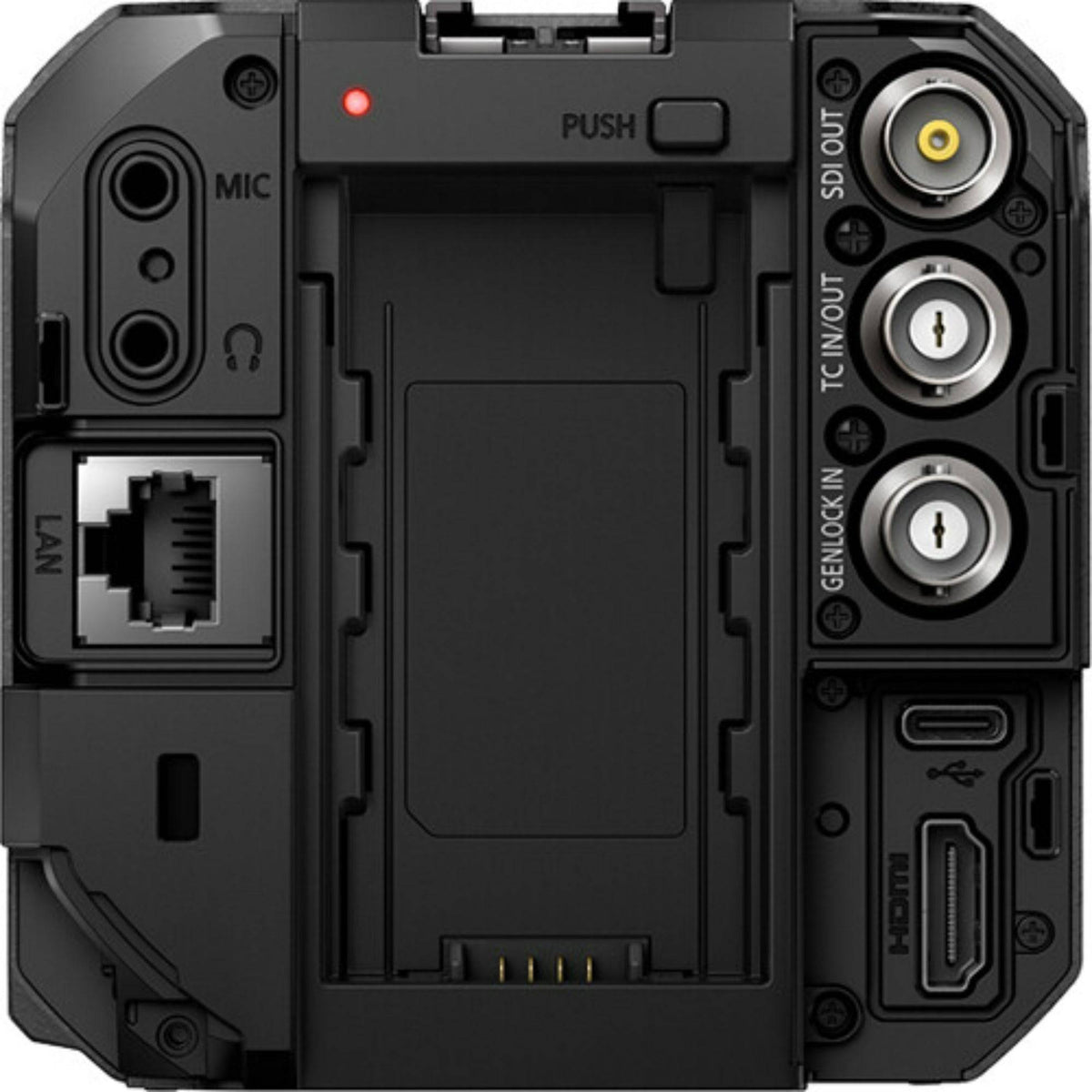

From a systems perspective, this camera is well equipped with 3G-SDI output, HDMI Type A, timecode in and out, genlock input, LAN, USB-C, 3.5mm mic input, and headphone output. The PoE+ capable LAN port is especially useful in streamlined installations, allowing power, control, and network connectivity over a single cable.

Built-in NDI HX2 support also makes the AW-UB50 a practical option for IP production systems. Add in real-time face, iris, and body-recognition autofocus, and you have a camera that can maintain sharp focus while following talent in fast-moving production scenarios.

Highlights

• 24.2MP Full-Frame MOS Sensor For Cinematic Image Quality
• Supports UHD 6K24, DCI 4K30, And UHD 4K60 Recording
• Leica L Mount For Flexible Lens Pairing
• NDI HX2 Support For IP Video Workflows
• PoE+, 3G-SDI, HDMI, Genlock, And Timecode Connectivity

Quick Specs & Uses

• Sensor: 24.2MP Full-Frame MOS
• Lens Mount: Leica L Mount
• Video Formats: UHD 6K24, DCI 4K30, UHD 4K60
• Outputs And I/O: 3G-SDI, HDMI Type A, TC In/Out, Genlock, LAN, USB-C, Mic In, Headphone Out
• Best For: Broadcast, PTZ Companion Use, Live Streaming, Gimbal Rigs, Drone Work, Cinema Production

Why It Helps

The AW-UB50 makes sense when you want full-frame image quality without committing to a larger traditional cinema body. It is especially useful in workflows that combine fixed camera positions, remote production control, PTZ integration, and IP transport. For production teams trying to balance image quality, deployment flexibility, and cleaner cabling, it fills a very practical role.

System Characteristics

This camera is well suited for mixed-format production environments where consistent color, network integration, and physical flexibility matter. Its compact form factor allows placement in tighter locations, while PoE+, NDI HX2, timecode, and genlock make it easier to design into professional broadcast and live production systems.
