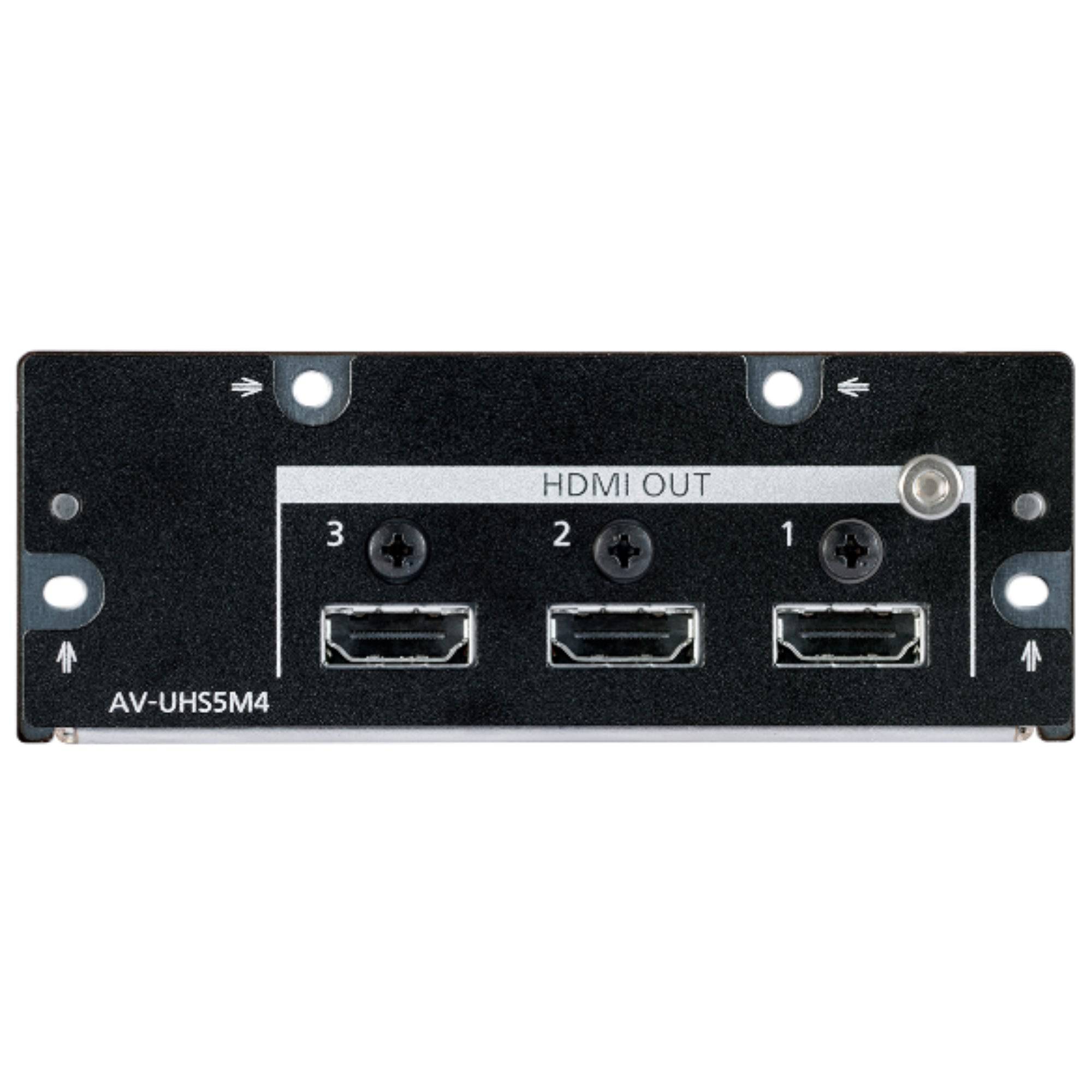

Panasonic AV-UHS5M4 HDMI Output Expansion Card

Panasonic AV-UHS5M4 HDMI Output Expansion Card is a 3-line HDMI output expansion module designed for integration with the AV-UHS500 system. It provides three HDMI outputs with assignable routing, plus onboard scaling and color space conversion so display feeds can be normalized without relying on external converters.

Highlights

• 3 x HDMI outputs via HDMI connectors (HDMI OUT 1 to HDMI OUT 3)
• Assignable outputs for PGM, PVW, CLN, ME PGM, MV1 to MV2, AUX1 to AUX4, and Key Out
• Scaler and color space conversion function built in
• Display modes: Fit-V, Fit-H, Full, Full-90%, Full-80%
• Color modes: Auto, RGB, YUV444, YUV422

Quick Specs & Uses

• HDMI outputs: HDMI OUT 1 to HDMI OUT 3 terminals
• Power consumption: 16 W, 1.3 A
• Power supply: DC 12 V supplied by AV-UHS500
• Dimensions: 112 mm x 42 mm x 166 mm (excluding protrusions)
• Weight: Approx. 353 g (Approx. 0.78 lbs.)

Supported Output Sizes

• Auto
• WQHD (2560 x 1440, 60 Hz)
• WUXGA (1920 x 1200, 60 Hz)
• UXGA (1680 x 1200, 60 Hz)
• WSXGA+ (1680 x 1050, 60 Hz)
• SXGA (1280 x 1024, 60 Hz)
• WXGA (1280 x 768, 60 Hz)
• XGA (1024 x 768, 60 Hz)
• Native

Why It Helps

This module is built for workflows where HDMI feeds need to be clean and predictable. With three assignable outputs, built-in scaling, and selectable color modes, it helps you deliver consistent program, preview, multiview, AUX, or key feeds to monitors and downstream display systems without adding extra processing hardware.

System Characteristics

• Ambient operating temperature: 0°C to 40°C (32°F to 104°F)
• Ambient operating humidity: 10% to 90% (no condensation)
• Storage temperature: 0°C to 40°C (32°F to 104°F)
• Powered directly by the AV-UHS500 via DC 12 V
