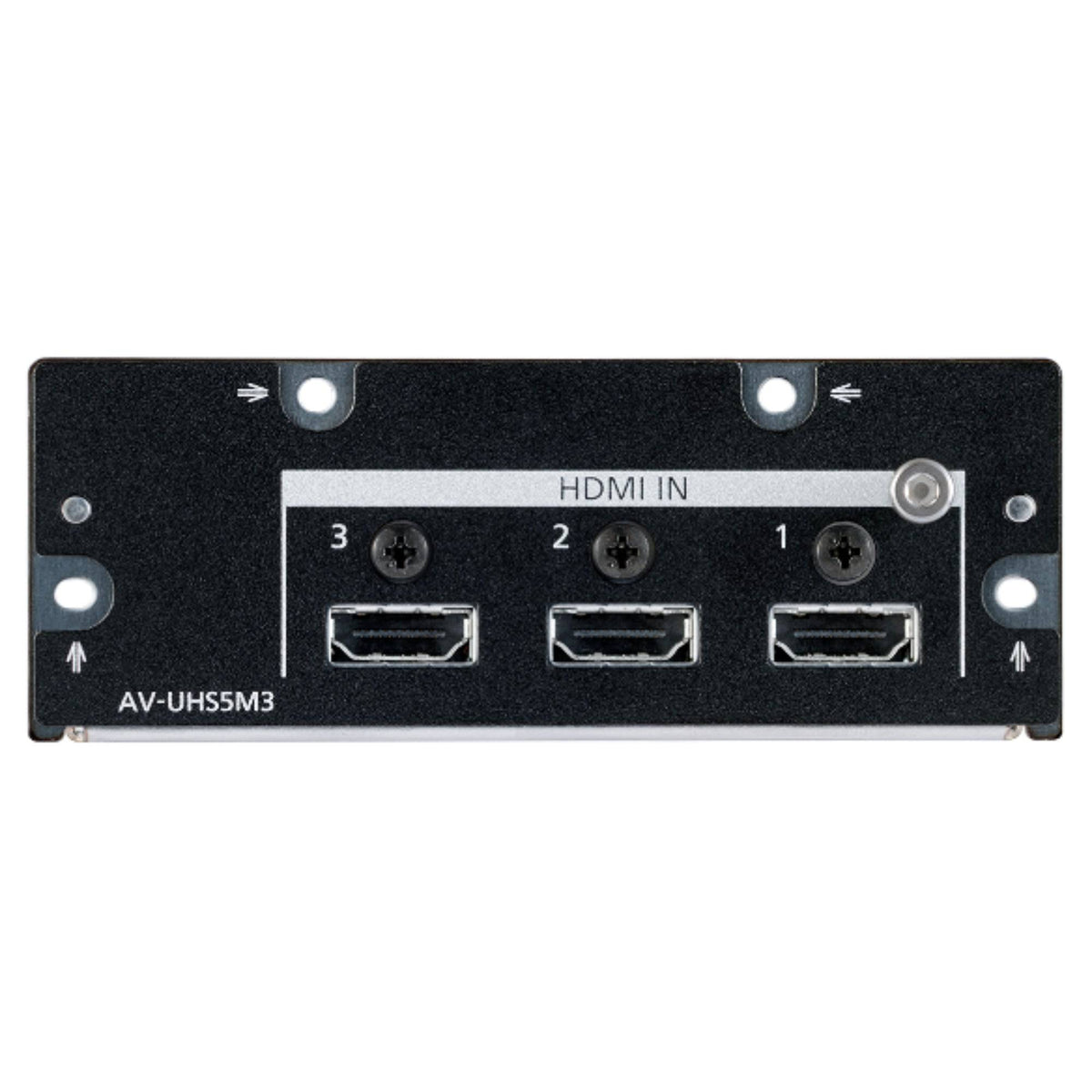

Panasonic AV-UHS5M3 HDMI Input Expansion Card

Panasonic AV-UHS5M3 HDMI Input Expansion Card is a 3-input HDMI expansion module built to extend an AV-UHS500 workflow with clean, production-friendly input handling. Each HDMI input includes a frame synchronizer to stabilize timing, plus an onboard color corrector, scaler, and color space conversion so mixed sources can be normalized before they hit your show pipeline.

Highlights

• 3 x HDMI inputs via HDMI IN 1 to HDMI IN 3 terminals
• Frame synchronizer on each input for stable ingest from mixed sources
• Color corrector fitted to help match sources without external processing
• Scaler and color space conversion to normalize formats and signal handling
• Powered by AV-UHS500 via DC 12 V, no separate power supply required

Quick Specs & Uses

• Physical: 112 mm x 42 mm x 166 mm excluding protrusions, approx. 353 g
• Power draw: 16 W, 1.3 A, supplied as DC 12 V from AV-UHS500
• HD and UHD video inputs: 720p, 1080i, 1080p, and 2160p with 59.94, 50, 29.97, 25, 24, and 23.98 Hz options
• PC format inputs up to 4K 3840 x 2160 60 Hz, plus WQHD, WUXGA, UXGA, WSXGA+, SXGA, WXGA, and XGA
• Input display modes: Full, Fit-H, and Fit-V

Why It Helps

In live production, the problem is rarely the number of HDMI ports. It is the mismatch between sources. AV-UHS5M3G solves that at the input stage with frame sync, scaling, and color handling, so laptops and cameras behave like proper switcher sources instead of surprise variables.

System Characteristics

• Best suited for mixed-source environments where timing and format consistency matter
• Common workflows include laptop presentation feeds, playback devices, and HDMI cameras
• Environmental rating supports typical indoor production use: 0°C to 40°C operating
• Storage humidity range is 10% to 90% with no condensation
• HDMI connector does not support CPRM technologies

What’s In The Box

Package contents vary by configuration. Please refer to the Specifications tab for the exact included items.
