Panasonic AV-UHS5M2 12G/3G/HD-SDI Output Expansion Card

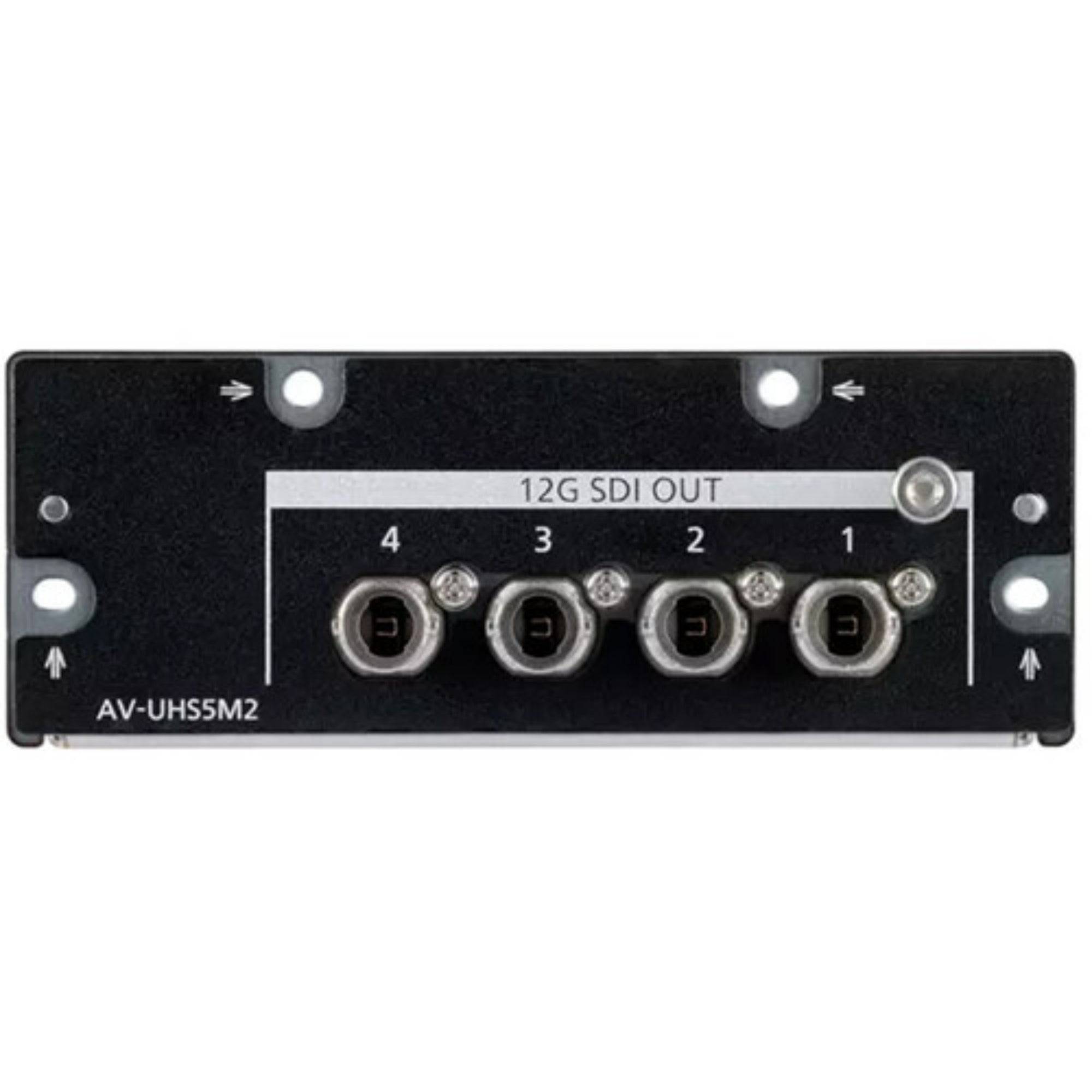

Panasonic AV-UHS5M2 12G/3G/HD-SDI Output Expansion Card adds four fully assignable SDI outputs to an AV-UHS500 system. If you are building a clean broadcast chain instead of improvising signal splits, this module gives you the kind of routing control that stays predictable on show day.

Highlights

• 4 x SDI outputs on BNC connectors for structured SDI distribution
• Assignable outputs for PGM, PVW, CLN, ME PGM, MV1 to MV2, AUX1 to AUX4, and Key Out
• 12G-SDI compliant with SMPTE ST 2082-10
• 3G-SDI Level-A and HD-SDI standard support
• Down-converter and color space conversion built in for output-side flexibility

Quick Specs & Uses

• SDI outputs: SDI OUT 1 to SDI OUT 4 terminals
• Output level: 0.8 V [p-p] ± 10% at 75 Ω
• Power consumption: 15 W, 1.2 A
• Power supply: DC 12 V supplied by AV-UHS500
• Dimensions: 112 mm x 42 mm x 167 mm (excluding protrusions)
• Weight: Approx. 371 g (Approx. 0.82 lbs.)

Signal Standards

• 12G-SDI: 12G Serial digital, SMPTE ST 2082-10 standard complied with, 0.8 V [p-p] ± 10% (75 Ω)
• 3G-SDI: 3G Serial digital, SMPTE 292 standard complied with (Level-A), 0.8 V [p-p] ± 10% (75 Ω)
• HD-SDI: HD Serial digital, SMPTE 292M standard complied with, 0.8 V [p-p] ± 10% (75 Ω)

Why It Helps

This module is for the jobs where SDI routing has to be clean: feeding recorders, monitors, LED processors, or downstream broadcast chains. With four assignable outputs and multi-standard support, you can map the ports the way your show is actually wired and reduce the need for external converters.

System Characteristics

• Storage temperature: 0°C to 40°C (32°F to 104°F)
• Storage humidity: 10% to 90% (no condensation)
• Ambient operating humidity: 10% to 90% (no condensation)
• Powered directly by the AV-UHS500 to keep power and cabling centralized
