Panasonic AV-UHS5M1 12G/3G/HD-SDI Input Expansion Card

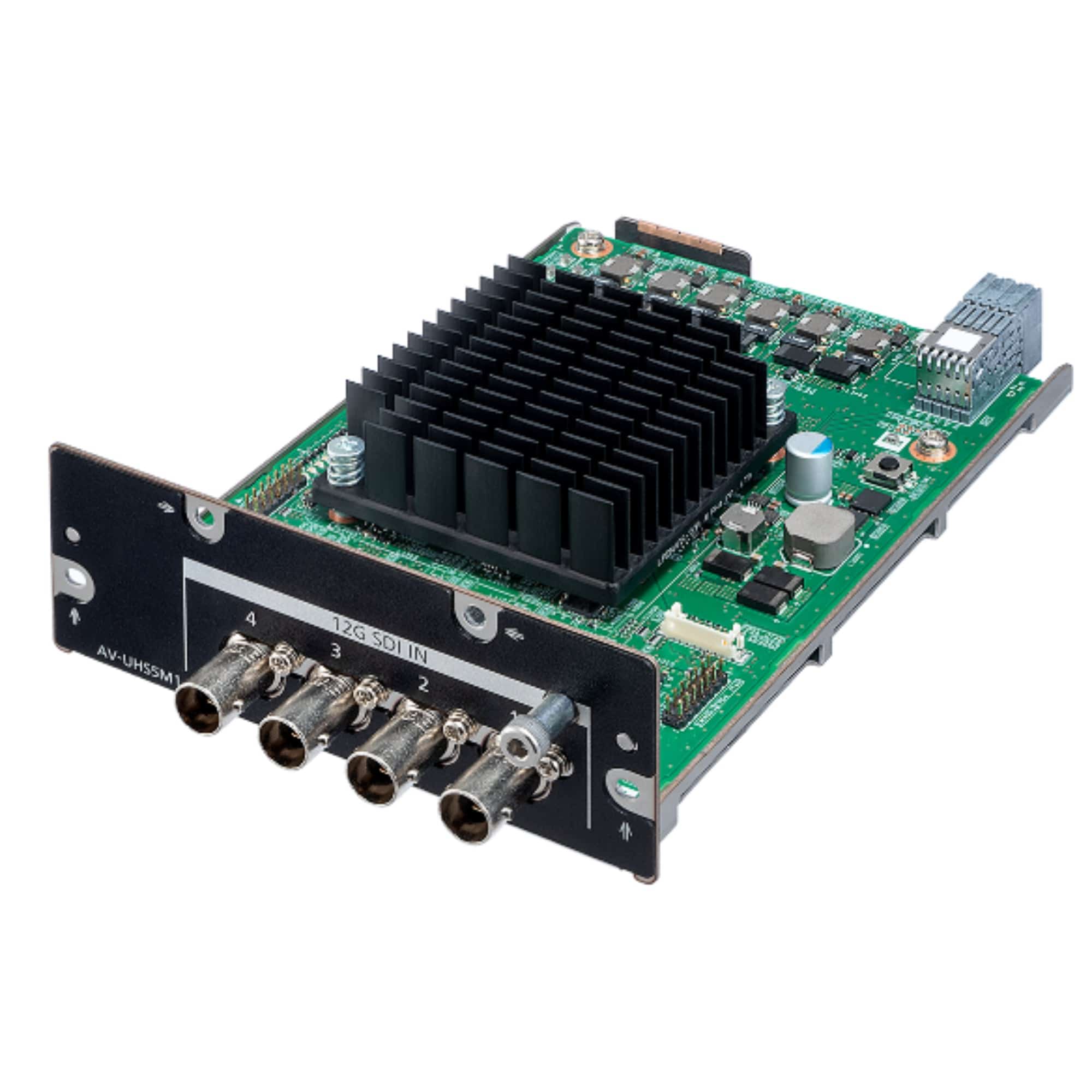

Panasonic AV-UHS5M1 12G/3G/HD-SDI Input Expansion Card is a 4-line SDI input expansion module designed for integration with the AV-UHS500 system. It adds four BNC SDI inputs and includes a built-in frame synchronizer, plus onboard up-conversion, color space conversion, and a color corrector to help stabilize and normalize incoming sources at the input stage.

Highlights

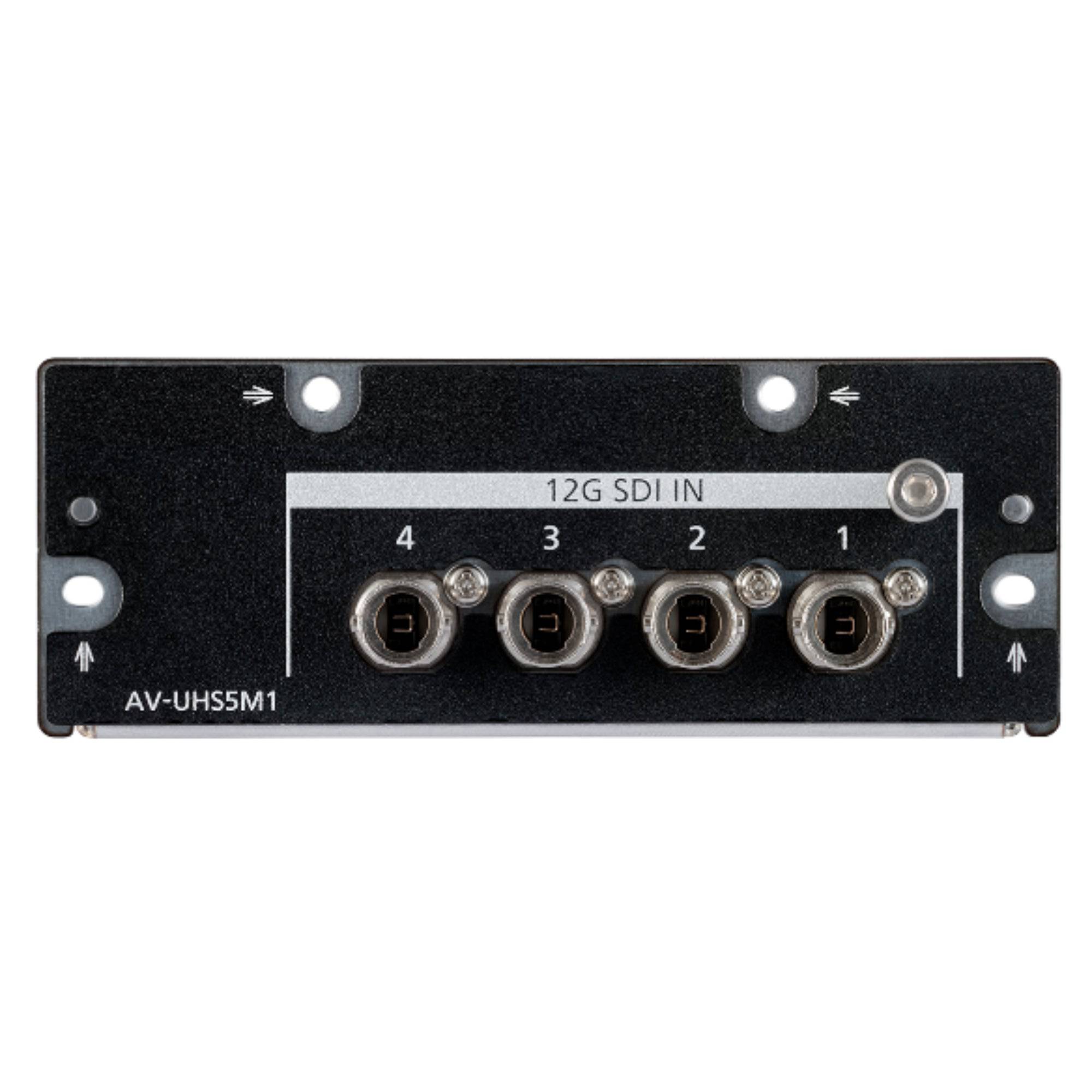

• 4 x SDI inputs via BNC connectors (SDI IN 1 to SDI IN 4)
• Frame synchronizer function on the SDI inputs for stable ingest
• Up-converter fitted for input-side format handling
• Color space conversion function built in
• Color corrector fitted to help match sources

Quick Specs & Uses

• Power consumption: 15 W, 1.2 A
• Power supply: DC 12 V supplied by AV-UHS500
• Dimensions: 112 mm x 42 mm x 167 mm (excluding protrusions)
• Weight: Approx. 371 g (Approx. 0.82 lbs.)
• Typical use: Adds SDI ingest capacity with integrated timing and conversion functions

SDI Inputs

• Terminals: SDI IN 1 to SDI IN 4

Signal Standards

• 12G-SDI: 12G Serial digital, SMPTE ST 2082-10 standard complied with, 0.8 V [p-p] ± 10% (75 Ω), automatic equalizer 80 m (when the cable is used)
• 3G-SDI: 3G Serial digital, SMPTE 292 standard complied with (Level-A/Level-B), 0.8 V [p-p] ± 10% (75 Ω), automatic equalizer 100 m (when the cable is used)
• HD-SDI: HD Serial digital, SMPTE 292M standard complied with, 0.8 V [p-p] ± 10% (75 Ω), automatic equalizer 100 m (when the cable is used)

Why It Helps

This module is built for workflows where SDI sources need to land cleanly and predictably. With four inputs, integrated frame synchronization, and onboard conversion and correction tools, it helps reduce timing issues and format mismatches before signals move deeper into the production chain.

System Characteristics

• Ambient operating temperature: 0°C to 40°C (32°F to 104°F)
• Ambient operating humidity: 10% to 90% (no condensation)
• Storage temperature: 0°C to 40°C (32°F to 104°F)
• Storage humidity: 10% to 90% (no condensation)

What’s In The Box

Please refer to the Specifications tab for included items.
