Panasonic AV-UHS500 4K/12G-SDI Live Switcher with NDI Support

The Panasonic AV-UHS500 Live Switcher delivers professional 4K/HD production in a compact and reliable system. Designed for broadcasters, educators, and event producers, it combines traditional 12G-SDI and HDMI I/O with modern NDI® IP video support, offering unmatched flexibility in today’s hybrid production environments.

Key Features

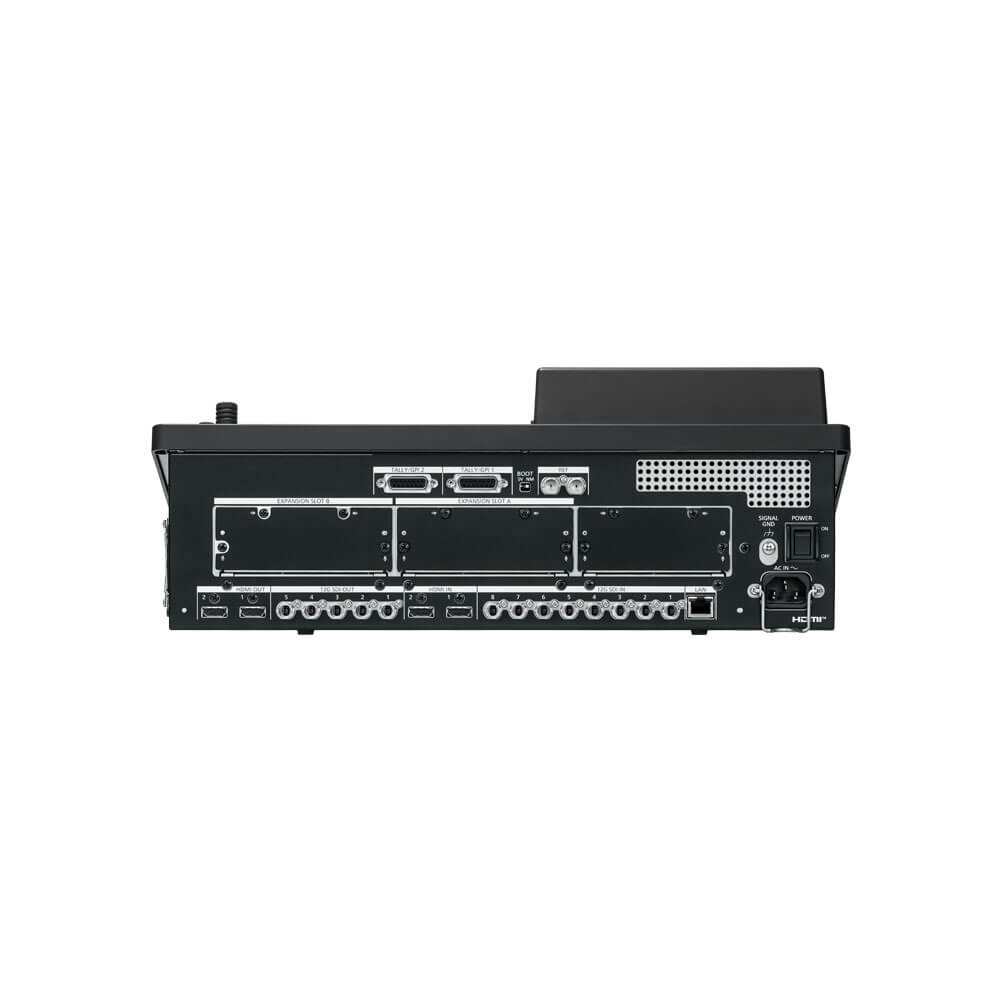

At its core, the AV-UHS500 includes 8 standard 12G/3G-SDI inputs, 2 HDMI inputs, and 7 outputs. With optional expansion cards, the system scales to 16 inputs and 15 outputs. Its flexible design supports UHD and HD multi-formats, including 2160/59.94p and 1080/59.94p.

For IP production, the NDI I/F Unit AV-UHS5M6G (optional) unlocks NDI High Bandwidth, NDI HX1, and NDI HX2 transmission. This enables up to 8 NDI inputs and 4 NDI outputs when two modules are installed, allowing seamless integration of cameras, converters, and streaming software without external converters.

Technical Advantages

• 12G-SDI Backbone: Supports 4K transmission over a single coaxial cable, simplifying setup.

• Built-in Conversion: Features up/down conversion, HDR/SDR mapping, ITU-R BT.2020/BT.709 conversion, and advanced color correction.

• Five Keyers: Includes Primatte® chroma key for real-time, broadcast-quality effects.

• ROI Function: Create multiple cropped sources from a single input for efficient multicamera workflows.

• Audio Flexibility: Assign embedded audio sources independently across AUX, PGM, PVW, and multi-view outputs.

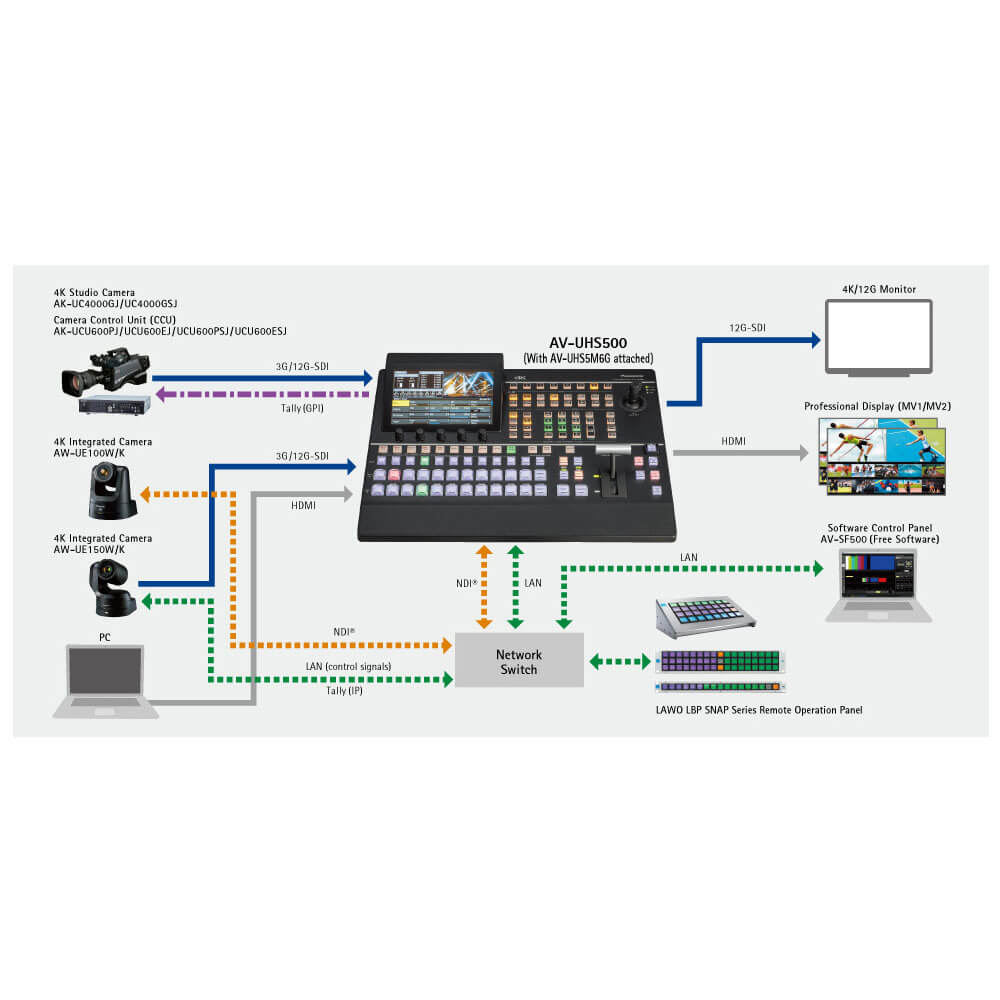

When paired with Panasonic PTZ cameras that support NDI High Bandwidth or NDI HX, the AV-UHS500 provides single-cable operation for video, control, and tally—streamlining remote production.

Real-World Applications

The AV-UHS500 is built for broadcast, corporate events, live concerts, education, and streaming productions. Its compact frame and easy setup make it ideal for mobile production crews, while its advanced features suit permanent installations in lecture halls, conference centers, and broadcast studios.

The addition of NDI® support expands its capabilities for hybrid environments. Producers can pull in NDI signals from remote locations, output to streaming software directly, or integrate with cloud-based platforms. With the free AV-SF500 software panel for Windows and Mac, remote switching and monitoring are intuitive and efficient.

Conclusion

With its robust SDI foundation, flexible HDMI integration, and future-ready NDI® workflows, the Panasonic AV-UHS500 Live Switcher is a versatile production hub. Whether used in broadcast control rooms, universities, or live events, it ensures high-quality 4K production with reliable, professional performance.
