Product Highlights

Complete KAIROS Core 2000 production kit with 2 NIC mainframe
Includes Creator GUI software and hardware Two Stripe switcher panel
24XPT assignable layout with dual MEs and dual transition faders
Integrated title generator and multi-view monitoring support
Touch-panel control option expands multi-operator flexibility

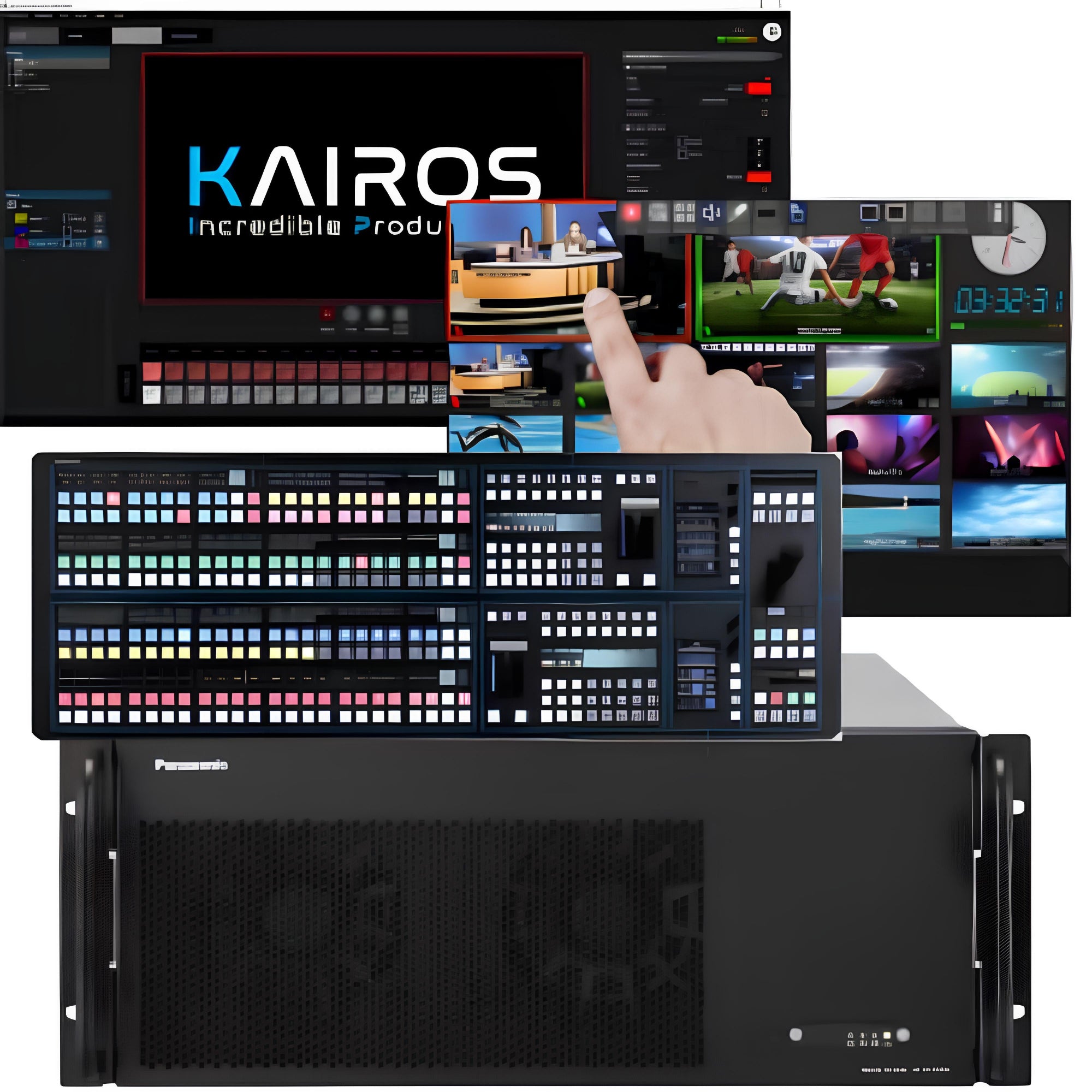

Panasonic Connect KC2000PS1 Ultimate Kit

SKU:: KAIROSULTKIT
MPN:: KAIROSULTKIT

Special Order

Regular price $167,800.00

Add to Wishlist Enquiry

Ships in 3-7 Business Day

Free Expedited Shipping

Secure payment

Manufacturer Warranty

Authorized Dealer

Description

Product Overview

Panasonic Connect KC2000PS1 Ultimate Kit combines the KAIROS Core 2000 mainframe with software and hardware control options, delivering a complete production control environment for dynamic video workflows.

Highlights

KAIROS Core 2000 Mainframe with 2 NIC for flexible system deployment
KAIROS Creator GUI with multi-view monitoring and title generation
Two Stripe Hardware Switcher Panel with 24XPT layout and dual MEs
Dual transition faders supporting A/B and PGM/PST modes
Touch Control Panel Software for expanded multi-operator workflows

Quick Specs & Uses

Professional effects, including Border Lines, Chroma-Key, Luma Key, Multi-View, and Transitions
Multi-view monitoring via MV1/MV2 Live View menu
24XPT assignable hardware layout
Two ME layouts and two faders for layered production control
Touch-panel operation for switching, macros, scene selection, and clip playback

System Characteristics

Designed for creative, dynamic multi-scene production environments
Supports simultaneous use of multiple control panels within a single system
Cross-platform support across Windows and macOS environments
Integrated title generation within the GUI workflow
Expandable multi-operation environment via touch control integration

What’s In The Box

KAIROS Core Flagship Main Frame With 2 NIC (ATKC2000PS1)
KAIROS Creator (ATSFC10Z)
Panasonic KAIROS Control Two Stripe Hardware Switcher Panel (ATKC10C1G)
Touch Control Panel Software (ATSFTC10Z)

Trusted Seller

Coremicro ships fast from the U.S. and supports this gear with a team that actually works with production systems.

Specifications

Panasonic Connect KC2000PS1 Ultimate Kit Specifications

Reviews

What's included

Included on Panasonic Connect KC2000PS1 Ultimate Kit

1 x KAIROS Core Flagship Main Frame With 2 NIC (ATKC2000PS1)
1 x KAIROS Creator (ATSFC10Z)
1 x Panasonic KAIROS Control Two Stripe Hardware Switcher Panel (ATKC10C1G)
1 x Touch Control Panel Software (ATSFTC10Z)

Product Specifications
Video Inputs	ST 2110: 1.5G: 64 in 2 3G: 32 in 2 4K: 8 in 2 ST 2022-7 Redundancy:* No halving of input 2 SDI:* 1.5G: Max. 32 in 2 3 3G: Max. 32 in 2 3 4K: Max. 16 in 2 3 NDI® High Bandwidth (HD only): 2 in, 16 CH audio for each SRT / RTSP / RTP / RTMP (HD only): 8 in (only input for RTSP) *Foot note: Misc Specs
Audio Inputs	Audio Format: ST 2110-30 (AES67): 48 kHz/24 bit NDI® High Bandwidth (HD only): 16 CH audio for each Streaming IP: SRT/RTSP/RTP/RTMP
Video Outputs	ST 2110: 1.5G: 40 out 2 3G: 40 out 2 4K: 10 out 2 ST 2022-7 Redundancy:* Halving of output 2 SDI:* 1.5G: 16 out 2 3 3G: 16 out 2 3 4K: 8 out 2 3 NDI® High Bandwidth (HD only): 2 out, 16 CH audio for each SRT / RTP / RTMP (HD only): 2 out *Foot note: Misc Specs
Audio Outputs	Audio Format: ST 2110-30 (AES67): 48 kHz/24 bit NDI® High Bandwidth (HD only): 16 CH audio for each Streaming IP: SRT/RTSP/RTP/RTMP
Video Standards	Video Format: 4K: 2160/60p, 59.94p, 50p, 30p, 29.97p, 25p, 24p, 23.98p FHD: 1080/60p, 59.94p, 50p, 30p, 29.97p, 25p, 24p, 23.98p HD: 1080/59.94i, 50i, 720/60p, 59.94p, 50p Signal Processing: Y/PB/PR, 4:2:2 10 bit Color Model and Bit Depth: Y/PB/PR, 4:2:2 10 bit
Product Specific	Synchronization PTP Sync: QSFP and GbE, both ports supported Frame Synchronizer (FS): All input channels, always ON (no ON/OFF option) Frame Delay: 0 to 12 frames, adjustable in 1-frame steps Latency: Minimum 1 frame Multiviewer & Canvas Multiviewer Output: HD / 4K x 4 out, up to 36 PiP per output Canvas: Up to 8K (32 M-pixels) Layer & Processing Number of Layers, Scenes (ME) and Keys: No restriction; dependent on GPU performance Visible usage via GPU meter Tally & External Device Support 6-Color Independent Tally Indicators: ✔ NDI® Tally: ✔ Supported Tally Protocol: ✔ TSL 5.0 Compatible with Panasonic PTZ Camera and AK-UC4000 4K Studio Camera Compatible External Tally Box: ✔ Connectable Control Panel: Up to 16 units (AT-KC10C1G or AT-KC10C2G, each supports up to 8 units) PTZ Control of Panasonic PTZ Camera: ✔ Supported Standards & Protocols REST API: ✔ Command table available from PASS KAIROS website Ross Talk5: ✔ Optional AT-SFE01 required TSL 5.0:* ✔ *NMOS6: ✔ Optional AT-SFE03 required AMP (Advanced Media Protocol): ✔ ST 2110: ST 2110-10, ST 2110-20, ST 2110-30 Common Features (All Models) Effects: Luminance Key, Chroma Key, DVE (2D / 2.5D), Soft Border, Corner Fix, Color Correction, Crop Transition: Multimix, Offset Transition, Transition Effects Macro: Scene-Specific Macros, LUA Script Support Color Mat: Bicolor Wash Mat, Test Pattern Other Functions:** Audio Mixer 7 Title Generator Snapshot Multiviewer Display (GPU Meter, Audio Level Meter, Clock, etc.) User Management Function 2 Footnote Descriptions 1. Requires software version 1.7 or later. 2. Requires software version 1.6 or later. 3. Optional AT-KC20M1 SDI I/O boards are required. Each board provides 8 input terminals, 4 output terminals, and REF IN/OUT (maximum 8 inputs / 4 outputs in FHD/HD). Up to four boards can be installed in the AT-KC2000/200 and up to two boards in the AT-KC2000S1. The input/output numbers shown represent the maximum capacity when fully equipped. Installation must be performed by a dealer. Always consult your dealer for installation. 4. The maximum RAM Player capacity is reduced when SDI I/O boards are installed, as shown below: SDI I/O Boards Installed: Not installed 1 board 2 boards 3 boards 4 boards AT-KC2000: 96GB / 93GB / 90GB / 87GB / 84GB AT-KC2000S1: 86GB / 83GB / 80GB / – / – AT-KC200: 32GB / 31GB / 30GB / 29GB / 28GB AT-KC200L1: – / – / – / 32GB / 32GB 5.RossTalk, Ross, and XPression are registered trademarks of Ross Video Limited. 6.NMOS (Networked Media Open Specifications) is a protocol standardized by AMWA (Advanced Media Workflow Association) for controlling and managing devices via IP networks. 7.Optional AT-SF005 is required.
Media	Player Still Store: 7 GB storage, up to 4K RAM Player (Uncompressed): 8 CH, 32 GB storage 4 Clip Player (Compressed): 2 CH, 400 GB storage (shared with Audio Player) Supported formats: AVC-Intra / H.264 / DNxHD / ProRes Audio Player (Compressed):* 4 CH, 400 GB storage (shared with Clip Player) Supported formats: WAV / MP3 / Ogg / FLAC / AIFF
Operating Systems	Linux
Power Specifications
Power I/O	Power Requirement: AC IN x2, 100–127 V / 200–240 V, 50/60 Hz Current Consumption: 10.0 A / 5.0 A
Physical / Environmental Specifications
Dimension	Dimensions W 430 mm x H 176 mm x D 505 mm (16-15/16 x 6-15/16 x 19-7/8 inches) (excluding protrusion) Rack Mount Size 4 RU Weight Approx. 17 kg / 37.47 lb (without accessories & options)
Environment	Current Consumption: 10.0 A / 5.0 A Operating/Storage Temperature: 5 to 35 ˚C / –20 to 60 ˚C Operating Humidity: 10% to 90%, no condensation
Warranty	1-Year Manufacturer Warranty
