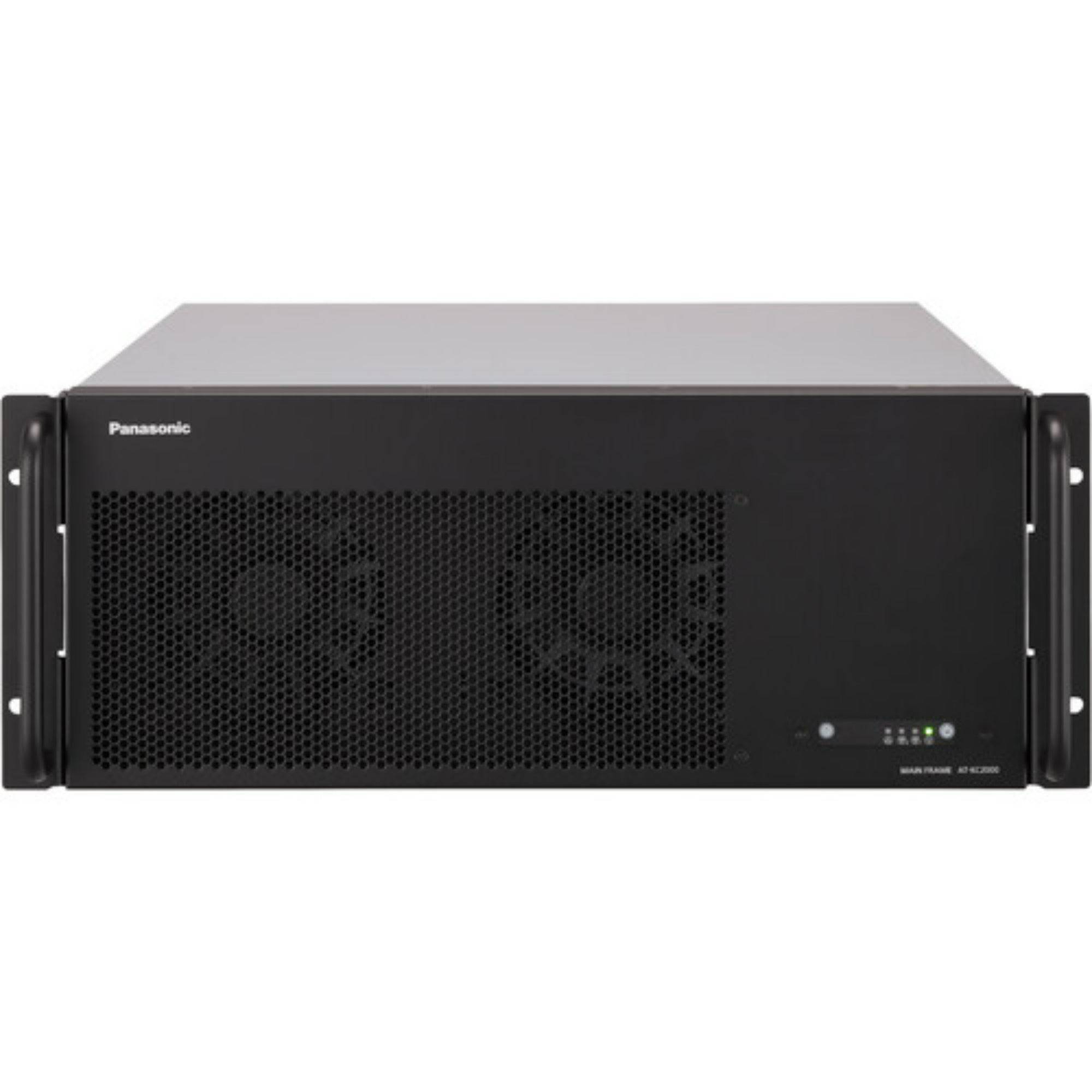

Panasonic KC2000 Core Flagship Mainframe

Panasonic AT-KC2000P KAIROS Core Flagship Mainframe is an IT/IP-centric live video processing platform built for high-capacity production environments that need scalable input, output, and processing flexibility. Rather than being limited by fixed hardware routing, the system leverages CPU and GPU resources to balance total processing load and deliver resolution- and format-independent operation.

Highlights

• IT/IP-centric live processing platform utilizing CPU and GPU architecture

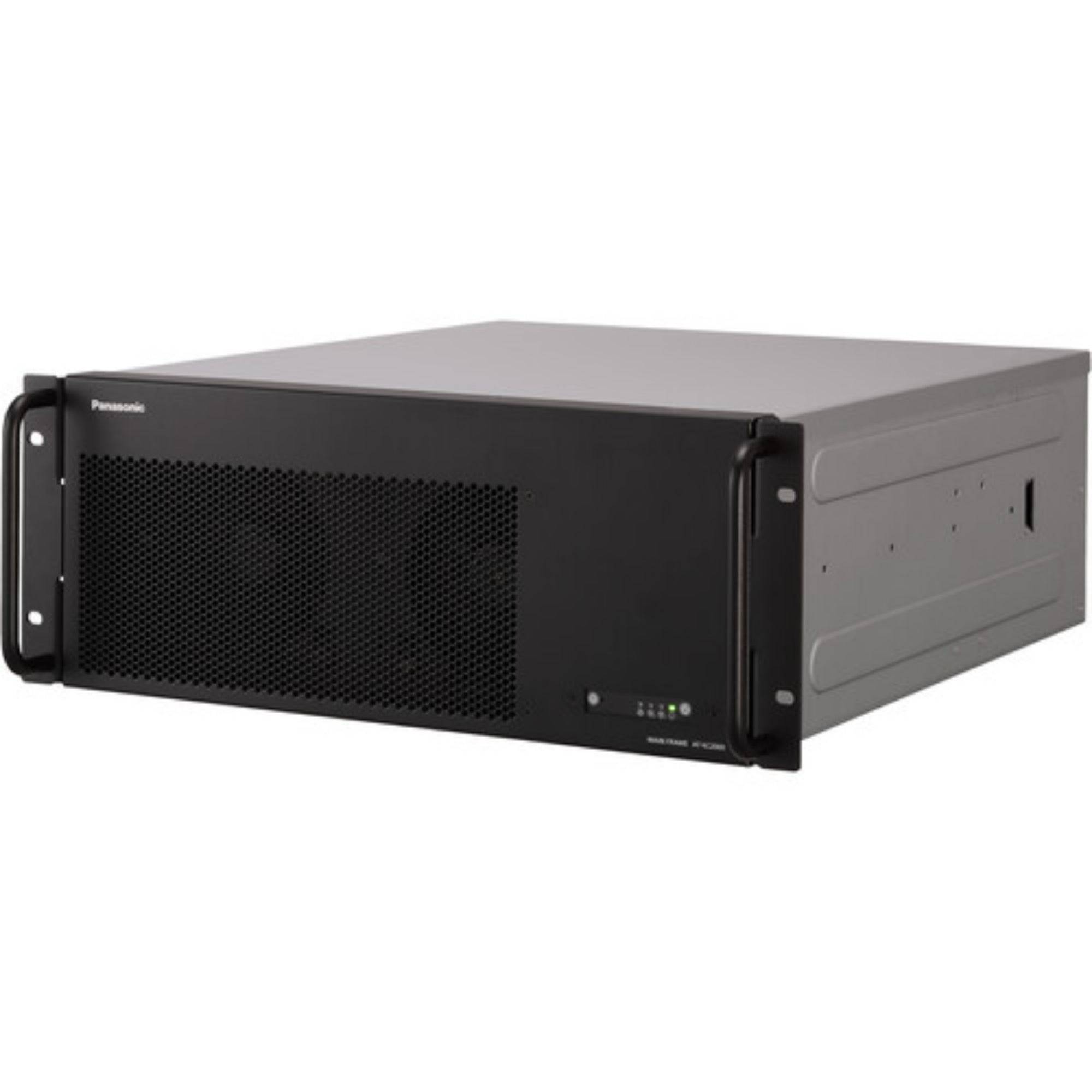

• 4RU rackmount chassis running Linux OS
• Redundant power supply with dual AC inputs
• ST 2110 support (ST 2110-10 / -20 / -30)
• ST 2022-7 network redundancy with no halving of input or output

Quick Specs & Uses

• Power: AC IN x2, 100–127 V / 200–240 V, 50/60 Hz
• Current Consumption: 10.0 A / 5.0 A
• Dimensions: W 430 mm x H 176 mm x D 505 mm
• Weight: Approx. 17 kg (without accessories & options)
• Operating Temp: 5° to 35°C
• Storage Temp: -20° to 60°C
• Humidity: 10% to 90%, no condensation
• ST 2110 I/O: 64 in / 40 out (1.5G), 32 in / 40 out (3G), 8 in / 10 out (4K)
• SDI I/O (Max): 32 in / 16 out (1.5G & 3G), 16 in / 8 out (4K)
• NDI High Bandwidth (HD only): 2 in / 2 out, 16 CH audio per stream
• SRT / RTSP / RTP / RTMP (HD only): 16 in / 4 out (RTSP input only)

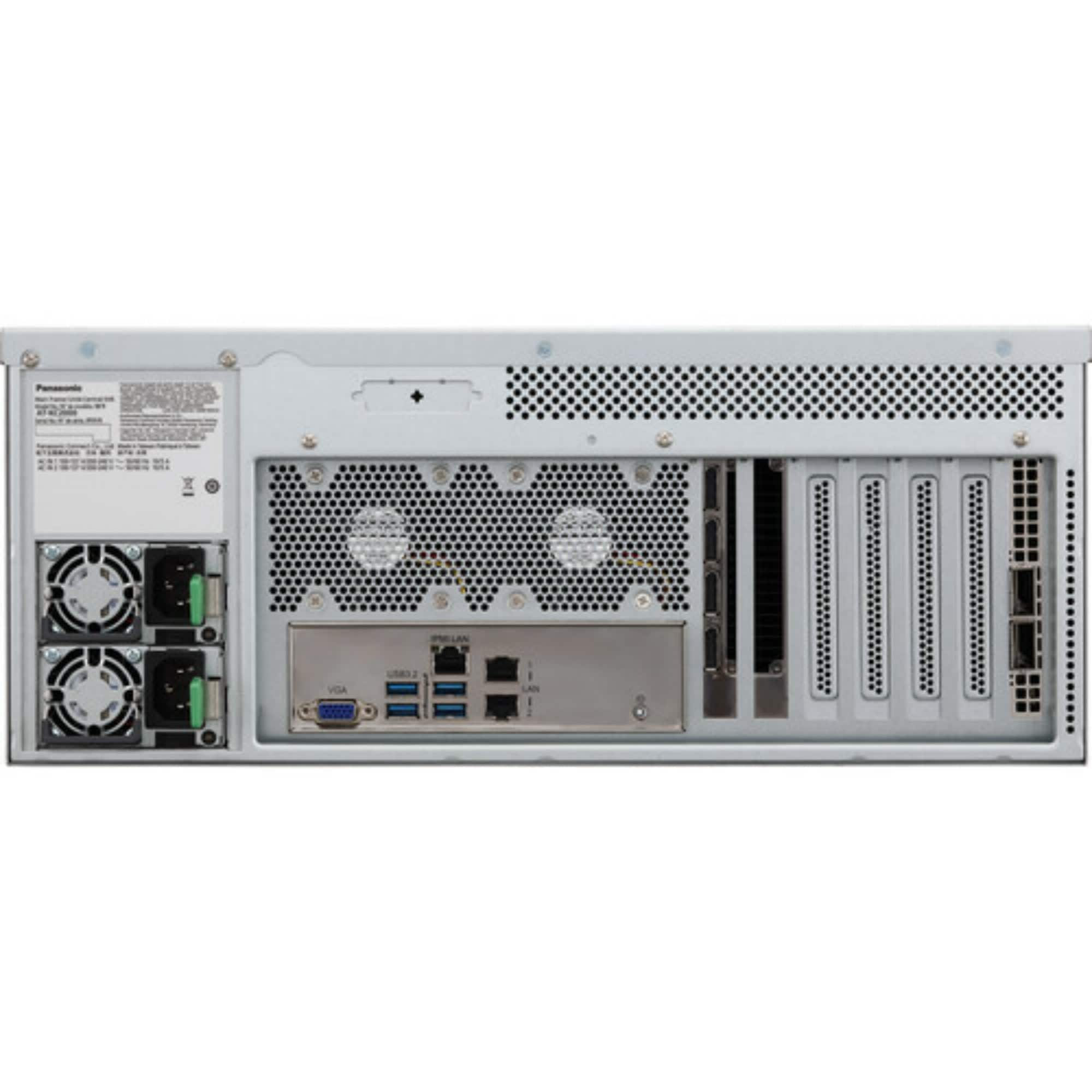

• QSFP: 100G QSFP28 x2 (ST 2110, PTP sync)
• LAN: RJ-45 x2 (1GbE)
• DisplayPort: 1.4 x4 (Multiview output)
• SDI Terminals: Micro BNC, max 48
• REF IN/OUT: Micro BNC, max 8
• USB (System): USB 3.2 Gen1 Type-A x4
• VGA (System Installation): D-sub 15 pin

Why It Helps

AT-KC2000P is intended for facilities moving into IP-based production with ST 2110 core infrastructure. The system supports PTP synchronization on QSFP and GbE ports and maintains a frame synchronizer that is always ON across input channels for signal stability. Frame delay adjustment from 0 to 12 frames (1-frame increments) and a listed minimum 1-frame latency support predictable timing behavior in live switching environments.

System Characteristics

• Canvas resolution: Up to 12K (66 megapixels)
• Multiviewer: HD/4K x4 outputs, up to 36 PiP per output
• Layer capacity: No restriction, dependent on GPU performance (visible via GPU meter)
• Still Store: 32 GB storage, up to 4K
• RAM Player (Uncompressed): 8 channels, 96 GB storage
• Clip Player (Compressed): 2 channels, 850 GB storage (shared)
• Audio Player (Compressed): 4 channels, 850 GB storage (shared)
• Tally: 6-color independent indicators, NDI Tally supported
• Protocols: REST API, TSL 5.0, AMP, ST 2110; NMOS optional (AT-SFE03 required)
• RossTalk: Optional (AT-SFE01 required)

What’s In The Box

Package contents vary by configuration. Refer to the Specifications tab for the exact included components and available options.
