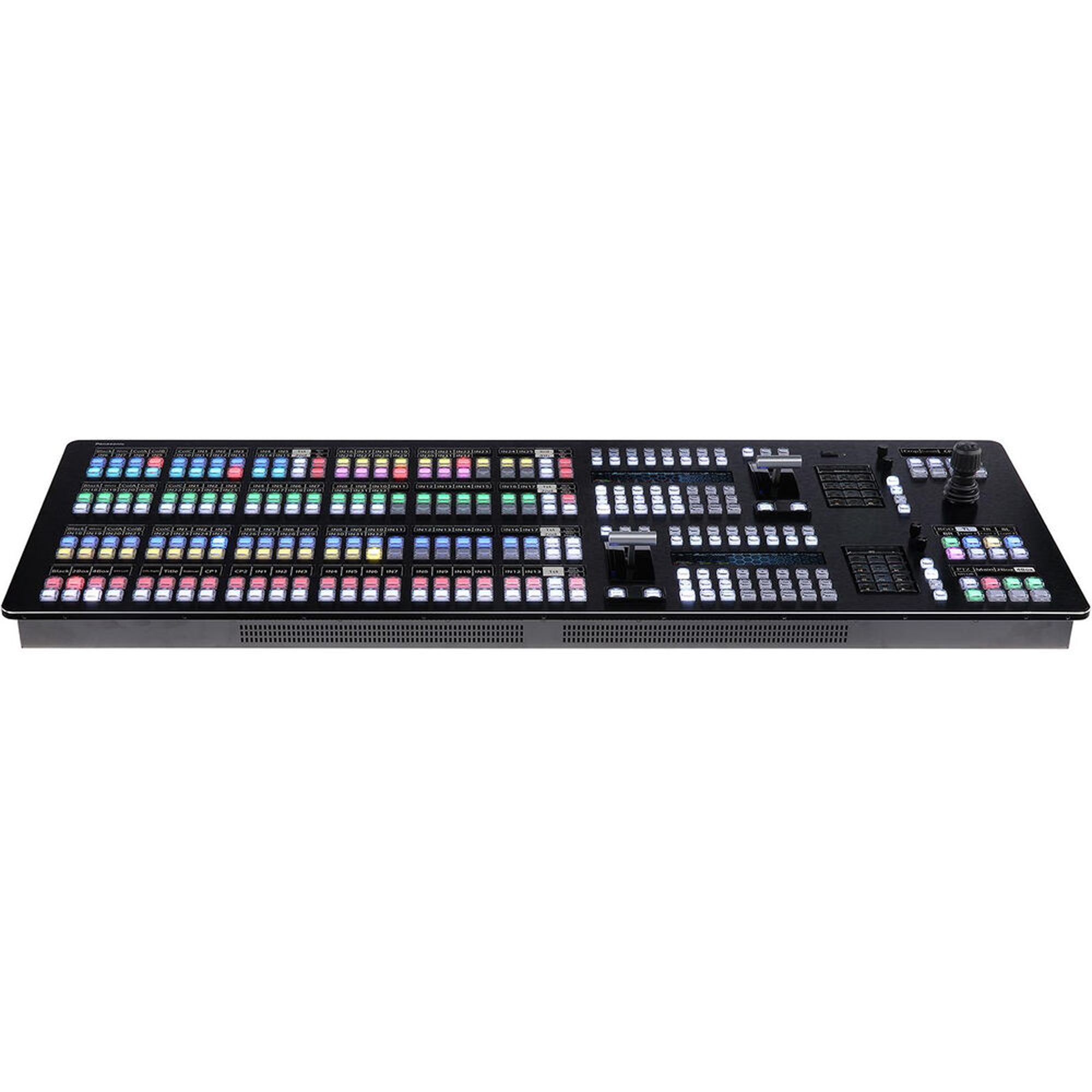

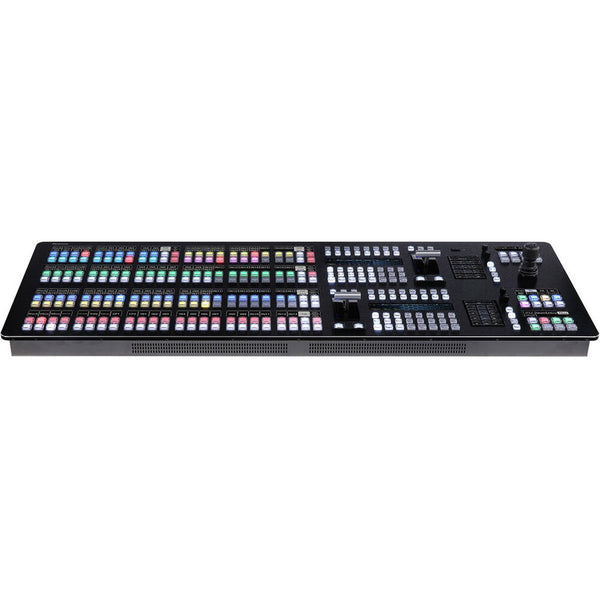

Panasonic AT-KC10C1G Kairos Control Two Stripe Hardware Switcher Panel

Panasonic AT-KC10C1 Kairos Control is a dedicated hardware control surface built for installed control rooms and mobile production setups where you want stable power, predictable I/O, and a physical panel that stays put. Power is specified at DC 12V, 8.0A with dual 4-pin XLR inputs (redundant), and connectivity is straightforward: 1GbE RJ-45 on the rear plus USB 2.0 Type-A on both the control panel and rear panel.

Highlights

• Redundant power inputs with XLR 4-pin x 2 for more reliable operation
• DC 12V, 8.0A power requirement for consistent system planning
• 1GbE LAN via RJ-45 on the rear panel
• Two USB 2.0 Type-A ports (one on the control panel, one on the rear)
• Built for real rooms with published operating temperature and humidity ranges

Quick Specs & Uses

• Power requirement: DC 12V, 8.0A
• Power inputs: XLR 4-pin x 2 (redundant)
• Operating temperature: 0 to 40°C
• Operating humidity: 10% to 90% (no condensation)
• LAN (rear): RJ-45 x 1, 1GbE
• USB (control panel): USB 2.0 Type-A x 1
• USB (rear): USB 2.0 Type-A x 1


Why It Helps

In live production, the control surface is not where you want surprises. This unit spells out the power requirements and gives you redundant 4-pin XLR inputs, which helps when you are building a dependable power plan. With a single 1GbE LAN port and two USB ports split between the panel and rear, the connection layout stays clean and easy to service.

System Characteristics

• Redundant 4-pin XLR power inputs help when you need cleaner uptime planning
• Use the published 12V / 8.0A requirement to size power distribution correctly
• Keep humidity within spec and avoid condensation for long-term reliability
• The unit’s width and weight are substantial, so plan desk or console space accordingly
• Rear-panel 1GbE RJ-45 keeps network cabling tidy and serviceable

What’s In The Box

1 x Panasonic Kairos Control Two Stripe Hardware Switcher Panel
