Panasonic AK-UCX100GSJ

The Panasonic AK-UCX100 4K Studio Camera is a 4K HDR studio camera designed for real-world live production, whether your plant is still centered on SDI or gradually shifting toward IP. It does not force you into one workflow. You can run it as a standalone camera head without a CCU when the job calls for a lighter footprint, or integrate it into a larger system when needed.

On the connectivity side, it supports dual 12G-SDI for traditional baseband setups, while also offering SMPTE ST 2110, NDI High Bandwidth, and SRT for IP-based environments. That flexibility makes it practical for facilities in transition, remote productions, and hybrid control rooms where both SDI and IP have to coexist.

Highlights

• Standalone operation without a CCU for simpler deployments and faster setup
• Dual 12G-SDI plus IP support, including SMPTE ST 2110, NDI High Bandwidth, and SRT
• 4K resolution of 2000 TV lines or above (center) for detailed reproduction
• Simultaneous HDR/HLG (BT.2020) and SDR (BT.709) workflows supported

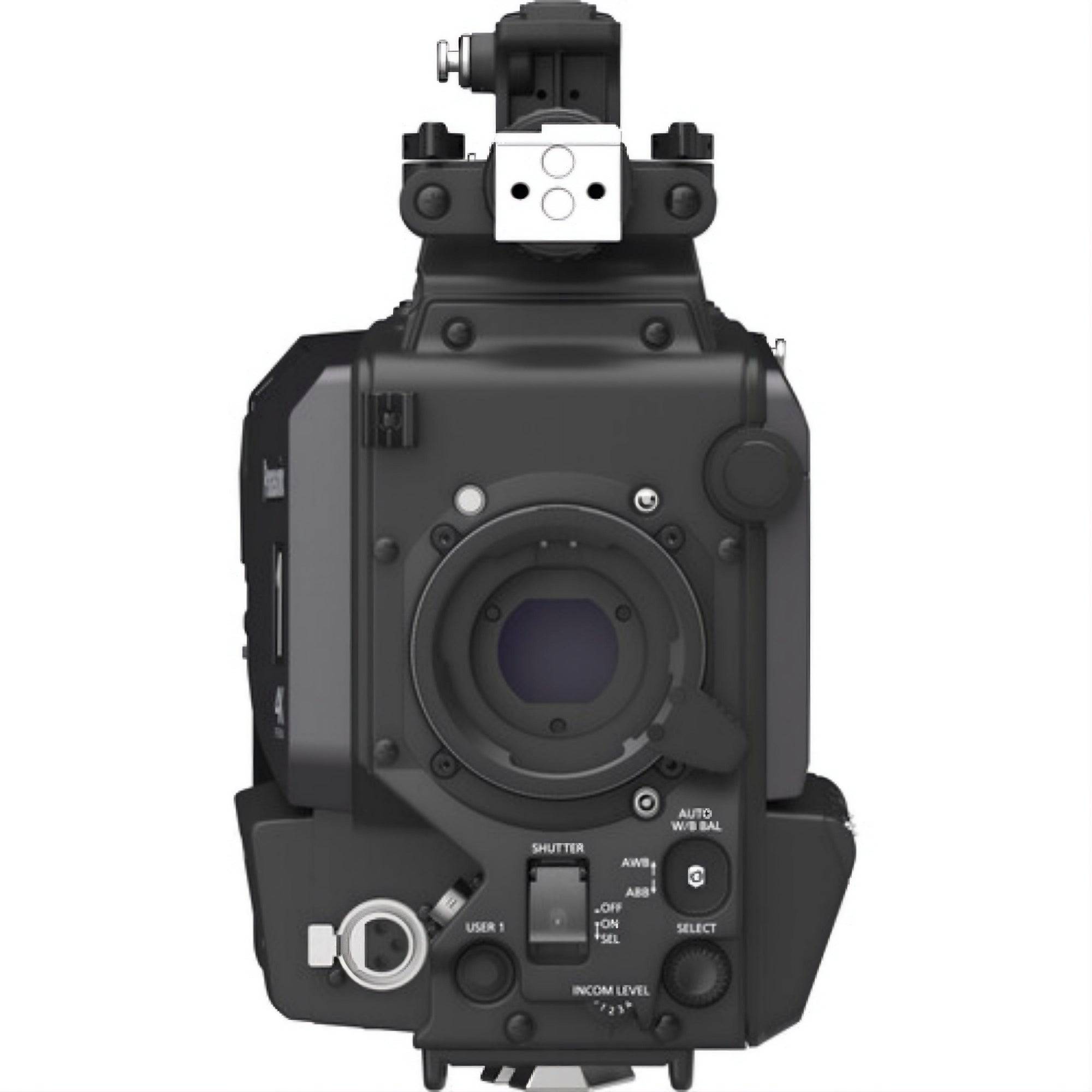

• 2/3-type bayonet lens mount for broadcast lens compatibility

Quick Specs & Uses

• Pickup device: 19.29 million pixels MOS sensor
• ND filters: Clear, 1/2, 1/4, 1/16, 1/64
• Mic inputs: XLR 3-pin female (Line/Mic/+48V switchable)

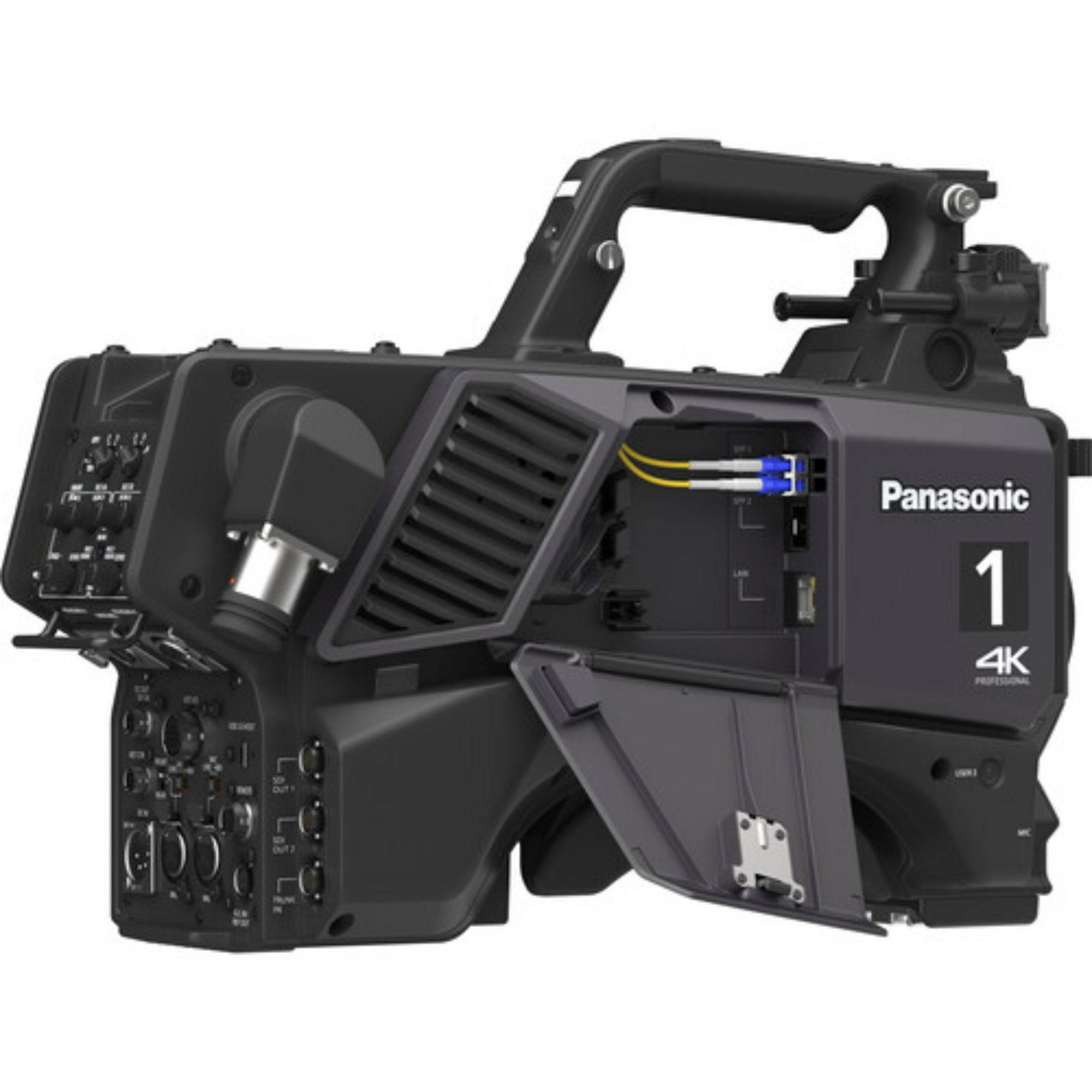

• SFP terminals: 2x SFP28 for IP connectivity options
• Built for studio work, sports, and live events where HDR color and routing flexibility matter

Why It Helps

This camera is designed for crews who need broadcast-level detail and a practical path into IP. Use 12G-SDI when you want clean baseband, or lean on ST 2110 and IP options when the facility workflow calls for it. The ability to run without a CCU also makes it easier to deploy in live events and hybrid environments without overbuilding the system.

System Characteristics

• Power supply: DC 12V (when using an external power supply)
• Power consumption: 119W max when using external 12V and including supply to externally connected devices
• Power consumption: 360W max when a compatible CCU / camera fiber adapter is connected, including supply to an externally connected device
• Operating temperature: -10°C to 45°C (preheating required at 0°C or below)
• Body dimensions: 157 x 267 x 371.5 mm (excluding protrusions); weight: approx. 4.55 kg body only (excluding accessories)

What’s In The Box

• Panasonic AK-UCX100GSJ 4K Ultra HD HDR Studio Camera (Black)
• Port Cap
• Panasonic 1 Year Manufacturer's Warranty

Trusted Seller

Coremicro supports production systems end-to-end and can help you confirm fit for your SDI, ST 2110, and hybrid workflows before deployment.
