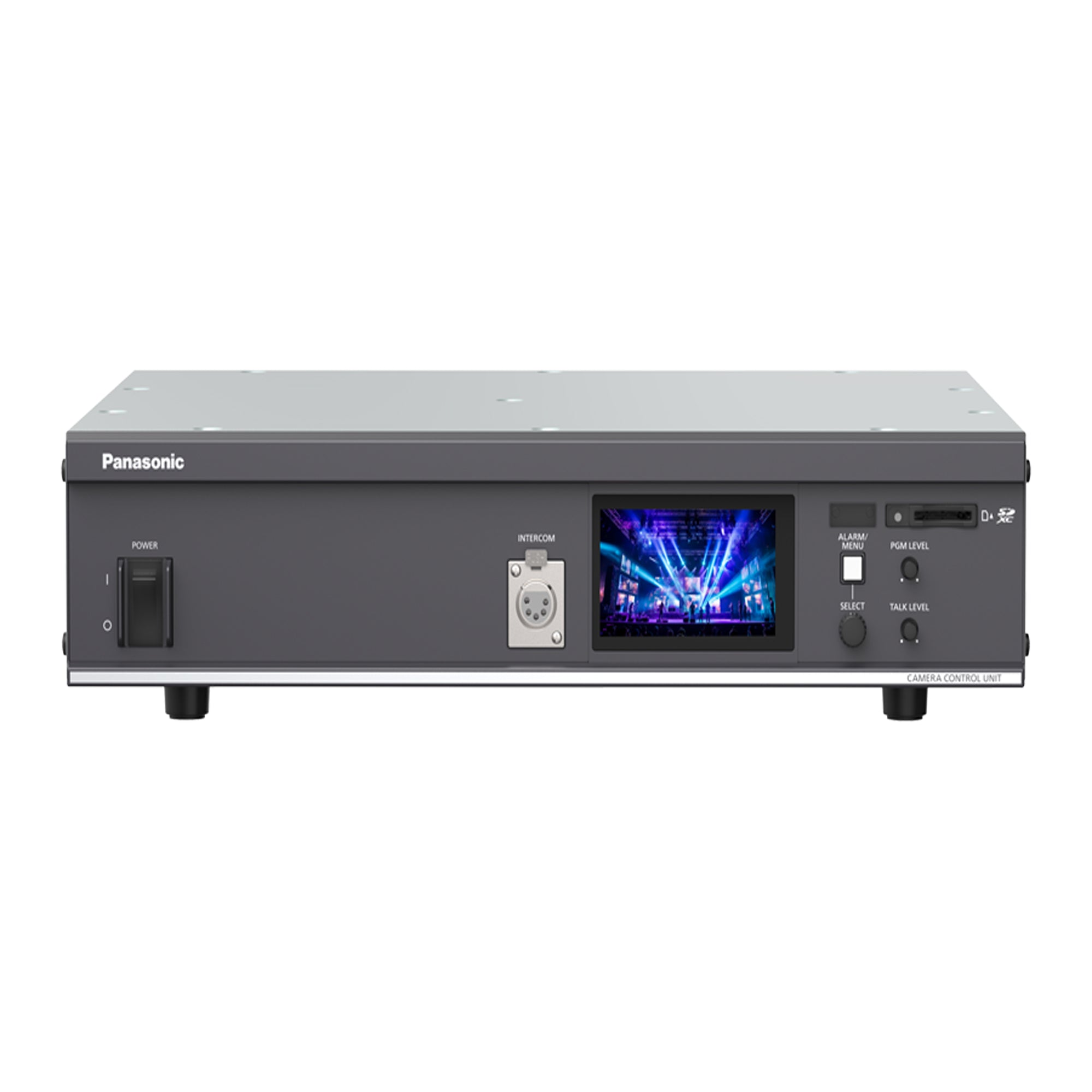

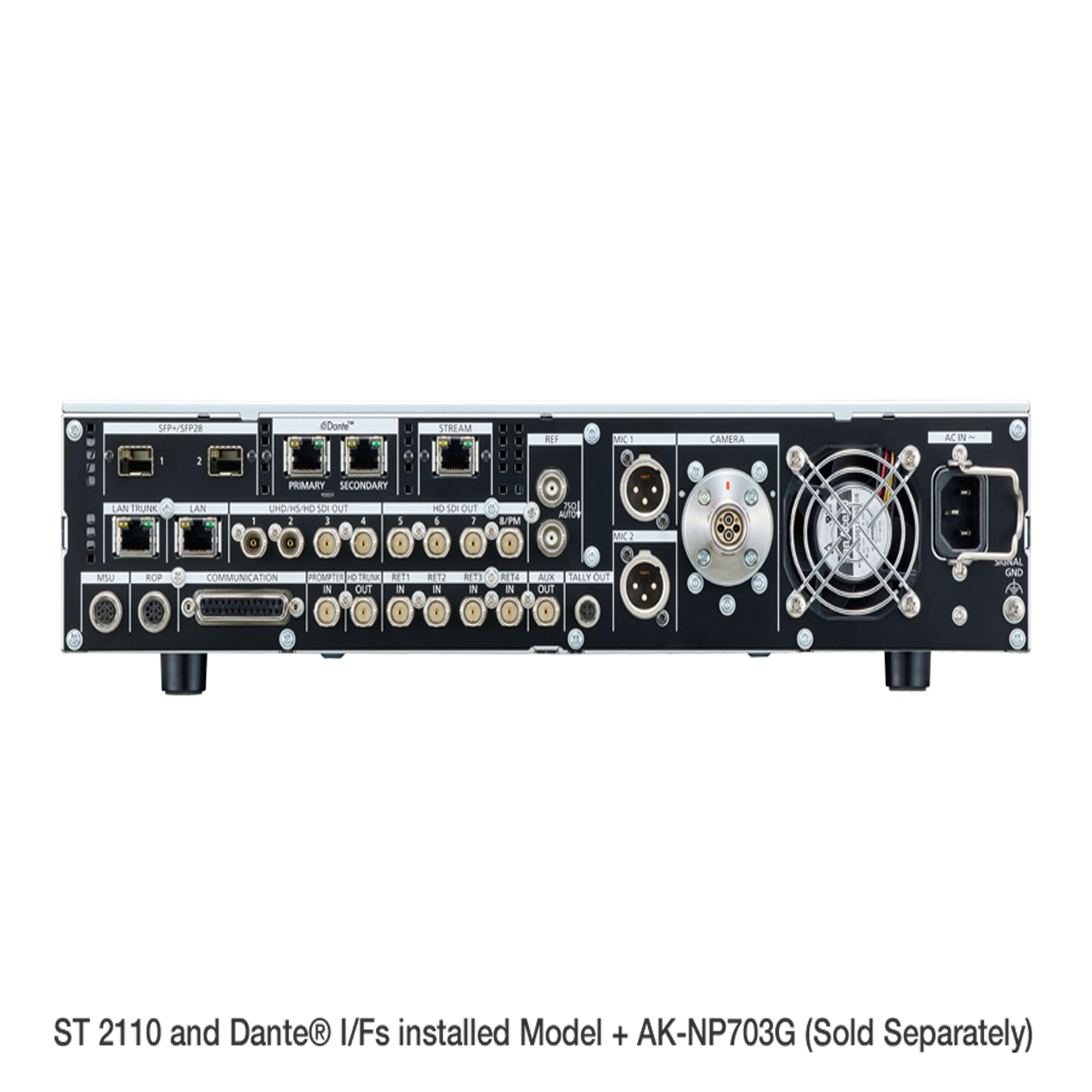

Panasonic AK-UCU710PSJ AK Studio Camera Control Unit (LEMO)

Panasonic AK-UCU710PSJ AK Studio Camera Control Unit (LEMO) is the rack-side brain for a Panasonic studio camera chain, built for real control-room workflows: power delivery to the camera, multi-line SDI I/O, return feeds, prompter trunk, sync reference, intercom, tally, and serial control. If you are building a studio or OB rack where everything needs to land cleanly in one place, this CCU is the hub.

Highlights

• High-capacity CCU power with up to 550 W consumption and AC 240 V / 1.46 A camera power capability (tolerance 5%)
• Multi-line SDI output set including 3G/HD-SDI (5 lines) plus 12G/6G/3G/HD-SDI (2 lines) for higher-bandwidth paths
• Return and prompter workflows with Return Input (4 lines) and HD TRUNK (Prompter) input (1 line)
• House sync friendly with BB / tri-level reference input and loop-through output
• Control-room integration via Intercom I/O, tally I/O, RS-422 (ROP/MSU), LAN trunk, plus a 3.5-inch touch LCD

Quick Specs & Uses

• AC Input: 100–240 V AC, 50/60 Hz
• Power Consumption: 550 W (130 W without camera connected)
• Camera Power Capability: AC 240 V (tolerance 5%), 1.46 A, 50/60 Hz
• Operating Range: 0 to 40 °C; 10% to 90% humidity (no condensation)
• Size / Weight: 424 × 88.5 × 400 mm; approx. 9.3 kg (excluding protrusions)
• Video Output: 3G/HD-SDI (5 lines); 12G/6G/3G/HD-SDI (2 lines); HD-SDI (1 line, shared with picture monitor output)
• HD TRUNK Output: 3G/HD-SDI (1 line); AUX Output: 3G/HD-SDI (1 line)
• Return Input: 3G/HD-SDI (4 lines); Prompter Input: 3G/HD-SDI (1 line)
• Reference: BB (black burst) / tri-level (1 line), automatic recognition, loop-through output
• Audio / Comms: Mic output 0 dBm/600 Ω (XLR 3-pin male, 2 lines); intercom I/O (ENG/PROD, RTS, CLRCOM), PGM input (2 lines)

Why It Helps

In a studio rack, the difference between a smooth show and a messy day is whether your camera chain lands predictably. This CCU consolidates the critical links: SDI outputs where engineering expects them, return feeds for the camera side, a dedicated prompter trunk path, reference handling with loop-through, plus the control surfaces and signaling (intercom, tally, RS-422, LAN trunk) that make the whole system feel like one coordinated rig.

System Characteristics

• Plan your power and cooling: 550 W max draw means real rack power budgeting (and it drops to 130 W without a camera attached)
• Reference matters: BB and tri-level are both supported and auto-recognized, which keeps sync setup straightforward
• Return paths are not optional: 4 lines of return input is built for multi-return camera workflows, not just a single ‘confidence’ feed
• Control cabling stays clean: RS-422 lines for ROP/MSU plus LAN trunk reduce one-off adapters and improvisation
• Front-panel usability: the 3.5-inch touch LCD is there for quick checks when you are standing at the rack

5 Quick Takeaways

• Runs on 100–240 V AC for standard facility power
• Supports higher-bandwidth SDI paths with 12G/6G/3G/HD-SDI outputs
• Built for studio camera workflows with return + prompter trunk
• Integrates with house sync via BB / tri-level reference and loop-through
• Adds control-room essentials: tally, intercom, RS-422, LAN trunk

What’s In The Box

Package contents vary by configuration. Please refer to the Specifications tab for the exact included items.
