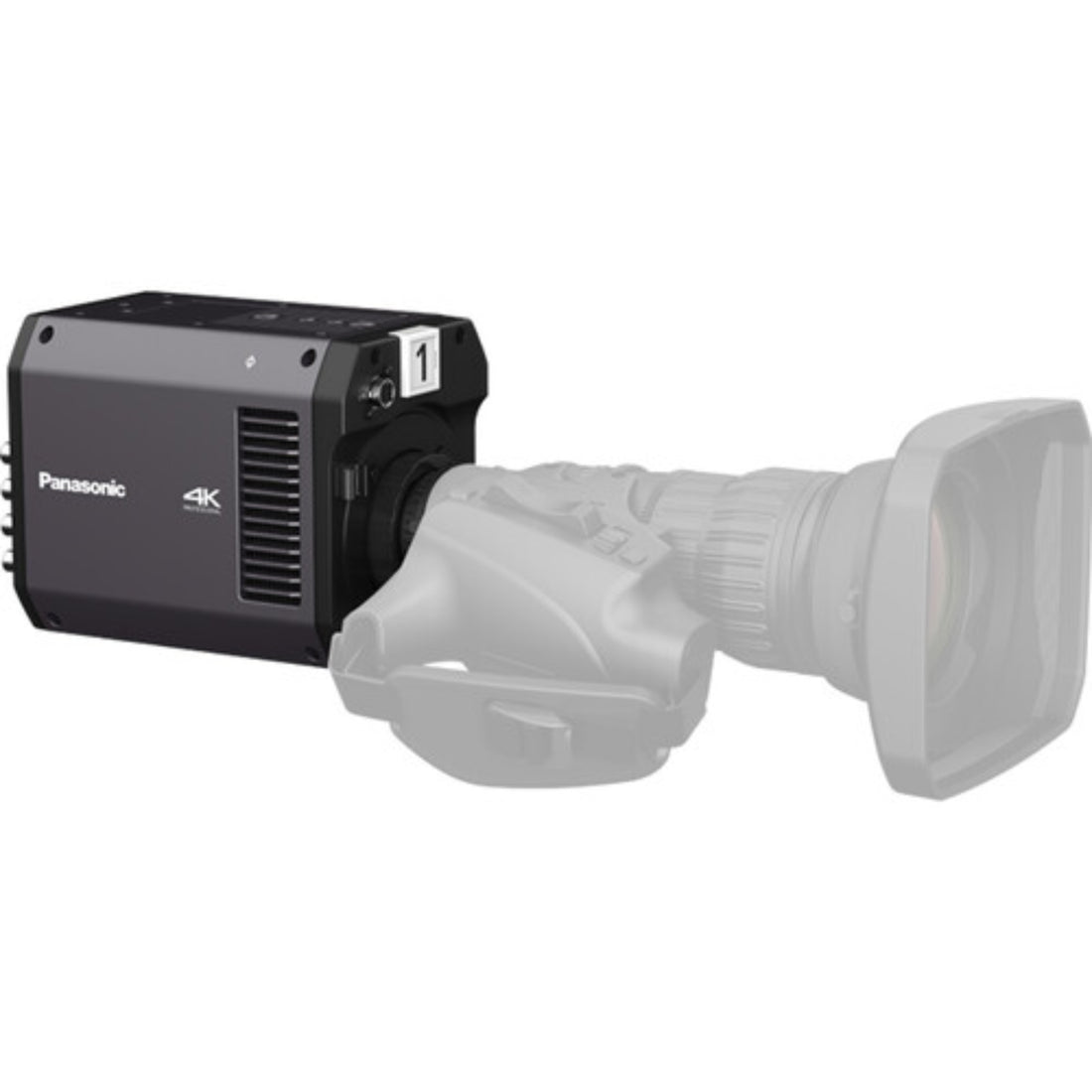

Panasonic AK-UBX100 4K Multi Purpose Camera

Panasonic AK-UBX100 4K Multi-Purpose Camera is built for productions that need a broadcast-grade camera platform in a compact box-style form. Based on the visible B&H source, it uses a 19.29MP MOS image sensor and supports up to UHD 4K60 output over 12G-SDI, making it a strong fit for high-end live production environments.

Panasonic positions the AK-UBX100 on the same platform as the AK-UCX100 studio camera, which gives it a more serious broadcast identity than a typical utility camera. It also supports SMPTE ST 2110 redundancy, NDI, and SRT, so it can fit into both traditional SDI systems and newer IP-based workflows.

Highlights

• 19.29MP MOS image sensor for detailed broadcast capture
• Up to UHD 4K60 12G-SDI output for modern live production workflows
• SMPTE ST 2110 redundancy for more resilient operation
• Supports NDI and SRT for IP-based production transport
• Compact box-style design for flexible integration

Quick Specs & Uses

• Sensor: 19.29MP MOS image sensor
• Video output: Up to UHD 4K60 via 12G-SDI
• IP support: NDI and SRT
• Redundancy: SMPTE ST 2110

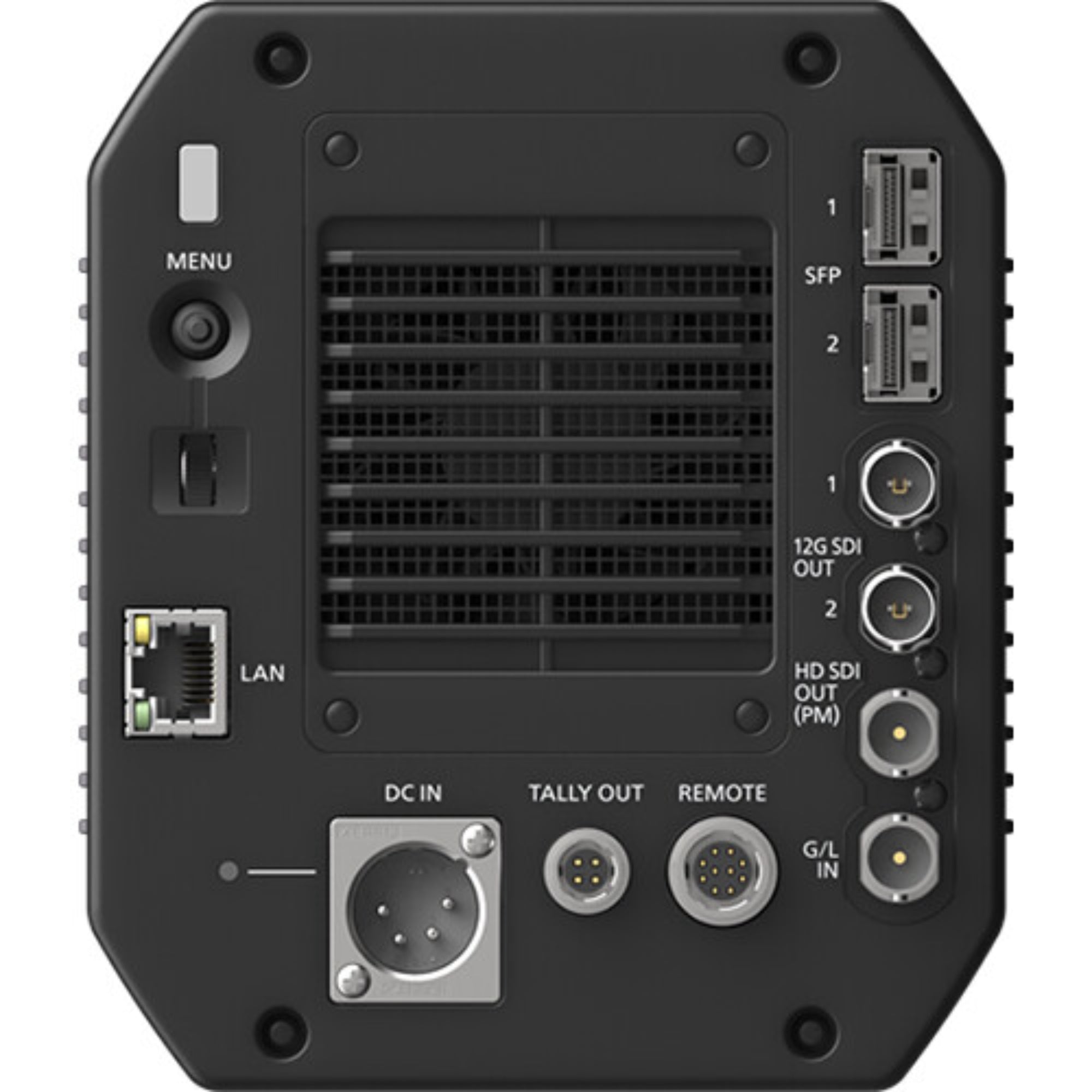

• Outputs: Fiber optic, LAN, and 12G-SDI
• Form factor: Compact box-style
• Use cases: LED walls, volume projection, sports broadcasting, and live events
• Operation: Standalone, no CCU required
• Performance note: High 2000 TV-line performance
• Frame rate: Up to 59.94 fps in UHD 4K

Why It Helps

This camera helps when you need broadcast image quality and flexible transport options without being forced into a larger studio-camera footprint. It is especially useful for installs, rigged positions, and live environments where a compact body, 4K output, and both SDI and IP workflow support all matter at the same time.

System Characteristics

• Shared platform with Panasonic AK-UCX100 gives it a stronger broadcast foundation
• 12G-SDI, fiber, and LAN output support multiple integration paths
• NDI and SRT compatibility improves workflow flexibility in IP environments
• ST 2110 redundancy supports a more robust live production operation
• Compact box design makes camera placement easier in tighter builds

What’s In The Box

1 x Panasonic AK-UBX100 4K Multi-Purpose Camera
1 x Port Cap
